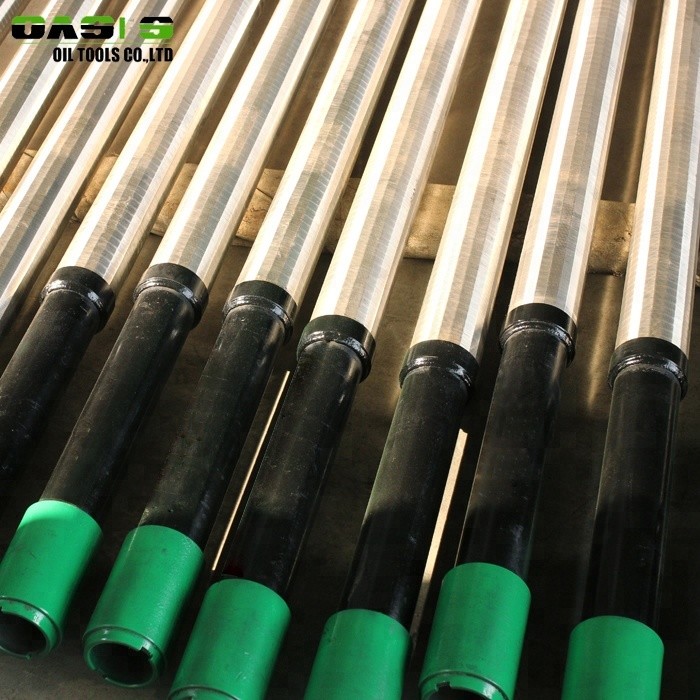

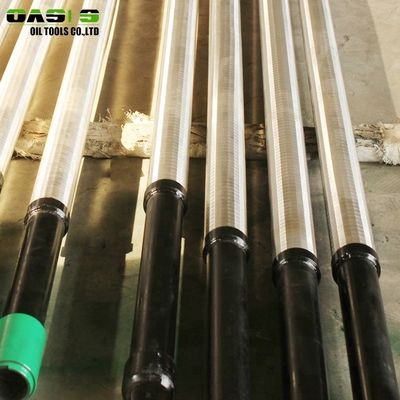

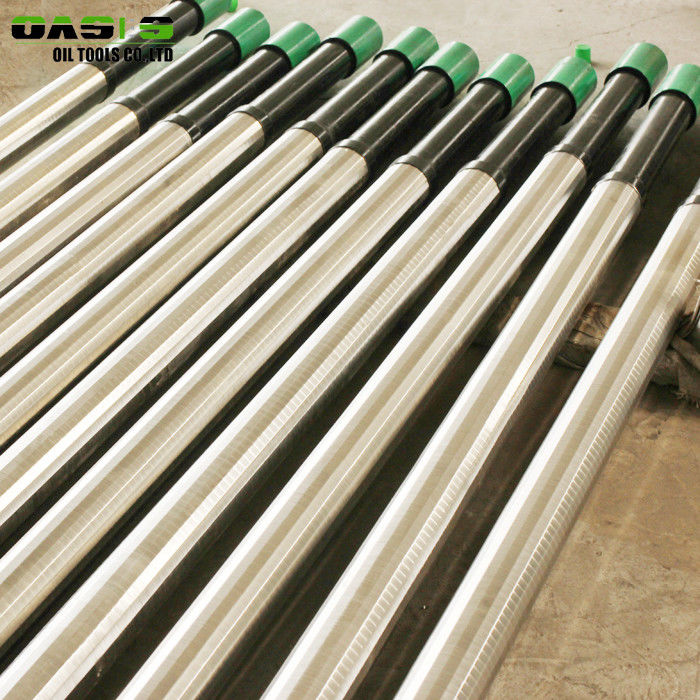

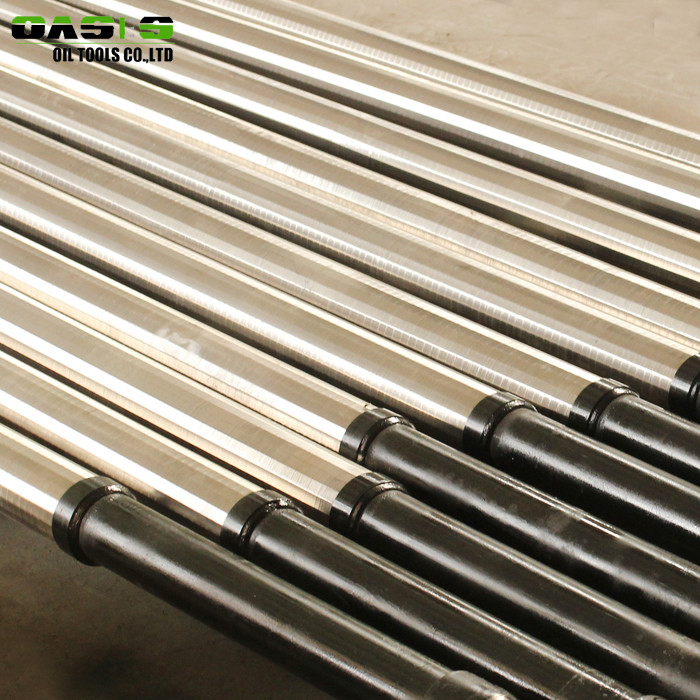

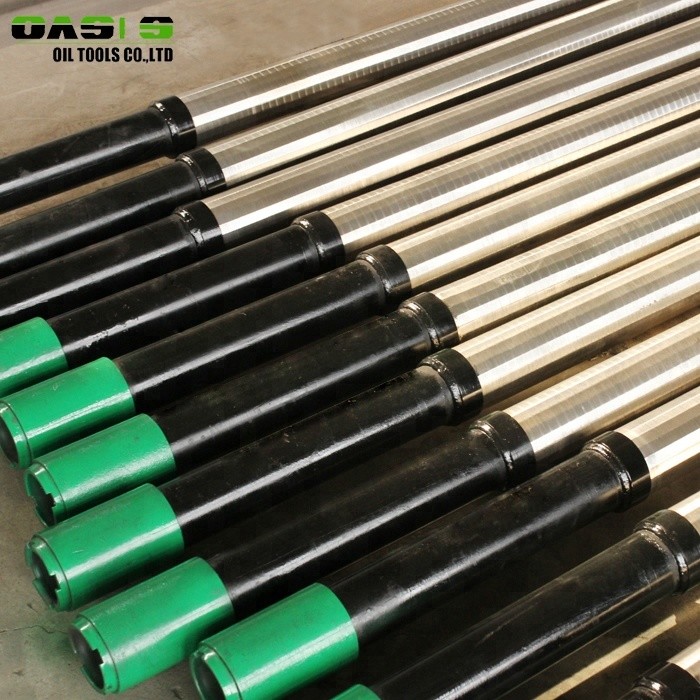

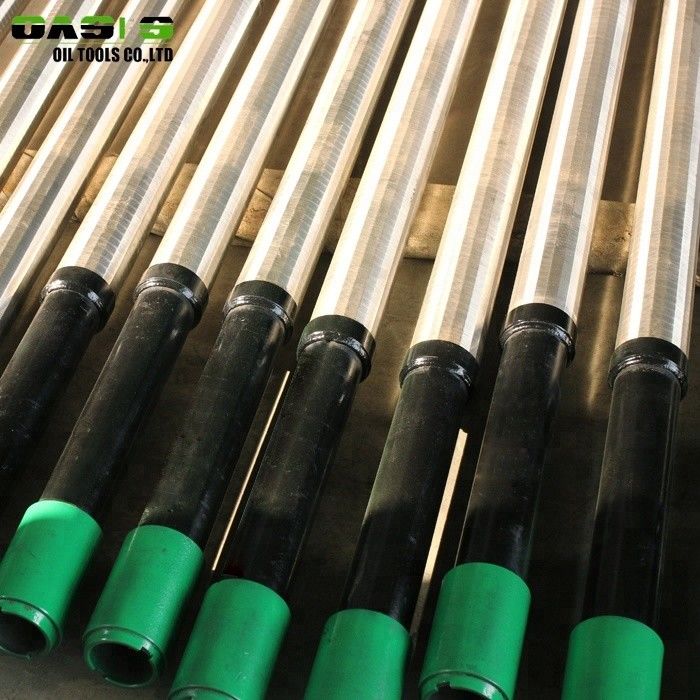

73 - 340mm Oil Well Screen Thread / Plain / Flang End Connection Smooth Surface

73 - 340mm Oil Well Screen Thread / Plain / Flang End Connection Smooth Surface
73 - 340mm Oil Well Screen Thread / Plain / Flang End Connection Smooth Surface 73 - 340mm Oil Well Screen Thread / Plain / Flang End Connection Smooth Surface 73 - 340mm Oil Well Screen Thread / Plain / Flang End Connection Smooth Surface 73 - 340mm Oil Well Screen Thread / Plain / Flang End Connection Smooth Surface 73 - 340mm Oil Well Screen Thread / Plain / Flang End Connection Smooth Surface
Basic Information
Place of Origin: xinxiang
Brand Name: OASIS
Certification: iso9001
Model Number: casing centralizer
Minimum Order Quantity: 1 pieces
Price: Negotiation
Packaging Details: Plywood cases
Delivery Time: 10 DAYS
Supply Ability: 1000PIECES /WEEK
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Type: Oil Well Screens Material: 304 304l 316l
Connection: Thread, STC, LTC, BTC Certificate: Iso9001
High Light:

oil well casing

,

filter mesh screen

Oil Well Screen



Pipe base well screen with wire wrapped johnson screen pipe jacket for deep well:

Pipe based well screens consist of base pipe, all-welded wedge wire screen and supporting rod. The base pipe is perforated or slotted API casing pipe, the base pipe can be stainless steel or carbon steel API 5CT casing. The all-welded wedge wire screens are welded together with base pipe by supporting rod.

based well screen



114mm pipe based well screen carbon steel grade for well drilling:



Material 300series, 304,304l,316, 316l
Out diameter 73-340mm
Thickness 3-12mm
Slot size 0.1-6.0mm
Wire diameter 1.5x2-3.5x6.8mm
Length up to 6m
End connection thread/plain/flang
Surface treatment galvanzied or coating
Advantage from direct factory supply

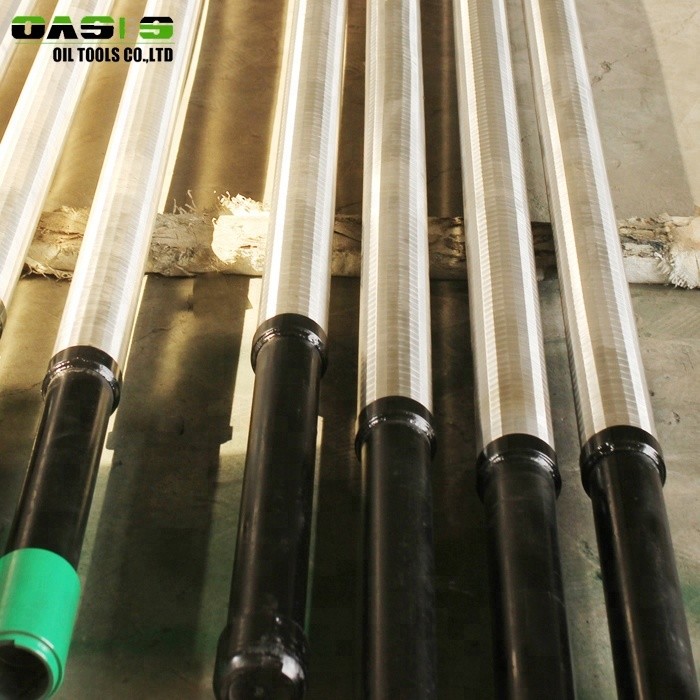

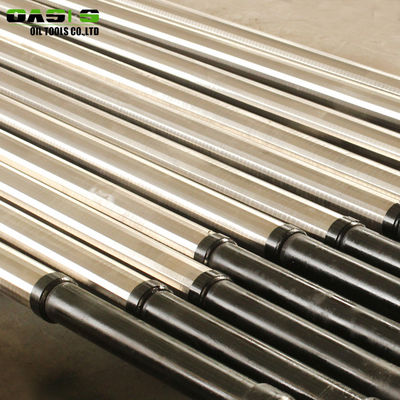

Photo shows of double layer screen, perforated based pipe and Johnson screen jacket:

based well screen

based well screen

based well screen

based well screen


It is used for sand control in wells with high pressure and high traction value due to the depths.
Having the API casing inside a wire wrap screen jacket is supporting the screen and enhance the cabapitities and high tensil strength Loads.
Pipe base can be made from API pipe Seamless casing spiral or stainless steel casing
Opening area for the base pipe is up to 15% and for the jacket is up to 40%.
Jacket slot size between 0.15mm to 15mm.



Size table of the Pipe Based Well Screens

Base Pipe
Screen Jacket
Material Stainless steel 304/304L Material Stainless steel 304/304L
Wall thickness 9.19mm or other required sizes Wire Size Width(mm): 1.50-4.00
Height(mm): 2.20- 7.00
Perforation size 12mm
16mm
19mm
Support rod Width(mm):2.30-3.70
Height(mm): 2.70- 6.30
Round(mm) : 2.50-6.0
Open area 16% or other required open area Slot 0.025inch(0.635mm) or other required size
length R1, R2, R3, Open area 20% or other required size
Connection type LTC, STC, Well depth up to more than one thousand



Features of Pipe Based Well Screens


1. High filtering accuracy: All-welded wedge wire screens as screen jacket with vee opening design makes the filtering accuracy higher, which can control sand better.
2. Excellent strength and resistance to deformation: The base pipe inside, the outside can be protected with the protection jacket added according to requirements, the integrated strength of the perforated base pipe only decreases 2-3% compared with the standard casing/oil tubing, so the pipe based well screens have enough integrated strength to resist to the pressure caused by strata. Even if some part of the well screens deformed, the slot of this part will not be widened, which makes higher sand control reliability.
3. More choices: The material of screen jacket can be stainless steel or carbon steel, the material can be chosen according to customers' requirements.
4. The smaller slot will increase the oil and gas production.
5. The excellent technique makes the mass production with high efficiency and low cost available.
6. The specifications can be customized according to customers' requirements.



Product Application of double layer screen pipe:

Heavy oil, sand oil, SAGD, CBM, bitumen.
Water injection.
Horizontal, vertical, deviated oil and gas, water wells.
Stand-alone operations, cased hole, open hole environments and horizontal completions.

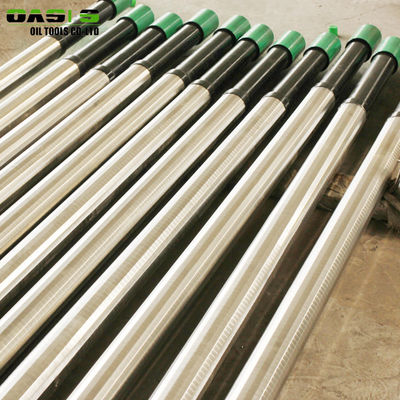

Details show of pipe based well screen:

73 - 340mm Oil Well Screen Thread / Plain / Flang End Connection Smooth Surface 5



Packing:



Each with bubble bags and then in wooden case.



Each case is clearly marked with:
Standard international package for the stainless steel well screens plate for oil filter
1. Wood package to keep the goods without the wet from the sea and the collision in the container
2. Plastics package:
Cheaper than the wood package and save more space for the goods load.
3. Woods pieces package:
Stronger than the plastic package, and cheaper than the wood package,
The best choose for the filters.



Delivery of screen jacket and based pipe:

a. Delivery port: any China port can be arranged for shipment.

b. Delivered punctually, no delay.
c. Delivery modes: by sea, air, railway and express.



Company Information

Oasis Oil Tools Co., Ltd - We are UN Supplier list.

Company 5



Advanced technology, Strict inspection process:
Oasis Oil Tools co.,ltd has 20 years experience in Water Filter Mesh Screens/Water Well Sand Filters, we strive for technical innovations to improve quality of products.Our products not only have the features of trustworthy quality, safety and energy save but also beautiful appearance and low maintanemance.

Small profits but quick turnover:
Our Production will offer you a relatively and reasonable lower price, which means our customer can get more profite with a cheap price.

Premium and comprehensive sale system:
With a comprehensive sale system including before sales service, in-sale service and after sale service, we have won a good reputation at home and abroad. Also it is a important reason why so many customer to choose us.
