Oasis Oil Tools Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | OASIS |
| Certification: | ISO9001:2008 |
| Model Number: | OA-P273 |
| Minimum Order Quantity: | 10 Meter/Meters |
| Price: | Negotiation |
| Packaging Details: | Wooden cases or pallet or bundle or container,or according to clients' requirements |
| Delivery Time: | Within 20 days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 6000 Meter/Meters per Month |
| Usage: | Liquid Filter | Type: | Filter Cylinder |
|---|---|---|---|
| Material: | Metal, Stainless Steel 304/316 | Hole Shape: | Round |
| Filter Rating: | 70%-99% | Thickness: | N/M |
| Length: | N/M | Width: | N/M |
| Product Name: | Stainless Steel 304 316L Pipe Base Screens Double Layer Wire Wrapped Screens | Shape: | Round |
| Slot Shape: | Square | Slot Size: | 0.02~15mm |
| Connection: | Welded Ends, Threaded Ends | Port: | Xingang Port,Qingdao Port, |
| High Light: | rigid mesh screen,steel wire mesh screen |
||

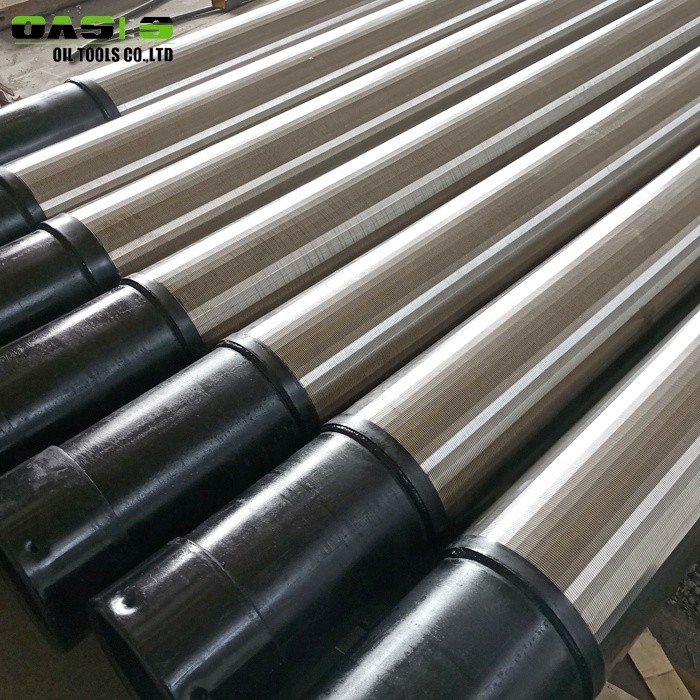

Stainless Steel 304 316L Pipe Base Screens Double Layer Wire Wrapped Screens
Pipe Based Well Screens
Pipe based well screens consist of base pipe, all-welded wedge wire screen and supporting rod. The base pipe is perforated or slotted API casing pipe, the base pipe can be stainless steel or carbon steel API 5CT casing. The all-welded wedge wire screens are welded together with base pipe by supporting rod.
Features of pipe based well screens
1. Higher filtering accuracy: all-welded wedge wire screens as screen jacket with vee opening design makes the filtering accuracy higher, which can control sand better.
2. Excellent strength and resistance to deformation: The base pipe inside, the outside can be protected with the protection jacket added according to requirements, the integrated strength of the perforated base pipe only decreases 2~3% compared with the standard casing/oil tubing, so the pipe based well screens have enough integrated strength to resist to the pressure caused by strata. Even if some part of the well screens deformed, the slot of this part will not be widened, which makes higher sand control reliability.
3. More choice: the material of screen jacket can be stainless steel or carbon steel, the material can be chosen as per customers’ requirement.
4. The smaller slot will increase the oil and gas production.
5. The excellent technique makes the mass production with high efficiency and low cost available.
