Oasis Oil Tools Co., Ltd
| Place of Origin: | Henan, China |
|---|---|
| Brand Name: | OASIS |
| Certification: | API |
| Model Number: | OA-CT178 |
| Minimum Order Quantity: | 1 Ton/Tons |
| Price: | Negotiation |
| Packaging Details: | API oil well casing is bundled or in bulk |
| Delivery Time: | WITHIN 7 DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 Ton/Tons per Month |
| Standard: | API | Standard2: | API 5CT, API 5L |
|---|---|---|---|
| Grade Group: | API J55-API P110, Q195-Q345 | Grade: | API J55, API K55, API N80, API L80, API P110, Q235, Q345, Q195, Q215 |
| Thickness: | 4 - 20 Mm | Section Shape: | Round |
| Outer Diameter(Round): | 4 - 20 Inch | Application: | Drill Pipe |
| Technique: | ERW | Surface Treatment: | Painted |
| Special Pipe: | API Pipe | Alloy Or Not: | Non-alloy |
| Secondary Or Not: | Non-secondary | Material: | J55,K55,L80,N80,P110 |
| Type: | Seamless Round Steel Pipe | Length: | R1 R2 R3 |
| Port: | Tianjin Or Qingdao | ||
| High Light: | seamless casing pipe,steel casing pipe |
||

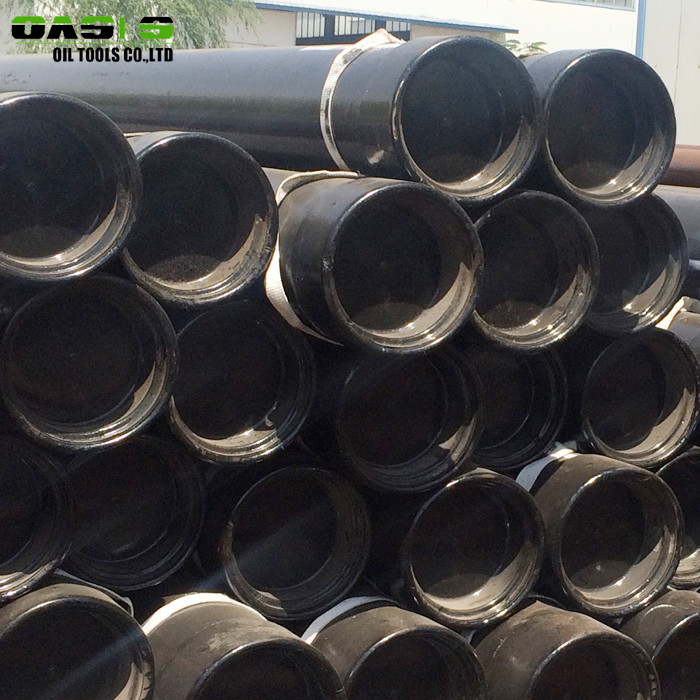

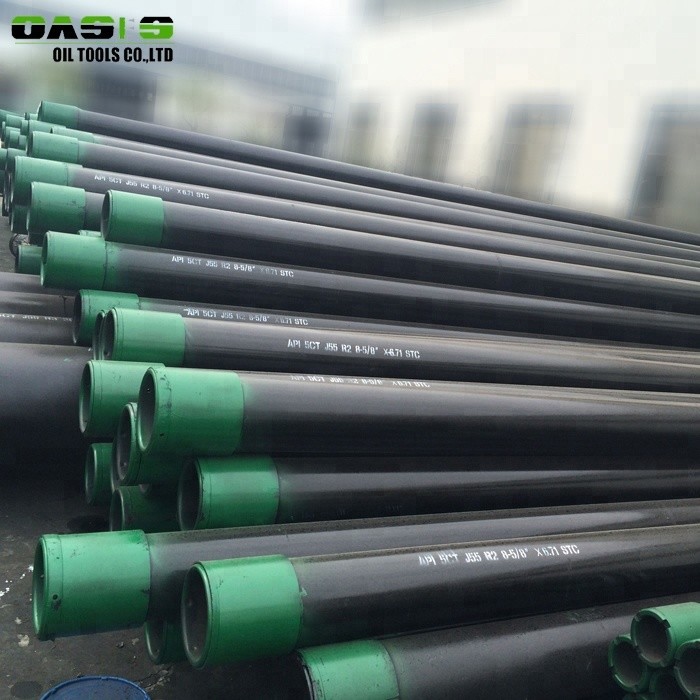

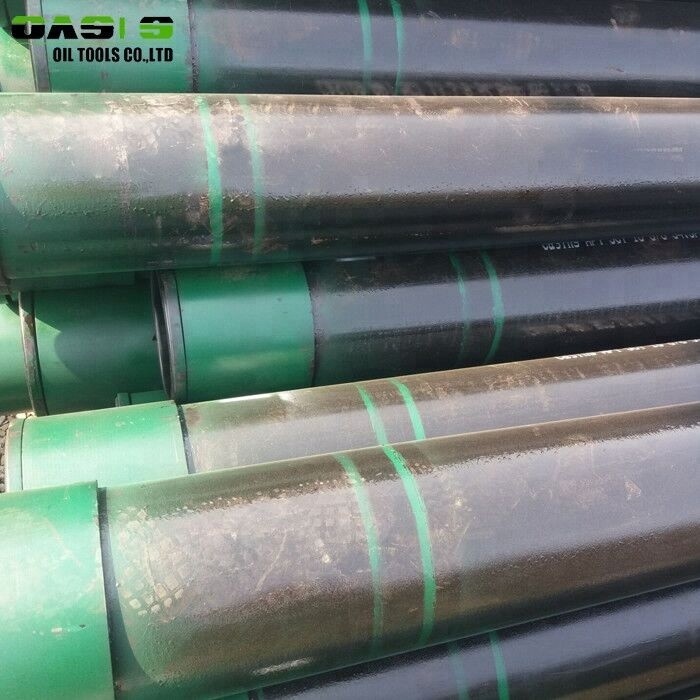

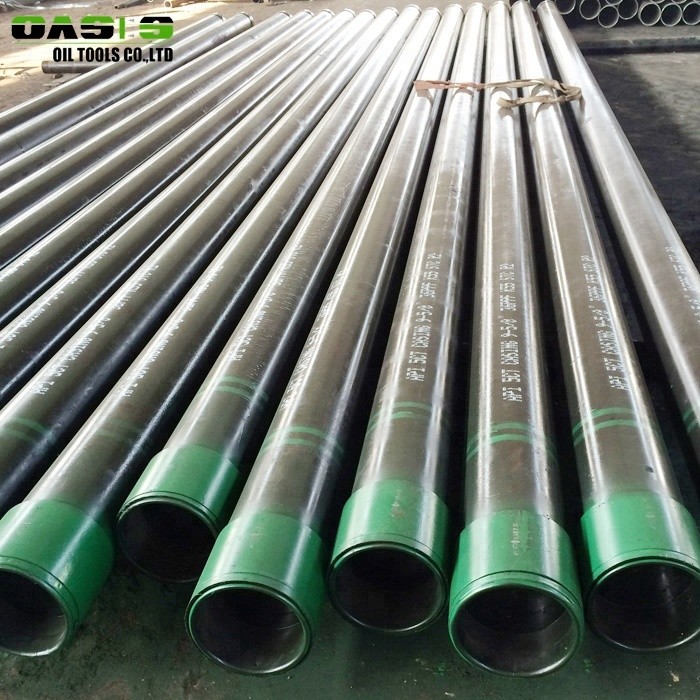

API J55 Seamless Steel Casing Round Pipe for Oil Well Drilling
API Casing and tubing are used to stabilize the well/water and oil filter, in order to make sure that the whole well can work smoothly.
Oasis Oil Tools Co.,LTD, located in the industrial park of high-tech enterprises in Fengquan District,
Xinxiang City, covers more than 20000 square meters with total RMB 15 million investment.
Oasis now has more than 150 staff, among them 6 persons are senior engineer. After many years’ efforts,
now OASIS has developed into a professional and famous manufacturer, which design, manufacture
and sell stainless steel and galvanized carbon steel water well screens /johnson screens,
oil well screens and sand control well screens, bridge slotted well screens, pipe based well
screens, perforated pipe (base pipe),gravel pre-packed well screens, wedge wire screens,
passive water intake screens, API/ISO Casing and Tubing, and other water, oil and gas well filtering products as
well as steel tubes and pipes and industrial parts.
API J55 Seamless Steel Casing Round Pipe for Oil Well Drilling
1. Material: J55,K55,N80,C75,L80,P110,ect.
2. Out Diameter: from 4 1/2" to 20"
3. Wall thickness: depends on the diameter
4. Length: R1(4.86-7.62M), R2(7.62-10.36M), R3(10.36-14.63Meters)
5. End Connection: API 5B STC,LTC,BTC
6. Surface treatment: painted, pickling, passivation

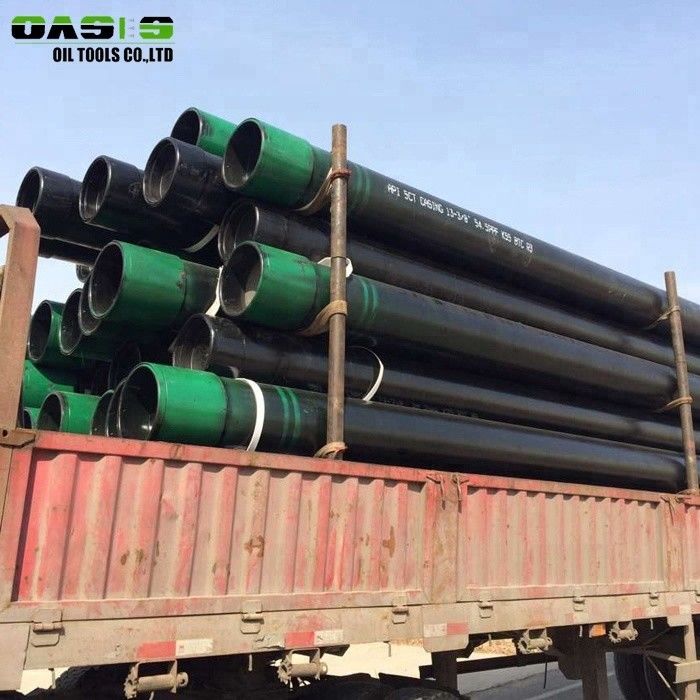

7. Packing: in bundle packed by steel strips
8. All the sizes can be produced according to the clients’ requirements
9. Third party inspection: BV,SGS or other customized organization
10. Usage: oil pipeline, industrial gas, water transportation
Specifications of API Oil Well Casing
|
Size |
Weight |
Grade |
Wall Thickness |
||
|
in |
mm |
ppf |
kg/m |
mm |
|
|
4-1/2 |
114.30 |
11.60 |
17.26 |
J55 K55 N80 |
6.35 |
|
13.50 |
20.09 |
J55 K55 N80 |
7.37 |
||
|
5 |
127.00 |
15.00 |
22.32 |
J55 K55 N80 |
7.52 |
|
18.00 |
26.79 |
N80 P110 |
9.29 |
||
|
21.40 |
31.85 |
N80 P110 |
11.10 |
||
|
5-1/2 |
139.70 |
17.00 |
25.30 |
J55 K55 N80 |
7.72 |
|
20.00 |
29.76 |
N80 |
9.17 |
||
|
23.00 |
34.23 |
N80 |
10.54 |
||
|
7 |
177.80 |
23.00 |
34.23 |
J55 K55 N80 |
8.05 |
|
26.00 |
38.69 |
J55 K55 N80 |
9.19 |
||
|
29.00 |
43.16 |
N80 |
10.36 |
||
|
9-5/8 |
244.48 |
43.50 |
64.74 |
N80 |
11.05 |
|
47.00 |
69.94 |
N80 |
11.99 |
||
|
10-3/4 |
273.05 |
40.50 |
60.27 |
H40 J55 K55N80 |
8.89 |
|
51.00 |
75.90 |
J55 K55 N80 |
11.43 |
||
|
13-3/8 |
339.73 |
54.50 |
81.80 |
J55 K55 |
9.65 |
|
68.00 |
101.19 |
J55 K55 N80 |
12.19 |
||
|
16 |
406.40 |
65.00 |
96.73 |
J55 K55 N80
|
9.53 |
|
75.00 |
111.61 |
11.13 |
|||
|
18-5/8 |
473.10 |
87.50 |
130.21 |
J55 K55 N80 |
11.05 |
|
20 |
508.00 |
94.00 |
139.89 |
J55 K55 N80 |
11.13 |
|
106.50 |
158.49 |
12.70 |
|||
Any interest in our API 5CT J55 seamless casing pipe,please do not hesitate to contact me, and let me know the OD,
wall thickness or weight, connection, length and quantity, then i will send you the formal quotation.
