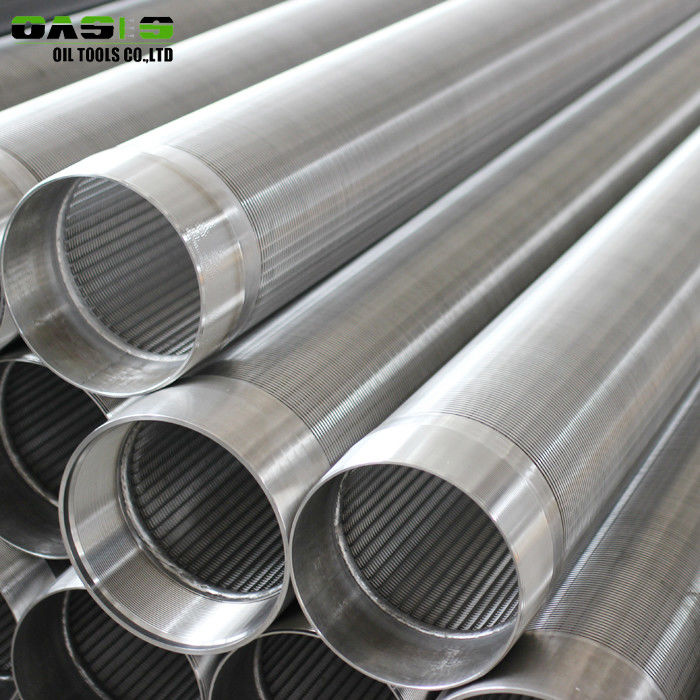

Metal Fiber Screen Pipe In Borehole , Welding End Connection Wedge Wire Filter

Name: Metal Fiber Screen Pipe In Borehole , Welding End Connection Wedge Wire Filter
Brand: OASIS
SKU: OASIS
Rating: 4.6 (169 reviews)

Basic Information

Place of Origin:	Henan, China
Brand Name:	OASIS

Minimum Order Quantity:	10 Meter/Meters
Price:	Negotiation
Packaging Details:	OASIS Stainless Steel Wire Wrapped Screen are packed with woven bags/bubble bags, or then with wooden strip; in bundle or unbundle; according to customers' requirements
Supply Ability:	10000 Meter/Meters per Month small amount of wire wrapped screen is accepted

Get Best Price Contact Now

Usage:	Liquid Filter	Type:	Filter Cylinder
Material:	Metal Fiber	Hole Shape:	Round
Filter Rating:	99%	Thickness:	80-1000um
Length:	Customize Length, 1-6m Or Customized	Applicable Industries:	Water Well Drilling
Width:	Require	Product Name:	OASIS OEM Wire Wrapped Screen
Other Name:	Rod Base Screen, Water Well Screen, Stainless Steel Screen	Certificate:	ISO9001, COC, PVOC, CO, FORM A/E
Application:	Liquid Filter	Feature:	Corrosion Resistance
Weave Style:	Plain Weave	Technique:	Woven Wire Mesh
Mesh Count:	2-635 Mesh	Port:	China's Major Port Such As Dalian Port, Qingdao Port, Shanghai Port, Shenzhen Port
Highlight:	cylindrical wedge wire screens , screen pipe in borehole

AISI304L Continuous Slot Screen

Product Description

Description of OASIS AISI304L Continuous Slot Screen for Horizontal Well

OASIS Stainless Steel Wire Wrapped Screen are manufactured by a or v wedge shaped wire around an internal array of the longitudinal support rods. The world-advanced and all-weld technology is used with each interesting point of these wire fusion welded, which creates the robust construction and the excellent mechanical performance. The v or wedge shaped profile wire wraps around support rods over full length of the screen creating a continuous slot opening, hence the screen allows water(oil) to enter your well freely in ample quantities, while at the same time keeps majority of sand and gravel out of the well. The slots can be changed according to different strata.

The Stainless Steel Wire Wrapped Screen consist of V-shape profile wire and the longitudinal support rods. Each intersecting point of these wires is fusion welded, so Johnson type screen / sand control wedge wire screen / stainless steel mesh filters has sturdy constriction and the good mechanical property. The V-shape section plane can avoid the blockage and make sure of the unimpeded water. The consecutive slot have more open area, and it can reduce the speed of water entering to avoid the sand entering the Johnson type screen / the sand control wedge wire screen / stainless steel mesh filters under the great pressure, so it can filter sand better. Meanwhile, the slot of Johnson type screen / sand control wedge wire screen / stainless steel mesh filters can change according to the real condition of the earth.

Specifications of OASIS AISI304L Continuous Slot Screen
Material	carbon steel or stainless steel (304,304L,316,316L etc.)
Diameter	30-1500mm /(114.3mm- 4 1/2",168.3mm-6 5/8", 219.1mm- 8 5/8", 244.5mm- 9 5/8", )
Slot Size	0.03, 0.10, 0.15, 0.2, 0.25, 0.30-5mm or as per customers' requirement
Unit Length	1- 6m, 5.8m fit for the container
Slot Wire	2.2 X 3.5mm, 2.2 x 4.5mm, 3.5mm x 4.5mm,4.5x2.5mm
Open Area	up to 40%
End Connection	welding (beveled end), thread coupling(STC,LTC,BTC) or flange or sealed
Surface Treatment	painted, polish, packiled and passivation, etc.
Packing	bubble bag and woven bag, in bundle or unbundle or in wooden cases.
Note	wires,rods, and slot sizes can accord to customers' requiremnets

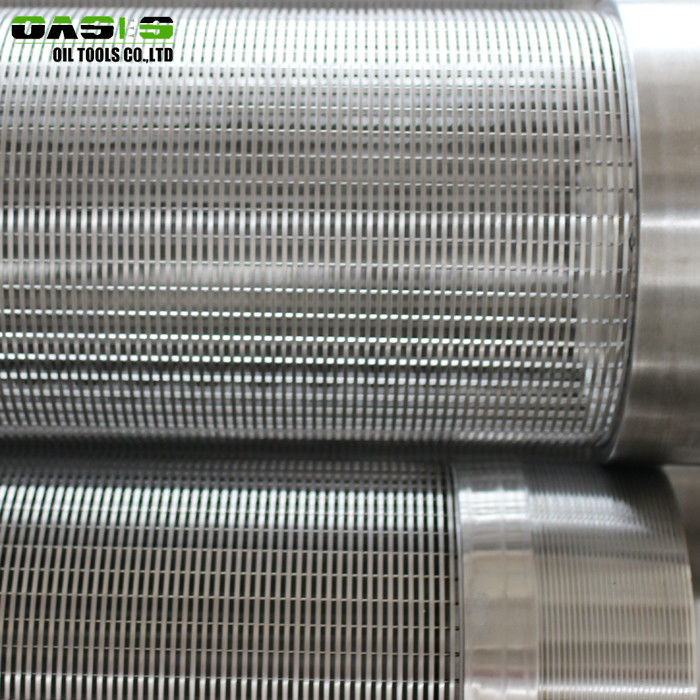

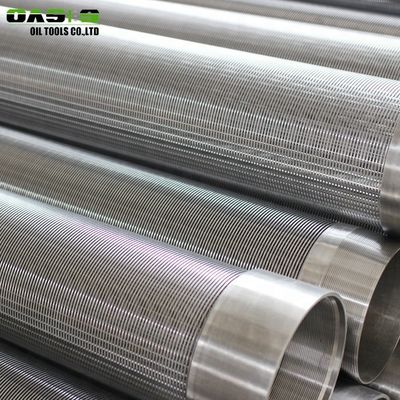

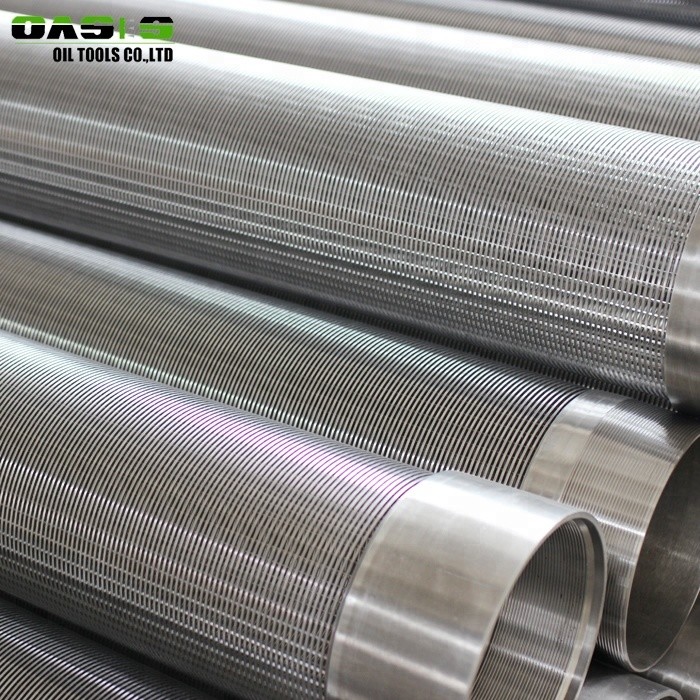

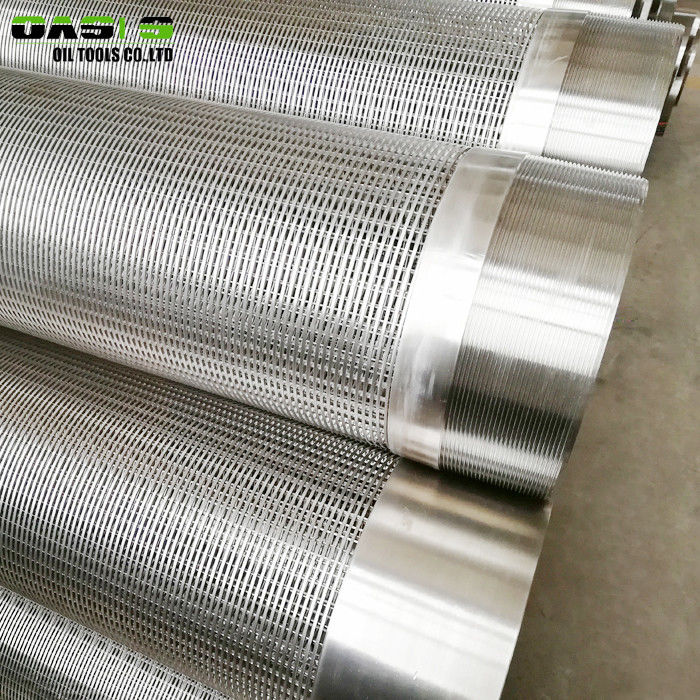

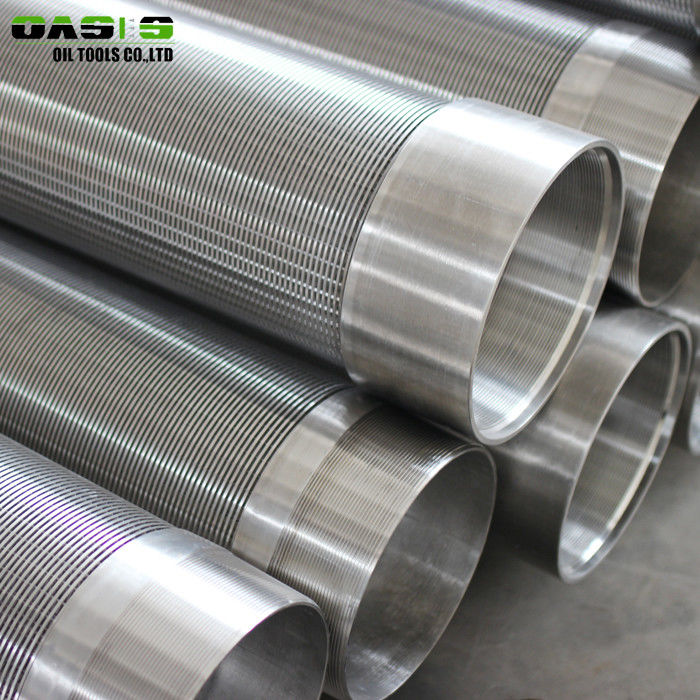

detailed images of wire wrapped screen

Advantages

Advantages of OASIS Wire Wrapped AISI304L Continuous Slot Screen

1. Better filter function

The V-shape section plane of Johnson type screen / sand control wedge wire screen / stainless steel mesh filters creates the continuous slot, which can avoid blockage and make sure of the unimpeded water.

2. Prolong life of well

The consecutive slot of Johnson type screen / sand control wedge wire screen / stainless steel mesh filters have wider open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can control sand better, which can increase the water yield and prolong service time of the well.

3. Long service life

Wire and support rods are all-welded, which makes Johnson type screen / sand control wedge wire screen / stainless steel mesh filters more robust and longer life.

4. High pressure-resistant

The longitudinal support rods and the continuous slot make Johnson type screen / sand control wedge wire screen / stainless steel mesh filters have more excellent pressure-resistant performance.

5. Customized

Specifications and end connections of Johnson type screen / the sand control wedge wire screen / stainless steel mesh filters can be fabricated according to customers' requirements.

Inspection

Inspection of OASIS Wire Wrapped Screen

1. All Dimensions of Johnson type screen / sand control wedge wire screen / stainless steel water well screen will be checked by our quality inspector, and they also can be inspected by Third Party Inspections or representative appointed by buyer.

2. Wall thickness of coupling material is inspected by Ultrasonic inspection method, and they also be made the Ultrasonic flaw detection

3. Do Destructive Collapse Test and collapse Strength Test before shipment.

4. If required, the screens will be made pickling and passivation.

5. The whole manufacturing process can be monitored by Third Party Inspection Company (BV, SGS, Intertek )and representative appointed by buyer.

6. The screens will be arranged the Pre-shipment Inspection if required.

Packing & Delivery

Packing details: (a) Rod Base Screens are packed with bubble bags or woven bags,

(b) wedge wire screens are packed according to customers' requirements

Delivery details: (a) Johnson type screenare delivered by sea/air/railway/express, etc

(b) Johnson type screen are delivered within 30 days after receiving payments

bubble bags woven bags bubble bags with wooden strips

by train by sea by air
