OD 6 5 / 8 Inch Well Pump Filter Screen , High Performance Wedge Wire Mesh

OD of 6 5/8 inch Stainless Steel Water Well Sand Control Screens

Company information about we OASIS:

Oasis Oil Tools Co.,LTD, located in the industrial park of high-tech enterprises in Fengquan District, Xinxiang City. Since founded, OASIS always adhere to the "development on innovation, development on efficiency and treat customers with honesty" business philosophy. After many years' efforts, now OASIS has developed into a famous manufacturer which integrates the research and development, design, manufacture and sell water well screens/johnson screens, oil well screens and sand control well screens, bridge slotted well screens, pipe based well screens, perforated pipe (base pipe), gravel pre-packed well screens, wedge wire screens,  passive water intake screens etc. water, oil and gas well filtering products as well steel tubes and pipes and industrial parts.

Best quality issued by BV, SGS, MOODY, etc.
We Oasis is in the list of the UN suppliers.

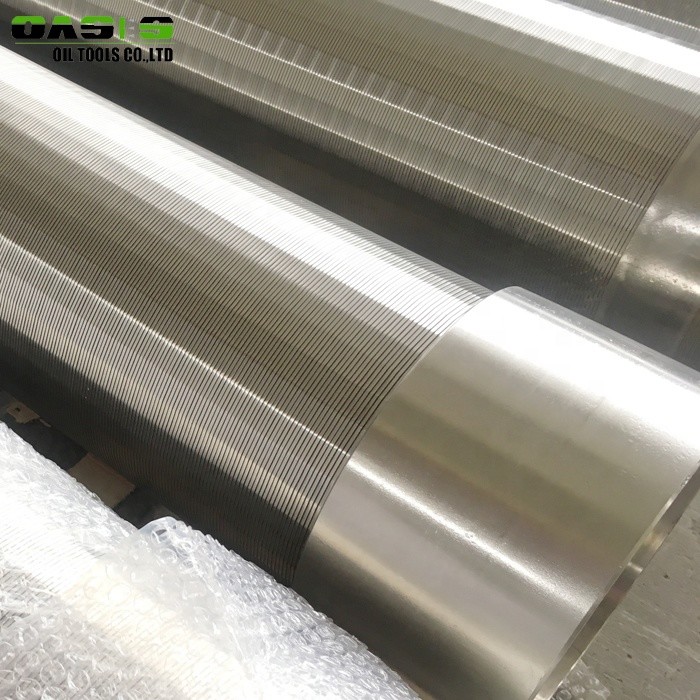

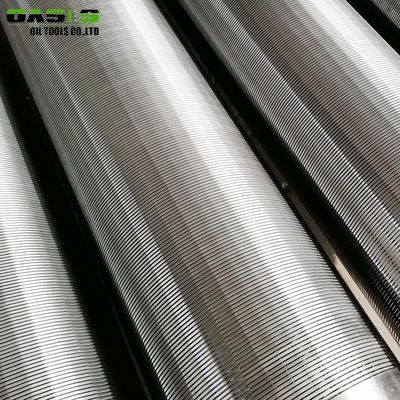

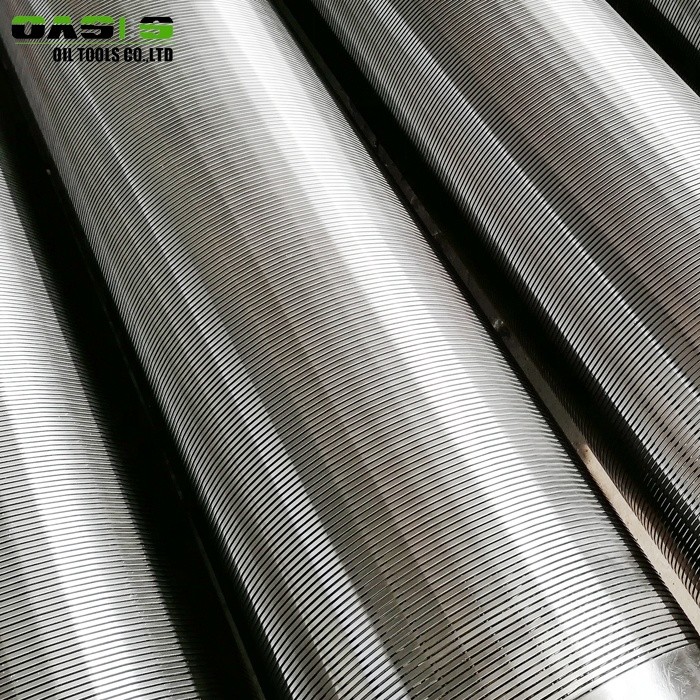

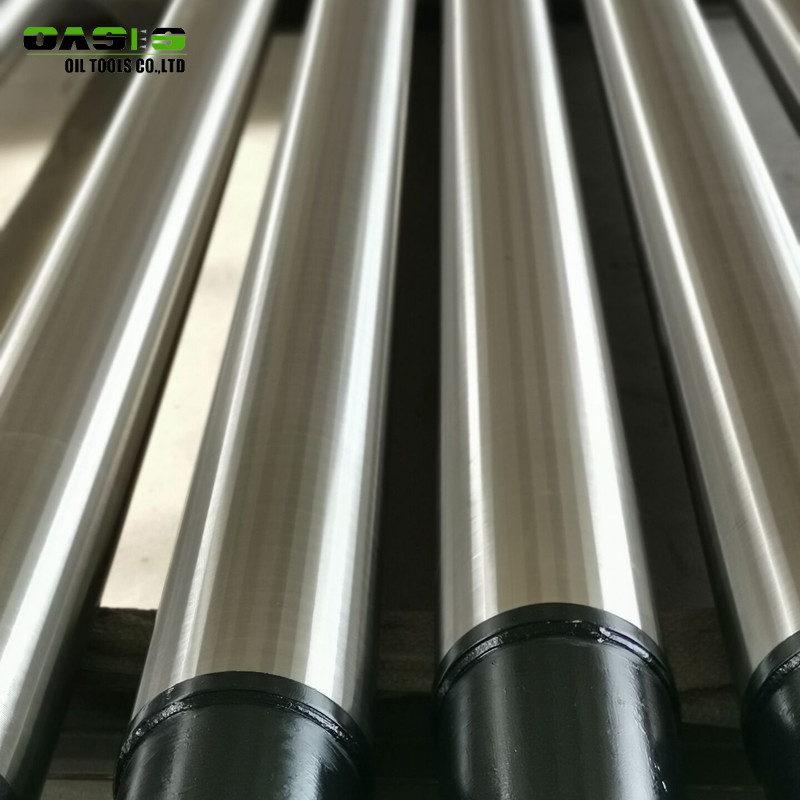

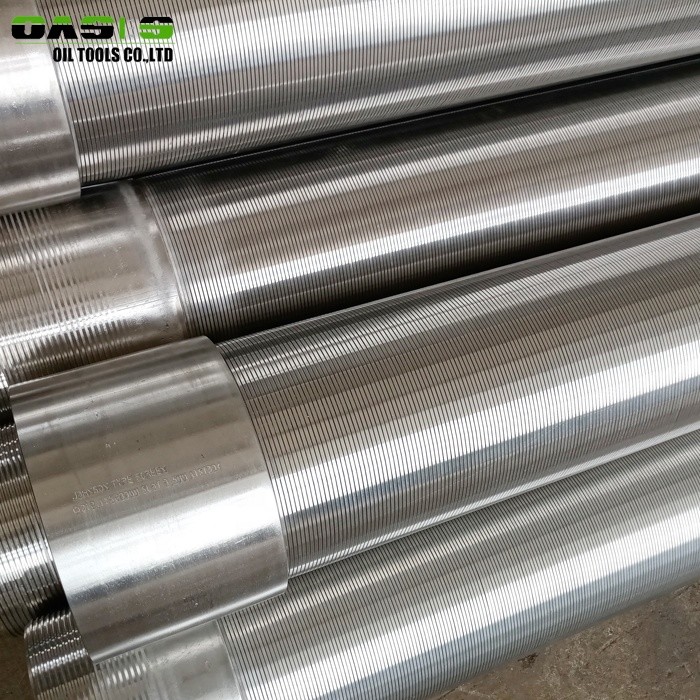

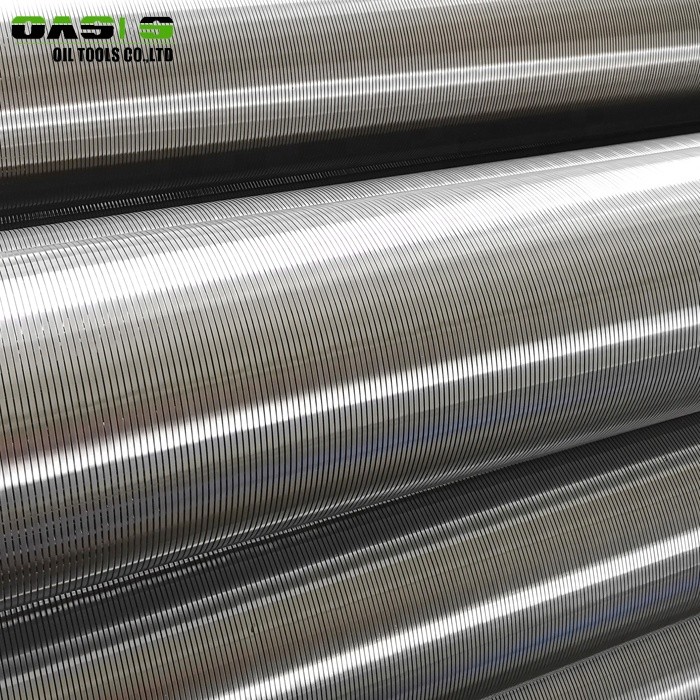

6 5/8" Stainless Steel Water Well Sand Control Screens

Stainless steel water well sand control screen combines stainless steel casing with continuous slot well screens for additional strength in deep well applications. The pipe strength allows smaller wrap wires to be used, allowing for greater open area.

Features:

Higher Collapse resistance.

Higher Load Strength.

Easily controlled open area for regulated flow rates.

Threaded Fittings in any specifications required.

Base pipes can be manufactured using stainless steel grades series or API 5CT carbon steel casing.

The pipe based well screens are recommended when high collapse resistance is required and when the screens’ length generates a high longitudinal constraint. The pipe strength allows smaller wrap wires to be used, yielding greater open area.

OASIS oil tools use prime pipe, thoroughly cleaned and de-burred after perforating.

Material: 201 304 304L 316 316L

Another name: Multilayer screen

Screen jacket: Johnson type screen

Base pipe: Perforated pipe on API casing and tubing or stainless steel pipes

Connection type: STC, LTC,BTC threaded couplings

Bubble bag, wooden pieces wrapped the Johnson screens

Screen jacket  base pipe

Multilayer well screen pipes are used for oil and water exploiting

Characteristics:

Water well sand control screen consists of two screens or multilayer screens

Perforated pipe inside ,with perforations wrapped by the outside Johnson type screen

The screen jacket and base pipe are welded together with a length of coupling

The base pipe can be made of seamless pipe or welded pipe, and more often, casing pipes

ID of Johnson type screen equals OD of the perforated pipe

Package of water well sand control screen:

 Single with bubble bag and then in wooden case(fumigation certificate).

ISO9001:2008 Certificate:

If you are interested in our stainless steel water well sand control screens,please contact with us for more information.
