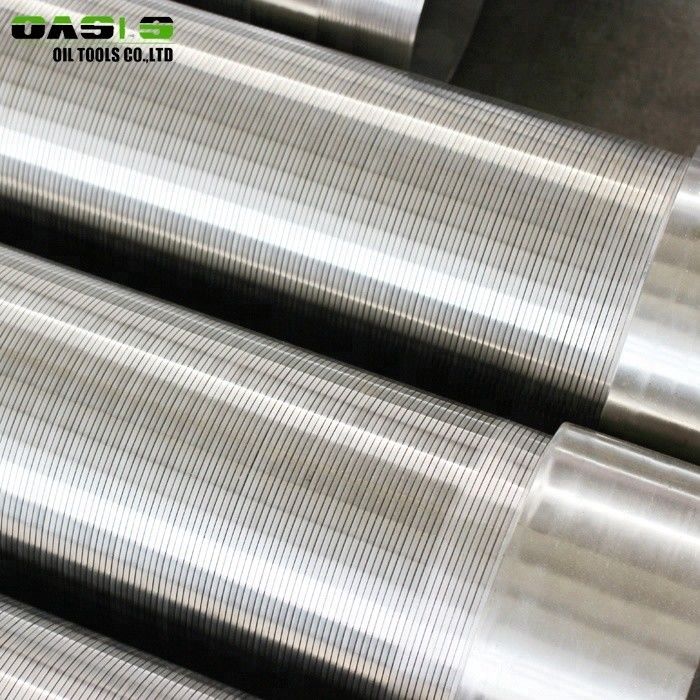

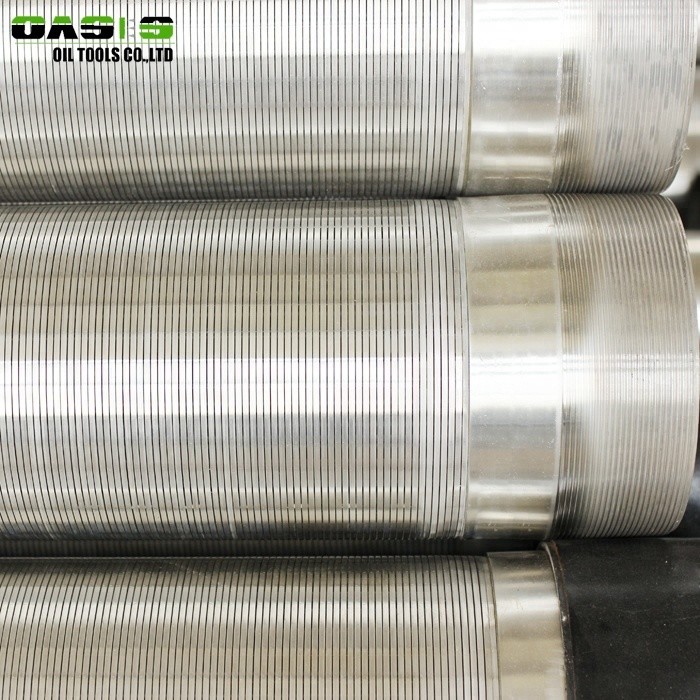

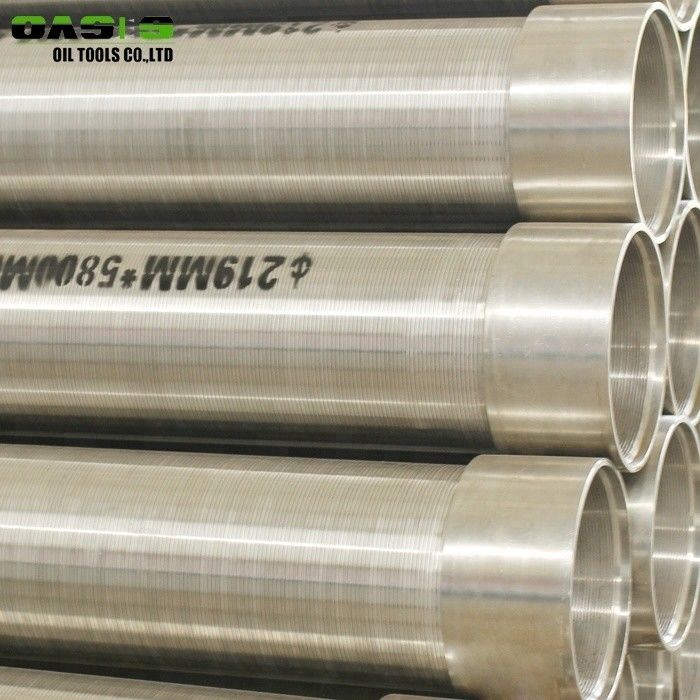

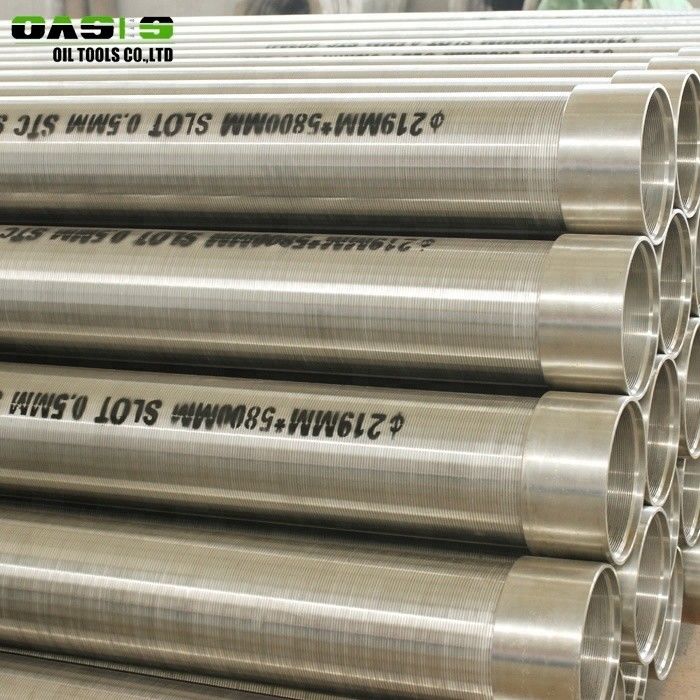

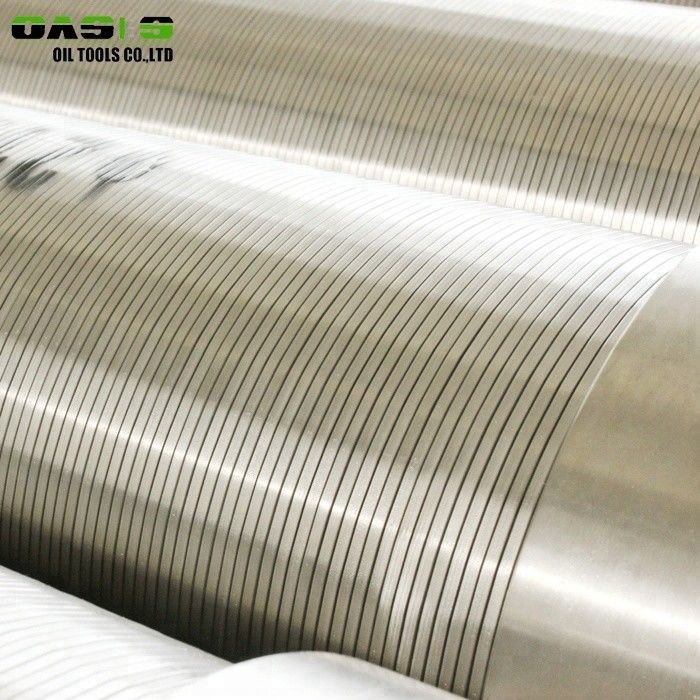

304 / 316 Stainless Steel Screen Pipe In Borehole , Oil / Water Filtration Device

304 / 316 Stainless Steel Sand Control Screens and Oil/Water Filter

Stainless Steel Sand Control Oil/Water Filter

Oasis Oil Tools Co.,LTD, located in the industrial park of high-tech enterprises in Fengquan District, Xinxiang City, covers more than 20000 square meters with total RMB 15 million investment. Oasis now has more than 150 staff, among them 6 persons are senior engineer. Since founded, OASIS always adhere to the “development on innovation, development on efficiency and treat customers with honesty” business philosophy. After many years’ efforts, now OASIS has developed into a famous manufacturer which integrates the research and development, design, manufacture and sell water well screens/ Johnson screens, oil well screens and sand control well screens, bridge slotted well screens, pipe based well screens, perforated pipe (base pipe), gravel pre-packed well screens, wedge wire screens, passive water intake screens etc. water, oil and gas well filtering products as well steel tubes and pipes and industrial parts.

Sand control oil/water filter are also know as Johnson type well screen, wedge wire screen, well screen, wire wrapped well screen, v shaped water well screen, continuous slot well screen, sand control well screen.

The v or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water(oil) to enter your well freely in ample quantities, while at the same time keeps the majority of sand and gravel out of the well. The slots can be changed according to different strata.

The specifications and the slot sizes can be designed and fabricated according to your special requests.

Unit length up to 6m

Slot size 0.10-6.00mm

Material: carbon steel, low carbon steel, galvanized steel,stainless steel(304,304L,316,316Letc)

Connection type: welded, threaded coupling or flanged, as per your special request.

Featurers: More open area, precise openings, easier installation, long-term operating.
