Smooth 16 " Stainless Steel Well Screen , No Burrs Schedule 40 Perforated Pipe

Smooth 16 " Stainless Steel Well Screen , No Burrs Schedule 40 Perforated Pipe
Smooth 16 " Stainless Steel Well Screen , No Burrs Schedule 40 Perforated Pipe Smooth 16 Smooth 16 Smooth 16 " Stainless Steel Well Screen , No Burrs Schedule 40 Perforated Pipe Smooth 16 Smooth 16 Smooth 16 " Stainless Steel Well Screen , No Burrs Schedule 40 Perforated Pipe Smooth 16 Smooth 16 Smooth 16 " Stainless Steel Well Screen , No Burrs Schedule 40 Perforated Pipe Smooth 16 Smooth 16 Smooth 16 " Stainless Steel Well Screen , No Burrs Schedule 40 Perforated Pipe Smooth 16 Smooth 16
Basic Information
Place of Origin: Henan, China
Brand Name: OASIS
Certification: API
Model Number: OA-P219
Minimum Order Quantity: 1 Meter/Meters
Price: Negotiation
Packaging Details: perforated steel casing pipes are packing by bubble bag, wooven bag or according to your requirements.
Supply Ability: 25000 Meter/Meters per Month
Get Best Price Contact Now
Standard: API Standard2: API 5L
Grade Group: 10#-45# Grade: 20#
Thickness: 1 - 12 Mm Section Shape: Round
Outer Diameter(Round): 21.3 - 508 Mm Application: Fluid Pipe
Technique: ERW Surface Treatment: Pickling
Special Pipe: API Pipe Alloy Or Not: Non-alloy
Secondary Or Not: Non-secondary Products Name: 16" Stainless Steel Perforated Casing Screen Pipe For Well Drilling
Hole Size: 9mm, 11mm, 16mm, Or Customized Open Area: 11.5%
Usage: Water/oil Well Drilling Inspection: BV, SGS, Intertek
Port: Tianjinxingang And Qingdao Port
High Light:

perforated stainless steel tube

,

perforated metal pipe

16" Stainless Steel Perforated Casing Screen Pipe for Well Drilling



OASIS Company Profile:

Oasis Oil Tools Co., Ltd, is a famous manufacturer which integrates the research and development, design, manufacture and sell water well screens/johnson screens/wedge wire screen/rod base screen/continuous slot screen/non-inforced Johnson screen, oil well screens and sand control well screens, bridge slotted well screens, pipe based well screens/perforated base pipe with screen jacket/pipe base screen/reinforced Johnson type screen, perforated pipe (base pipe), gravel pre-packed well screens, passive water intake screens etc. water, oil and gas well filtering products as well as API/Stainless Steel Casing& Tubing and pipes and industrial parts.

Smooth 16 " Stainless Steel Well Screen , No Burrs Schedule 40 Perforated Pipe 0

Details of  16"Stainless Steel Perforated Casing Screen Pipe for Well Drilling:

1.  Our perforated casing pipe uses stainless steel or J55/K55/N80/L80 casing and tubings of API standard, with high overall strength, not so easy to deformation.

2.  The hole is uniform and smooth, without burrs.

3.  The whole pipe will be anticorrosion treated and form a protective covering. It can effectively improve the resistance to corrosion and abrasive resistance of the pipe, prolong the working life underground.

4.  It’s easy to operate and convenient to use.

5.  The hole sizes and numbers can be custom designed.





Product Name Stainless Steel Perforated Casing Screen Pipe for Well Drilling
Welding Technique Electric Resistance Welding(ERW)
Standards API 5CT, API5L, ASTM A312,ASTM A409,etc
Payment Terms L/C at sight,D/P,Western Union, MoneyGram acceptable, T/T preferred
Application chemical industry and building, construction foundation piles, steel structure building, for low-pressur fluid service.
Additional Fabracation plain ends pipe,cutting threading, beveled, black and color painting, anti-rusting oilsteel pipe, varnish paintingsteel pipe, zinc-coating steel pipe, steel stamp, drilling, diameter reducing pipe etc.
Zinc Coated According to your customers requests
Supply Experience 5 years
Business Type Manufacturer
Cooperation Shipowner MSK, CMA, COSCO, NYK, OOCL, HPL, YML, MOL
Remarks

We can do according to our customers requests!
All kinds of steel hollow pipes can be provided.
Don't hesitated to contact us.



Engineering Drawing of Stainless Steel Perforated Casing Screen Pipe for Well Drilling:

Smooth 16 " Stainless Steel Well Screen , No Burrs Schedule 40 Perforated Pipe 1

Specifications of Stainless Steel Perforated Casing Screen Pipe for Well Drilling:

Pipe size(inch)

 Holes per (feet)

 Size of hole(inch)

Perforated Area per feet

3/4”

78

3/16”

2.15

1”

54

5/16”

4.14

1-1/4”

66

5/16”

5.06

1-1/2”

78

5/16”

5.06

2-1/16”

78

5/16”

5.98

2-3/8”

90

3/8”

9.94

2-7/8”

102

3/8”

11.26

3-1/2”

126

3/8”

13.91

4”

138

3/8”

15.24

4-1/2”

150

3/8”

16.56

5”

162

3/8”

17.88

5-1/2”

174

3/8”

19.21

6-5/8”

186

3/8”

20.53

7”

222

3/8”

24.51

9-5/8”

294

3/8”

32.46

Besides, we can design and manufacture according to your specific requirements.

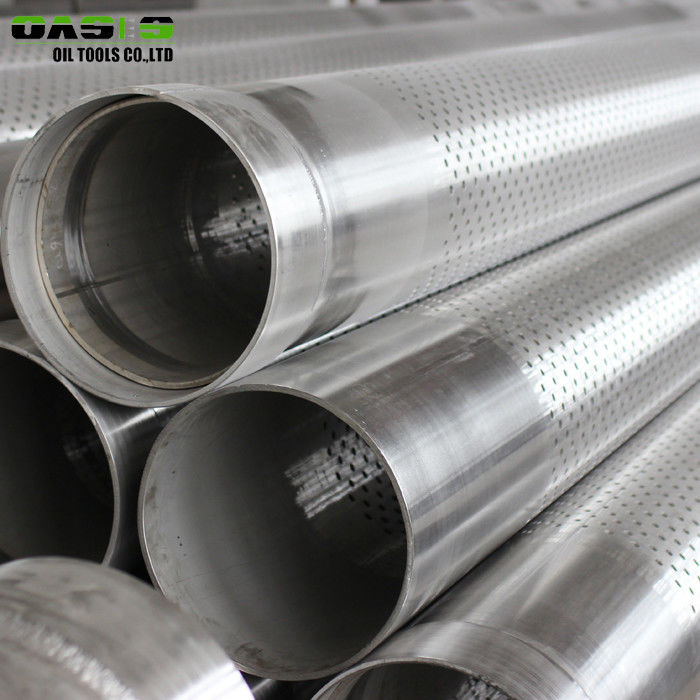

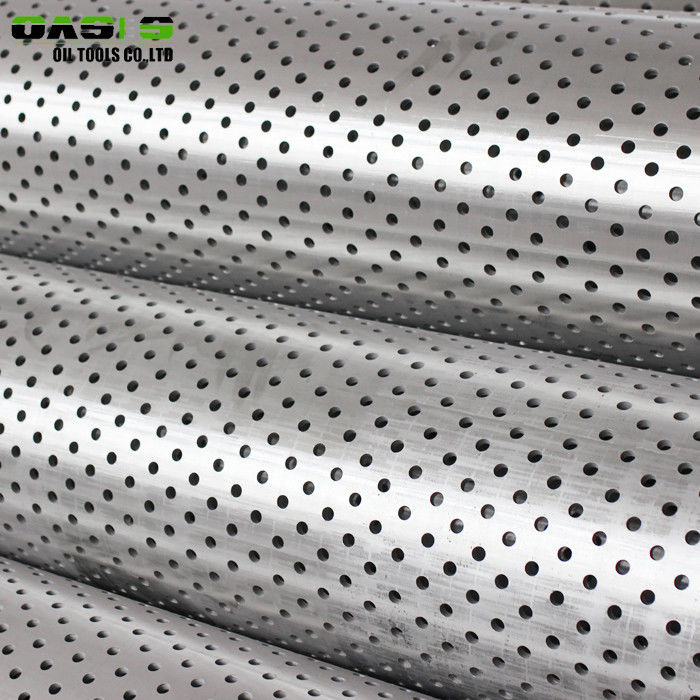

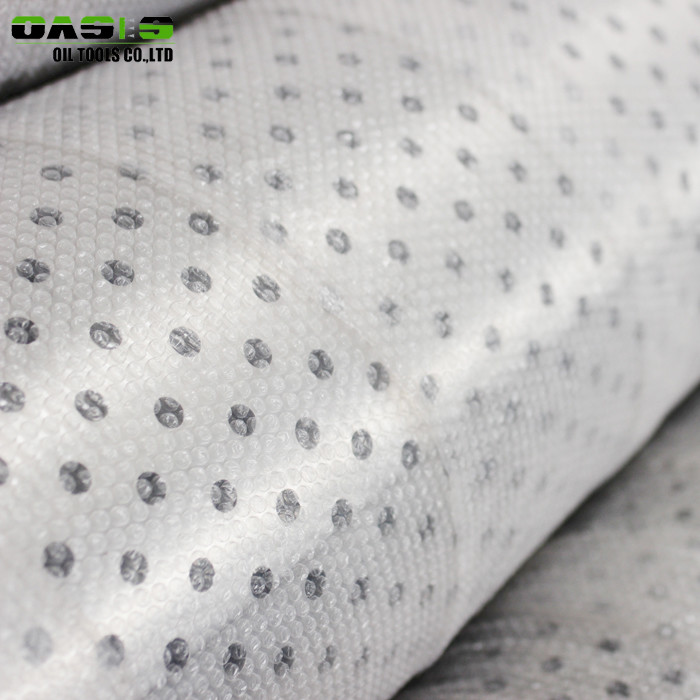

Pictures of Stainless Steel Perforated Casing Screen Pipe for Well Drilling

Smooth 16 " Stainless Steel Well Screen , No Burrs Schedule 40 Perforated Pipe 2

Smooth 16 " Stainless Steel Well Screen , No Burrs Schedule 40 Perforated Pipe 3

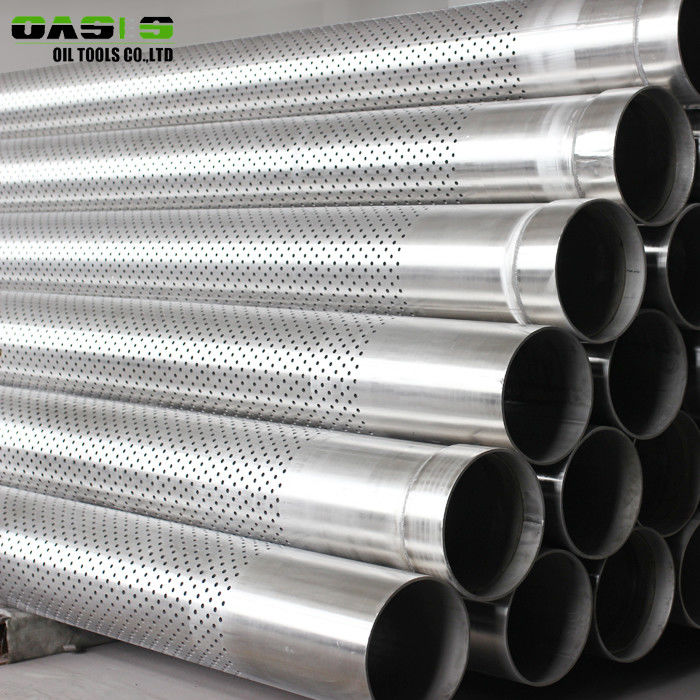

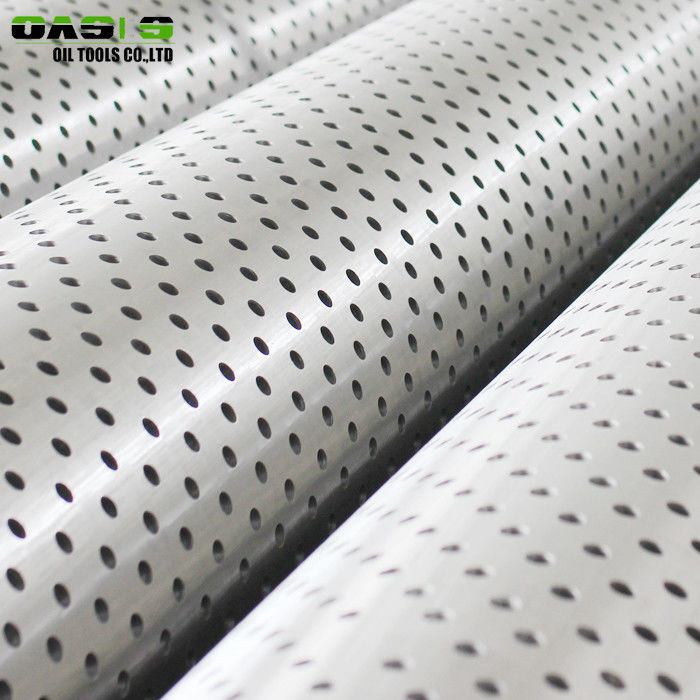

K55/J55/L80/N80 perforated casing pipe:

Smooth 16 " Stainless Steel Well Screen , No Burrs Schedule 40 Perforated Pipe 4

Smooth 16 " Stainless Steel Well Screen , No Burrs Schedule 40 Perforated Pipe 5

Our ISO9001:2008 certificate:

We have approved ISO 9001:2008 quality management system.

We are also the audited supplier of made-in-china and approved by SGS.

Our machines have patent certificate.

Smooth 16 " Stainless Steel Well Screen , No Burrs Schedule 40 Perforated Pipe 6

Inspect of Stainless Steel Perforated Casing Screen Pipe for Well Drilling before shipment:

1. All Dimensions of stainless steel perforated drainage pipe will be checked by our quality inspector, and they also can be inspected by Third Party Inspections or representative appointed by buyer.

2. Wall thickness of casing is inspected by Ultrasonic inspection method, and they also be made the Ultrasonic flaw detection

3. Do Destructive Collapse Test and collapse Strength Test before shipment.

4. If required, the casing will be made pickling and passivation treatment.

5. The whole manufacturing process can be monitored by Third Party Inspection Company and representative appointed by buyer.

6. The casing will be arranged the Pre-shipment Inspection if required.

Smooth 16 " Stainless Steel Well Screen , No Burrs Schedule 40 Perforated Pipe 7



Why choose we OASIS perforated Casing Screen Pipe for Well drilling?

1) World Class Quality: OASIS provide our clients with high quality StainlessSteel Casing pipes. All products were produced according to the ASTM A312 or other required standards..

2) Third party inspection: The productive process and final products of OASIS is controlled by third party test company such as BV,SGS,etc. or client's representative.

3) Non Standard Size: We OASIS can supply customer designed and engineered Casings according to our clients' requirements.

4) Quick Delivery:OASIS can prepare stock for our regular clients to meet clients' requirement at any time.

5) Environmentally safe:OASIS casings have signed the file to protect the environment with our local Environmental Protection Administration.



FAQ:

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 3-10 days if the goods are in stock. or it is 7-30 days if the goods are not in stock, it is according to the real specification and quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=10,000.00 USD, 100% in advance. Payment>=10,000.00USD, 30% T/T in advance ,balance after inspection and before shipment.

B. L/C are also acceptable
