Place of Origin: | Henan, China |
---|---|
Brand Name: | OASIS |
Certification: | ISO |
Model Number: | OA-S168 |
Minimum Order Quantity: | 1 Piece/Pieces |
Price: | Negotiation |

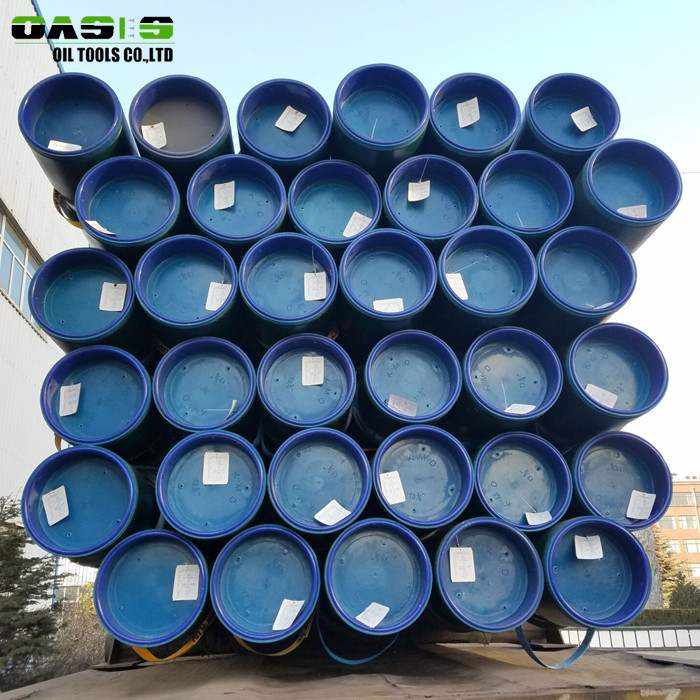

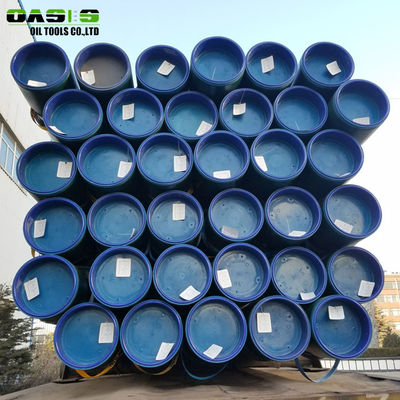

Packaging Details: | slotted casing pipe/liner is packed with bubble bag and then packed with wooven bag. |
Supply Ability: | 8000 Piece/Pieces per Month |
Standard: | ASTM, AISI, DIN, GB, JIS | Type: | Seamless |
---|---|---|---|
Steel Grade: | 400 Series | Welding Line Type: | ERW |
Port: | Tianjin Port Or Qingdao Port | Keyword: | Oil Well Screen |
Highlight: | oil well casing,v wire screen |

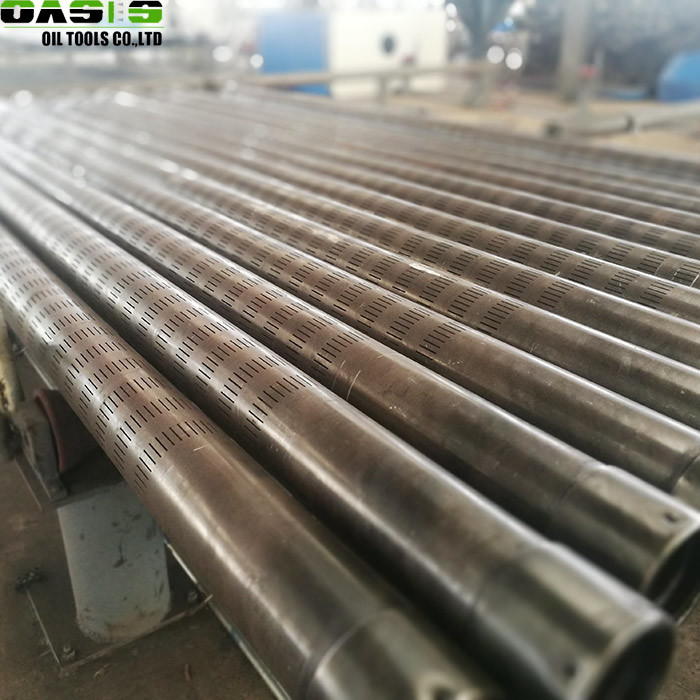

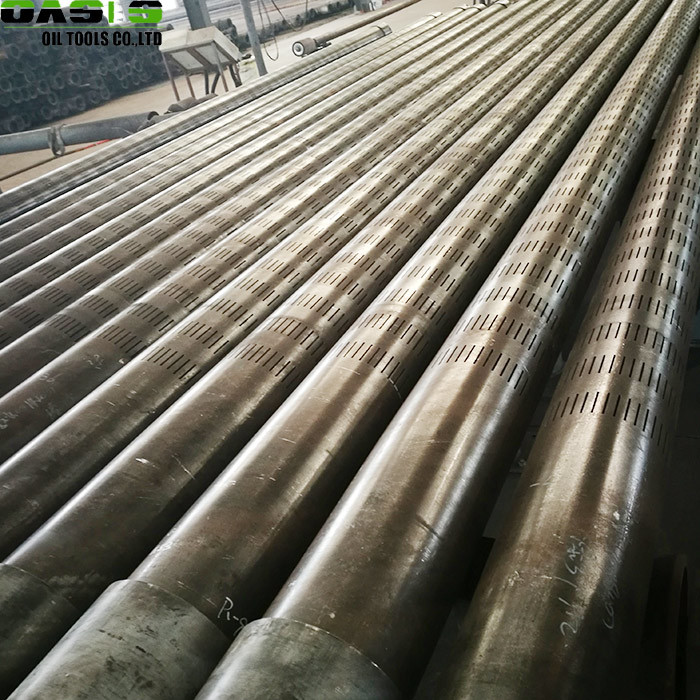

OD 168mm Low Carbon steel of Slotted Screen Pipe for well drilling
slotted casing pipe for well drilling
The controlling of the slotted pipe according to the specifications and Machining parameters of the pipe body.
When the pipe is under slotting , the procedure including: surface treatment of the pipe before process, cooling

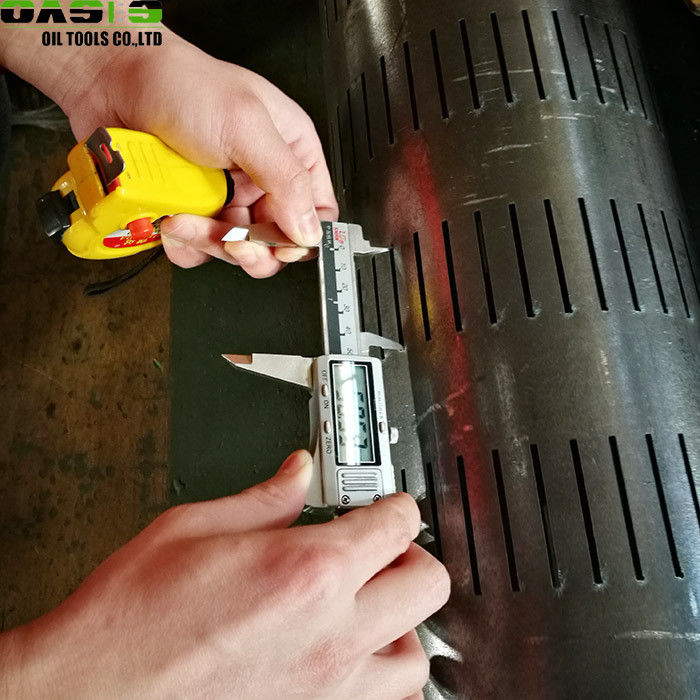

and eliminating the heat during the whole slotting as well as removing the iron rust and oxide; make quality inspection
after the slotting of the pipe and the substandard pipes be sent to the waste collecting station.;
marking the pipes fits for the requirement of the quality; issuing the material certificate and delivering the goods.
slotted casing pipe for well drilling Performance:
1. Our perforated pipe use J55/K55/N80 casing and tubings of API standard, with High overall strength, not so easy to deformation.
2. The edge of the slot is vertical, smooth, without burrs, and the slot is uniformity.
3. The perforated pipe is suitable for sandy well, which the diameter of the sand greater than 0.3mm.
4. The slot can be longitudinal and transverse, the section of the slot can be parallel and trapezoidal types, with a wide open area.
5. It has a big inner diameter.
Specifications of slotted casing pipe
* The narrowest of the slot can be up to 0.10mm
* The carbon steel thickness of the cutting can be 20mm
* The stainless steel thickness of the cutting can be 10mm
Technical Parameters of slotted casing pipe
API Std.Casing |
ID (mm) |
Length (mm) |
Slot Length (mm) |
Slot No./m |
Slot Width (mm) |
Slot Tolerance |
Valid Filter Area (cm2/m) |
Max. Strength (kn) |
||
Spec. (mm) |
Thickness (mm) |
Per Weight (mm) |
||||||||
60.32 |
5 |
6.84 |
50.3 |
3 |
80 |
200 |
0.3 |
±50 |
48 |
512.54 |
73.02 |
5.5 |
9.15 |
62 |
3 |
80 |
240 |
0.3 |
±50 |
57.6 |
688.55 |
88.9 |
6.5 |
13.22 |
75.9 |
3 |
80 |
280 |
0.3 |
±50 |
67.2 |
995.1 |
101.6 |
6.5 |
15.22 |
88.6 |
3 |
80 |
300 |
0.3 |
±50 |
72 |
1151.2 |
114.3 |
7 |
18.47 |
100.3 |
10 |
80 |
320 |
0.3 |
±50 |
76.8 |
1400.4 |
127 |
7.52 |
22.13 |
112 |
10 |
80 |
340 |
0.3 |
±50 |
81.6 |
1673.8 |
139.7 |
7.72 |
25.11 |
124.3 |
10 |
80 |
360 |
0.3 |
±50 |
86.4 |
1900.2 |
9.17 |
29.48 |
121.4 |
10 |
80 |
360 |
0.3 |
±50 |
86.4 |
2232.4 |
|
168.3 |
8.94 |
35.09 |
150.4 |
10 |
80 |
400 |
0.3 |
±50 |
96 |
2672.95 |
177.8 |
8.05 |
33.68 |
161.7 |
10 |
80 |
440 |
0.3 |
±50 |
105.6 |
2559.2 |
9.19 |
38.19 |
159.4 |
10 |
80 |
440 |
0.3 |
±50 |
105.6 |
2940.7 |
Any interest in our slotted casing pipe products, please feel free to contact us for more information.
