BTC Thread Steel Well Casing Pipe 7.09 - 20.24 Mm Thickness Extruded Technique

Name: BTC Thread Steel Well Casing Pipe 7.09 - 20.24 Mm Thickness Extruded Technique
Brand: OASIS
SKU: OA-CT340
Rating: 4.5 (161 reviews)

Basic Information

Place of Origin:	Henan, China
Brand Name:	OASIS
Certification:	API 5CT
Model Number:	OA-CT340

Minimum Order Quantity:	1 Meter/Meters
Price:	Negotiation
Packaging Details:	API 5CT J55 K55 BTC 13 3/8" Seamless Well Casing and Tubing Pipes are packed in bundle or unbundle or as per the clients' requirement
Delivery Time:	Within 20 days
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	12000 tons per Month

Get Best Price Contact Now

Standard2:	API 5CT	Grade Group:	API J55-API P110, Q195-Q345
Grade:	API J55, API K55, API N80, API L80, API P110, Q235, Q345, Q195, Q215	Thickness:	7.09 - 20.24 Mm
Standard:	API, ISO,API 5CT,5B	Section Shape:	Round
Outer Diameter(Round):	4.5 - 20 Inch	Application:	Drill Pipe
Technique:	Extruded	Surface Treatment:	Painted
Special Pipe:	API Pipe	Alloy Or Not:	Non-alloy
Secondary Or Not:	Non-secondary	Product Name:	API 5CT J55 K55 BTC 13 3/8" Seamless Well Casing And Tubing Pipe
Material:	J55,K55,L80,N80,P110	Type:	Seamless Casing
Marking Of API Seamless Casing Pipe:	As Per The API Standard Or Clients' Requirements	Surface Treatment:	Black Painted
Certificate:	ISO, API, COC, CO, PVOC, SASO, FORM A, FORM E	Sameple:	It Is Available
Port:	Tianjinxingang, Or Qingdao Or Shanghai
High Light:	seamless casing pipe , water well tubing

API 5CT 13 3/8" BTC Seamless K55 Steel Well Casing and Tubing Pipe

API 5CT 13 3/8" BTC Seamless K55 Steel Well Casing and Tubing Pipes are also named API J55 K55 L80 N80 P110 Water Oil Well Casing Pipe, well casing tubing, 9 5/8" API 5CT steel casing pipe, API 5CT standard casing, API 5CT 7" Oil Well drilling Casing Pipe, API 5CT P110 Oil Steel Casing and Tubing/oil pipe/oil tube, API Carbon Steel Casing and Tubing Oil Pipe,API 5CT 13 3/8" J55 LTC, STC, BTC Casing.

Company Profile:

Oasis Oil Tools Co.,LTD, located in the industrial park of hightech enterprises in Fengquan District, Xinxiang City,

covers more than 20000 square meters with total RMB 15 million investment. Oasis now has more than 150 staff,

among them 6 persons are senior engineer. After many years’ efforts, now OASIS has developed into a professional

and famous manufacturer, which design, manufacture and sell water well screens/johnson screens, oil well screens

and sand control well screens, bridge slotted well screens, pipe based well screens, perforated pipe (base pipe),

gravel pre-packed well screens, wedge wire screens, passive water intake screens, API Casing and Tubing, etc.water, oil and gas well filtering products as well steel tubes and pipes and industrial parts.

Specifications of API 5CT 13 3/8" BTC Seamless K55 Steel Well Casing and Tubing Pipe

1. Material: J55, K55 or other materials, like H40,J55,C75,L80,P110,ect.

2. Diameter: 244.5mm or from 4 1/ 2” -20”

3. Wall thickness: 5.12mm to 16.13mm

4. Length: R1(4.86-7.62M), R2(7.62-10.36M), R3(10.36-14.63Meters)

5. End Connection: API 5B STC,LTC,BTC

6. Surface treatment: blank oil painting+green/red/white/brown painting

7. Packing: in a bundle packed by steel strips

8. All the sizes can be produced according to the clients’ requirements

9. Third party inspection: BV,SGS or other customized organization

10. Usage: oil pipeline, industrial gas, water transportation

Size		Weight		Grade	Wall Thickness
in	mm	ppf	kg/m	Grade	mm
4-1/2	114.30	11.60	17.26	J55 K55 N80	6.35
4-1/2	114.30	13.50	20.09	J55 K55 N80	7.37
5	127.00	15.00	22.32	J55 K55 N80	7.52
		18.00	26.79	N80 P110	9.29
		21.40	31.85	N80 P110	11.10
5-1/2	139.70	17.00	25.30	J55 K55 N80	7.72
		20.00	29.76	N80	9.17
		23.00	34.23	N80	10.54
7	177.80	23.00	34.23	J55 K55 N80	8.05
		26.00	38.69	J55 K55 N80	9.19
		29.00	43.16	N80	10.36
9-5/8	244.48	43.50	64.74	N80	11.05
9-5/8	244.48	47.00	69.94	N80	11.99
10-3/4	273.05	40.50	60.27	H40 J55 K55N80	8.89
10-3/4	273.05	51.00	75.90	J55 K55 N80	11.43
13-3/8	339.73	54.50	81.80	J55 K55	9.65
13-3/8	339.73	68.00	101.19	J55 K55 N80	12.19
16	406.40	65.00	96.73	J55 K55 N80	9.53
16	406.40	75.00	111.61	J55 K55 N80	11.13
18-5/8	473.10	87.50	130.21	J55 K55 N80	11.05
20	508.00	94.00	139.89	J55 K55 N80	11.13
20	508.00	106.50	158.49	J55 K55 N80	12.70

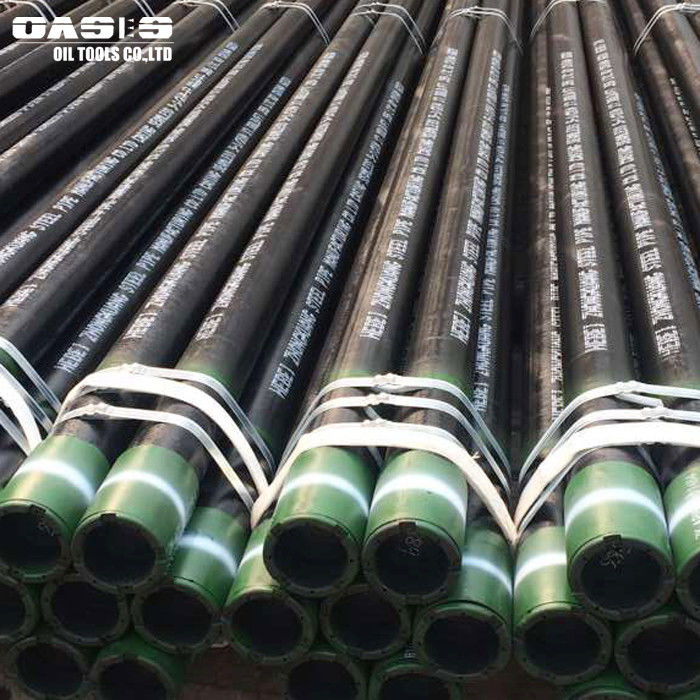

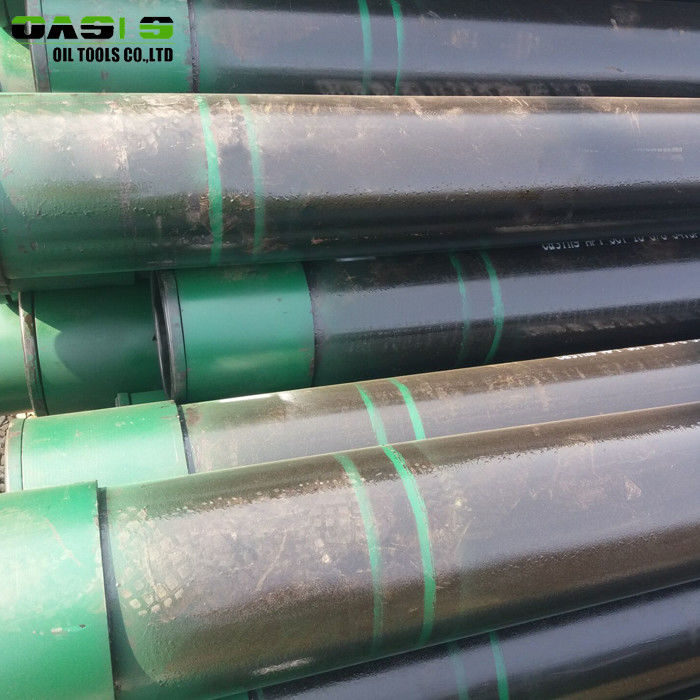

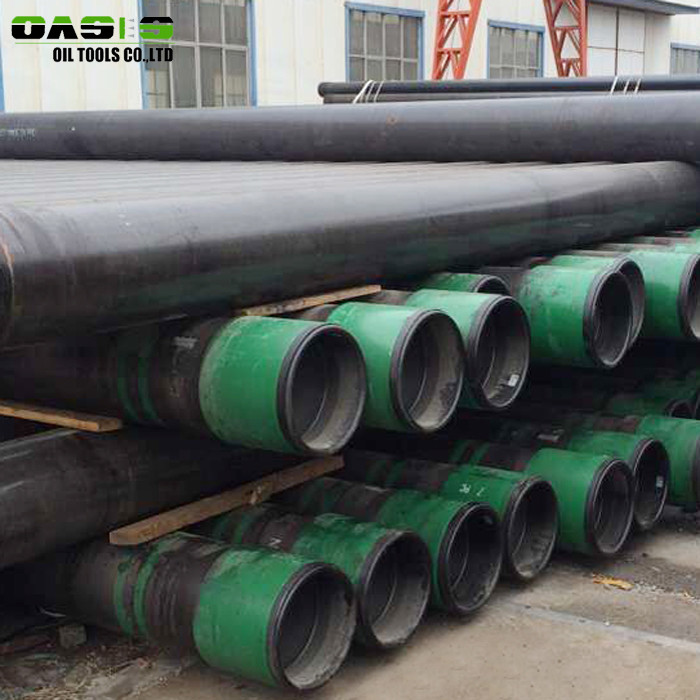

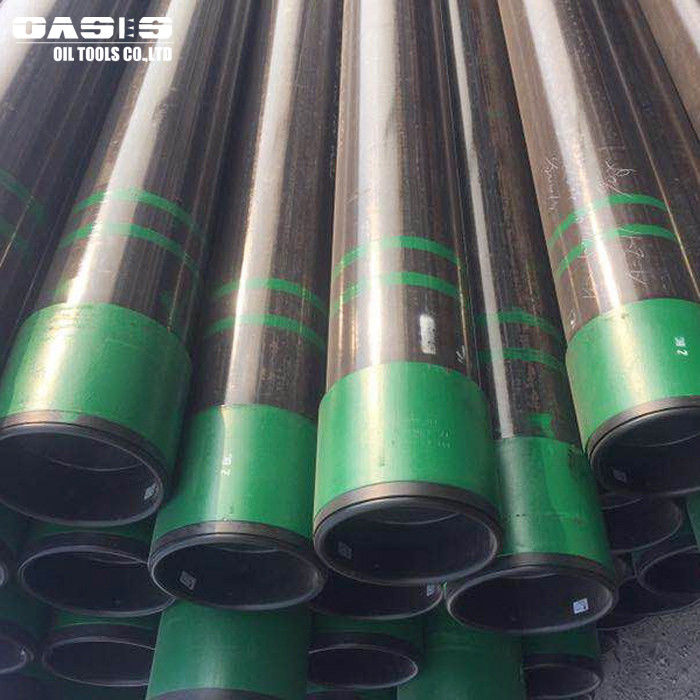

Products show of 13 3/8" K55 BTC Seamless API 5CT Casing and Tubing Pipe:

BTC Thread Steel Well Casing Pipe 7.09 - 20.24 Mm Thickness Extruded Technique 0

BTC Thread Steel Well Casing Pipe 7.09 - 20.24 Mm Thickness Extruded Technique 1

BTC Thread Steel Well Casing Pipe 7.09 - 20.24 Mm Thickness Extruded Technique 2

BTC Thread Steel Well Casing Pipe 7.09 - 20.24 Mm Thickness Extruded Technique 3

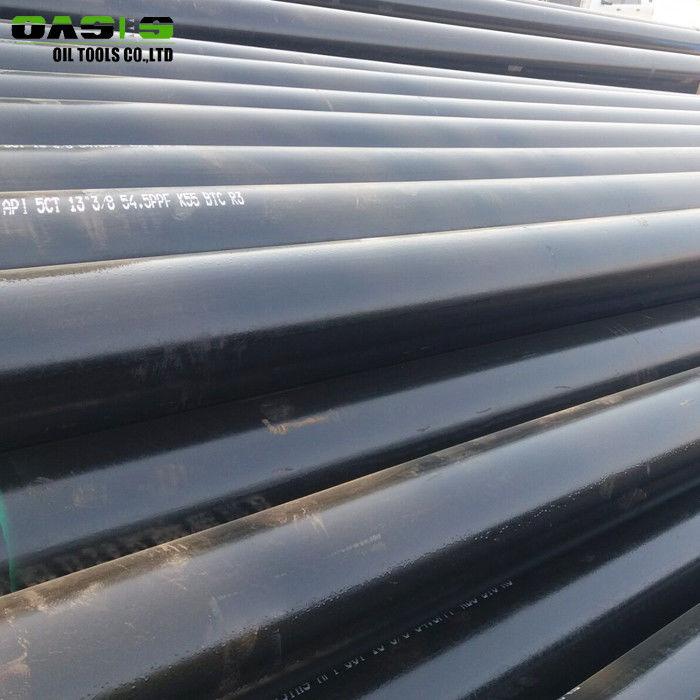

Marks of API Seamless Casing Pipe:

BTC Thread Steel Well Casing Pipe 7.09 - 20.24 Mm Thickness Extruded Technique 4

Quality Control of API 5CT J55 K55 Casing Pipe:

* The chemical composition of material will be tested and will provide the MTC.

* All dimensions checked by our quality inspector, if required, they also can be inspected by Third Party Inspections like BV, SGS or representative appointed by buyer. The test report or certificate can be provided.

* The Casing will do the hydraulic test.

* If required, the surface of casings can be painted or hot galvanized. The special marks on the casing surface also can be acceptable.

* Pre-shipment Inspection can be arranged and the container can be sealed by third party inspection agent.

Why choose we OASIS API Well Casing and Tubing Pipe for Water/Oil Well drilling?

1) World Class Quality: OASIS provide our clients with high quality API 5CT Oil Casing pipes. All products were produced according to the API 5CT and 5B standard.

2) Third party inspection: The productive process and final products of OASIS is controlled by third party test company such as BV,SGS,etc. or client's representative.

3) Non Standard Size: We OASIS can supply customer designed and engineered Casings according to our clients' requirements.

4) Quick Delivery:OASIS can prepare stock for our regular clients to meet clients' requirement at any time.

5) Environmentally safe:OASIS casings have signed the file to protect the environment with our local Environmental Protection Administration.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 3-10 days if the goods are in stock. or it is 7-30 days if the goods are not in stock, it is according to the real specification and quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=10,000.00 USD, 100% in advance. Payment>=10,000.00USD, 30% T/T in advance ,balance after inspection and before shipment.

B. L/C are also acceptable
