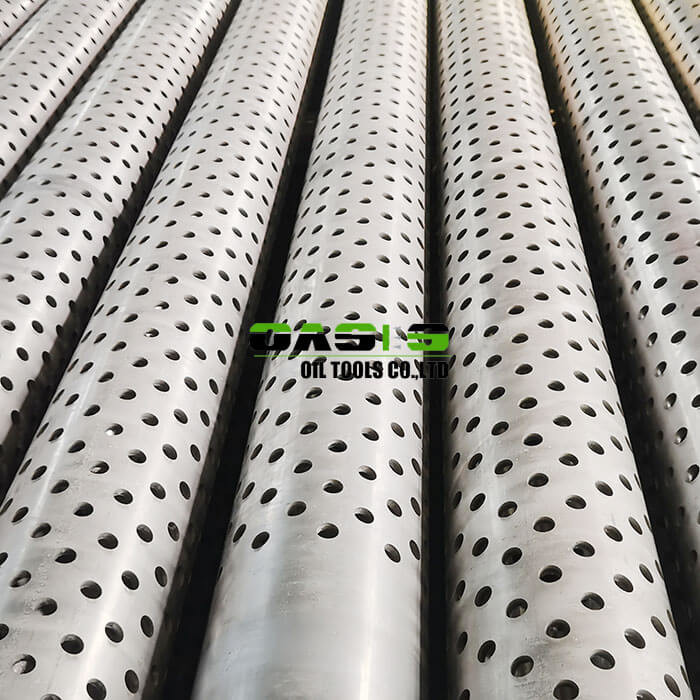

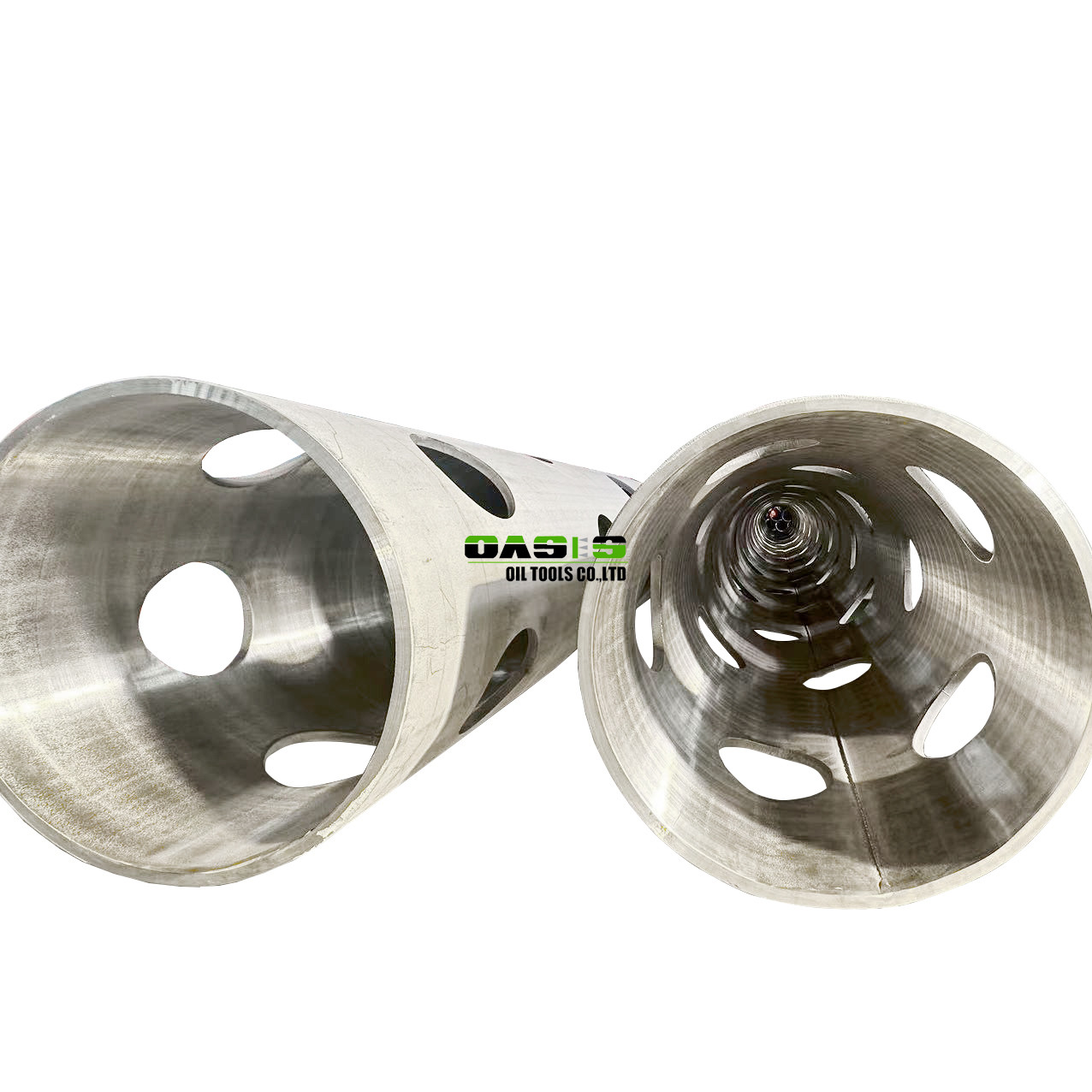

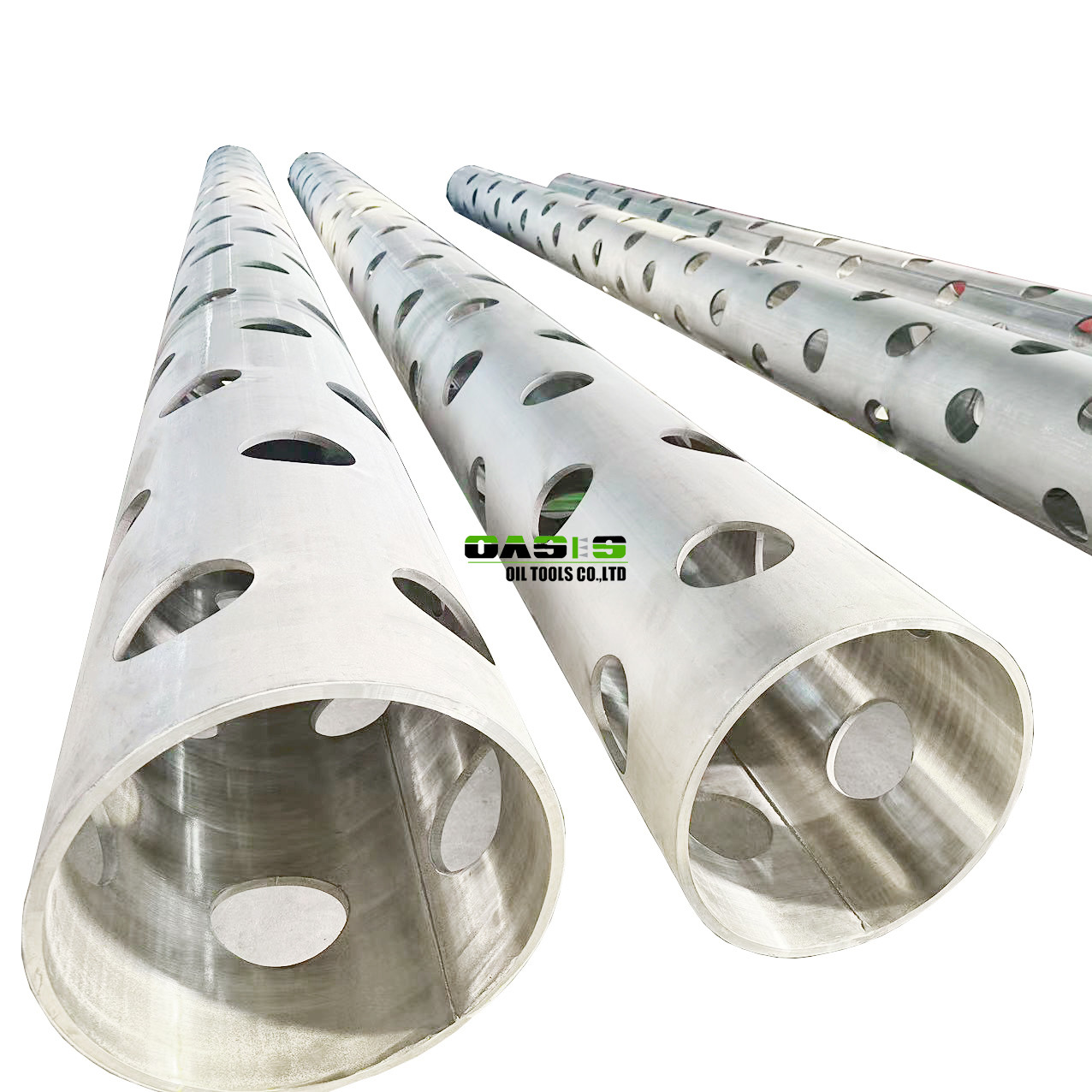

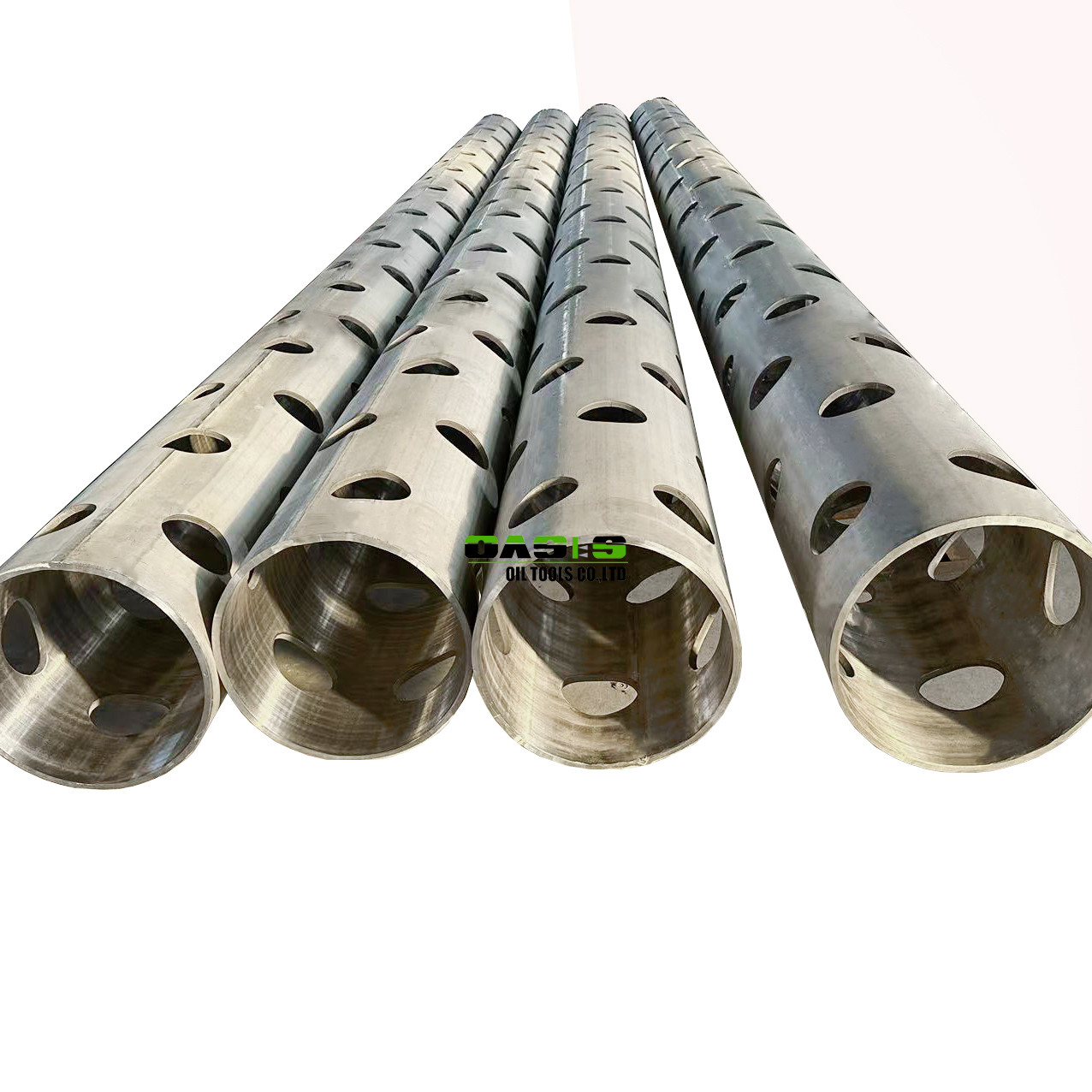

Perforated Stainless Steel pipe

Product Description

Perforated well screen is a type of filter used in oil and gas wells. It is designed to control the flow of oil and gas from the well, while preventing sand and other debris from entering the well.Perforated casing pipe creates a channel between the pay zone and the wellbore to make easy flow of oil and gas to the wellbore. Manufactured by N80, J55 or 13Cr110 which are confirmed by API casing or tubing specification, our perforated liners are featured by high strength and anti-deformation. Punched holes with diameters from 3/8″ to 1/2″ are arranged in straight or staggered conditions. Upon requests, holes and their configurations can be customized to satisfy diverse applications.To guarantee the smooth operation, internal and external burrs are deburred according to API standards.Punched holes are distributed in straight line or staggered forms. For staggered holes, the percentage of open area is higher than straight. You can choose any type according to your specific conditions.

Applications of Perforated Pipe:

perforation in the context of oil wells refers to a hole punched in the casing or liner of an oil well to connect it to the reservoir. Creating a channel between the pay zone and the wellbore to cause oil and gas to flow to the wellbore easily. In cased hole completions, the well will be drilled down past the section of the formation desired for production and will have casing or a liner run in separating the formation from the well bore. The final stage of the completion will involve running in perforating guns, a string of shaped charges, down to the desired depth and firing them to perforate the casing or liner. A typical perforating gun can carry many dozens of explosive charges.Commonly, perforation guns are run on E-line as it is traditional to use electrical signals from the surface to fire the guns. In more highly deviated wells, coiled tubingmay be used. Newer technologies allow the guns to be run on slickline. Modern slickline technology embeds fiber optic lines that can transmit two-way data on real-time temperature, pressure and seismic responses along the length of the slickline. This information allows very precise operations of various down-hole tools, including perforation guns.The benefit of this strategy is greater control of the well. Casing the bottom of the hole allows the well to be completed without having to worry about reservoir fluids. It also allows precise selection of where in the formation production will be and to be able to seal off perforations, which are no longer useful or counterproductive, through cementing or straddling.The disadvantage is that perforating can lead to “skin damage”, where debris from the perforations can hinder productivity of the well. In order to mitigate this, perforating is commonly done underbalanced (lower pressure in the well bore than in the formation) as the lower well bore pressure will cause a surge of fluids into the well at the point of perforating, hopefully carrying the debris with it. Other methods of stimulation such as acidising and proppant fracturing are often required to overcome this damage and bring the well up to its full potential.Casing and perforating as a method of completion is common place nowadays, though in some unconsolidated formations prone to production of sand (BP Harding as an example), open hole completions using only sandscreens may be the preferred choice.Oil Well Perforation may be basically classified in two types a) Overbalanced Perforating and b) Underbalanced Perforating. Overbalanced perforating is normally carried out with the help of Perforating Guns or Hollow carriers. In Overbalanced Perforation the weight of the Well-bore Column is more than the Reservoir Pressure, thus it normally ensures that the Well does not start flowing oil or gas immediately after perforation. However, it may have the effect of damaging the formation due to forced entry of well-bore fluid (mud) into the reservoir.

Features of Perforated Pipe:

Casing and perforated completion is the most common type of completion which is selected many companies. For this completion, a production casing or a liner is cemented through reservoir zone(s) and subsequently, a well is perforated in order to provide communication between the formation and wellbore.Perforation should ideally penetrate deeper rather than nearer a wellbore damage zone around a wellbore so fluid from a reservoir can effectively flow into a wellbore. Additionally, several depth control methods help to accurately select which section of reservoir to be perforated. Hence, undesired zones, such as gas, water or weak formation can be avoided and this will improve well production efficiency.Cementing around the wellbore is one of the critical parts for this completion because good cement will effectively isolate all zones and allows a wellbore to produce from several zones without communication between reservoirs. Moreover, packers are run into a wellbore to isolate reservoir fluid when it flows into a wellbore.Another important feature of this completion is the ability to selectively produce or inject into any reservoir. A sliding sleeve on each zone can be opened and closed to allow selective production or injection operation.

Technical Specifications of Perforated Pipe:

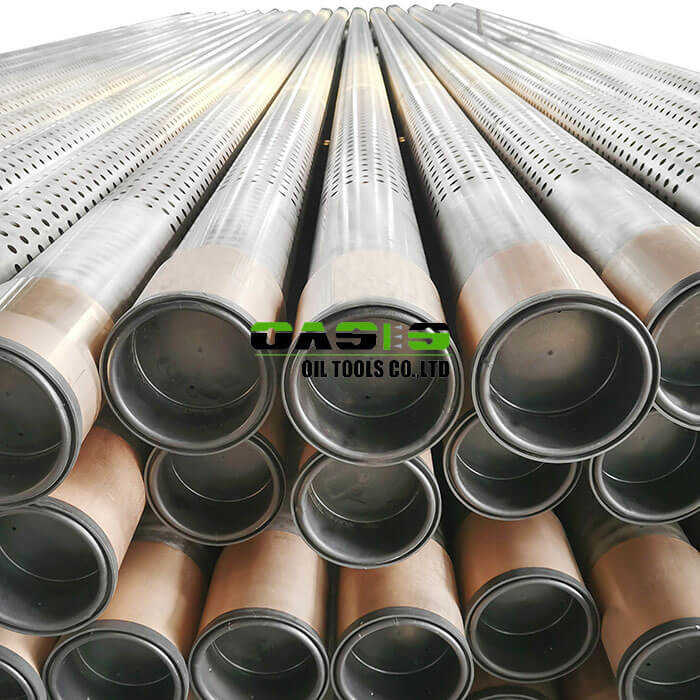

Perforated casing is manufacturing with API casing, joints with size up to diameter 20″and length R3. Every joints perforated is deburred internal and external. Upon request,we can drill standard or customized hole size in any number and nay patter.

Specifications

More Details

Related Products

Our company

Oasis Oil Tools Co., Ltd, is a famous manufacturer which integrates the research and development, design, manufacture and sell water well screens/Johnson screens/wedge wire screen/rod base screen/continuous slot screen/non-enforced Johnson screen, oil well screens and sand control well screens, bridge slotted well screens, pipe based well screens/perforated base pipe with screen jacket/pipe base screen/reinforced Johnson type screen, perforated pipe (base pipe), gravel pre-packed well screens, passive water intake screens etc. water, oil and gas well filtering products as well as API/Stainless Steel Casing& Tubing and pipes and industrial parts.

Please contact with us for more details.

Our techinical team will give you the best choice.
