Product Description

Wedge wire lateral assemblies also called header lateral assemblies, Header lateral systems consist of a series of screen laterals attached to either a central header or hub. The assemblies allow process engineers to design for uniform flow through the treatment media at a wider range of rates and for a variety of vessel sizes and shapes.

The wedge wire screen lateral has two types: threaded ending wedge wire screen lateral and flange ending wedge wire screen lateral. Threaded ending wedge wire screen laterals are composed of a solid cap on one end and a threaded pipe connection on the other end. The flange ending wedge wire screen lateral is composed of a solid cap on one end and a flange. The different designs make it possible to suit different applications and machines.

The lateral system consists of a series of screen laterals connected to either a central header pipe or a hub. They are designed for effective media retention in a wide range of applications, including ion exchangers, clay and sand filtration applications, carbon towers, etc. Various header systems are available to suit your application, specific vessel diameter, flow rate, and media size. We can fabricate a new system or replace an existing one.

Benefits

• The design ensures uniform collection or distribution flow of a gas or liquid through treatment media without dead zones.

• The system can accommodate a wide variety of vessel sizes and shapes with side, center, top, or bottom inlet piping.

• The assemblies can be designed to accommodate flow in any direction

Material

Stainless steel, hastelloy steel or other alloy steel.

Slot size

0.05 mm, 0.1 mm, 0.2 mm, 0.3 mm, 0.5 mm, 1 mm.

Assemblies end type

Thread type, flange type.

Thread ending wedge wire lateral

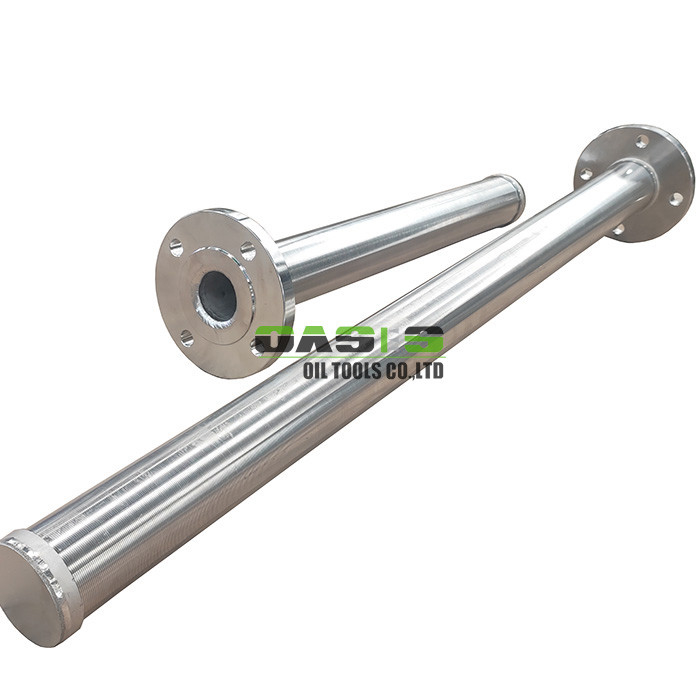

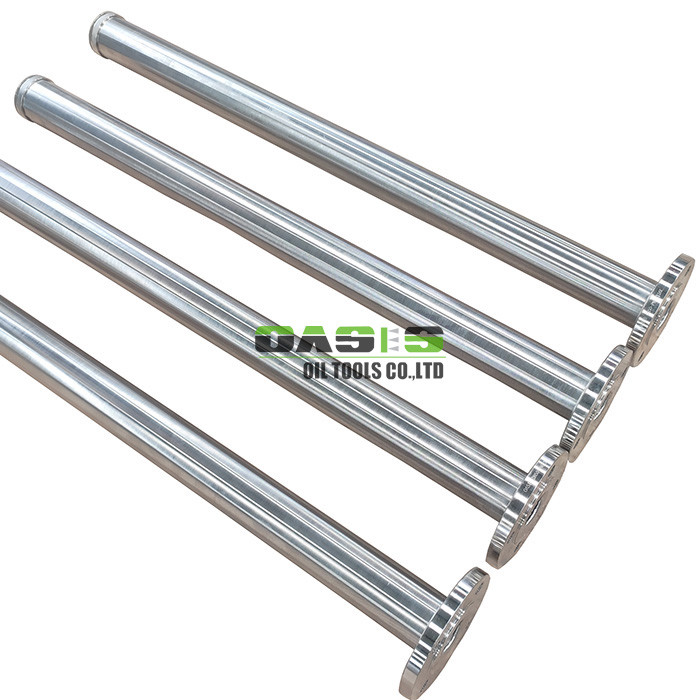

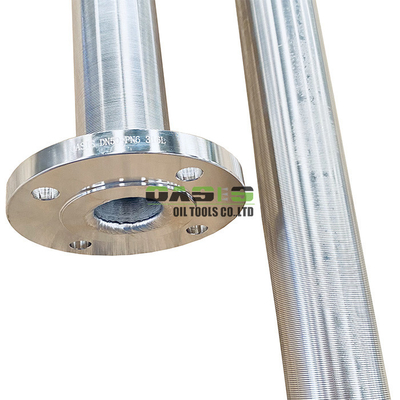

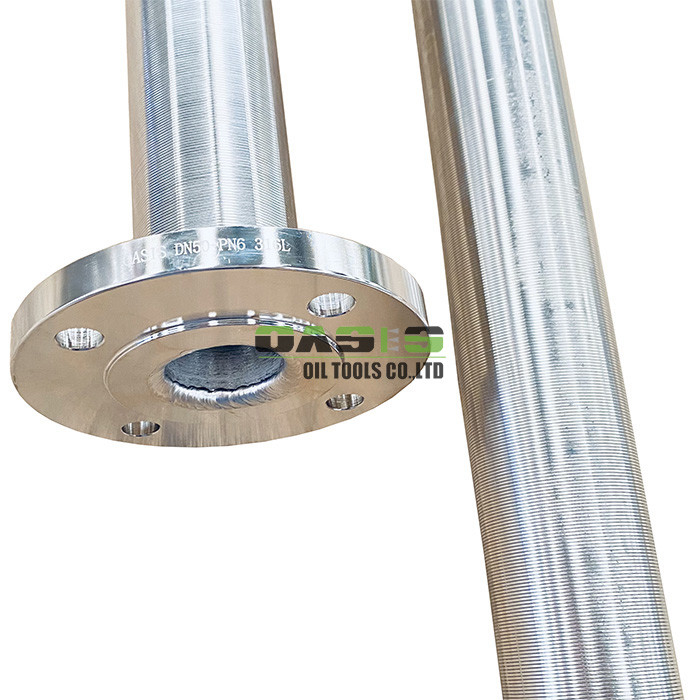

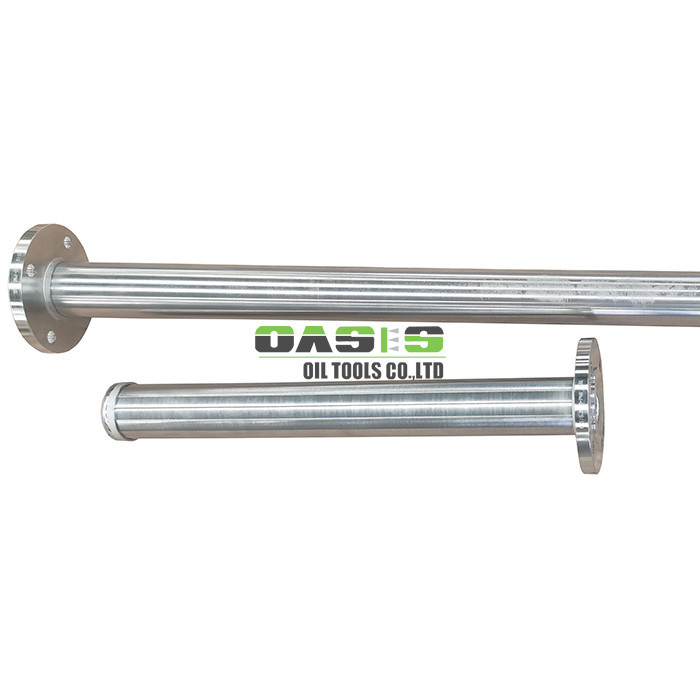

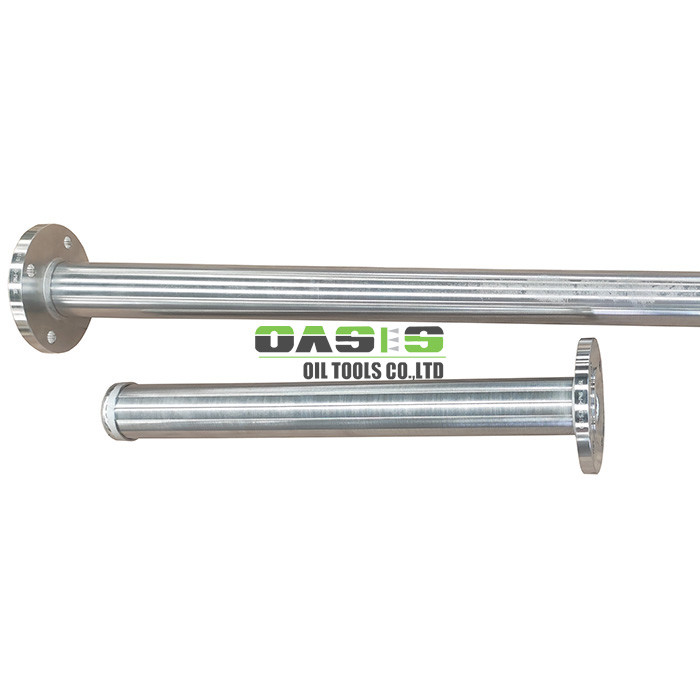

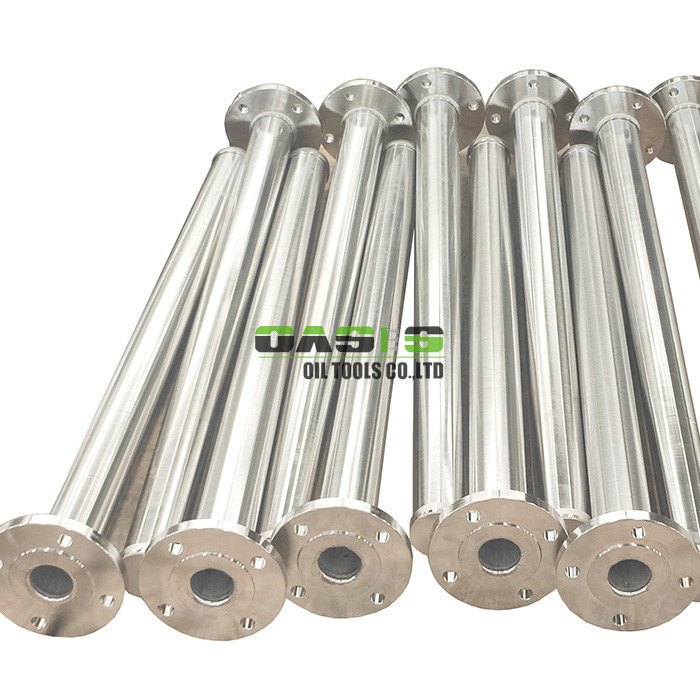

Flange ending wedge wire lateral

More Details

FAQ

• Where is your company located? Could I visit your factory?

Our company is located in Xinxiang city,Henan province, China. Sincerely invite you to visit our factory.

• How can I get some samples?

Welcome to contact us by e-mail or whatsapp for your requirements. We can provide sample service.

• How does your factory do regarding QC?

Quality is priority. We always consider quality as the most important thing during the whole production process. Our factory has gained ISO9001.

• Can you offer OEM or design services?

Yes, We design and manufacture our products by ourselves. We can make OEM according to your requirements, including packing, logo print etc.
