Welded Casing Pipe: The Solution for Reliable Well Construction



Product Introduction

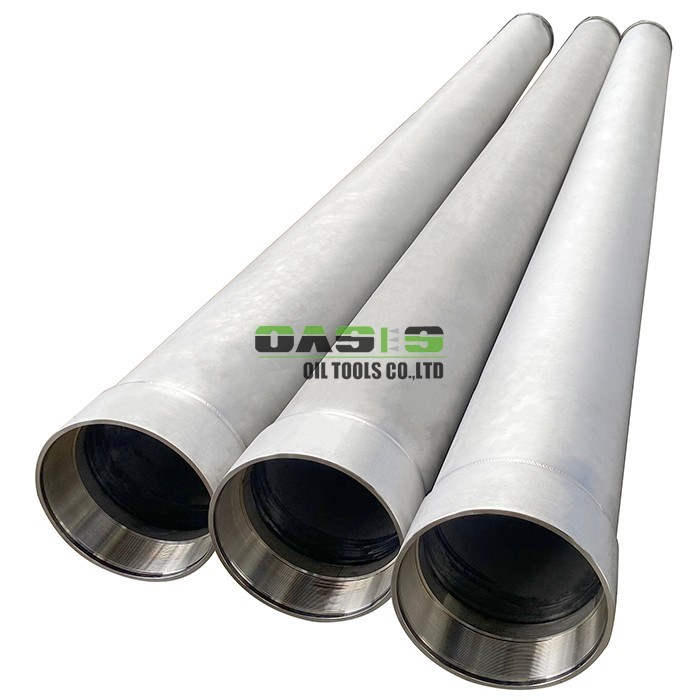

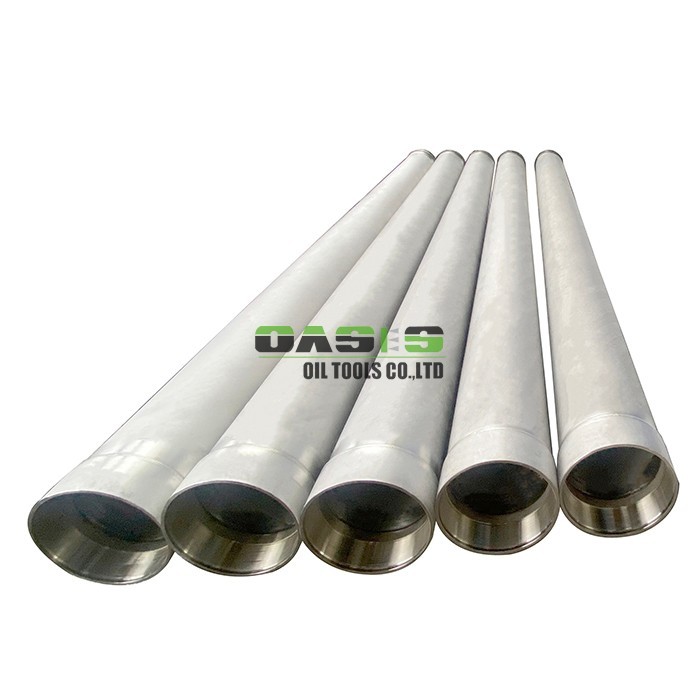

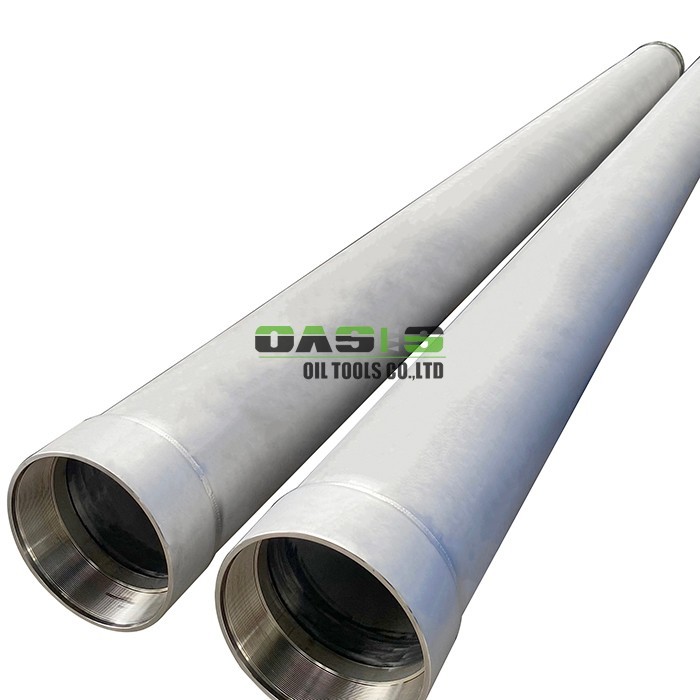

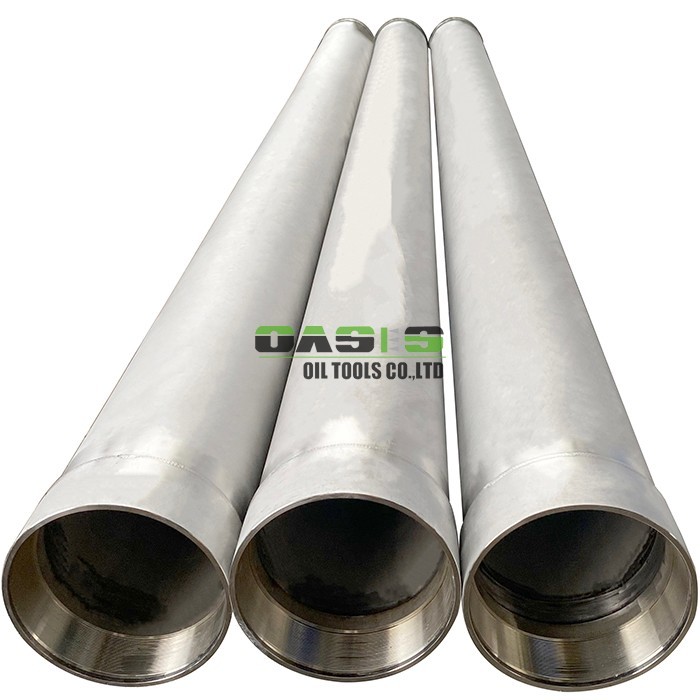

Welded casing pipe is a high-performance steel pipe specifically engineered for well construction, drilling operations, and subsurface infrastructure projects. Manufactured through advanced welding techniques using premium-grade steel coils, our welded casing pipes deliver exceptional structural integrity, dimensional accuracy, and consistent quality throughout the entire length of the pipe.



Designed to withstand the most demanding geological and operational conditions, welded casing pipes serve as the critical protective barrier for water wells, oil and gas extraction sites, and geothermal systems. Their robust construction ensures that the wellbore remains stable, preventing collapse while safeguarding the quality of extracted resources.



Each section of welded casing pipe undergoes rigorous quality inspection to guarantee compliance with international standards, ensuring that every joint, seam, and surface meets the highest specifications for performance and safety.













---



Specification





Parameter	Specifications
Product Name	Welded Casing Pipe
Material Grade	J55, K55, N80,314, 314L, 316L
Outer Diameter	60.32mm – 356mm
Wall Thickness	4.24mm – 8.56mm
Length	R1 (4.88m – 7.62m), R2 (7.62m – 10.36m), R3 (10.36m – 14.63m) or as customized
End Connections	Plain End, Beveled End, Threaded & Coupled
Manufacturing Standard	API 5CT, API 5L, EN , ISO
Inspection & Testing	Hydrostatic Test, Dimensional Check, Tensile & Hardness Testing





---



Application



Welded casing pipes are the backbone of numerous critical infrastructure projects across multiple industries:





Application Area	Specific Uses
Water Wells	Drinking water wells, agricultural irrigation wells, industrial water supply wells
Oil & Gas Drilling	Surface casing, intermediate casing, production casing for onshore and offshore operations
Geothermal Systems	Geothermal energy extraction wells and ground-source heat pump installations
Mining Operations	Dewatering shafts, borehole casing, ventilation shafts
Foundation Engineering	Piling for bridges, high-rise buildings, and marine structures
Environmental Monitoring	Groundwater monitoring wells and remediation boreholes
Infrastructure Projects	Tunneling, underground utility conduits, and cable protection systems





The versatility of welded casing pipes makes them suitable for diverse geological formations—from unconsolidated sands and gravels to hard rock strata. Their adaptability to varying pH levels, mineral content, and temperature ranges ensures reliable performance across fresh water, saline water, and hydrocarbon-bearing reservoirs.







---



Advantages



✅ Exceptional Strength & Load-Bearing Capacity
Welded casing pipes exhibit outstanding mechanical properties, capable of withstanding high external pressures, tensile loads, and bending stresses during installation and operation.



✅ Superior Corrosion Resistance
With optional anti-corrosion coatings (3PE, FBE, galvanized) and inherent material properties, these pipes resist degradation from aggressive groundwater, saline environments, and chemical compounds.



✅ Leak-Tight Integrity
Precision-engineered connections and advanced welding techniques ensure minimal leakage risk, protecting both the extracted resource and the surrounding environment from contamination.



✅ Cost-Effective Alternative
Compared to seamless casing, welded casing pipes offer comparable performance at a significantly lower cost, delivering exceptional value without compromising quality.



✅ Extended Service Life
The combination of high-strength steel, robust construction, and protective coatings translates into decades of reliable service, reducing the frequency of costly well interventions and replacements.



✅ Versatile Customization
Available in a wide range of diameters, wall thicknesses, grades, and connection types, welded casing pipes can be tailored to meet the specific demands of any project.



✅ Environmentally Responsible
By preventing leaks and ensuring well integrity, welded casing pipes help protect groundwater resources and minimize the environmental footprint of extraction activities.



✅ Ease of Installation
Standardized dimensions and connection systems enable efficient field assembly, reducing installation time and labor costs.



---



Service



We are committed to providing comprehensive support throughout every stage of your project:





Service Category	Offerings
Technical Consultation	Expert guidance on pipe selection, grade optimization, and coating specifications based on your geological and operational conditions
Custom Manufacturing	Tailored dimensions, thread types, and coatings to meet unique project requirements
Quality Assurance	Full traceability from steel coil to finished product, with complete documentation of all inspection and testing results
Logistics Support	Efficient packaging, loading, and shipping solutions to ensure your pipes arrive on-site in perfect condition, anywhere in the world
After-Sales Support	Dedicated technical team available for installation advice, troubleshooting, and ongoing product performance monitoring



---



FAQ



Q1: What is the difference between welded casing pipe and seamless casing pipe?
Welded casing pipes are manufactured by forming steel plates or coils and welding the seam, while seamless pipes are produced without any weld joint. Welded casing offers comparable strength and durability at a more economical price point, making it the preferred choice for the majority of well construction projects.



Q2: Can welded casing pipes handle high-pressure environments?
Absolutely. Our welded casing pipes are manufactured and tested to meet API and ASTM standards for high-pressure applications. With appropriate wall thickness and material grade selection, they perform reliably in both shallow and deep well environments.



Q3: How do I choose the right coating for my project?
The choice of coating depends on site-specific factors such as soil chemistry, groundwater composition, and temperature. Our technical team will assess your conditions and recommend the most suitable coating—whether FBE, 3PE, or galvanization—to maximize service life.



Q4: Are welded casing pipes suitable for offshore drilling?
Yes. Our pipes are manufactured to meet stringent offshore specifications, with enhanced corrosion protection and rigorous inspection protocols to ensure performance in marine environments.





Q5: Do you provide third-party inspection services?
Yes, we can arrange for independent third-party inspection by globally recognized firms such as SGS, BV, or DNV to verify product quality and compliance with your specifications.





---



Company Introduction



We are a leading manufacturer and supplier of high-quality screen and casing with over 15 years of industry experience.



Our Commitment:



Quality First: We adhere to strict quality management systems, certified to ISO 9001 and other industry accreditations.

​

Innovation-Driven: Continuous investment in R&D and manufacturing technology keeps us at the forefront of the screen and casing industry.

​

Customer Focus: We partner with our clients to deliver tailored solutions, on-time delivery, and responsive technical support.

​

Global Reach: Our products have been successfully deployed in projects across North America, Europe, the Middle East, Asia-Pacific, and Africa, earning the trust of drilling contractors, engineering firms, and government agencies worldwide.



Choose us as your trusted partner for screen and casing—because when it comes to the integrity of your well, only the best will do.







---



Contact Us Today to discuss your project requirements and receive a customized quotation. Let our expertise support your success from the ground down.
