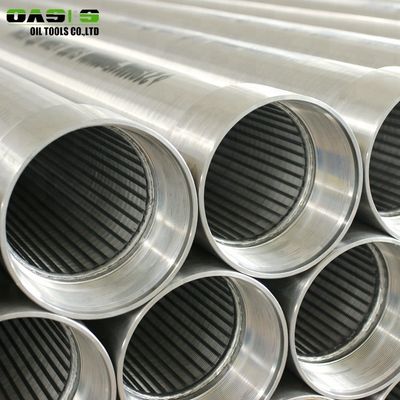

Wedge Wire Water Well Screen Pipe

johnson type stainless steel 304L wedge wire screen

the special wedge shape wire and rods to make of the well screen as the above drawing.
and the specifications of the well screen:

How to find proper screen dimensions and correct slot sizes of the well screen

Diameter
Specific capacity and available drawdown indicate the productivity of a well to be expected.
If the pump is installed above the screen the rising velocity at the screen head should not exceed v = 1.75 meter/sec.
If the pump is installed below the screen in a pump sump then the screen diameter depends mainly on the pump size and the remaining annulus space between the screen and the riser pipe.
Screen length
once decided on the screen diameter the laminar flow conditions at the entrance of the screen determine the requested length. Screen length in the total height of a water bearing formation is - especially when using the con-slot screen - not necessary. The Kozeny concept of investigation for partial penetrated formation is an excellent practice to determine max. Necessary screen length.

Oasis Oil Tools Co., LTD. located in Xinxiang City, Henan. Our main products are Stainless Steel/Carbon Steel/Duplex Stainless Steel Water Well Screens/Wedge Wire Screen/Continuous Slot Screen, Pipe Based Screen/Perforated Pipe with Screen Jacket, Gravel Pre-packed Well Screens, Perforated Pipe, Slooted Pipe, Bridge Slotted Well Screens, Sand Control Well Screens, API/ISO Stainless Steel Well Casing, Industrial Filters, Screen Plate, Passive Water Intake Screens, Water Nozzles as well as related parts. Our products are widely applied in water well, oil well and gas well, sand control, filtering, paper making and chemical industry.
Our products have been exported to Egypt, Russia, Sudan, Tanzania, Tunisia, Morocco, UAE, Jordan, Indonesia, Philippines, Vietnam, Canada, Bolivia, Ecuador, etc.

Q: What's the OD, length?

Q: What's the slot size of Johnson type water well screen?

A: Usually it is depends on your water outlet and gravel size.

Q: What's the depth of the well or collapse strength of the screen that you need?

A: Depth of well is suggested to be supplied so that our engineer can calculate the collapse strength for you. The collapse and tensile strength is important for the screens and each screen will be tested before delivery.will offer you the professional service.
