Place of Origin: | China |
---|---|
Brand Name: | OASIS |
Certification: | ISO9001:2008 |
Minimum Order Quantity: | 1 Meter/Meters |
Price: | Negotiation |
Packaging Details: | With a plastic film winding and then packed in wooden cases, boxes lined with waterproof material. |
Supply Ability: | 15000 Meter/Meters per Month |
Standard: | GB | Standard2: | GB/T 9711.1-1997 |
---|---|---|---|
Grade Group: | 15NiCuMoNb5 | Grade: | 15NiCuMoNb5 |
Thickness: | 1.5 - 10 Mm | Section Shape: | Round |
Outer Diameter(Round): | 30 - 600 Mm | Application: | Fluid Pipe |
Technique: | ERW | Surface Treatment: | Polish |
Special Pipe: | API Pipe | Alloy Or Not: | Non-alloy |
Diameter: | 12inch | Wire Size: | 63V |
Support Size: | 5.0 Round Rod | Material: | Stainless Steel |
Length: | 1-5.8m | Secondary Or Not: | Non-secondary |
Port: | Tianjinxingang/Qingdao Port | ||
Highlight: | water well screen pipe,4 inch well screen |

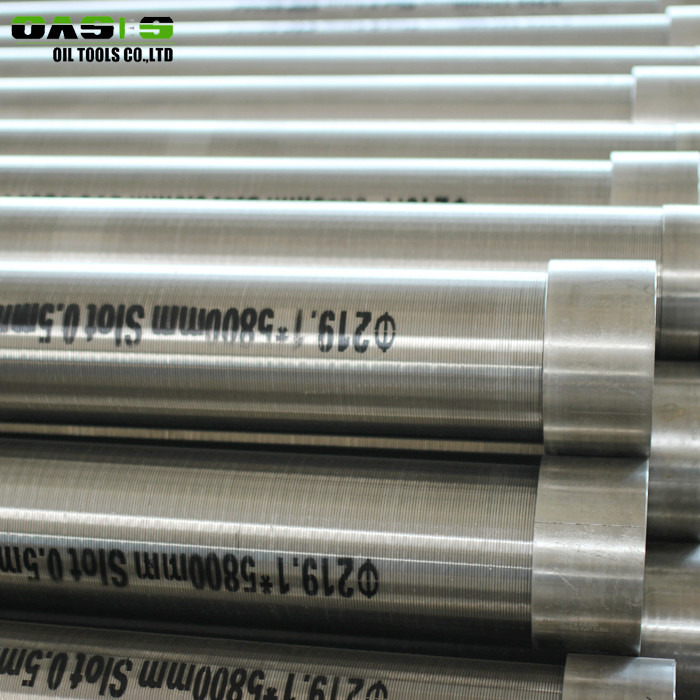

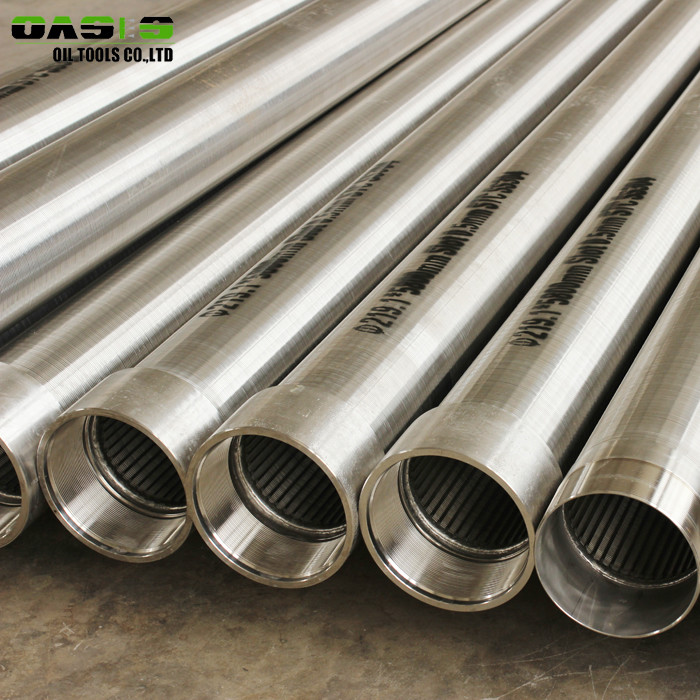

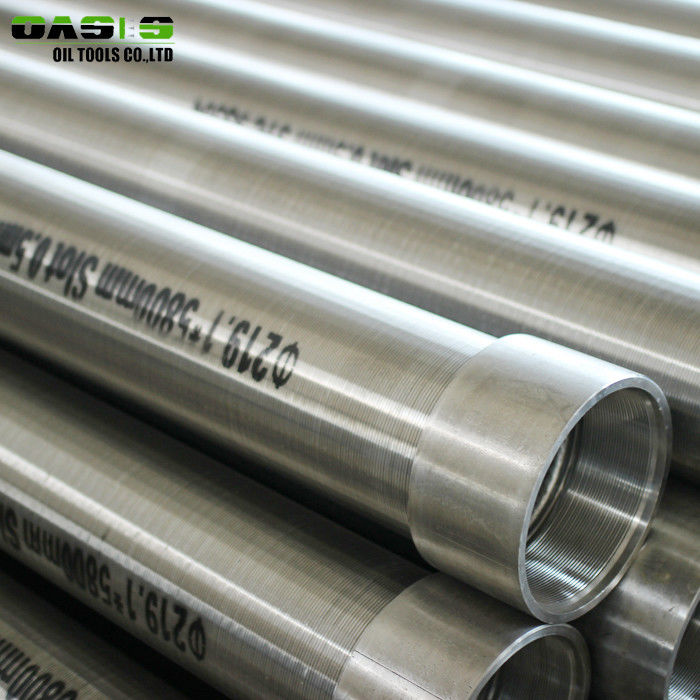

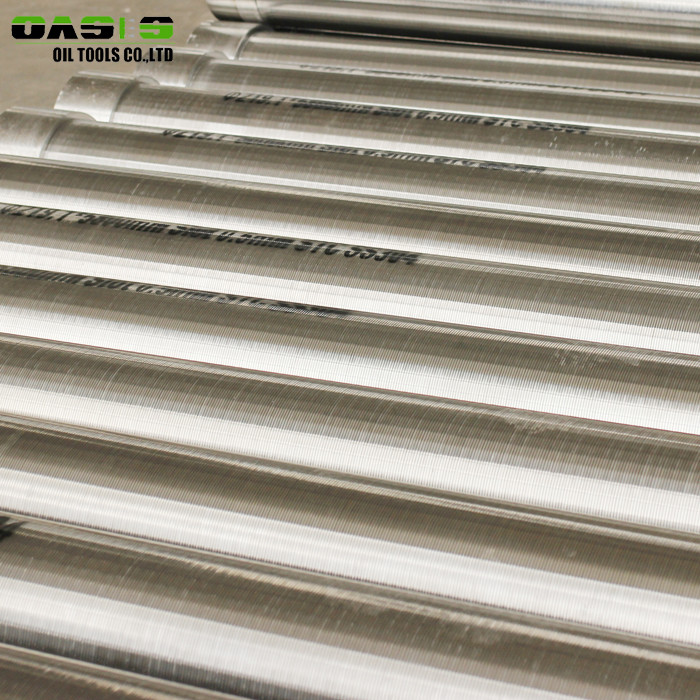

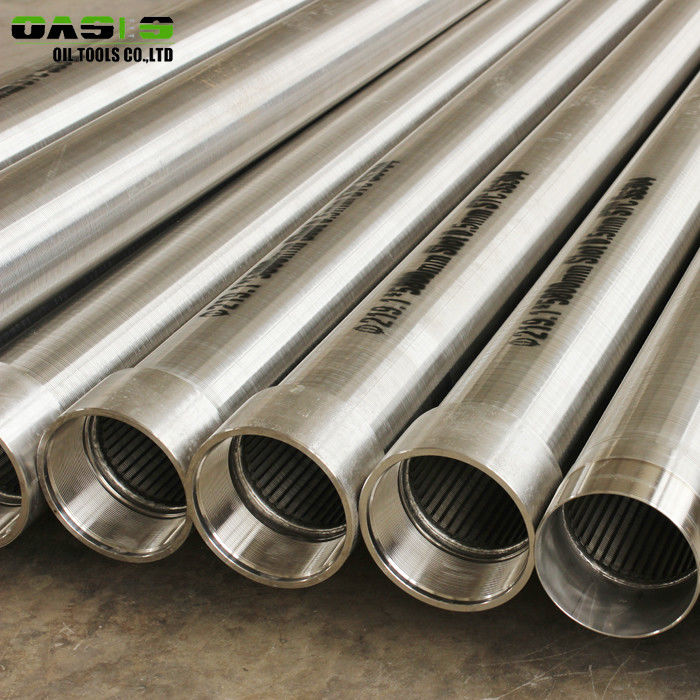

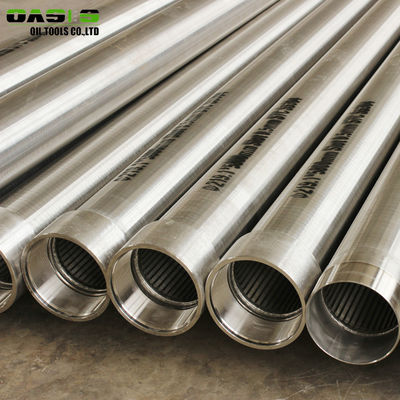

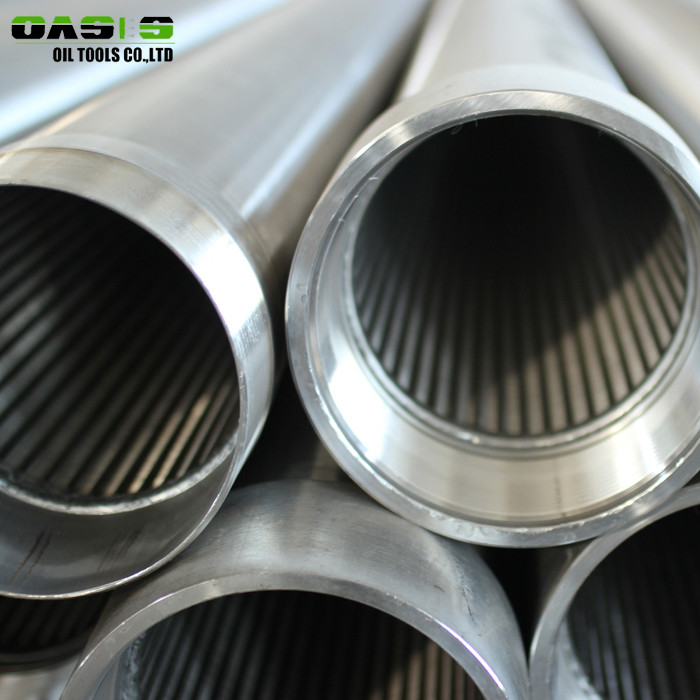

10 inch Stainless Steel Water Well Screen Pipe
10inch Stainless Steel Water Well Screen Pipe
Water well steel slotted screen pipe is the work-horse of the well screen industry and have been used for over 60 years for sand control.Water well steel slotted screen pipe can be used in both Gravel Pack and Stand Alone Screen applications.
Features: Consistent weld integrity at every point of welding.
Tight slot control for consistent flow rates.
Stringent Quality Control measures ensure a quality product.
Weld Rings or Threaded Fittings as per customer requirements.
Multiple wire profile options to suit applications and specification.
Geological formations comprised of small, fine particles
Water wells where gravel packs will be installed
Thin aquifers, where maximum open area is required
Large- and small-diameter deep wells
Company information:
Oasis Oil Tools Co.,LTD, located in the industrial park of high-tech enterprises in Fengquan District, Xinxiang City, covers more than 20000 square meters with total RMB 15 million investment. Oasis now has more than 150 staff, among them 6 persons are senior engineer. Since founded, OASIS always adhere to the “development on innovation, development on efficiency and treat customers with honesty” business philosophy. After many years’ efforts, now OASIS has developed into a famous manufacturer which integrates the research and development, design, manufacture and sell water well screens/johnson screens, oil well screens and sand control well screens, bridge slotted well screens, pipe based well screens, perforated pipe (base pipe), gravel pre-packed well screens, wedge wire screens, passive water intake screens etc. water, oil and gas well filtering products as well steel tubes and pipes and industrial parts.
Wire size |
Wire Width |
Wire Height |
Relief Angle |
Typical Support Rods |
30V |
.030" |
.06" |
10 |
.125" round |
45V |
.045" |
.09" |
10 |
.125" round |
63V |
.063" |
.10" |
13 |
.156" round |
70U |
.070" |
.17" |
7 |
.075" x 1" bar |
90V |
.090" |
.14" |
13 |
.25" round or .075" bar |
125V |
.125" |
.18" |
13 |
.38" round |
Package of 10inch Stainless Steel Water Well Screen Pipe:
Each water well steel slotted screen pipe is packaged with bubble bag and then in wooden case(fumigation certificate).
Each case is clearly marked with:
Name & identification mark of manufacturer-OASIS Brand
Batch number
Date of manufacture
Material
Safe heating & application temperature
Stainless Steel Water Well Screen Pipe
Wire and Slot Specifications:
Our ISO 9001:2008 Certificate:
We OASIS factory has approved ISO 9001:2008 quality management system since the year 2012.
We OASIS are also the audited supplier of made-in-china and approved by SGS.
Our machines have patent certificates to supply customer designed products or OEM service.
