6 5 / 8 '' Screen Casing Pipe , Point Pipe Screen With Plain / Thread Connection End

6 5 / 8 '' Screen Casing Pipe , Point Pipe Screen With Plain / Thread Connection End
6 5 / 8 '' Screen Casing Pipe , Point Pipe Screen With Plain / Thread Connection End 6 5 / 8 '' Screen Casing Pipe , Point Pipe Screen With Plain / Thread Connection End 6 5 / 8 '' Screen Casing Pipe , Point Pipe Screen With Plain / Thread Connection End 6 5 / 8 '' Screen Casing Pipe , Point Pipe Screen With Plain / Thread Connection End 6 5 / 8 '' Screen Casing Pipe , Point Pipe Screen With Plain / Thread Connection End 6 5 / 8 '' Screen Casing Pipe , Point Pipe Screen With Plain / Thread Connection End 6 5 / 8 '' Screen Casing Pipe , Point Pipe Screen With Plain / Thread Connection End 6 5 / 8 '' Screen Casing Pipe , Point Pipe Screen With Plain / Thread Connection End 6 5 / 8 '' Screen Casing Pipe , Point Pipe Screen With Plain / Thread Connection End 6 5 / 8 '' Screen Casing Pipe , Point Pipe Screen With Plain / Thread Connection End 6 5 / 8 '' Screen Casing Pipe , Point Pipe Screen With Plain / Thread Connection End 6 5 / 8 '' Screen Casing Pipe , Point Pipe Screen With Plain / Thread Connection End 6 5 / 8 '' Screen Casing Pipe , Point Pipe Screen With Plain / Thread Connection End 6 5 / 8 '' Screen Casing Pipe , Point Pipe Screen With Plain / Thread Connection End 6 5 / 8 '' Screen Casing Pipe , Point Pipe Screen With Plain / Thread Connection End
Basic Information
Place of Origin: XINXIANG
Brand Name: OASIS
Certification: ISO9001
Model Number: 9inch Johnson strainer screen
Minimum Order Quantity: 1 METER
Price: Negotiation
Packaging Details: Bubble bags
Delivery Time: 15days
Supply Ability: 1000meters/month
Get Best Price Contact Now
Keyword: Continuous Slot Screen TYPE: Johnson Strainer Screen
Connection Type: Weld/thread/flange/plain .Hole Shape: Vee Shaped
High Light:

cylindrical wedge wire screens

,

screen casing pipe

SUS304 SUS316L Stainless steel wire wrapped screen with plain/thread connection end:

Oaiss Oil Tools Co., LTD, which is the munfacturer of the

water well screen, which also could used as oil well screen, wedge wire screen, water strainer, johnson screen, v-shaped screen, vee wedge wrapped screen, wire wrapped screen, wire point pipe,etc.



Specifications of Johnson wire point pipe/ wedge wire well screen

Slot size (mm)

0.10, 0.15, 0.2, 0.25, 0.30 - 3mm

Lengths

6Mts. & 3Mts, we suggest 5.8m(adapt to the container)

Grades

Different grades suitable for tube well depths up to 300ft, 600ft, 900ft , and 1500ft.

Material

Low Carbon Galvanized Steel (LCG) and Stainless Steel (SUS304, SUS304L, SUS316, SUS316L) or can be made according to the customers requirements

Diameter

ranging from 15 to 275mm

End Connection

Plain beveled ends for butt welding or threaded.(We can customize)

Open area

up to 60%

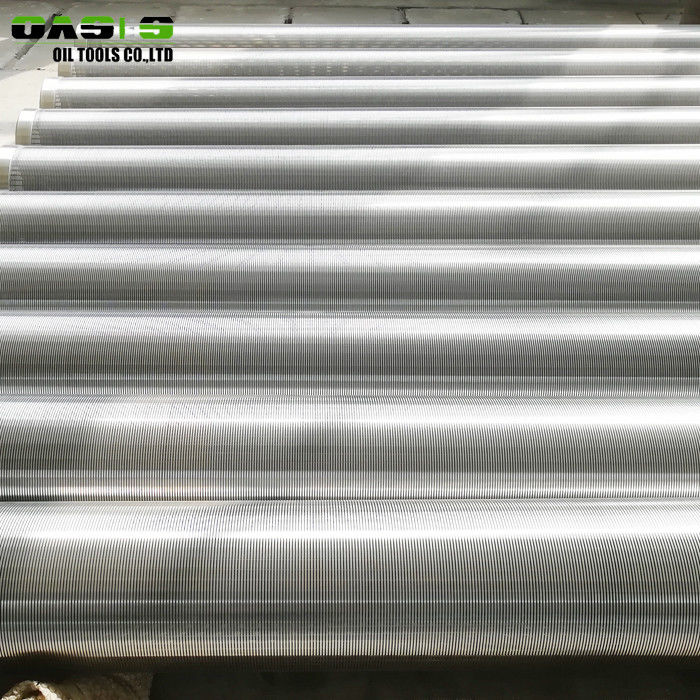

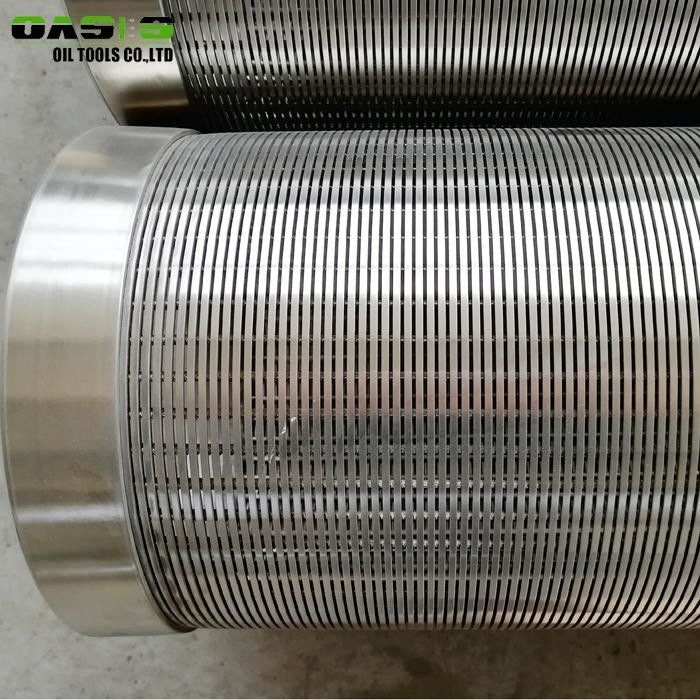

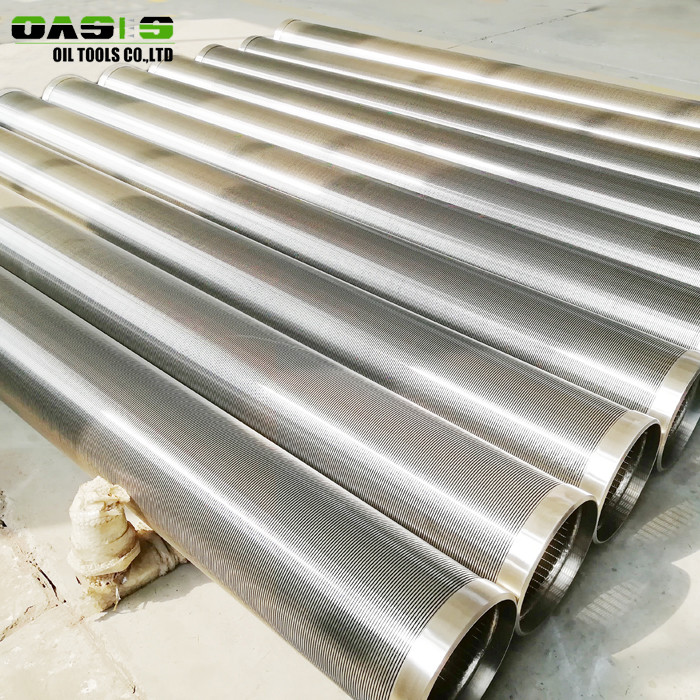

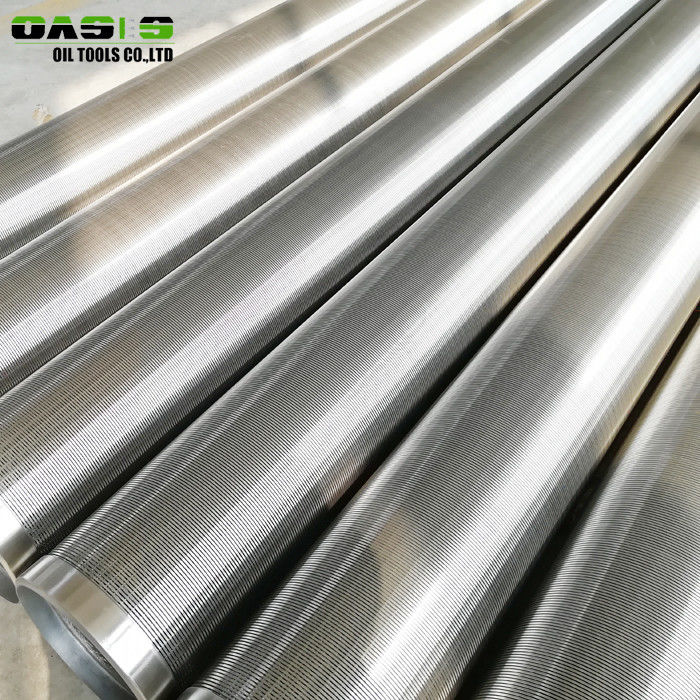

Photo shows of Johnosn wedge wire well screen pipe:

johnson type screens

Johnson strainer screen

Johnson strainer screen

Johnson strainer screen



Oasis supply Johnson strainer well screen:



The specifications table of screen jacket/ sand contral screen pipe:

Size

(inch)

Out Diameter

(mm)

Slot

(inch)

Length

(m)

Collapse

(psi)

Tensile Weight

(ton)

Wire Size

(mm)

Rods

(mm)

4

117

0.040

3

395

6

2.2*3.0

3.8mm/22

4

114.3

0.040

3

395

6

2.2*3.0

3.8mm/22

6

168.3

0.040

3

252

8

2.3*3.5

3.8mm/32

8

219.1

0.010

3

399

10.5

3.0*5.0

3.8mm/32

8

219.1

0.020

3

370

10.5

3.0*5.0

3.8mm/48

8

219.1

0.040

3

323

10.5

3.0*5.0

3.8mm/48

10

273.1

0.010

3

206

11

3.0*5.0

3.8mm/50

10

273.1

0.020

3

191

11

3.0*5.0

3.8mm/50

10

273.1

0.040

3

167

11

3.0*5.0

3.8mm/50

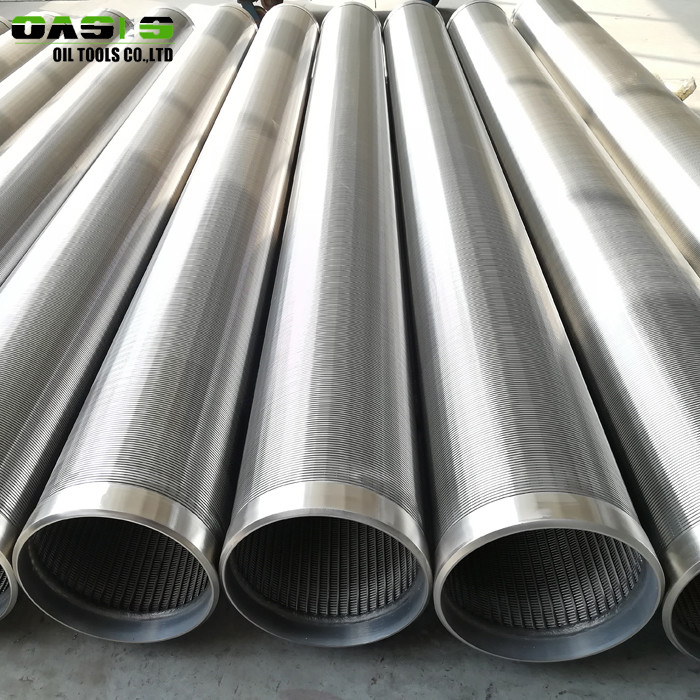

6 5/8'' water well screen Johnson strainer screen pipe with plain end connection:

In bulk or with pallet, the detail packing with plastic bag, bubble wrapped, iron cap protect the both ends, the wood strips protect the pipe filter body, wood strips protect the pipe filter body,



Any other package required or as customer's requirement.





Oasis Oil Tools Co., Ltd - UN supplier list :

6 5/8'' water well wedge wire slot screen for deep well drill with Plain beveled ends for butt welding



Advanced technology, Strict inspection process:
Oasis Oil Tools co.,ltd has 20 years experience in Water Filter Mesh Screens/Water Well Sand Filters, we strive for technical innovations to improve quality of products.Our products not only have the features of trustworthy quality, safety and energy save but also beautiful appearance and low maintanemance.

Small profits but quick turnover:
Our Production will offer you a relatively and reasonable lower price, which means our customer can get more profite with a cheap price.

Premium and comprehensive sale system:
With a comprehensive sale system including before sales service, in-sale service and after sale service, we have won a good reputation at home and abroad. Also it is a important reason why so many customer to choose us.
