Place of Origin: | Henan, China |
---|---|
Brand Name: | OASIS |
Model Number: | OA-W219 |
Minimum Order Quantity: | 10 Meter/Meters |
Price: | Negotiation |
Packaging Details: | wire wrapped water well strainer screens/wedge wire screen filter meshes are packed with woven bags/bubble bags, then with wooden strip, in wooden case or container; according to customers' requirements |
Supply Ability: | 10000 Meter/Meters per Month wire wrapped well screens sample is accepted |
Length: | Customize Length | Type: | Filter Cylinder |
---|---|---|---|
Usage: | Liquid Filter | Material: | Metal |
Hole Shape: | Round | Filter Rating: | 27%-80% Filter Mesh |
Thickness: | Customize Thickness | Width: | Customize Size |
Product Name: | Water Well Strainer Screen/Wedge Wire Screen Filter Mesh | OD: | As The Order |
Slot: | As The Order | Wire: | As The Order |
Rod: | As The Order | End: | Welding, Thread And Flange |
Unit Length: | As The Order | Port: | Any Port In China, Especially Major Port |
Highlight: | well pump filter screen,well sand screen |
Continuous Slot Wire Wrapped Water Well Screen Pipe
Product description of Continuous Slot Wire Wrapped Water Well Screen Pipe
Wire Wrapped Water Well Strainer Screens/ Wedge Wire Screen Filter Meshes consist of V-shape profile wire and the longitudinal support rods. Each intersecting point of these wires is fusion welded, so Wedge wire Screens has sturdy constriction and good mechanical property. The V-shape section plane can avoid blockage and make sure of the unimpeded water. The consecutive slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the Water Well Screens under the great pressure, so it can filter sand better. Meanwhile, the slot of Wedge wire screens can change according to the real condition of the earth.
Advantages of Continuous Slot Wire Wrapped Water Well Screen Pipe
1. Better filter function
2. Prolong life of well
3. Long service life
4. High pressure-resistant
5. Customized Specifications
Specification Details of Hot Sale Wire Wrapped Water Well Strainer Screen/Wedge Wire Screen Filter Mesh with High Quality
|
|
Material
|
Continuous Slot Wire Wrapped Water Well Screen Pipe
|
Diameter
|
from 30-1500mm /(114.3mm- 4 1/2”,168.3mm-6 5/8”, 177.8mm-7", 219.1mm- 8 5/8”, 244.5mm- 9 5/8”, )
|
Slot Size (mm)
|
0.03mm, 0.10, 0.15, 0.2, 0.25, 0.30-5 or as customers’ requirement
|
Unit length
|
1- 6m, 5.8m fit for the container
|
Open area
|
up to 40%
|
End Connection
|
welding (beveled end), thread coupling(STC,LTC,BTC), flange,
|
Surface treatment
|
galvanized, painted, polish, packiled and passivation, etc.
|
Notes
|
wires, rods and slots sizes can be customized
|

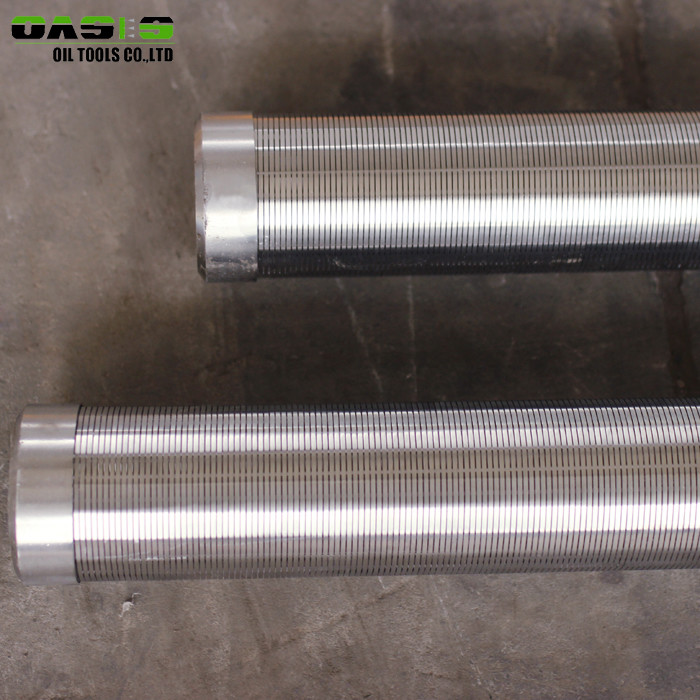

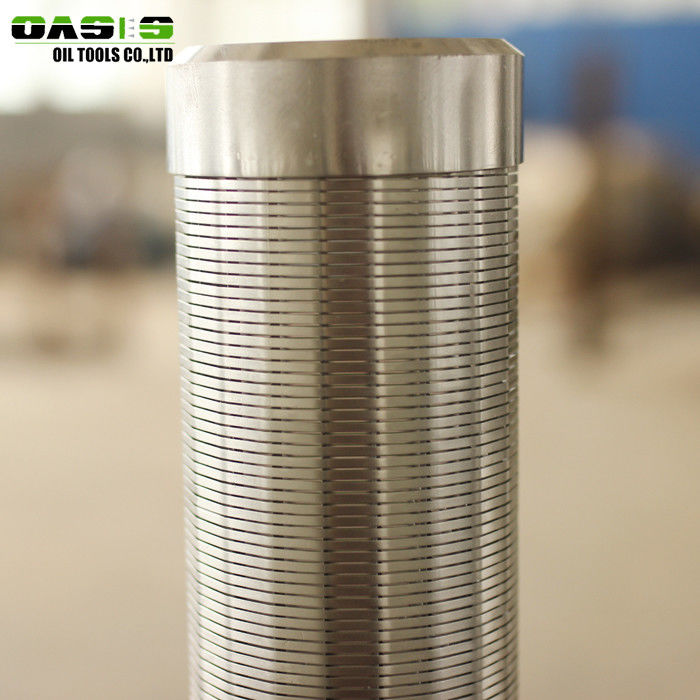

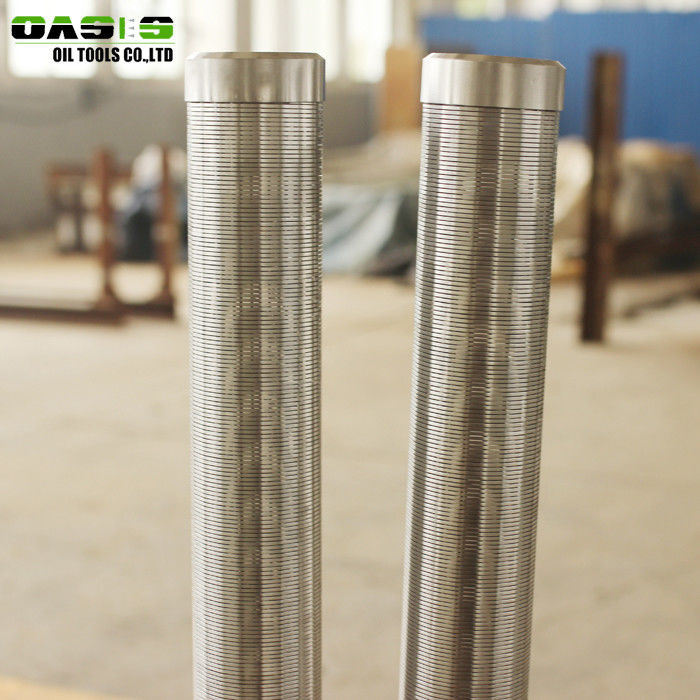

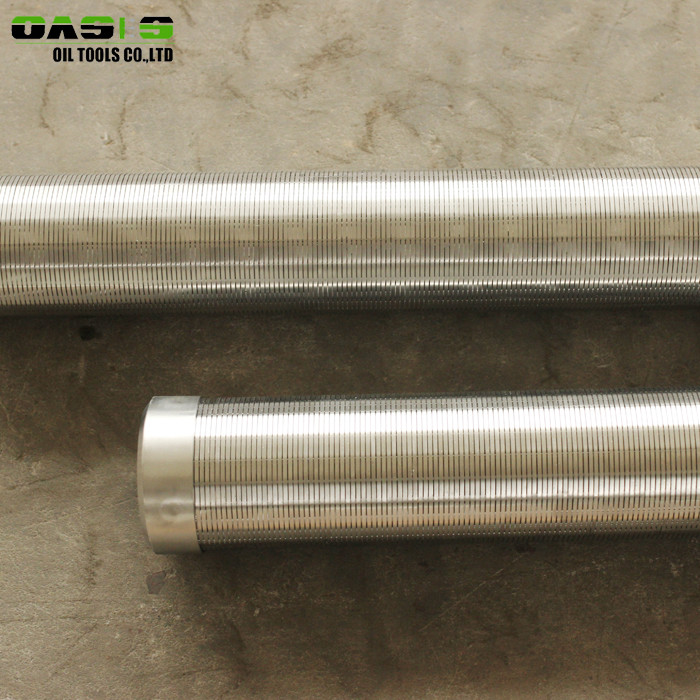

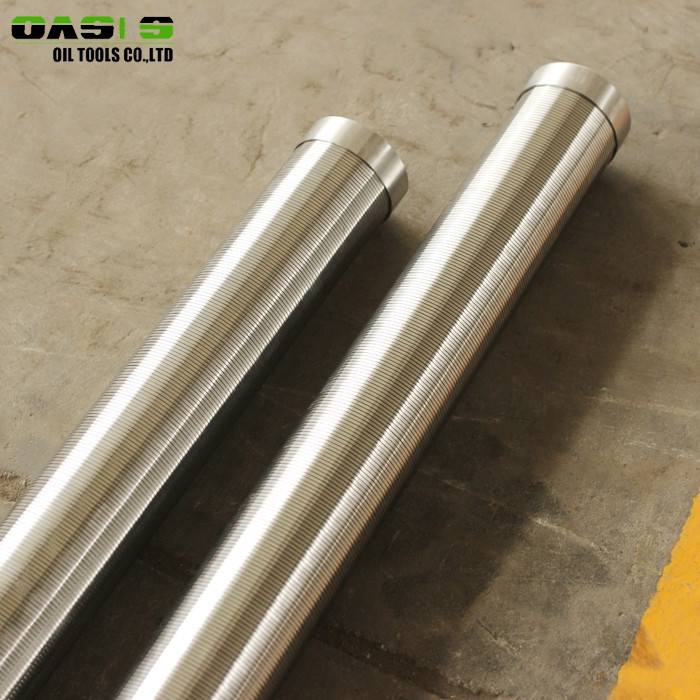

Detailed images of Wire Wrapped Water Well Strainer Screen/Wedge Wire Screen Filter Mesh
Filtration direction of Continuous Slot Wire Wrapped Water Well Screen Pipe
The direction of the flow of continuous slot water well screens is determined by the position of the surface profiles in relation to the support profiles. flat welded welded Johnson type screens / water well screens/wedge wire screens are either flow-out-to-in (FOTI) or flow-in-to-out (FITO)
Testing and inspection details of Continuous Slot Wire Wrapped Water Well Screen Pipe
1. All Dimensions of flat welded Johnson type screens/water well screens/wedge wire screens will be checked by our quality inspector, and they also can be inspected by Third Party Inspections or representative appointed by buyer.
2. Wall thickness of coupling material is inspected by Ultrasonic inspection method, and they also be made the Ultrasonic flaw detection
3. Do Destructive Collapse Test and collapse Strength Test before shipment.
4. If required, the screens will be made pickling and passivation.
5. The whole manufacturing process can be monitored by Third Party Inspection Company (BV, SGS, Intertek )and representative appointed by buyer.
6. The screens will be arranged the Pre-shipment Inspection if required.
Testing Equipment of Continuous Slot Wire Wrapped Water Well Screen Pipe
Applications of Continuous Slot Wire Wrapped Water Well Screen Pipe
1. Heavy oil, sand oil, light oil, SAGD, CBM, bitumen, thermal
2. Water injection, bi-modal sand, carbonates, thin pay
3. Horizontal, vertical , deviated oil and gas and water wells
Our products are widely used for wine-making, malting, paper-making,mining, cement-producing, food-processing, oil-refining, painting as well as the industries of cigarette, sugar, foodstuff, the noise-silence, the environmental protection, agricultural machine, chemical industry and pharmacy industry,
bubble bags woven bags woven bags with wooden strip
by train, low cost and safe by sea, large capactiy and not expensive by air, quick and safe
Oasis Oil Tools Co., Ltd, is a famous manufacturer which integrates the research and the design, development, manufacture and sell water well screens/Johnson screens/wedge wire screen/rod base screen/the continuous slot screen/non-enforced Johnson screen, oil well screens and sand control well screens, bridge slotted well screens, pipe based well screens/perforated base pipe with screen jacket/pipe base screen/reinforced Johnson type screen, perforated pipe (base pipe), the gravel pre-packed well screens, passive water intake screens etc. water, oil and gas well filtering products as well as API/Stainless Steel Casing& Tubing and pipes and industrial parts.
By now, we can supply the following products, including but not limited with: Stainless steel pipe, casing pipe, line pipe; wedge wire screen, perforated pipe, bridge slot pipe, the laser slotted pipe, slotted pipe;the stainless steel well head, drilling bit, well logger, the super power drain pump, mining pump; rig component, the heat exchanger, the well screen welding machine. Our domestic operations cover all major oil and the gas producing areas, the water source development, energy development, ore mining and infrastructure. Marketing network has been established in the world, including the Middle East, Central Asia, Africa and the America.
Our collective tourism in Qingdao City Warehouse with packed wire wrapped water well screens
