Place of Origin: | Henan, China |
---|---|
Brand Name: | OASIS |
Model Number: | Johsnon welded stainless steel screen |
Minimum Order Quantity: | 10 Square Meter/Square |
Price: | Negotiation |
Packaging Details: | Johnson welded stainless steel screen is packed with bubble bags or woven bags or with wooden strip, in bundle or not; according to clients' requests |
Supply Ability: | 15000 Meter/Meters per Month small amount in Johnson stainless steel screen is fine |
Usage: | Liquid Filter | Type: | Filter Cylinder |
---|---|---|---|
Material: | Metal | Hole Shape: | Round |
Filter Rating: | 60% | Thickness: | 80-1000um |
Length: | Customize Length | Width: | Require |
Product Name: | Johnson Welded Stainless Steel 304L Screen With STC End Connection | Material: | Stainless Steel |
Application: | Liquid Filter | Shape: | Square Shape |
Certificate: | SGS | Feature: | Corrosion Resistance |
Sample: | Free And Customized | Port: | Xingang, Shanghai, Dalian, Qingdao, Ningbo Port, Etc |
Highlight: | well pump filter screen,well sand screen |

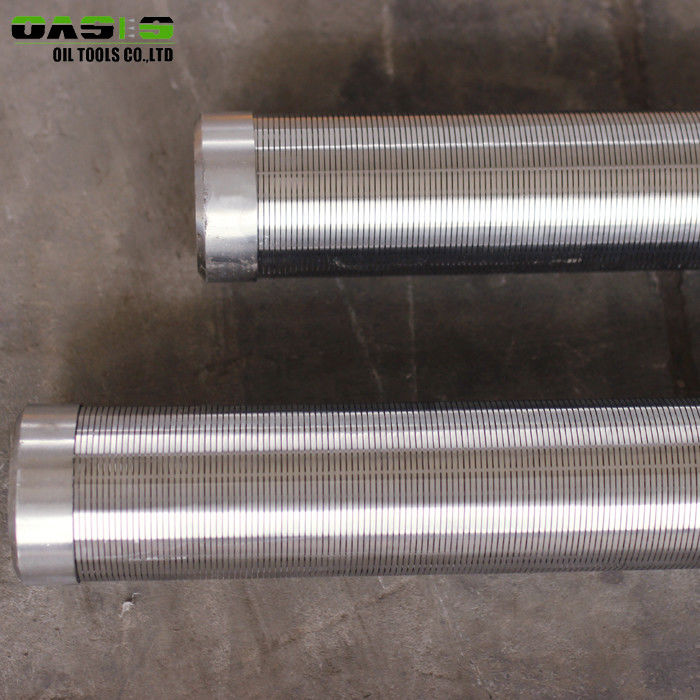

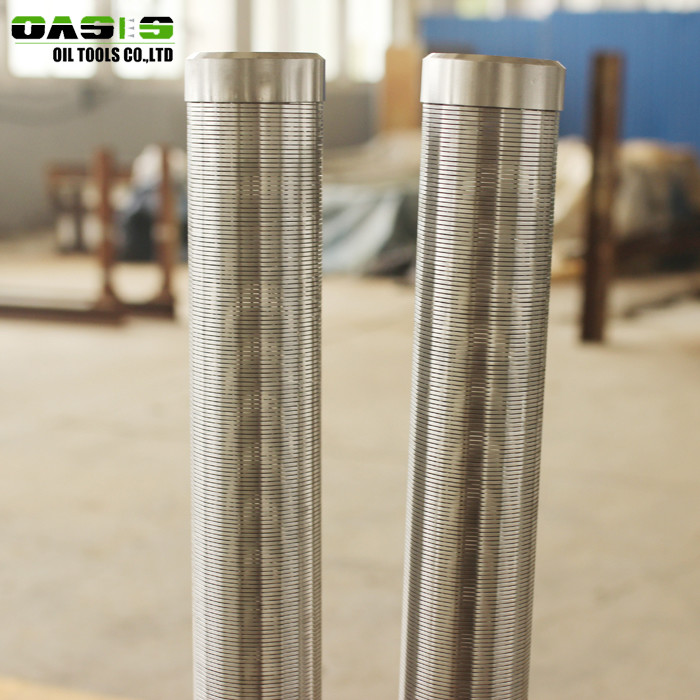

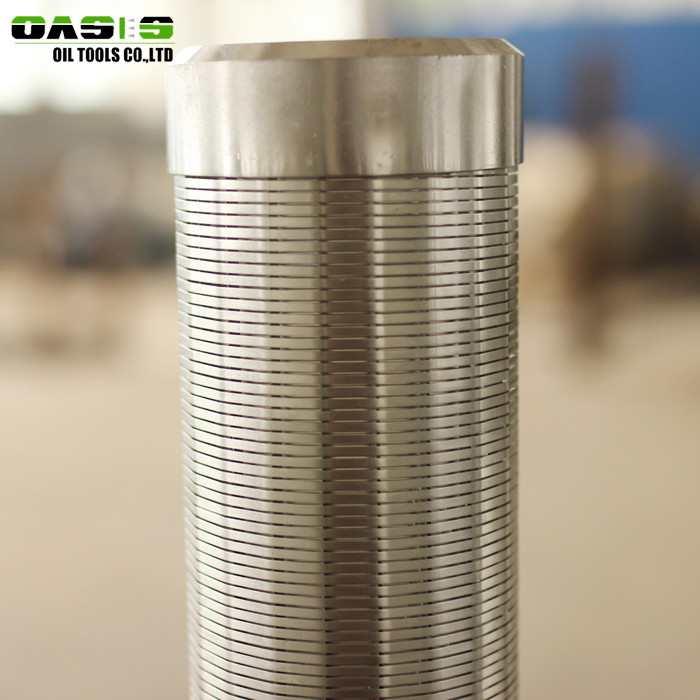

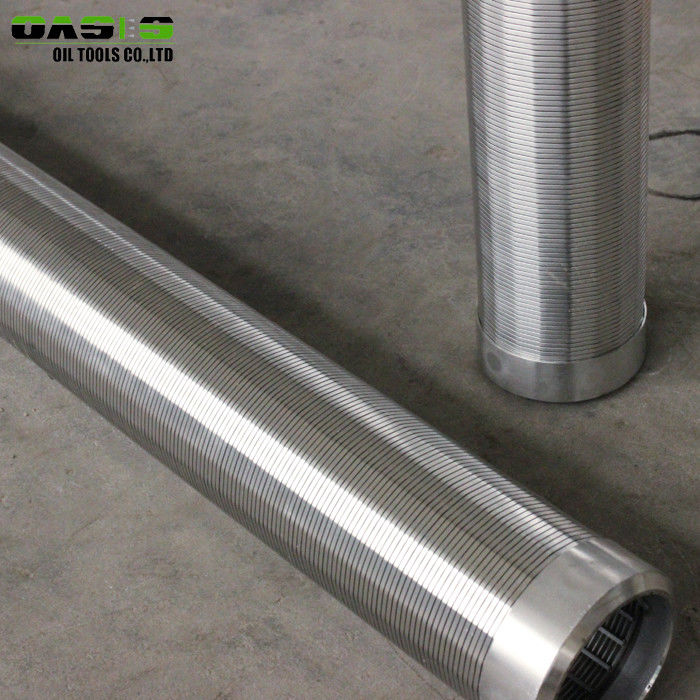

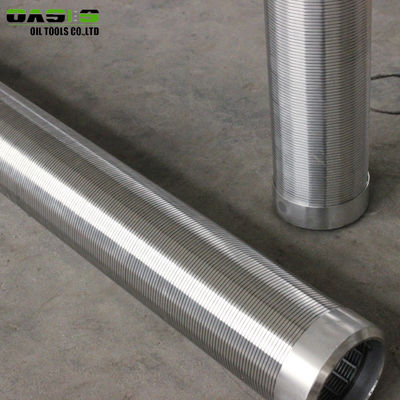

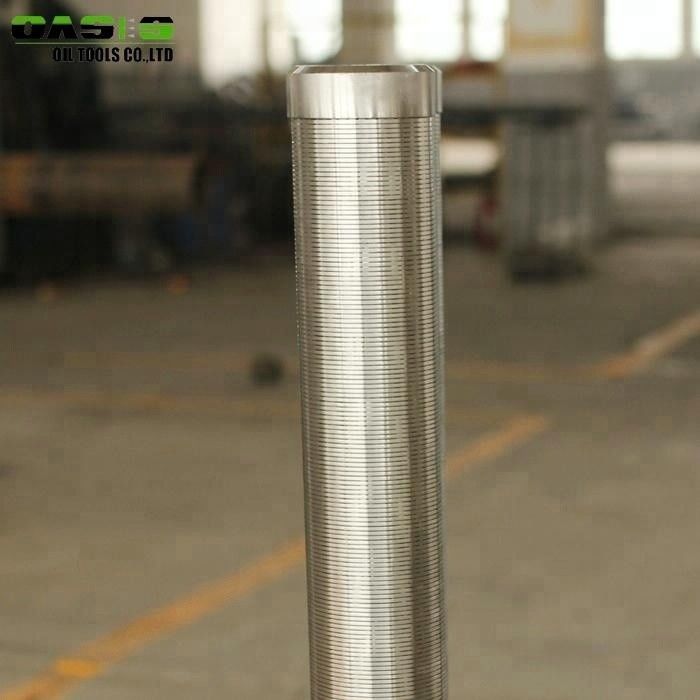

Stainless Steel Johnson Type Water Well Screen Pipe
China supplier of stainless steel Johnson screen consists of V-shape profile wire and the longitudinal support rods, each intersecting point of wires of screen is fusion welded by auto welding machines, so it has sturdy construction and good mechanical property.
Johnson welded stainless steel standard screen are used for shallow and medium-depth wells(around 500m), with high flow rates due to large open area. And we are consistently supplying Johnson welded stainless steel 304L screen to clients home and abroad.
Detailed images of Stainless Steel Johnson Type Water Well Screen Pipe
Product name
|
China supplier of Stainless Steel Johnson Type Water Well Screen Pipe
|
Material
|
stainless steel (304,304L,316,316L etc.) duplex stainless steel 2205,2209,2507,etc
|
Diameter
|
from 30-1500mm /(114.3mm- 4 1/2”,168.3mm-6 5/8”, 219.1mm- 8 5/8”, 244.5mm- 9 5/8”, )
|
Slot Size (mm)
|
0.5mm
|
Unit length
|
up to 1- 6m, 5.8m fit for the container
|
Open area
|
up to 60%
|
End Connection
|
thread coupling(STC,LTC,BTC) or flange or sealed
|
Surface treatment
|
galvanized, painted, polish, packiled and passivation, etc.
|
Packing
|
bubble bag and woven bag, in bundle or unbundle or in wooden cases.
|
Testing of Stainless Steel Johnson Type Water Well Screen Pipe
Stainless steel screen has been inspected strictly and its quality has met and exceeded the national quality standard such as DIN, API ,ISO,etc. Our Johnson welded stainless steel screen has been exported to many countries and get a good feedback from clients all over the world.
OD inspection of 8 5/8" Johnson welded stainless steel 304L screen with STC end connection
material inspection slot check
Application fields of Stainless Steel Johnson Type Water Well Screen Pipe
a. Piling project and water well drilling
Packing&Delivery
Packing details: Stainless Steel Johnson Type Water Well Screen Pipe is packed with bubble bags or woven bags or with wooden strip,
in bundle or not; according to clients' requests
Delivery details: Stainless Steel Johnson Type Water Well Screen Pipe is delivered 3-30 days after advance payment or depend on quantity.
woven bags bubble bags with wooden strip bubble bags
woven case container
