8 5 / 8 " Reinforced Pipe Base Screen Stainless Steel 316L Material Two Layers

8 5 / 8 " Reinforced Pipe Base Screen Stainless Steel 316L Material Two Layers
8 5 / 8 " Reinforced Pipe Base Screen Stainless Steel 316L Material Two Layers 8 5 / 8 8 5 / 8 8 5 / 8 " Reinforced Pipe Base Screen Stainless Steel 316L Material Two Layers 8 5 / 8 8 5 / 8 8 5 / 8 " Reinforced Pipe Base Screen Stainless Steel 316L Material Two Layers 8 5 / 8 8 5 / 8 8 5 / 8 " Reinforced Pipe Base Screen Stainless Steel 316L Material Two Layers 8 5 / 8 8 5 / 8 8 5 / 8 " Reinforced Pipe Base Screen Stainless Steel 316L Material Two Layers 8 5 / 8 8 5 / 8
Basic Information
Place of Origin: Henan, China
Brand Name: OASIS
Certification: ISO9001:2008
Model Number: OA-P245
Minimum Order Quantity: 1Meter
Price: Negotiation
Packaging Details: wooden strips, or wooden structures
Delivery Time: Within 20 days or according to client's requirements
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10000 Meter/Meters per Month
Get Best Price Contact Now
Applicable Industries: Energy & Mining, Well Drilling Usage: Liquid Filter
Type: Filter Cylinder Material: Metal, Stainless Steel 316L
Hole Shape: Round Filter Rating: 99%
Thickness: 6-20mm Length: 0.2-6m
Width: 100-1500mm Diameter: 9 5/8" Pipe Base Well Screen
Screen Type: Two Layers Connection: Threads, Flange, Welding Rings
Inspection: BV, SGS Or Buyer Representatives Certificate: COC, SASO,PROC, FORM E/A, CO
Port: Tianjinxingang, Qingdao, Shanghai, Ningbo, Etc
Highlight:

oil pump screen

,

steel wire mesh screen

8 5/8" Reinforced Stainless Steel 316L Pipe Base Screen

Product Description

The 8 5/8" Reinforced Stainless Steel 316L Pipe Base Johnson type Strainer Screen are used for deep water well application and oil field application. It is used for sand control in wells with high pressure and high traction value due to the depths.
Pipe based well screens consist of base pipe, all-welded wedge wire screen and supporting rod. The base pipe is perforated or slotted API casing pipe. The base pipe can be stainless steel or carbon steel API 5CT casing. The all-welded wedge wire screens are welded together with base pipe by supporting rod.Having the API casing inside a wire wrap screen jacket is supporting the screen and enhance the cabapities and high tensile strength Loads. Pipe base can be made from API pipe Seamless casing spiral or stainless steel casing. Opening area for the base pipe is up to 15% and for the jacket is up to 30%. Jacket slot size is between 0.15mm to 3mm.

Product Name
8 5/8" Reinforced Stainless Steel 316L Pipe Base Johnson type Strainer Screen
Material
Base Pipe: stainless steel 304L   Jacket Screen: Stainless Steel 304L
Size
219mm or from 100-1500mm
Standard
DIN4935, API 5CT, SL154-2013
Hole diameter
11mm, 16mm, 19mm or other customized sizes
Length
Range LengthR1(4.88-7.62M), R2(7.62-10.36M), R3(10.36-14.63M) Or fixed length 5.8m, 6m
Connection type
Threads(LTC, STC, BTC), Welding rings, Flange
Used
Water/Oil well drilling or related fields service
Products Show
8 5 / 8 " Reinforced Pipe Base Screen Stainless Steel 316L Material Two Layers 0
Our Company
8 5 / 8 " Reinforced Pipe Base Screen Stainless Steel 316L Material Two Layers 1
8 5 / 8 " Reinforced Pipe Base Screen Stainless Steel 316L Material Two Layers 2

Factory

Our Factory

Workshop

Our Workshop

8 5 / 8 " Reinforced Pipe Base Screen Stainless Steel 316L Material Two Layers 3
8 5 / 8 " Reinforced Pipe Base Screen Stainless Steel 316L Material Two Layers 4

Warehouse

Our Warehouse

Team

Our Team


Packing & Delivery

Packing Details  : Bubble bag, wooden stripes, wooden structure

Delivery Details : 3-30 days after receiving the advance payment




Perforated Base Pipe

Screen Jacket Wedge Wire Wrapped Johnson type Water Well screen

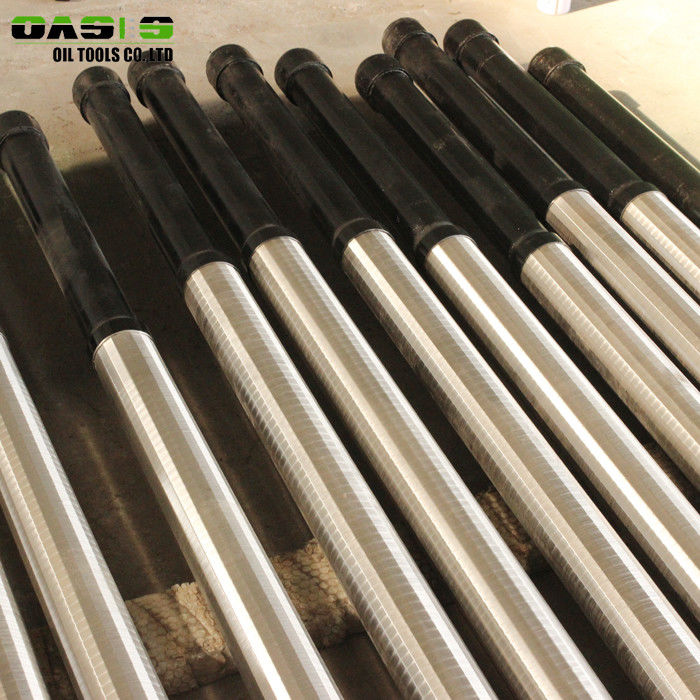

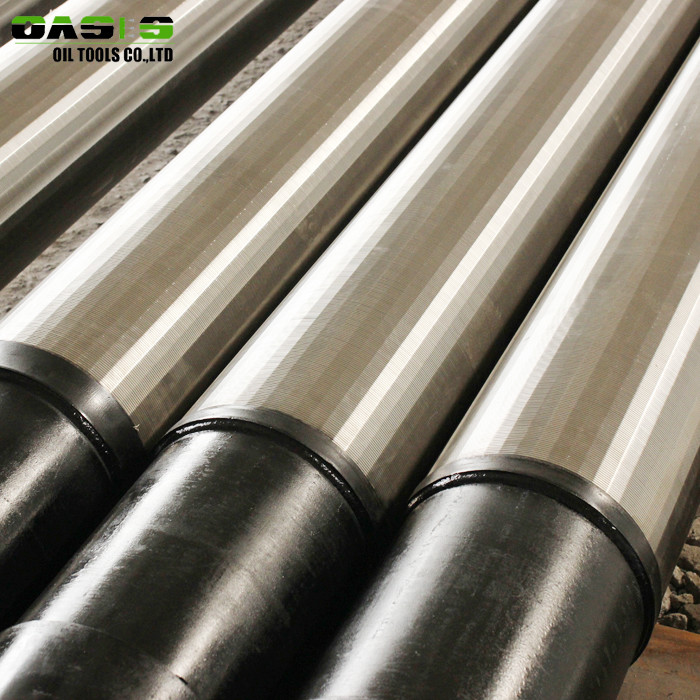

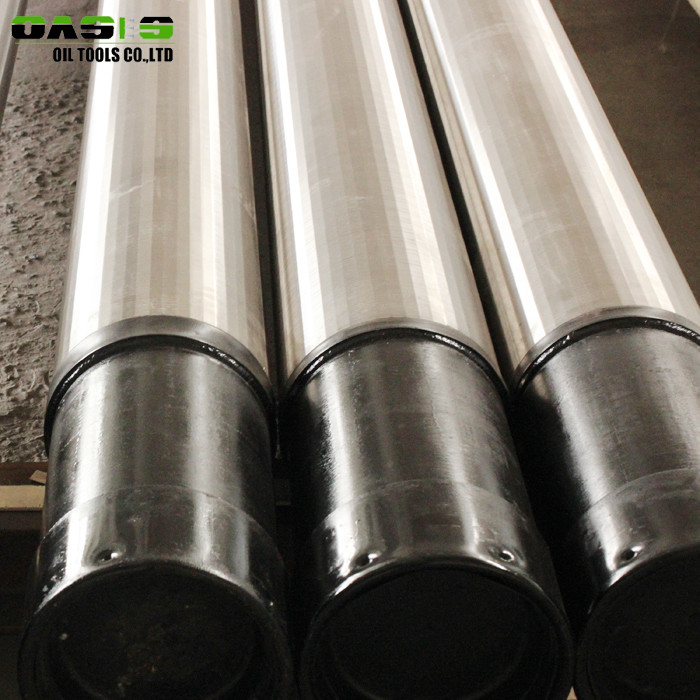

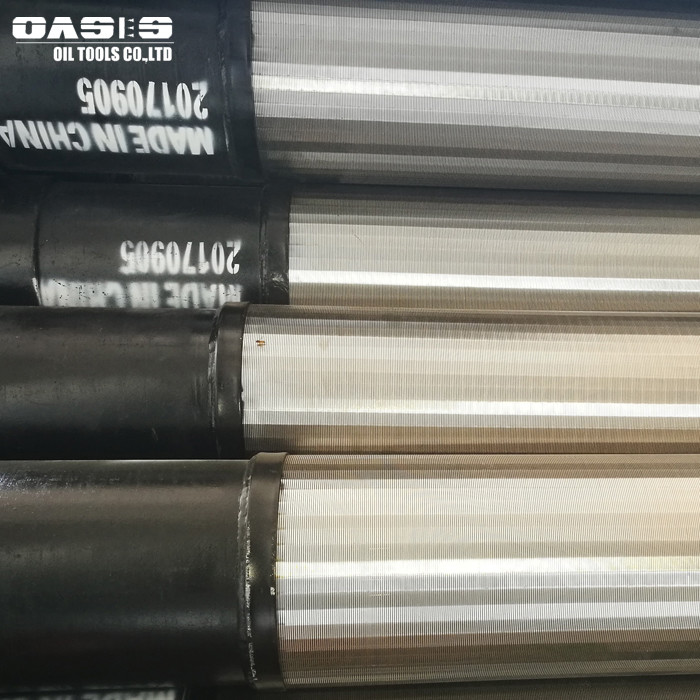

Finished Pipe Based Well Screen

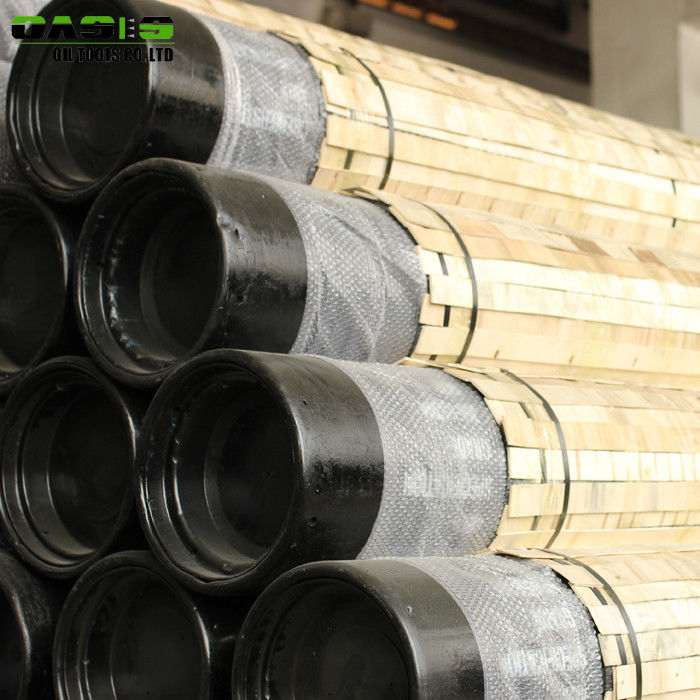

Perforated Base Pipe packed with wooden strips

Pipe Based Screen loading into Container

Pipe Based Screen Shipped by Container




Our Certifications
8 5 / 8 " Reinforced Pipe Base Screen Stainless Steel 316L Material Two Layers 5
8 5 / 8 " Reinforced Pipe Base Screen Stainless Steel 316L Material Two Layers 6


FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 3-10 days if the goods are in stock. or it is 7-30 days if the goods are not in stock, it is according to the real specification and quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=10,000.00 USD, 100% in advance. Payment>=10,000.00USD, 30% T/T in advance ,balance after inspection and before shipment.

B. L/C are also acceptable
If there is any questions or requirements of our pipe base screen products, feel free to contact with we OASIS.
