Stable Performance 12 Inch Pipe Base Screen Stainless Steel 304 Material

 The better-performance 12inch stainless steel 304 pipe based well screens

With imported fully automated computer numerical control equipments, Germany advanced inspection mehtods,Oasis has developed more than 20 kinds of these filtering products, the appearance and accuracy of which have a very leading level at home and abroad.Our main products include Johnson well screens,pipe based well screens, perforated pipe, slotted pipe, bridge slotted well screens, sand control well screens,industrial filters,screen plate,passive water intake screens,water cap, etc.

Besides, the surface of OASIS well screens can be galvanized abnd power coated. These pipe products have stainless steel pipe, carbon steel pipe, the API/ISO oil well casing and related parts. Well screens are widely applied in water well, oil well and gas well to aontrol sand, filtering, paper making and chemical industry.

Description of  the better-performance 12inch stainless steel 304 pipe based well screens

Pipe based well screens are used for deep water well application and oil field application. It is used for sand control in wells with the high pressure and high traction value due to the depths.Pipe based well screens consist of the base pipe, all-welded wedge wire screen and supporting rod. The base pipe is perforated or slotted API casing pipe.

The base pipe can be stainless steel or carbon steel API 5CT casing. The all-welded wedge wire screens are welded together with base pipe by supporting rod. Having the API casing inside a wire wrap screen jacket is supporting the screen and enhance the capabilities and high tensile strength Loads. Pipe base can be made from API pipe Seamless casing spiral or stainless steel casing. Opening area for the base pipe is up to 15% and for the jacket is up to 30%. Jacket slot size is between 0.15mm to 3mm.

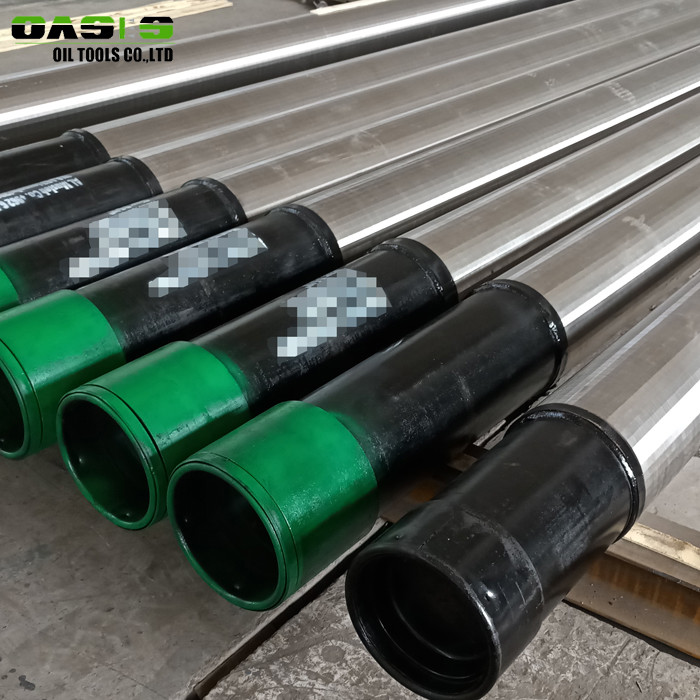

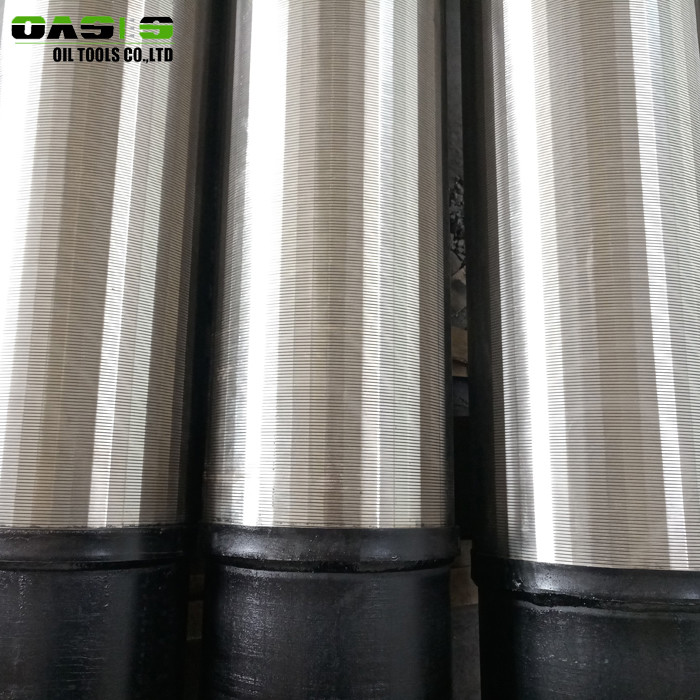

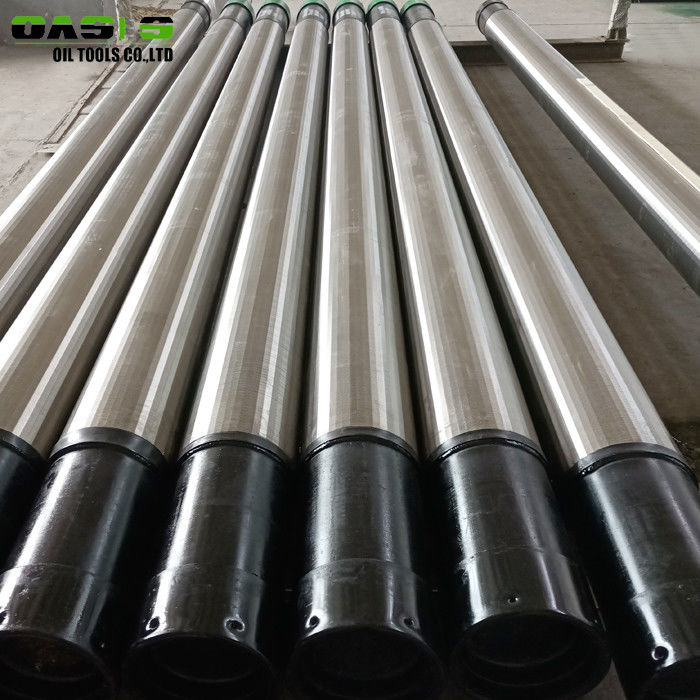

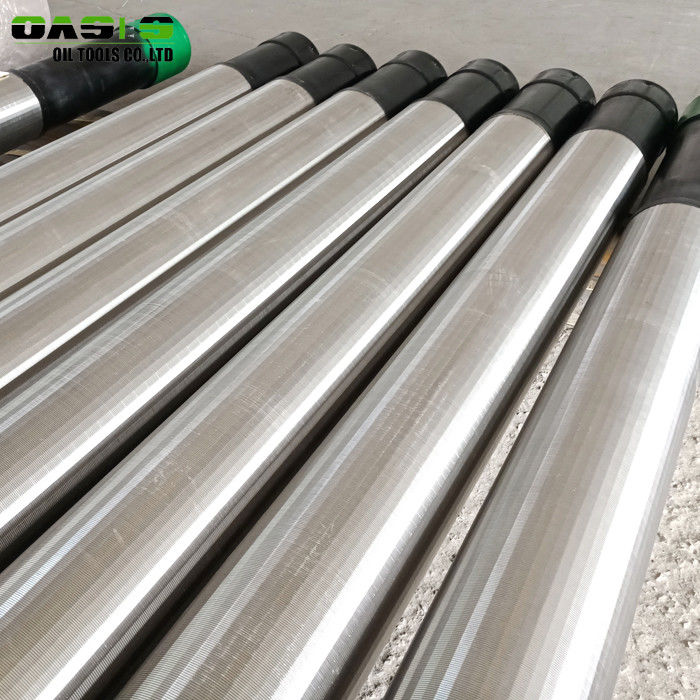

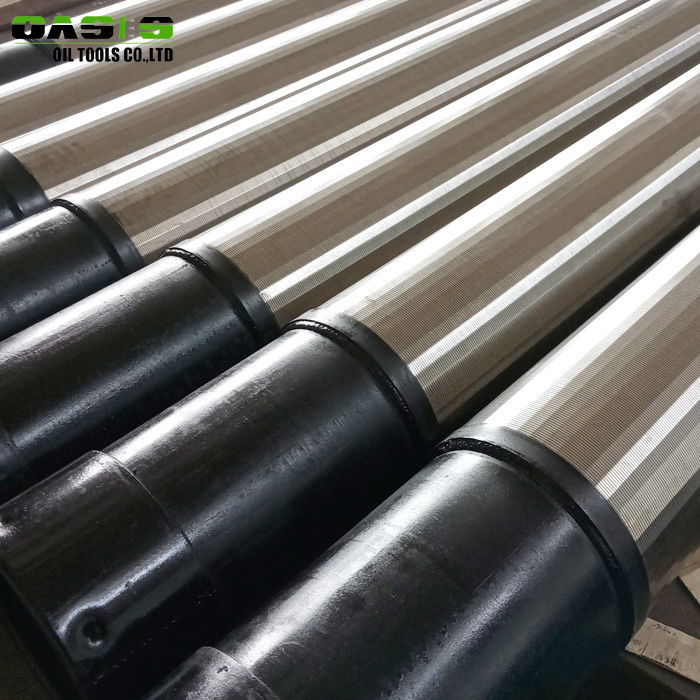

                                                                         detailed images of pipe based well screens

Specifications of  the better-performance 12inch stainless steel 304 pipe based well screens in China

Advantages of  the better-performance 12inch stainless steel 304 pipe based well screens in China

1. Better filter function

 The Vshape section plane of water well screens(Johnson screens) creates the continuous slot, which can avoid blockage and make sure of the unimpeded water.

2. Prolong life of well

The consecutive slot of water well screens(Johnson screens) have wider open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can control sand better, which can increase the water yield and prolong service time of the well.

3. Long service life

Wire and support rods are allwelded, which makes water well screens(Johnson screens) more robust and longer life.

4. High pressure-resistant

The longitudinal support  rods and the continuous slot make the water well screens(Johnson screens) have more excellent pressure-resistant performance.

5. Customized

 Specifications and end connections of water well screens(Johnson type screens) can be fabricated according to customers’ requirements.

Packing Details: the pipe based well screens are packed with bubble bag and wooden strip or according to clients' requirements

1) World Class Quality:

OASIS provide our clients with high quality Stainless Steel water well screen. All products were produced according to the client requirement.

2) Third party inspection:

Products of OASIS is controlled by third party test company such as BV,SGS,etc. or client's representative.

3) Non Standard Size:

 OASIS supply engineered casings according toclients' requirements.

4) Quick Delivery:

OASIS can prepare stock for our regular clients to meet clients' requirement at any time.

5) Environmentally safe:

OASIS screens have signed the file to protect the environment with our local Environmental Protection Administration.
