Two Layers Water Well Pipe Base Screen Reinforced With Non Clogging Constructure

Two layers water well screen/reinforced johnson screen with non-clogging constructure

Description of Two layers water well screen stainless steel pipe based screen and the reinforced johnson screen with non-clogging construction

stainless steel pipe based well screen/two layers water well screen/ reinforced johnson screen with non-clogging constructionis composed of  two parts: the base pipe and the slip-on screen. The base pipe will be perforated with a series of holes drilled to a pre-determined quantity and pattern, to carefully balance flow-capacity at each end for both down-hole handling. The holes are then debarred and the joint cleaned, inspected and treated to give the base pipe a long shelf life. Our slip-on screens are manufactured to very exact diameter, length gauge and the strength tolerances. This is done by selecting the required profile wire and support rod, which determine the flow-capacity and strength of the slip-on screen. For each gauge opening in the screen we select a slightly greater than that of the perforated base pipe. This will give the pipe base screen optimum flow-capacity at minimum pressure drop across the screen. The base pipe, casing or tubing, is selected to API specifications by size, grade and weight for each of your required applications.

Specifications of Two layers water well screen stainless steel pipe based screen and the reinforced johnson screen with non-clogging construction

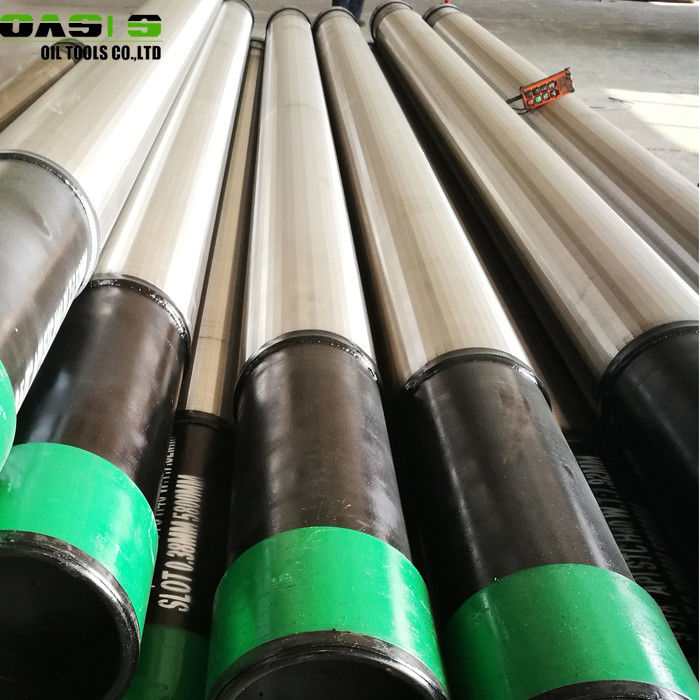

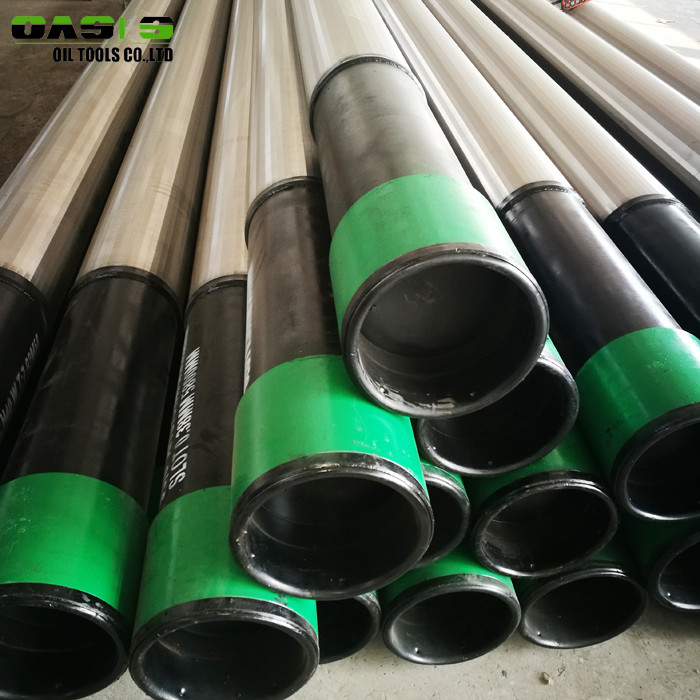

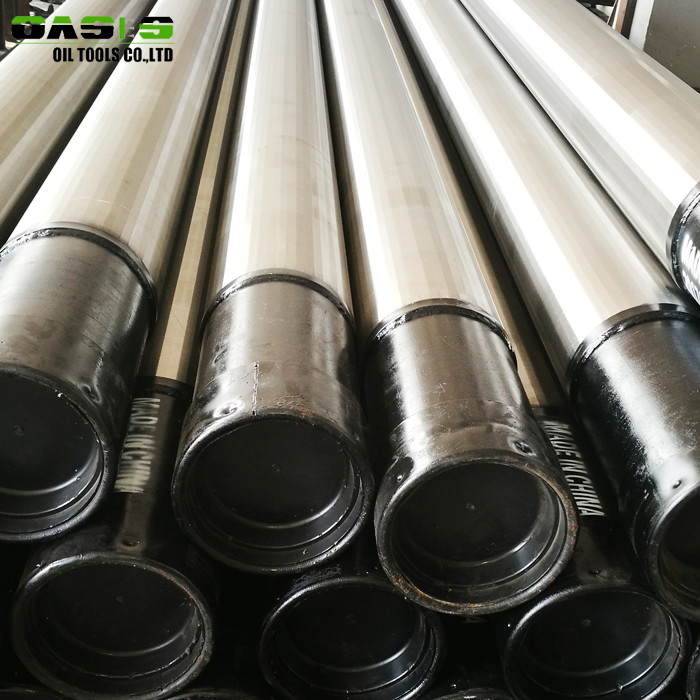

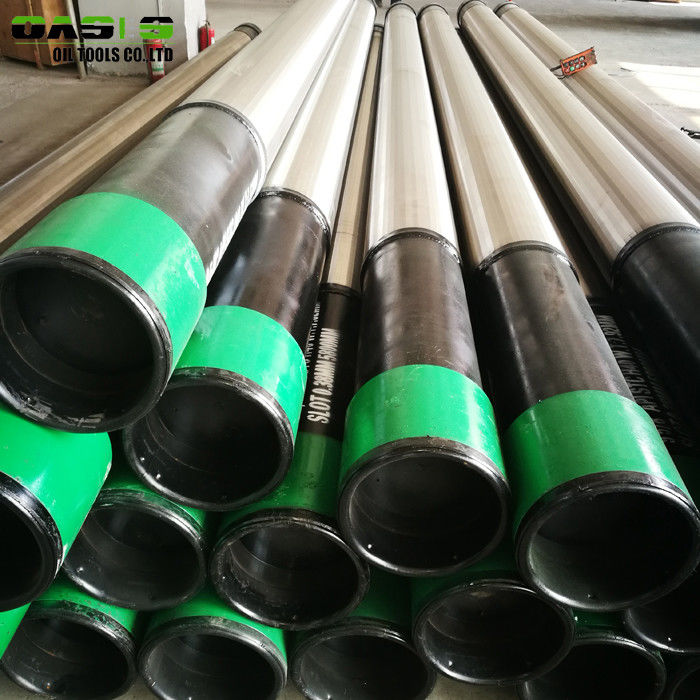

Detailed images of the Two layers water well screen stainless steel pipe based screen and the reinforced johnson screen with non-clogging construction

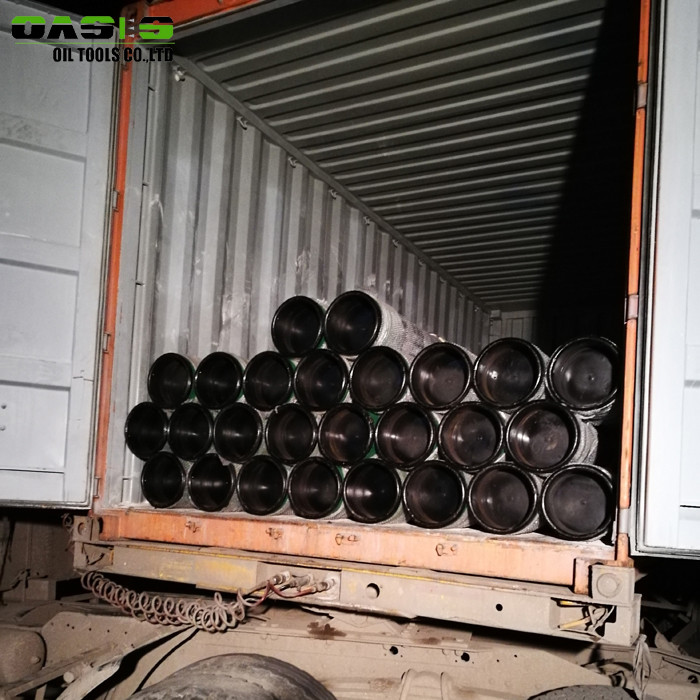

Packing &delivery of Two layers water well screen stainless steel pipe based screen and the reinforced johnson screen with non-clogging construction

Packing details: stainless steel pipe based well screen/two layers water well screen/ reinforced johnson screen are packed with woven bags or bubble bags; up to your requirements

Delivery time: stainless steel pipe based well screen/two layers water well screen/ reinforced johnson screen are delivered within 30 days or according to your quantity by sea, air, train, or express, etc

woven bags                                      bubble bags with wooden strip         bubble bags

by sea                                               by train                                             by air

Our company

OASIS Co., Ltd is located in Xinxiang city, Henan province, in China, which is home to wire mesh. It is a comprehensive factory which integrates research and development, the design, manufacture and market. Our products have been exported to the majority of countries and regions all over the world. Furthermore, we are capable of providing favorable price and the professional services! Through many years'development and efforts, OASIS Co., Ltd has won a good reputation at home and abroad and established a long-term partnership with global famous enterprises.

our company                                                                 collective activity

exhibition                                         workshop                                         warehouse

Certificate

Related products of the Two layers water well screen stainless steel pipe based screen and the reinforced johnson screen with non-clogging construction

wedge wire screen                            perforated pipe                                bridge slot  well screen
