Place of Origin: | Henan, China |
---|---|
Brand Name: | OASIS |
Minimum Order Quantity: | 10 Meter/Meters |
Price: | Negotiation |
Packaging Details: | downhole sand control screen with two layer pipe based well screen for deep water well Standard international package 1. Wood package 2. Plastics package 3. Woods pieces package |
Supply Ability: | 7500 Meter/Meters per Month two layer pipe based well screen for deep water well |
Applicable Industries: | Oil And Gas Well | Name: | Premium Mesh Screen |
---|---|---|---|
OD: | 219mm | Steel Grade: | Ss304, 304L, 316,3 16L |
Hole Size: | 14mm | Slot Size: | 0.5mm |
Length: | 4mters | Open Area: | 25% |
Port: | All China Port | Other Name: | Drainage Mesh |
Highlight: | deep well casing,oil casing pipe |
stainless steel sand control premium mesh screens for oil and gas well
Premium mesh screen consists of the inner perforated base pipe, the first drainage layer, the filtration media and the second drainage layer and out shroud.
The first drainage layer mesh wrapped on the inner perforate base pipe and provides even distribution of flow, it also has the function to support filter media. Inner/outer mesh media is able to meet the requirements of sand control for all sand with different diameters. The second drainage mesh has the function to separate two layers of filter media, ensuring the accuracy of filtering. It also has the role to provide even distribution of flow for the media

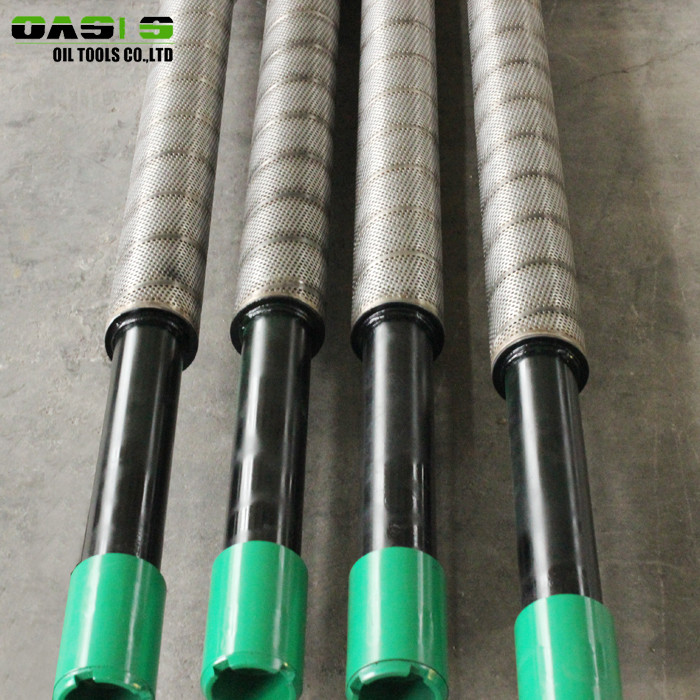

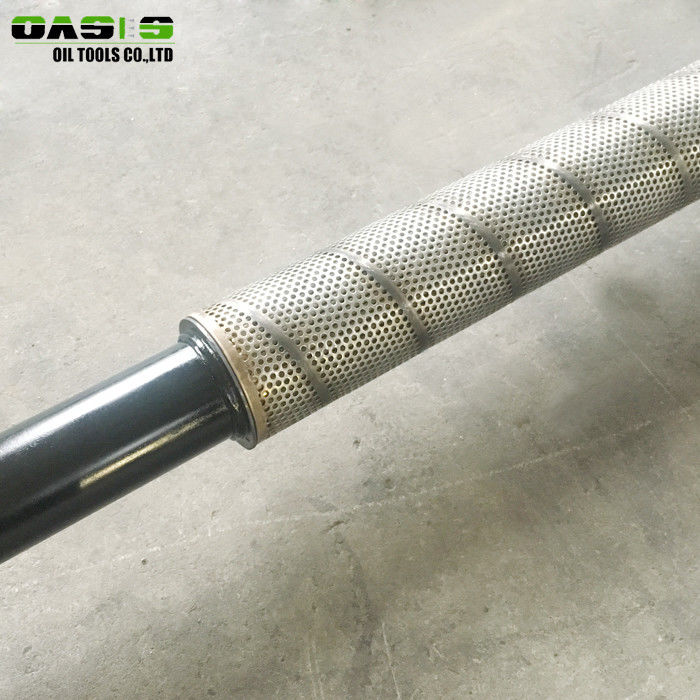

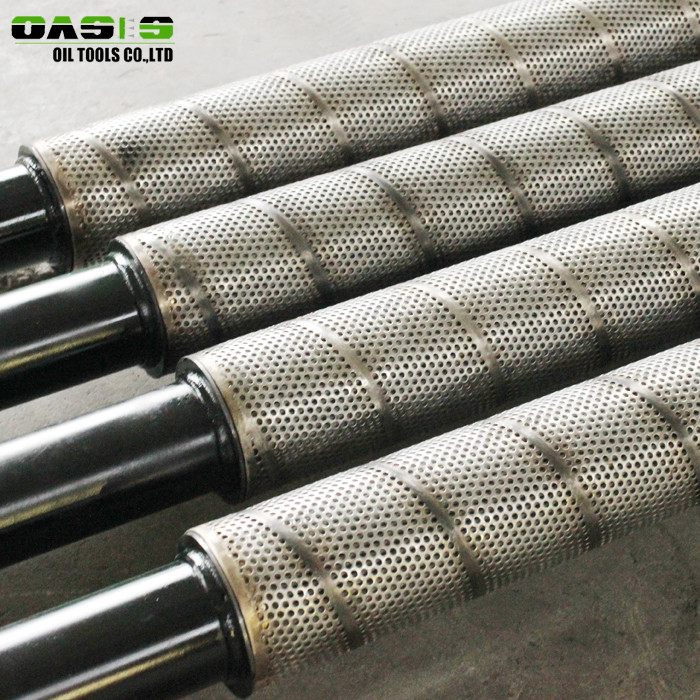

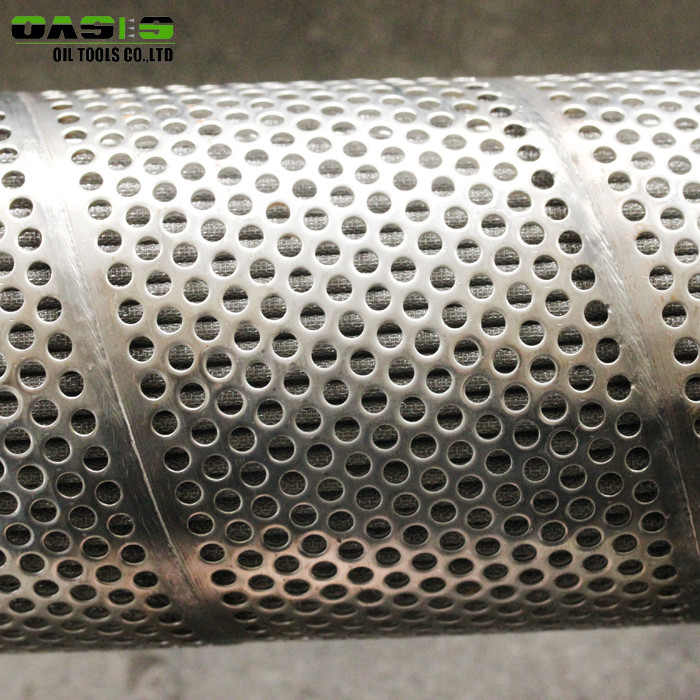

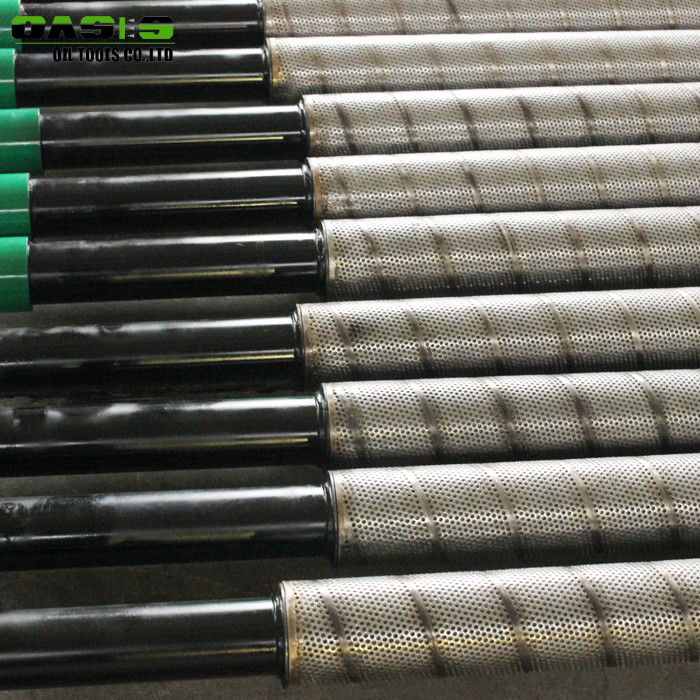

Photos for Premium Mesh Screen:
The features of stainless steel sand control premium mesh screens for oil and gas well
1.The perforated base pipe can be carbon steel or high quality stainless steel, depending on project requirement.
2. The first drainage layer can be stainless steel mesh required to allow inner flow of fluids.
3. The filtration media can be stainless steel, dutch weave or square weave, in pore sizes from 60 to 250 microns.
4. The outer shroud is perforated or slotted, as required by specifications, in high quality Stainless Steel.
5. Premium Sand Control Screens can be manufacture to fill customer requirements and specifications
Package Details of stainless steel sand control premium mesh screens
1. Wrapped by woven bag
2. Fixed by wooden strip
3. Wrapped by bubble bag
4. Put in wooden box
5. As clients' requirement
stainless steel sand control premium mesh screens for oil and gas well
Seamless/ ERW stainless steel pipes:
Johnson wire wrapped screen tubes for oil well:
