China Stainless Steel Well Screen manufacturer

Oasis Oil Tools Co., Ltd

English
Request A Quote
Products

Mechanical Premium Screen , Filtration Deep Well Casing Oil Casing Pipe

Mechanical Premium Screen , Filtration Deep Well Casing Oil Casing Pipe
Mechanical Premium Screen , Filtration Deep Well Casing Oil Casing Pipe Mechanical Premium Screen , Filtration Deep Well Casing Oil Casing Pipe Mechanical Premium Screen , Filtration Deep Well Casing Oil Casing Pipe Mechanical Premium Screen , Filtration Deep Well Casing Oil Casing Pipe Mechanical Premium Screen , Filtration Deep Well Casing Oil Casing Pipe Mechanical Premium Screen , Filtration Deep Well Casing Oil Casing Pipe Mechanical Premium Screen , Filtration Deep Well Casing Oil Casing Pipe Mechanical Premium Screen , Filtration Deep Well Casing Oil Casing Pipe Mechanical Premium Screen , Filtration Deep Well Casing Oil Casing Pipe Mechanical Premium Screen , Filtration Deep Well Casing Oil Casing Pipe Mechanical Premium Screen , Filtration Deep Well Casing Oil Casing Pipe Mechanical Premium Screen , Filtration Deep Well Casing Oil Casing Pipe Mechanical Premium Screen , Filtration Deep Well Casing Oil Casing Pipe Mechanical Premium Screen , Filtration Deep Well Casing Oil Casing Pipe Mechanical Premium Screen , Filtration Deep Well Casing Oil Casing Pipe
Basic Information
Place of Origin: CHINA
Brand Name: OASIS
Certification: ISO, EN10204-3.1, Form E,A
Model Number: OA-PS-3 1/2in
Minimum Order Quantity: 5m
Price: Negotiation
Packaging Details: bubble film, wooden strips or in plywood box
Delivery Time: 25days
Payment Terms: L/C, T/T
Supply Ability: 5000 meters per month or depends on the specification
Get Best Price Contact Now
Material: Stainless Steel Diameter: 1-9 5/8" Or Customized
Slot Size: From 0.01mm Connection: Thread
Length: Depend On The Requirement Keyword: Premium Screen
High Light:

deep well casing

,

oil casing pipe

Premium Screen

Product Description

Highly Mechanical Properties Premium Metal Mesh Screens with effective filtration Function for oil and gas well

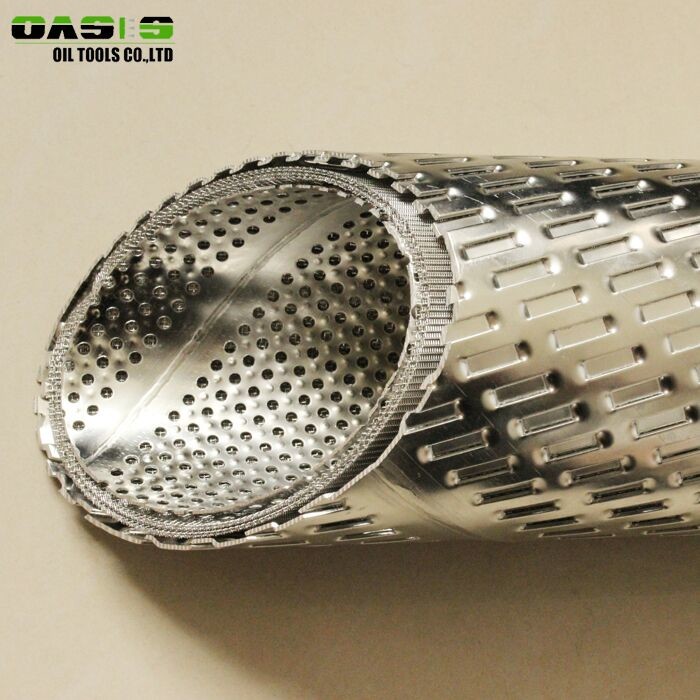

Premium Metal mesh screen consists of the inner perforated base pipe, drainage layer, the filtration layer and out shroud. The drainage layer and filtration layer can be one layer or several layers. Usually the drainage layer mesh wrapped on the inner perforate base pipe and provides even distribution of flow, it also has the function to support filter media. Inner/outer mesh media is able to meet the requirements of sand control for all sand with different diameters. The second drainage mesh has the function to separate two layers of filter media, ensuring the accuracy of filtering. It also has the role to provide even distribution of flow for the media

Mechanical Premium Screen , Filtration Deep Well Casing Oil Casing Pipe 0

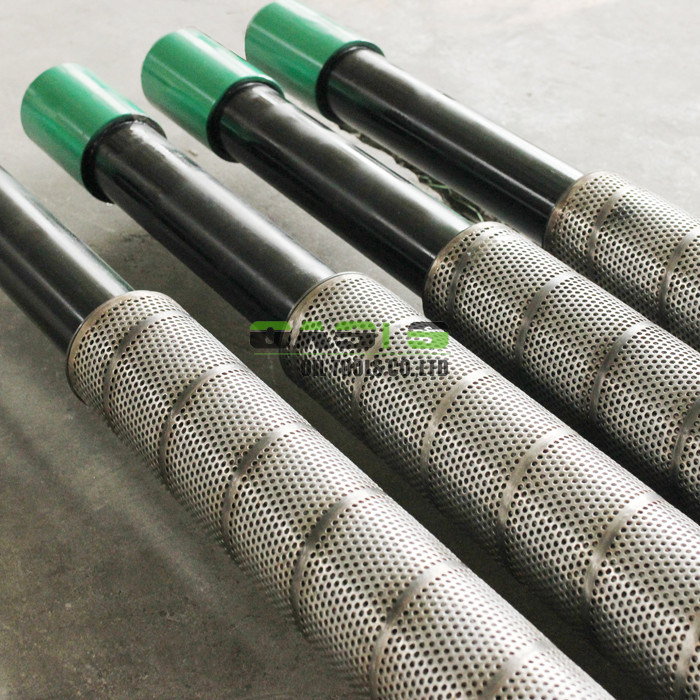

Reference pictures of exported Premium Mesh Screen

Mechanical Premium Screen , Filtration Deep Well Casing Oil Casing Pipe 1

Mechanical Premium Screen , Filtration Deep Well Casing Oil Casing Pipe 2



Mechanical Premium Screen , Filtration Deep Well Casing Oil Casing Pipe 3

Mechanical Premium Screen , Filtration Deep Well Casing Oil Casing Pipe 4

Mechanical Premium Screen , Filtration Deep Well Casing Oil Casing Pipe 5

Mechanical Premium Screen , Filtration Deep Well Casing Oil Casing Pipe 6

Specification and Features  of Premium Metal Mesh Screen



1.The perforated base pipe: API grade (carbon steel) or high quality stainless steel;

2. The drainage layers and filtration layers are choised to use stainless steel by most of the clients.

3. The filtration media are dutch weave or square weave, in pore sizes from 60 to 250 microns.

4. The outer shroud is perforated or slotted, as required by specifications, in high quality Stainless Steel like 304L, 316L, etc.

5. All the specifications can be customized as per the projects condition



Normal Packing details of Preimium Metal Mesh Screen



 by bubble film or woven bag, then packed with wood strips or in plywood box for protecting.

Mechanical Premium Screen , Filtration Deep Well Casing Oil Casing Pipe 7

Mechanical Premium Screen , Filtration Deep Well Casing Oil Casing Pipe 8



Mechanical Premium Screen , Filtration Deep Well Casing Oil Casing Pipe 9



Company Information

Oasis Oil Tools Co., Ltd - UN Supplier

Oasis Oil Tools Co.,LTD, located in the industrial park of high-tech enterprises in Fengquan District, Xinxiang City, covers more than 20000 square meters with total RMB 15 million investment. Oasis now has more than 150 staff, among them 6 persons are senior engineer. Since founded, OASIS always adhere to the “development on innovation, development on efficiency and treat customers with honesty” business philosophy. After many years’ efforts, now OASIS has developed into a famous manufacturer which integrates the research and development, design, manufacture and sell water well screens/johnson screens, oil well screens and sand control well screens, bridge slotted well screens, pipe based well screens, perforated pipe (base pipe), gravel pre-packed well screens, wedge wire screens, passive water intake screens etc. water, oil and gas well filtering products as well steel tubes and pipes and industrial parts.

Mechanical Premium Screen , Filtration Deep Well Casing Oil Casing Pipe 10



Other Products  also needed for the gas or oil fields

API 5CT Seamless Casing Pipe

Mechanical Premium Screen , Filtration Deep Well Casing Oil Casing Pipe 11

Mechanical Premium Screen , Filtration Deep Well Casing Oil Casing Pipe 12
