Place of Origin: | China |
---|---|
Brand Name: | OASIS |
Certification: | ISO |
Minimum Order Quantity: | 10 Meter/Meters |
Price: | Negotiation |
Packaging Details: | Wooden cases or pallet or bundle or container,or according to clients' requirements |
Delivery Time: | Within 35 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 6000 Meter/Meters per Month |
Shape: | As The Order | Screen Type: | Wire Wrapped, Perforated |
---|---|---|---|
Open Area: | 60% - 80% | Material: | Metal |
Port: | Tianjin Or Qingdao Port | Technique: | Welded Mesh |
Width: | As The Order | Length: | As The Order |
Thickness: | 80-1000um | Type: | Filter Cylinder |
Usage: | Liquid Filter |
Due to the comprehensive factors such as oil, water and gas well production and operation, the formation near the bottom is destroyed, which causes the exfoliated formation sand to enter the well pipe with the formation fluid, which adversely affects oil and gas production.

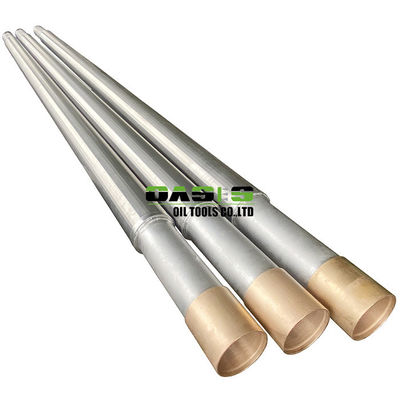

Best solutions – Prepacked Screen.Pre packed sand screen contains perforated base pipe, inner and outer screen jackets and graded sand between the jackets. It is a modification of wire wrapped screen which is used in well sorted sand or stand-alone completion. Graded sand, with or without resin coating, is considered as a filter for reservoir particles.
Wire wrapped pre packed sand control screen is used in wells where conventional gravel packing is not feasible or economical. The thickness of gravel layer can be varied to meet special requirement.
Add a layer of protection against erosion when conventional gravel packing is not feasible or economical, our prepacked sand screens provide a cost-effective sand control alternative with added erosion protection. They can be used used as stand-alone screens without a gravel pack, but their traditional use has been in long, horizontal openhole wells and cased holes that are difficult to completely gravel pack. The prepacked screens help ensure sand control integrity by providing extra protection against erosional forces and voids during production.Each of these screens is built with a layer of resin-coated, consolidated gravel placed around it, contained by a second screen or outer shroud.
We have accumulated many years of rich production experience and can provide a variety of prepacked screen design solutions to customers worldwide.
The multi-layer Johnson pre packed screen pipe is an improvement of the double-layer pipe. The addition of a gravel layer plays a better role in sand control, and is especially suitable for loose stratum structures.
This design is very suitable for geology with high filtration accuracy requirements, fine sand, and even direct drinking water.
Applications: It is widely used in oil, gas and water wells to achieve sand control.
What Is the Function of Gravel Pack?
Gravel packing is one of popular sand-control technique used in oil, water and gas wells. It stabilizes the borehole and filters the sand from the flow, only allowing very fine particles in. Pre packed wire wrapped sand screen brings it into full play in maximizing production as well as controlling the sand.
Composition structure
Base pipe, fully welded wedge wire well screen pipe and intermediate filling filter.
The base pipe adopts API standard casing, oil pipe drilling or slitting. The design with better filtering effect is wedge wire screen pipe as the base pipe.
Pre-filled sand packing
Resin coated and consolidated sand (can provide other types of sand), Ceramic ball.
With the advancement of technology, we have replaced some of the pellets with ceramic balls. The content and application range of ceramic balls adopt water treatment standards, and the special design of ceramic balls facilitates cleaning and repeated application of pre-pack well screen pipes.
Advantages and Characteristics of Double-Layer Prepacked Screen
Suitable for oil, water and gas wells, especially wells in loose formations.
The double-layer gravel-filled pipe has a unique structure and is easy to install.
Stainless steel material, strong anti-corrosion ability.
The double-layer gravel-filled pipe can reduce the workload of the construction personnel and greatly shorten the time for well drilling.
Excellent overall strength and resistance to deformation.
The inner part is supported by the base pipe, and the outer protective sleeve can be added to enhance the protection as required. It has sufficient overall strength to resist compression deformation of the formation. Even when locally deformed, the gap in the pressured part does not increase, and the sand control reliability is high.
The gap density of high density and low flow resistance is 3-5 times higher than that of ordinary slotted screen pipe, and the flow resistance is low, which is conducive to improving oil and gas production.
We are the best Johnson screen manufacturer in China, with rich experience in Johnson well screen pipe (prepacked screen) production, and can provide customized services for customers around the world.
Custom Service
Pre packed wire wrapped sand control screen can be customized to catch up with your special requirement. Gravel sizes, sand coating and pack thickness are changeable according to your need. Material grades for the screen and pipe are manufactured according to API tubing or casing from stainless steel 304, 316L, 904, Alloy 825/625/C276. End fittings and threaded connections are bespoke too.
Feature & Advantages:
Outer V shaped screen is more flexible and provides more area;
Pre pack screen filters out formation sand;
Close contact with aquifer enhancing well performance;
Economical alternative to cased-hole gravel packs;
Smaller borehole;
Custom design available.
Specifications
More details
Our company
Advanced technology, Strict inspection process:
Oasis Oil Tools co.,ltd has 20 years experience in Water Filter Mesh Screens/Water Well Sand Filters, we strive for technical innovations to improve quality of products.Our products not only have the features of trustworthy quality, safety and energy save but also beautiful appearance and low maintanemance.
Small profits but quick turnover:
Our Production will offer you a relatively and reasonable lower price, which means our customer can get more profite with a cheap price.
Premium and comprehensive sale system:
With a comprehensive sale system including before sales service, in-sale service and after sale service, we have won a good reputation at home and abroad. Also it is a important reason why so many customer to choose us.
Please contact with us for more details.
Our techinical team will give you the best choice.
