Place of Origin: | China |
---|---|
Brand Name: | OASIS |
Certification: | ISO |
Minimum Order Quantity: | 10 Meter/Meters |
Price: | Negotiation |
Packaging Details: | Wooden cases or pallet or bundle or container,or according to clients' requirements |
Delivery Time: | Within 35 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 6000 Meter/Meters per Month |
Body Material: | Stainless Steel | Usage: | Water/oil Well Drilling |
---|---|---|---|
Quality: | Excellent | Color: | Metal Color |
Power: | Hydraulic | Od Diameter: | 25mm -- 1200mm |
Wire Size: | Can Be Customized | Hole Shape: | Round |
Feature: | Corrosion Resistance | Application: | Filters |
Temperature: | High | Standard: | API, ASTM, AISI |

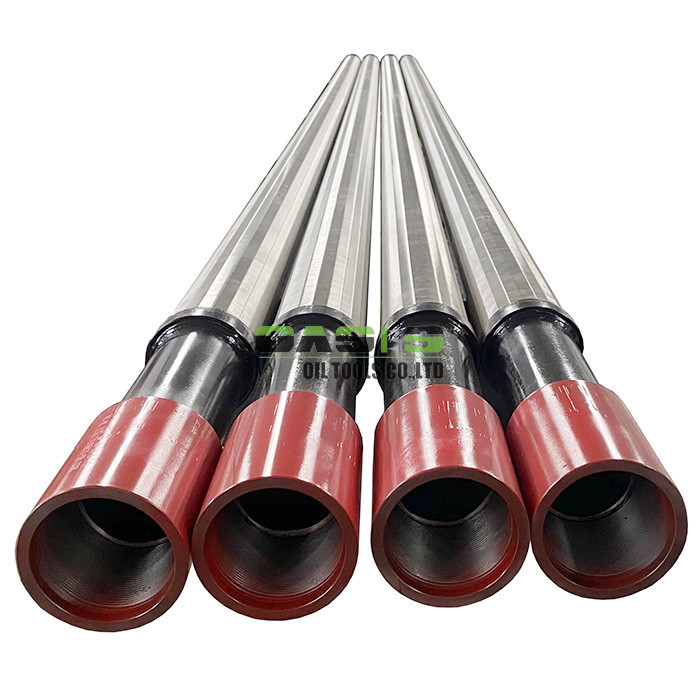

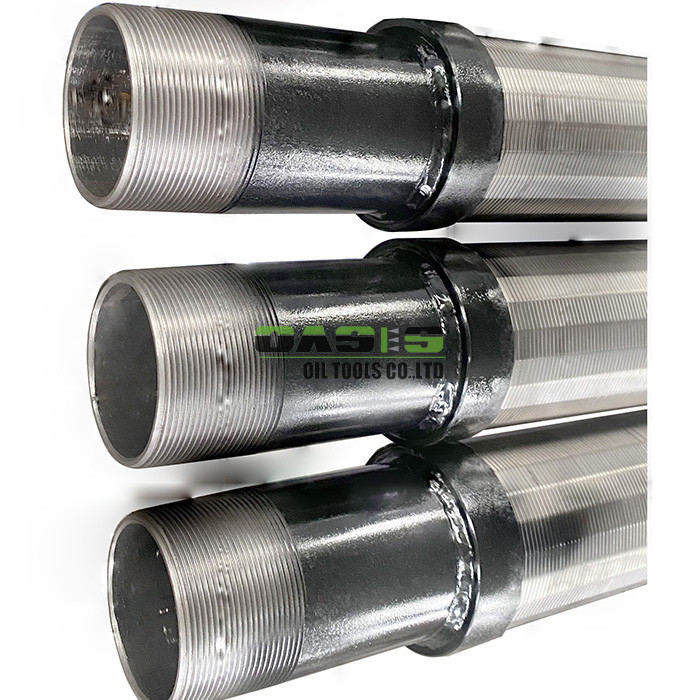

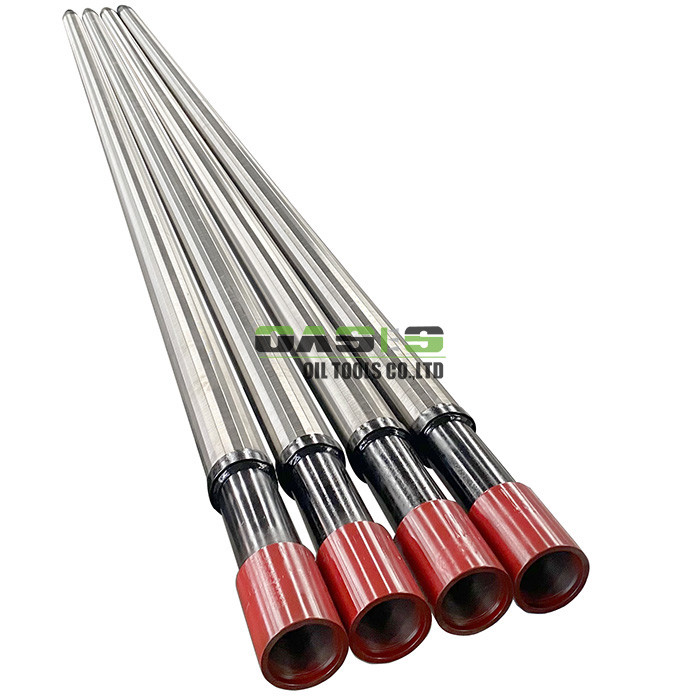

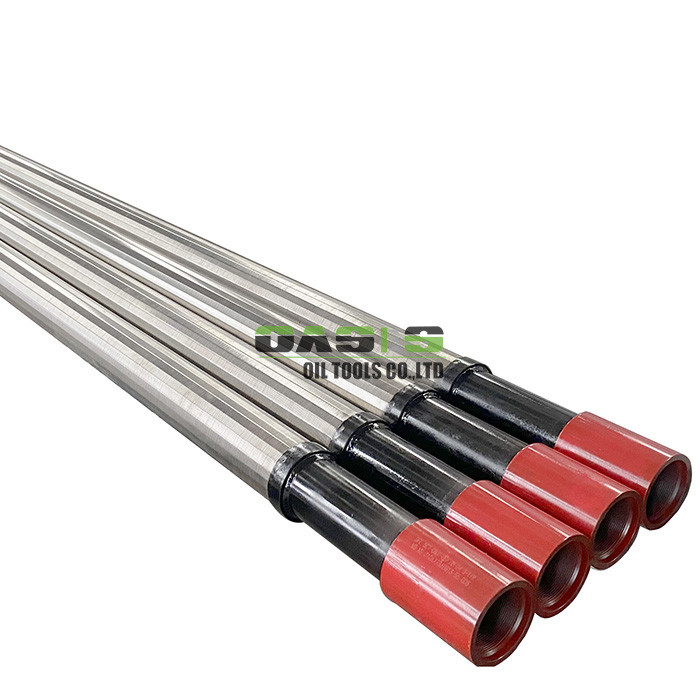

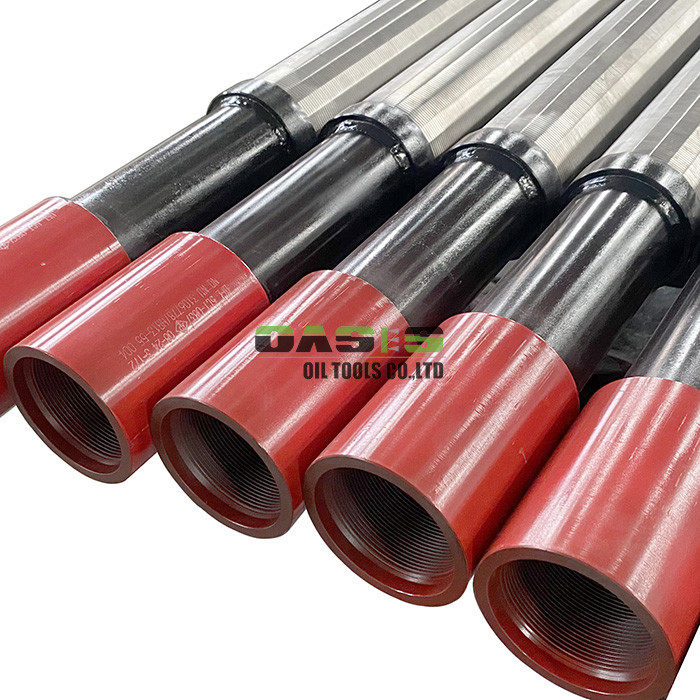

Products name:Pipe Base Screen
Pipe base screen combines the hydraulic efficiency of a continuous slot wedge wire screen with the strength of a pipe, so it is also called a double-layer screen. 2 types of base pipe here are perforated pipe and slotted pipe usually. Every hole and slot on the base pipe is visually inspected and cleaned of burr material. Base pipes can be manufactured using stainless steel grades or API 5CT carbon steel casing. Screen and pipe are welded together to make a rugged, reliable unit for deep vertical wells and long, horizontal remediation of supply wells. The pipe-based screen is recommended when high collapse resistance is required and when the screens’ length generates a high longitudinal constraint.
Pipe base screens consist of the base pipe and the wire-wrapped-screen.The screen is indispensable for the oil and gas, water wells, and geothermal industries
▪ High-quality stainless steel material
Our pipe base screens are manufactured with premium stainless steel or high-grade carbon steel, ensuring excellent corrosion resistance and structural integrity.
The screens are designed to withstand harsh environmental conditions and high-pressure applications.
▪ Innovative Design
Features a precise wire-wrapped outer jacket over a perforated base pipe.
The slot size is meticulously controlled to provide maximum filtration efficiency, preventing sand and debris from entering the well while maintaining high flow rates.
▪ Enhanced Filtration
The Pipe Base Screen effectively blocks fine particles, reducing the risk of clogging and extending the operational life of the well.
Suitable for various formations and applications, providing versatile and reliable performance.
▪ Easy Installation and Maintenance
The design facilitates straightforward installation and integration into existing systems.
Minimal maintenance requirements due to the high durability and self-cleaning properties.
▪ Customizable Options
Available in various diameters, lengths, and slot sizes to meet specific project requirements.
Custom configurations can be produced to cater to unique operational challenges.
Applications of Pipe Base Screens
1.Oil and Gas Extraction: Ensures efficient sand control in conventional and unconventional wells, optimizing production rates and reducing downtime.
2.Water Wells: Provides reliable filtration for municipal, agricultural, and industrial water wells, safeguarding water quality and well integrity.
3.Geothermal Wells: Enhances the performance and lifespan of geothermal energy systems by preventing particulate contamination.
Benefits of Pipe Base Screens
1.Unparalleled Protection: The pipe base screen provides a robust barrier against pipeline blockages, ensuring uninterrupted flow and minimizing the risk of pipeline failures.
2.Reduced Maintenance Costs: By preventing debris and contaminants from entering the pipeline, the screen reduces the need for frequent cleaning and maintenance, resulting in significant cost savings.
3.Increased Efficiency: Ensure uninterrupted pipeline operation, minimizing downtime and maximizing productivity.
4.Environmental Protection: By preventing pipeline failures, the pipe base screen helps protect the environment from oil spills and other hazardous material leaks.
Packing:
Standard international package for the stainless steel well screens plate for oil filter
1. Wood package to keep the goods without the wet from the sea and the collision in the container
2. Plastics package:
Cheaper than the wood package and save more space for the goods load.
3. Woods pieces package:
Stronger than the plastic package, and cheaper than the wood package,
The best choose for the filters.
Our pipe base screens are manufactured with strict quality standards to be at par with international standards. The screen jackets are manufactured by spirally wounding narrow faced Vee-Wire around a cage of longitudinal support rods. Each intersection point of these wires is fusion welded. These jackets are then mounted over seamless pipe(API Casing, tubing) which is perforated as per international standards to ensure flow performance, and then both ends of jacket are welded on to the seamless pipe.
We are a manufacturer of pipe base screen in china.The base pipe, casing or tubing, is selected to API specifications by size, grade and weight for each of your required applications.Our slip-on type of pipe base screen is manufactured from two components: the base pipe and the slip-on screen.The base pipe will be perforated with a series of holes drilled to a pre-determined quantity and pattern, to carefully balance flow-capacity at each end for both down-hole handling.The holes are then debarred and the joint cleaned, inspected and treated to give the base pipe a long shelf life.Our slip-on screens are manufactured to very exact diameter, length gauge and strength tolerances. This is done by selecting the required profile wire and support rod, which determine the flow-capacity and strength of the slip-on screen. For each gauge opening in the screen we select a slightly greater than that of the perforated base pipe. This will give the pipe base screen optimum flow-capacity at minimum pressure drop across the screen.If you have any enquiry of pipe base screen , please feel free to contact us.
Advanced technology, Strict inspection process:
Oasis Oil Tools co.,ltd has 20 years experience in Water Filter Mesh Screens/Water Well Sand Filters, we strive for technical innovations to improve quality of products.Our products not only have the features of trustworthy quality, safety and energy save but also beautiful appearance and low maintanemance.
Small profits but quick turnover:
Our Production will offer you a relatively and reasonable lower price, which means our customer can get more profite with a cheap price.
Premium and comprehensive sale system:
With a comprehensive sale system including before sales service, in-sale service and after sale service, we have won a good reputation at home and abroad. Also it is a important reason why so many customer to choose us.
Please contact with us for more details.
Our techinical team will give you the best choice.
