Place of Origin: | CHINA |
---|---|
Brand Name: | OASIS |
Certification: | ISO9001:2015 ISO14001:2015 |
Minimum Order Quantity: | 10 Meter/Meters |
Price: | Negotiation |
Packaging Details: | Wooden cases or pallet or bundle or container or according to clients' requirements |
Delivery Time: | Within 35 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 6000 Meter/Meters per Month |
Thickness: | 7MM | Marking: | As Per The Clients' Requirements |
---|---|---|---|
Usage: | Liquid Filter | Wire Size: | As The Order |
Slot Shape: | Square | Screen Type: | Two Layers |
Diameter: | 3/8,1/2,5/8 | Rod Size: | As The Order |
Customized Service: | Available | Base Pipe Material: | N80,SS304,SS306,2205 |
Size: | 4-1/2 | Wedge Wire Size: | 1.5x2.5mm |
Pipe-Based Screen – High-Performance Sand Control Solution
Overview

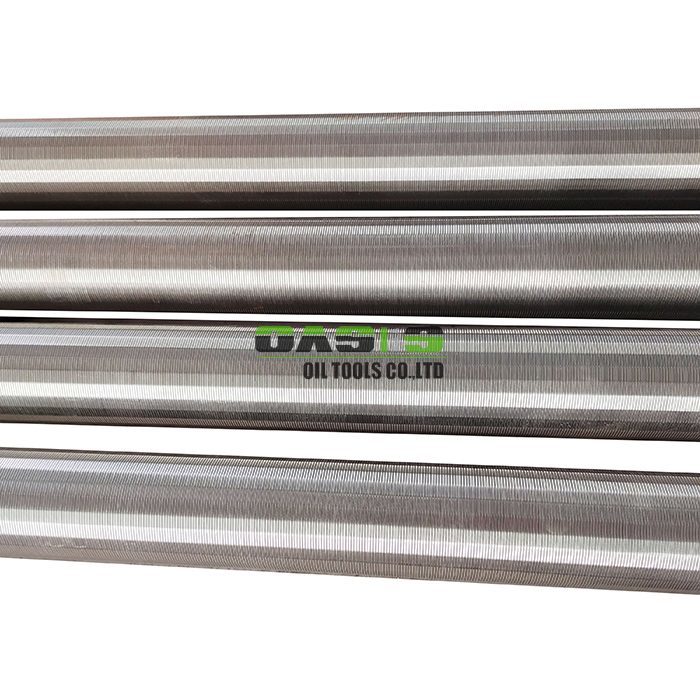

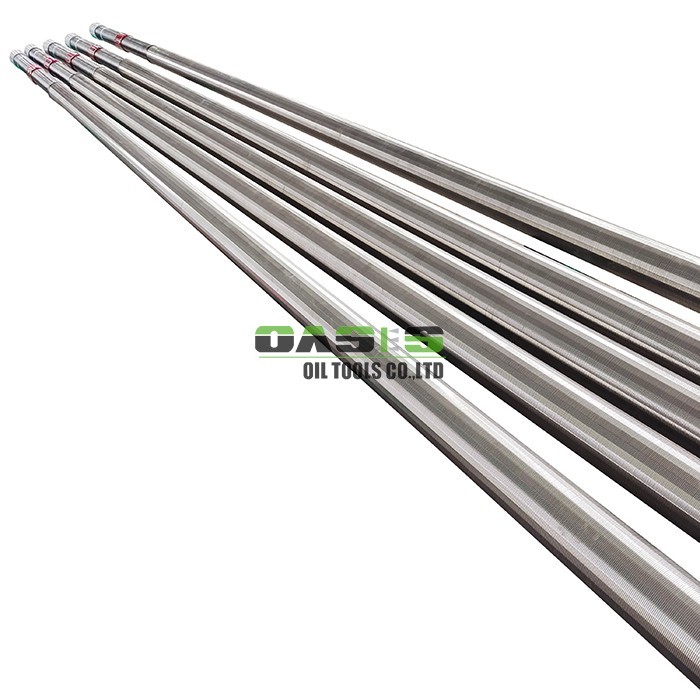

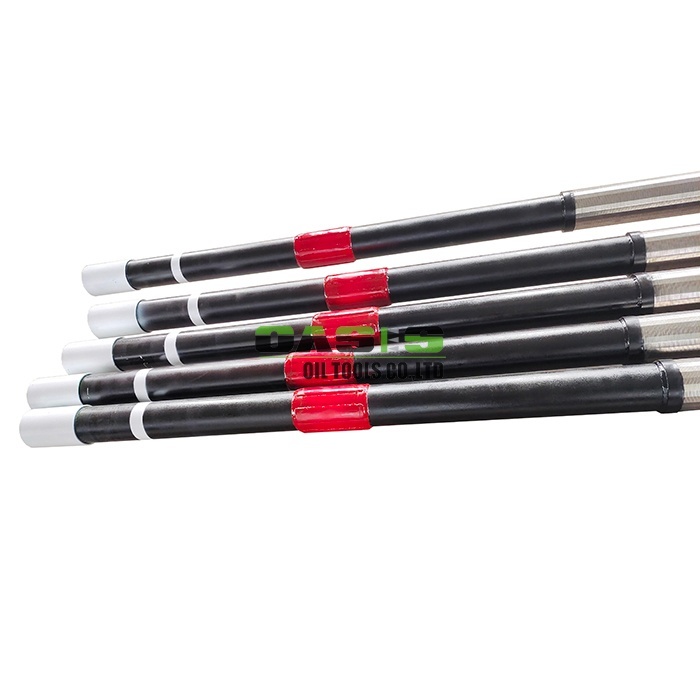

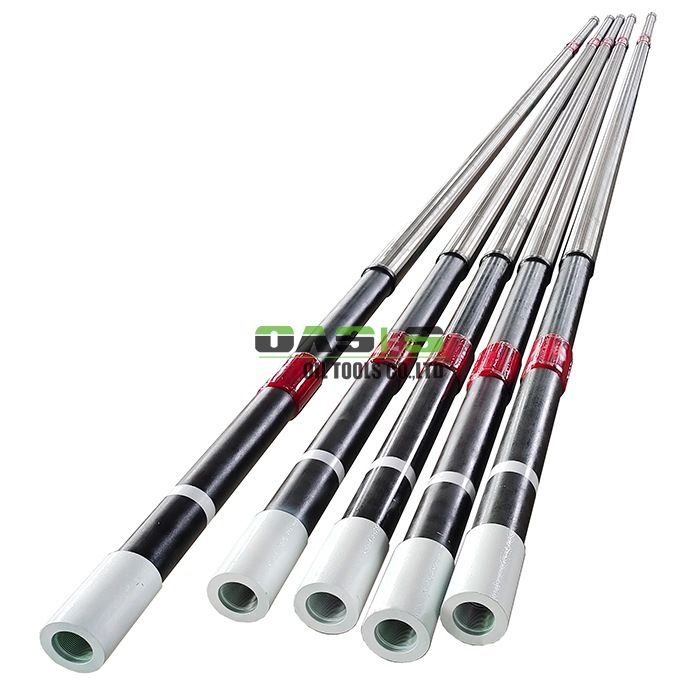

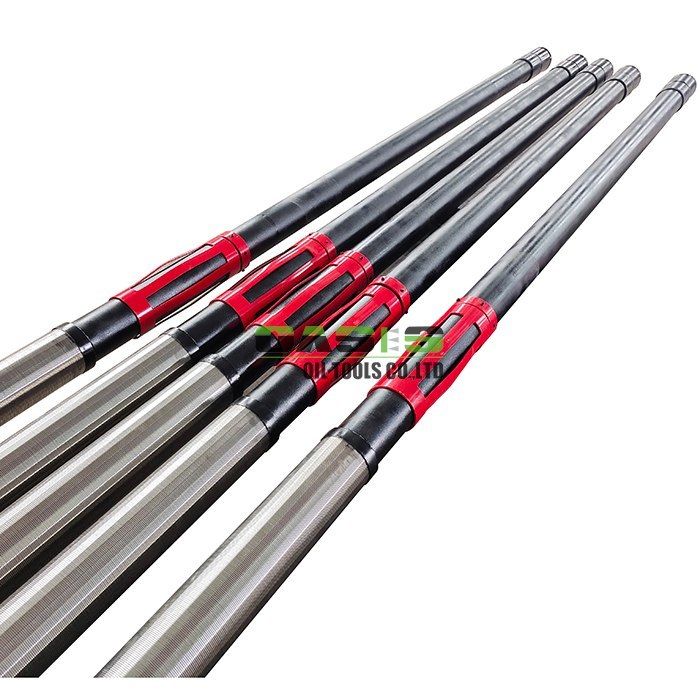

Oasis pipe-based screens are precision-engineered to meet stringent international quality standards, ensuring superior performance in sand control applications. Constructed with durable wedge wire screen jackets welded onto a perforated base pipe (API casing, tubing, or line pipe), our screens deliver exceptional strength, high flow efficiency, and reliable filtration. Customizable to meet specific well conditions, these screens can be tailored in material, slot configuration, and design for optimal performance.
Specifications
Nominal Diameter |
Pipe (mm) |
Weight W.T [mm] |
Hole size |
Holes per foot |
Total of holes |
Screen OD |
2-3/8 |
60 |
4.6[4.83] |
3/8 |
96 |
10.60 |
2.86 |
2-7/8 |
73 |
6.4[5.51] |
3/8 |
108 |
11.93 |
3.38 |
3-1/2 |
88.9 |
9.2[6.45] |
1/2 |
108 |
21.21 |
4.06 |
4 |
101.6 |
9.5[5.74] |
1/2 |
120 |
23.56 |
4.55 |
4-1/2 |
114.3 |
11.6[6.35] |
1/2 |
144 |
28.27 |
5.08 |
5 |
127 |
13[6.43] |
1/2 |
156 |
30.63 |
5.62 |
5-1/2 |
139.7 |
15.5[6.99] |
1/2 |
168 |
32.99 |
6.08 |
6-5/8 |
168.3 |
24[8.94] |
1/2 |
180 |
35.34 |
7.12 |
7 |
177.8 |
23[8.05] |
5/8 |
136 |
42.16 |
7.58 |
7-5/8 |
194 |
26.4[8.33] |
5/8 |
148 |
45.88 |
8.20 |
8-5/8 |
219 |
32[8.94] |
5/8 |
168 |
51.08 |
9.24 |
9-5/8 |
244.5 |
36[8.94] |
5/8 |
188 |
58.28 |
10.18 |
10-3/4 |
273 |
45.5[10.16] |
5/8 |
209 |
64.79 |
11.36 |
13-3/8 |
339.7 |
54.5[9.65] |
5/8 |
260 |
80.60 |
14.04 |
1. Exceptional Strength & Anti-Deformation
- The perforated base pipe retains 97-98% of the original strength of standard casing/tubing, ensuring resistance to compression and deformation.
- Even under high formation pressure, the screen maintains structural integrity, preventing sand breakthrough.
2. High Flow Capacity
- The Vee-wire screen jacket design maximizes inflow area, reducing frictional head loss and improving well productivity.
- Ideal for high-rate oil, gas, or water wells where efficient flow is critical.
3. Optimized Slot Design
- Slot density is 3-5 times higher than conventional slotted screens, minimizing flow resistance while enhancing filtration.
- Ensures consistent production rates with minimal pressure drop.
4. Material Flexibility
- Screen jackets available in stainless steel or low-carbon steel to suit corrosion resistance and cost requirements.
- Base pipe options include API-grade casing, tubing, or line pipe for compatibility with various well conditions.
5. Customizable Configurations
- Can be designed as single or multi-jacket assemblies, adapting to complex wellbore environments.
- Engineered to meet specific sand retention and flow performance needs.
- Oil & Gas Wells – Effective sand control for unconsolidated formations.
- Water Wells & Injection Wells – High flow efficiency with long-term durability.
- Geothermal & Industrial Filtration – Reliable performance in demanding environments.
Why Choose Oasis Pipe-Based Screens?
✔ Proven Sand Control Reliability – Robust construction prevents sand production while maintaining well productivity.
✔ Superior Hydraulic Performance – High slot density and optimized flow paths enhance efficiency.
✔ Custom Solutions – Tailored designs to match well specifications and operational demands.
For specialized requirements, our engineering team can develop pipe-based screens that maximize performance in your unique well conditions. Contact us today for a customized solution!
