Advanced Alternative to Conventional Wire-Wrapped Screens Gravel Pack Screens









Product Description



OASIS Pre-Packed Sand Control Screens: Engineered for Reliability and Performance



OASIS specializes in the design and manufacturing of high-quality pre-packed sand control screens, built with precision and durability for oil, gas, and water well applications. With over a decade of expertise in stainless steel filtration screens and components, our products are trusted for their superior performance and longevity.

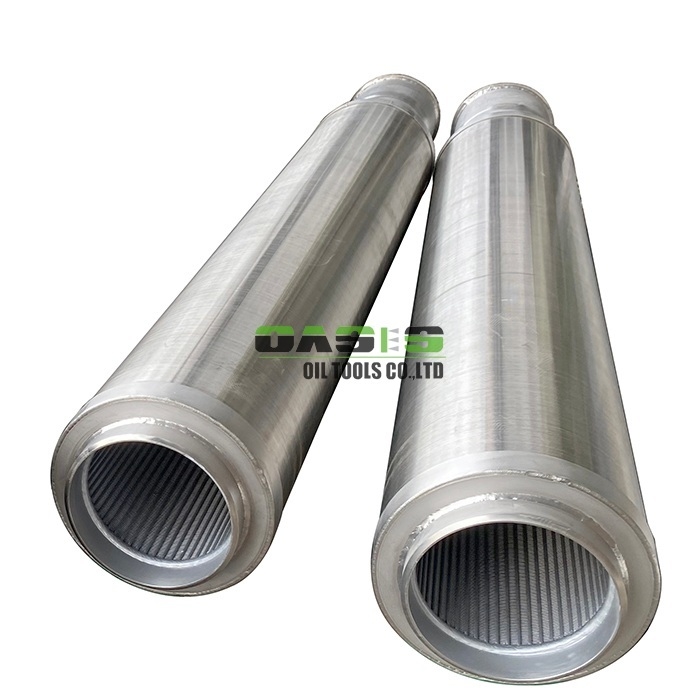

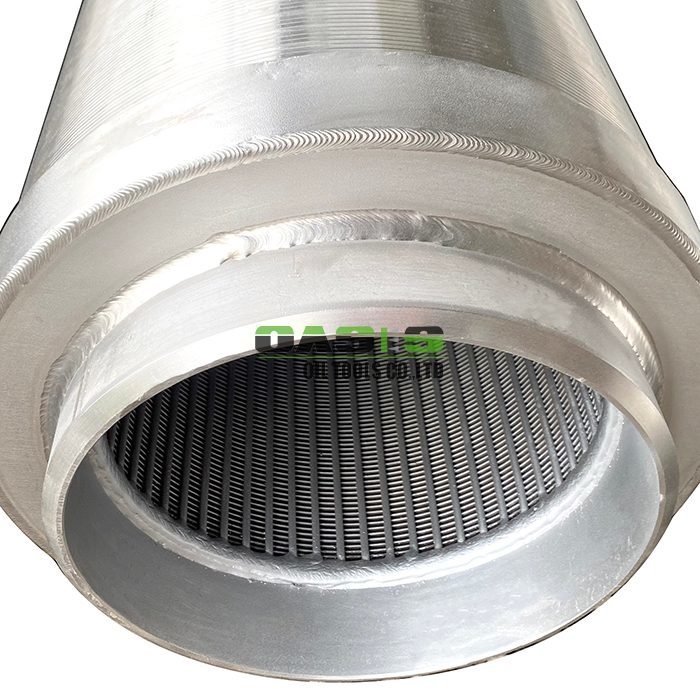

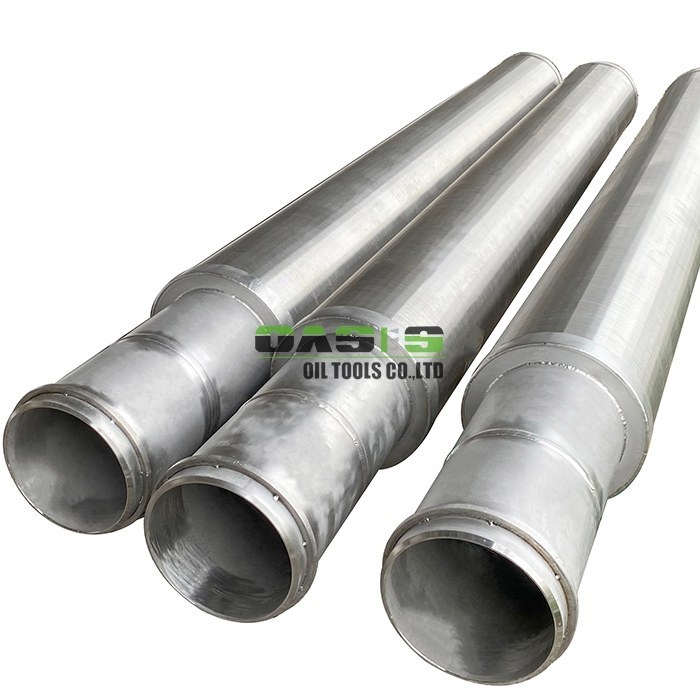

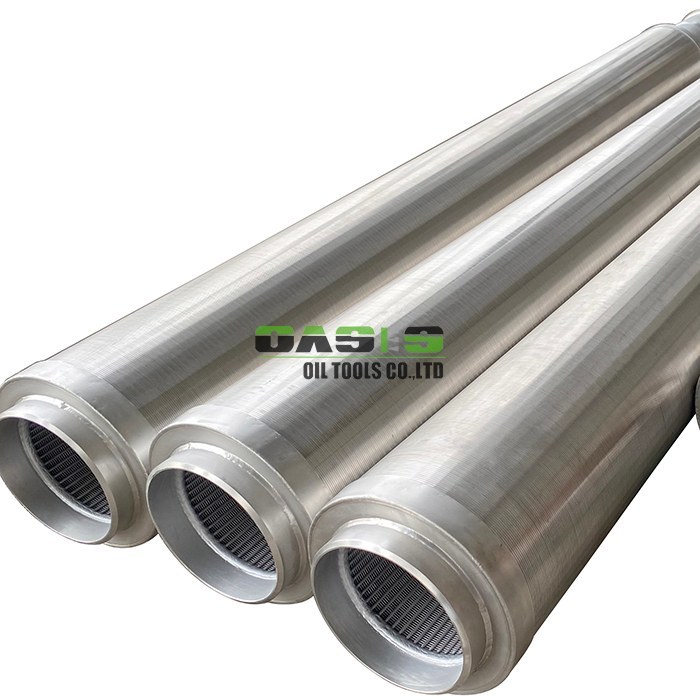

Our pre-packed screens consist of an inner and outer wire-wrapped jacket securely mounted over a perforated base pipe. The filter medium thickness and size are customized based on specific well conditions, including formation characteristics, flow rates, and borehole dimensions.



Ideal for stand-alone sand control applications, OASIS pre-packed screens offer an advanced alternative to conventional wire-wrapped screens. The integrated gravel pack layer provides exceptional sand retention without the need for external gravel placement—making them especially effective in challenging formations where traditional methods may fail.



These screens effectively prevent formation sand migration, helping to stabilize the wellbore and maintain optimal production rates. They are commonly used in sandstone, limestone, and other unconsolidated formations, often in conjunction with low-pressure hydraulic fracturing operations.



The filter media—whether gravel, quartz sand, ceramic, or other proppants—are densely packed using industrial vibrating equipment to eliminate voids. Each assembly is rigorously inspected under high-intensity light to ensure uniform compaction and distribution. OASIS pre-packed screens can be customized to any coverage ratio to align with rig pipe handling systems or target specific reservoir zones.





Construction

The typical OASIS pre-packed screen includes six layers (from outer to inner):



Outer screen





Outer support rod





Pre-packed gravel layer





Inner screen





Inner support rods





Perforated base pipe



This dual-screen design features two wire-wrapped jackets with a resin- or ceramic-coated silica sand fill in between. The wire gauge and sand size are selected based on formation particle size distribution to ensure optimal filtration.





Materials


We fabricate our screens using premium materials including stainless steel 304, 316L, low carbon steel, and special alloys such as Monel 400. All materials can be tailored to meet specific environmental and operational requirements.





Specifications





Base Pipe				Gravel Pack	Perforations		Screen
OD (in.)	ID (in.)	Weight (lbs.)	Coupling OD (in.)	Thickness (in.)	Size (in.)	Holes/ft.	OD (in.)	Cylinder Area (sq. in./ft)	.006 GA Inlet Area (sq. in./ft)
1.9	1.61	2.75	2.2	0.144	3/8	84	2.72	102.49	6.46
2.063	1.75	3.25	2.5	0.144	3/8	84	2.883	108.63	6.84
2.375	1.99	4.6	2.875	0.144	3/8	96	3.195	120.39	7.58
2.875	2.44	6.4	3.5	0.144	3/8	108	3.695	139.23	8.77
3.5	2.99	9.2	4.25	0.144	3/8	132	4.32	162.78	10.26
4	3.55	9.5	4.5	0.144	3/8	144	4.82	181.62	11.44
4.5	4	11.6	5	0.144	3/8	156	5.32	200.46	12.63
5	4.41	15	5.563	0.144	3/8	168	5.82	219.3	13.82







Key Features



• Suitable for both open and cased holes in unconsolidated formations





• Easy to install due to robust and intelligent design





• Highly erosion-resistant thanks to stainless steel construction





• Integrated gravel pack eliminates the need for downhole gravel placement, reducing well completion time





• Fully customizable lengths, diameters, and packing materials



OASIS pre-packed screens are engineered for reliability, efficiency, and ease of installation—helping you achieve longer well life and consistent production with minimal intervention.









More Details















Packing&Shipping













Oasis Oil Tools Co.,LTD, located in the industrial park of high-tech enterprises in Fengquan District, Xinxiang City. Oasis now has more than 150 staff, among them 6 persons are senior engineer. Since founded, OASIS adhere to “development on innovation, development on efficiency and treat customers with honesty” business philosophy.



After many years’ efforts, now OASIS has developed into a famous manufacturer which integratesn the research and the development, design, manufacture and sell water well screens/johnson screens, oil well screens and the sand control well screens, bridge slotted well screens, pipe based well screens, perforated pipe (base pipe), gravel pre-packed well screens, wedge wire screens, passive water intake screens etc. water, oil and gas well filtering products as well steel tubes and pipes and industrial parts.



Please contact with us for more details.



Our techinical team will give you the best choice.
