Premium 304 Stainless Steel Insect Screen Mesh - Durable Rust Proof Fine Mesh for Window Door Ventilation

Basic Information

Place of Origin:	CHINA
Brand Name:	OASIS
Certification:	GB/T 19001-2016/ISO9001:2015

Minimum Order Quantity:	10 Meter/Meters
Price:	Negotiation
Packaging Details:	Wooden cases or pallet or bundle or container or according to clients' requirements
Delivery Time:	Within 35 days
Payment Terms:	L/C, T/T
Supply Ability:	6000 Meter/Meters per Month

Get Best Price Contact Now

Material:	Stainless Steel Wire,316,304L,Galvanized Steel Wire	Width:	0.6~1.5m,3-6',Customized
Mesh Size:	14 Mesh,20*20	Feature:	Corrosion Resistance,anti Insect Screen,Easy Install
Length:	According To The Requirements Of Customers,50m. Customized	Mesh:	12 Mesh To 24 Mesh

Pipe-based Wire Wrap Screen - Carbon Steel Base Pipe, 304 Stainless Steel Wrap, LTC Connections

Product Overview

Oasis Pipe-based Wire Wrap Screen is engineered to deliver exceptional performance in demanding well completion and sand control applications. Constructed with a robust carbon steel base pipe and a precision-wound 304 stainless steel screen jacket, this product combines superior mechanical strength with reliable filtration efficiency. Equipped with standard LTC (Long Thread and Coupling) connections, it ensures easy installation and secure integration into your well system. Available in lengths up to 12 meters, our screens are designed to meet the rigorous requirements of deep water wells, oil wells, gas wells, and vertical well completions.

Key Features & Advantages

High Collapse Resistance: Heavy-duty carbon steel base pipe (available in J55, K55, N80, L80, and P110 grades) provides excellent structural integrity to withstand high downhole pressures in deep well applications
Precision Filtration: Continuous slot design created by 304 stainless steel wire wrapping delivers consistent and accurate sand control, preventing formation sand production while maximizing flow rates
Corrosion Resistance: 304 stainless steel screen jacket offers superior corrosion resistance compared to carbon steel alternatives, extending service life in various downhole environments
Reliable LTC Connections: Standard Long Thread and Coupling connections ensure quick, secure, and leak-proof installation, compatible with most industry-standard well completion equipment
Optimized Flow Area: Uniformly spaced perforations (available in 9mm, 11mm, 16mm, and 19mm diameters) on the base pipe maximize fluid flow while maintaining structural strength
Customizable Design: Available in a wide range of standard sizes to fit different well casing dimensions

Technical Specifications

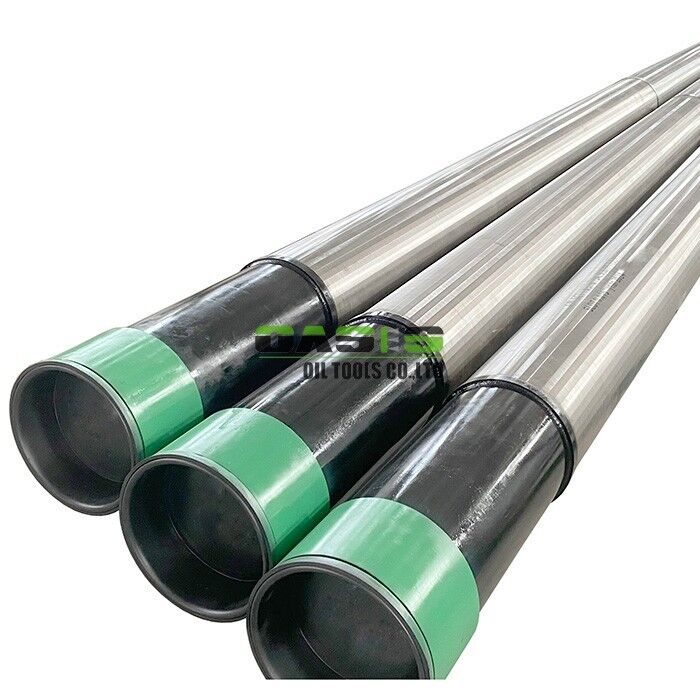

Premium 304 Stainless Steel Insect Screen Mesh - Durable Rust Proof Fine Mesh for Window Door Ventilation 0

Parameter	Details
Product Type	Pipe-based Wire Wrap Screen
Base Pipe Material	Carbon Steel (J55, K55, N80, L80, P110)
Screen Jacket Material	304 Stainless Steel
Connection Type	LTC (Long Thread and Coupling)
Standard Sizes	2 7/8in (73mm), 3 1/2in (88.9mm), 4 1/2in (114.3mm), 5in (127mm), 5 1/2in (139.7mm), 6 5/8in (168.3mm), 7in (177.8mm), 8 5/8in (219.1mm), 9 5/8in (244.5mm), 13 3/8in (339.7mm)
Perforation Diameters	9mm, 11mm, 16mm, 19mm
Maximum Length	12 meters
Filtration Precision	Customizable slot sizes to meet specific formation requirements

Applications

Oasis Pipe-based Wire Wrap Screen with carbon steel base pipe, 304 stainless steel wrap, and LTC connections is ideal for:

Deep water well drilling and completion
Oil well production and sand control
Natural gas well operations
Vertical well completions
Water injection wells
Geothermal well applications
Demanding sand control completions in moderate corrosion environments

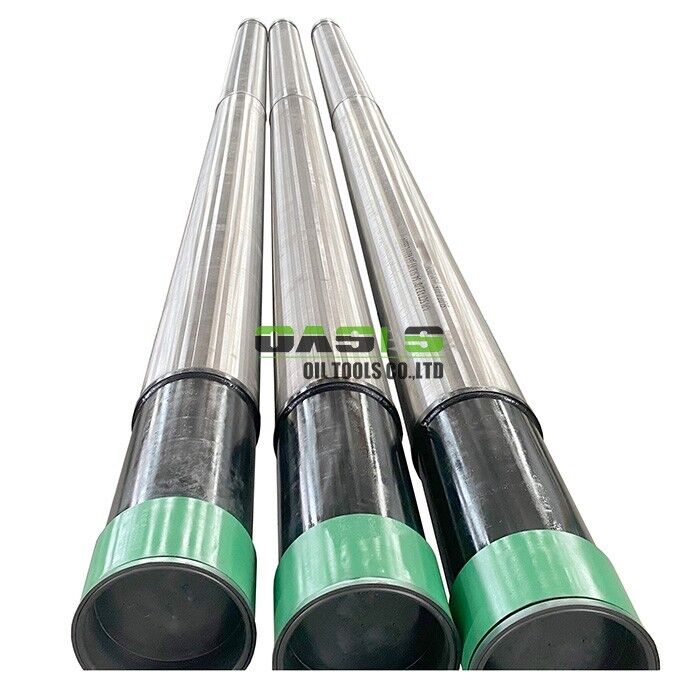

Premium 304 Stainless Steel Insect Screen Mesh - Durable Rust Proof Fine Mesh for Window Door Ventilation 0

More Details

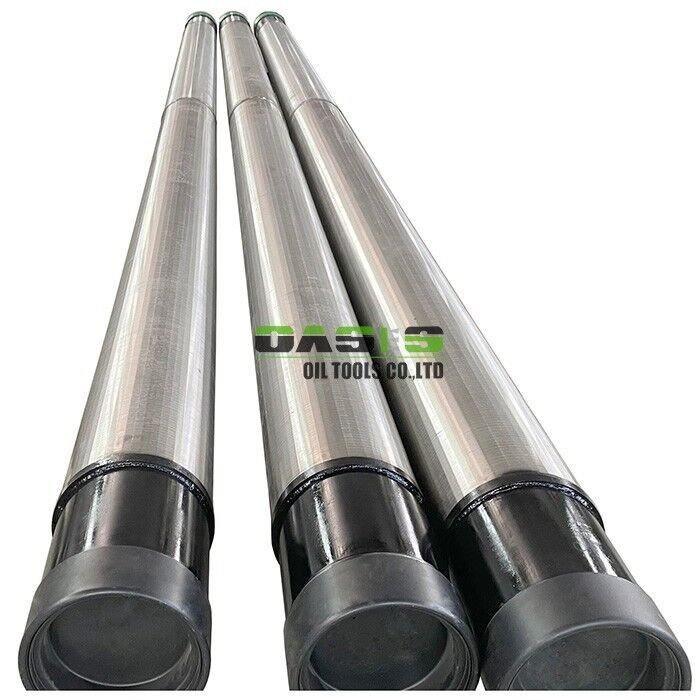

Premium 304 Stainless Steel Insect Screen Mesh - Durable Rust Proof Fine Mesh for Window Door Ventilation 2

Why Choose Oasis Pipe-based Wire Wrap Screen?

We manufacture screens using advanced production techniques and strict quality control processes to ensure consistent performance and reliability. Each screen undergoes rigorous testing to verify dimensional accuracy, mechanical strength, and filtration efficiency. Whether you're operating in shallow or deep wells, our pipe-based wire wrap screens provide the durability and performance you need to maximize well productivity and minimize downtime.

Contact us today to discuss your specific requirements and receive a customized solution for your well completion project.

Related Products

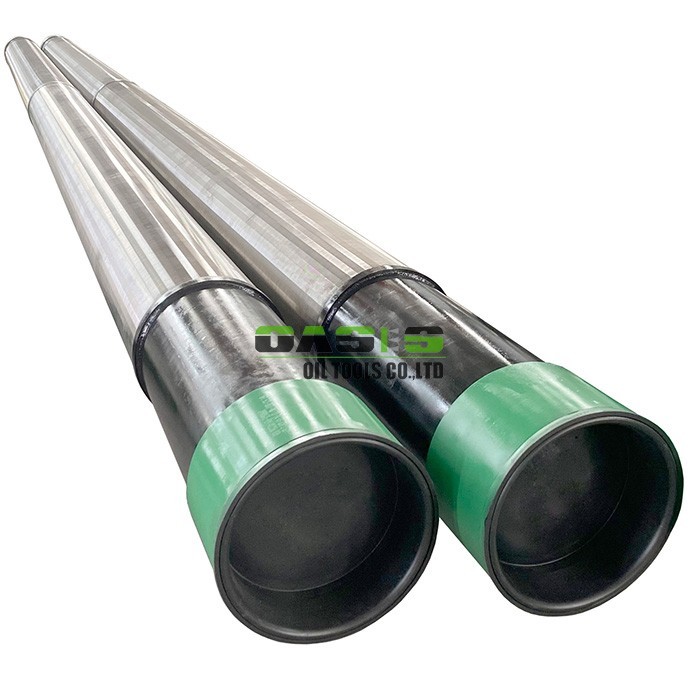

Premium 304 Stainless Steel Insect Screen Mesh - Durable Rust Proof Fine Mesh for Window Door Ventilation 4
