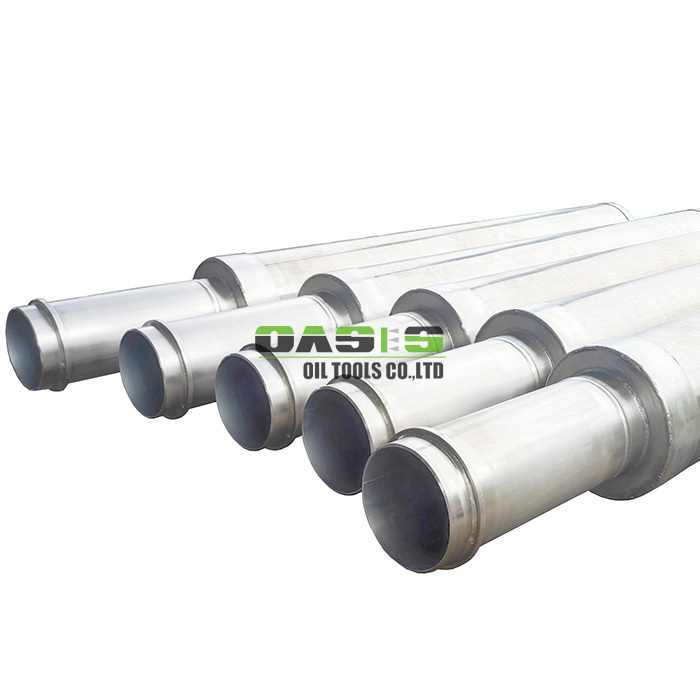

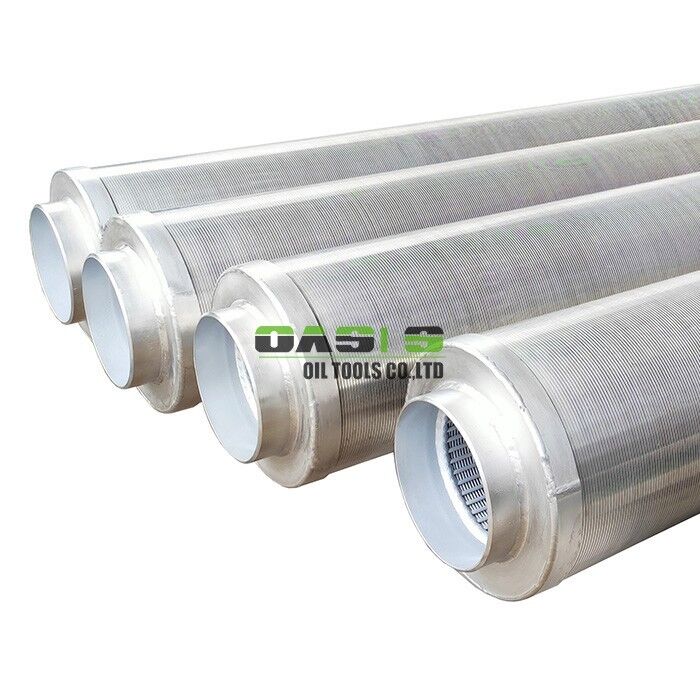

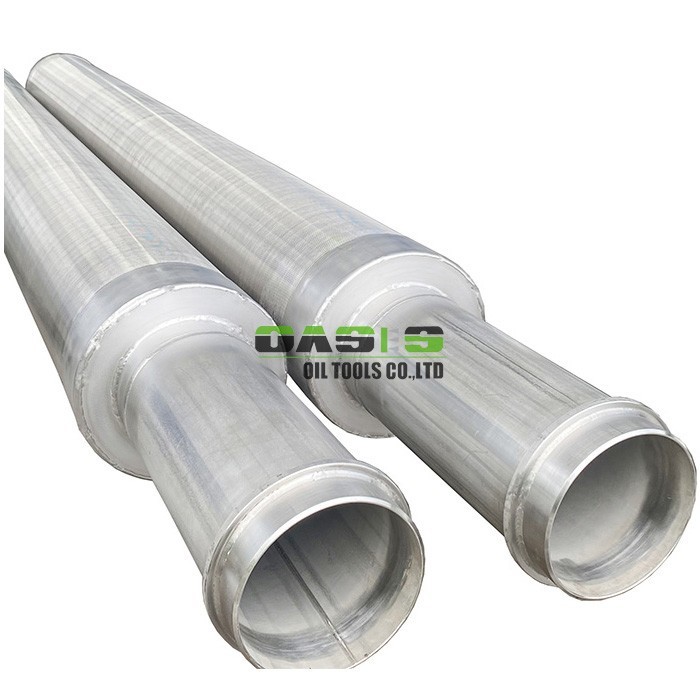

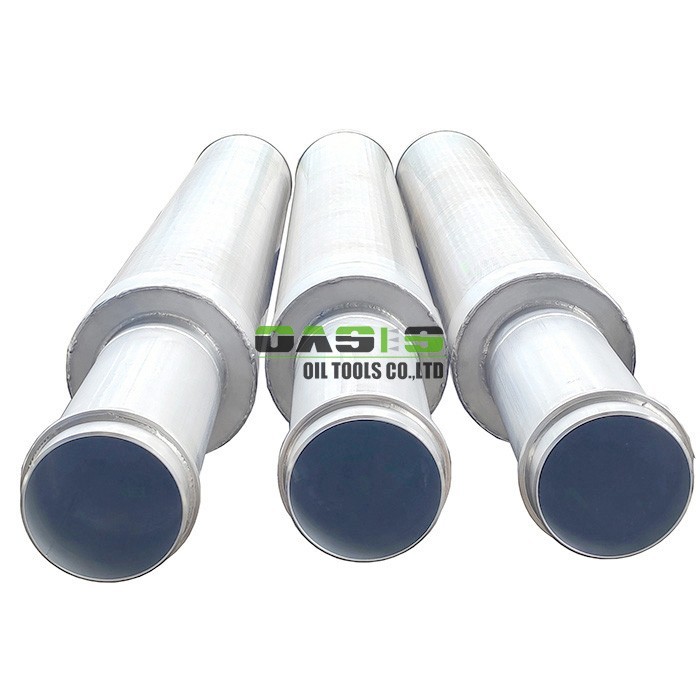

Prepacked Screen With 316L Stainless Steel for Oil Well Sand Control with Multi Layer Filtration System

High-Precision Gravel Prepacked Well Screen

Product Description

We provide superior sand retention, high flow area, and extended service life with our gravel prepacked well screens. In addition to standard sizes, we support fully customized diameters (e.g., 456mm) and offer end-to-end technical guidance – from formation analysis to installation. Designed for unconsolidated, high-sand formations common in Africa and the Middle East, our screens are ideal for oil wells, gas wells, deep water wells, geothermal wells, and vertical wells.

Multi-Stage Filtration System (Base Pipe + Gravel Pack + Outer Screen)

The screen consists of three integrated filtration layers:

1. Base Pipe – Provides mechanical strength to withstand formation pressure.

2. Uniform Gravel Pack Layer – Graded quartz sand or ceramic particles form a stable bridge to capture fine sand.

3. Outer Wire-Wrapped Screen (Jacket) – Fully welded stainless steel wire with precise slot openings, resistant to clogging and erosion.

This “base pipe + gravel pack + outer screen” design improves fine sand retention by >30% compared to conventional screens, significantly reducing sand production – ideal for unconsolidated formations and high-sand wells.

Materials

Key Applications

• Deep Water Wells – Water supply projects in Nigeria, Sudan, Ethiopia, and arid regions.

• Oil Wells – Unconsolidated sandstone reservoirs in Saudi Arabia, UAE, Iraq.

• Gas Wells – High-sand gas fields in Qatar, Iran.

• Geothermal Wells – High-temperature fields in Kenya, Ethiopia Rift Valley.

• Vertical Wells – General development wells, fully compatible.

Why Choose OASIS Gravel Prepacked Screens?

1. Superior Sand Control
   Multi-layer filtration + uniform gravel pack retains >98% of fine sand ≥0.05mm, stabilizes borehole.

2. Anti-Clogging & Self-Cleaning
   V-shaped outer wire design resists plugging; reverse circulation cleaning quickly restores productivity.

3. Extreme Environment Resistance

   • Temperature range: -40℃ to 350℃ (stainless steel version).

   • Corrosion resistance: passes 720h 5% salt spray test – ideal for high-TDS formation water in the Middle East.

4. Flexible Customization & Fast Delivery

   • Diameter 456mm, length 10.5m, special threads – drawings to production in days.

   • Warehouses / agents in Africa and Middle East – lead time 15–25 days.

5. Free Technical Guidance
   From formation analysis, slot/gap design, running procedures to maintenance – our engineers can assist on-site or remotely (English, Arabic, French support).
