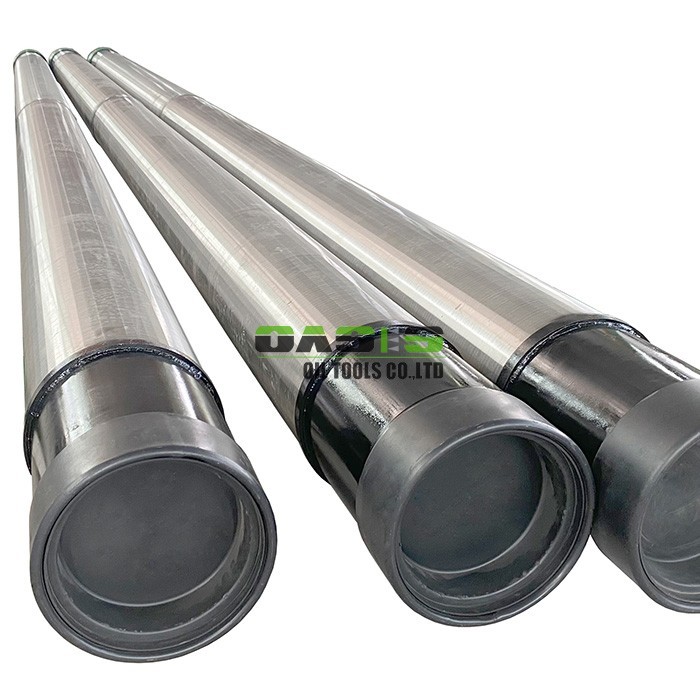

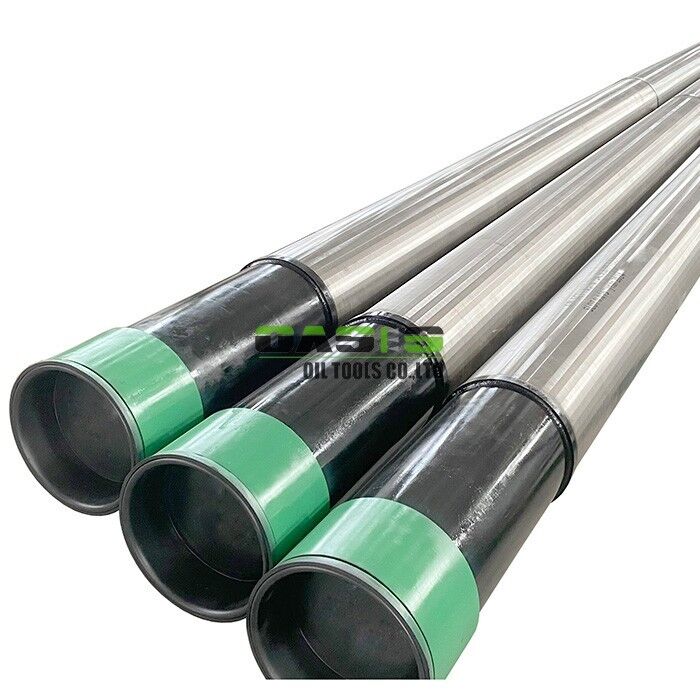

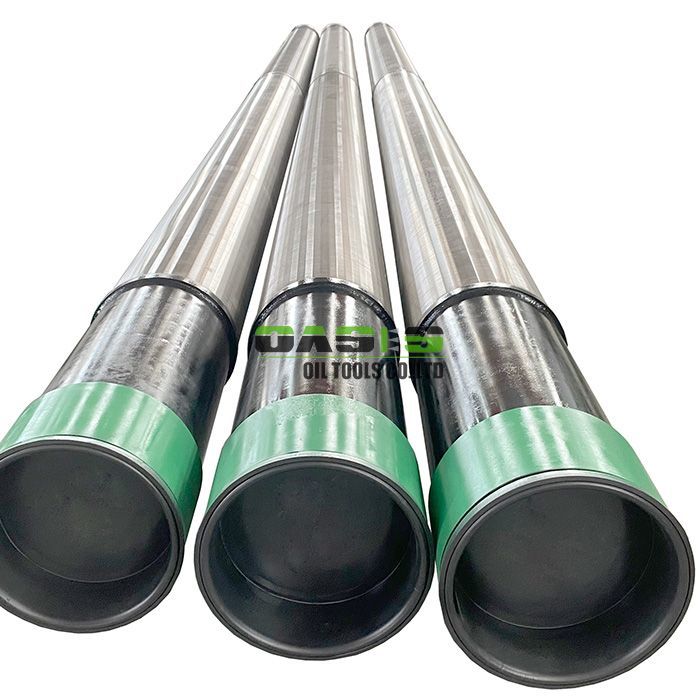

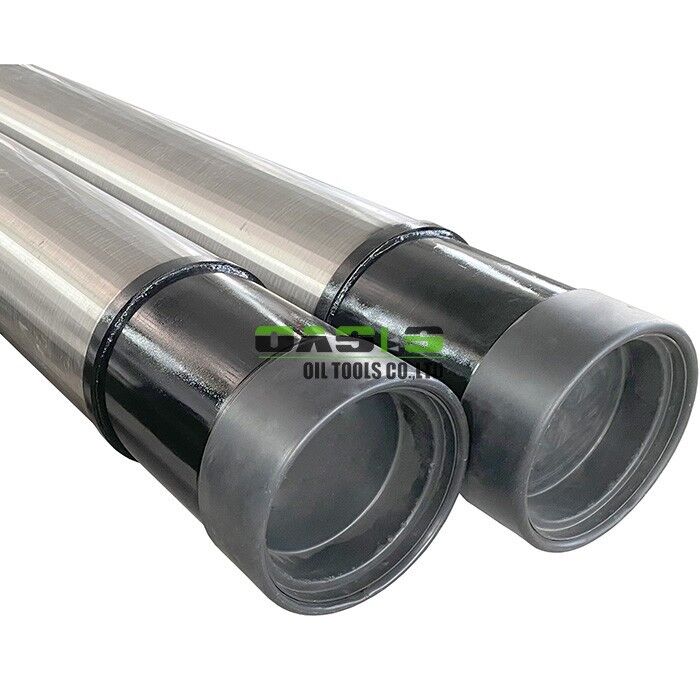

Pipe Base Screen with casing pipe and stainless steel wire wrapped screen for sand control and gravel packing in wells

Product Description

Product Name: Pipe Based Dual Screen

Basis Information:
The Pipe Based Dual Screen is a high-performance sand control and filtration solution for water, oil, and gas wells. It consists of an inner casing pipe (load-bearing) and an outer 304L stainless steel wire-wrapped screen, assembled into a single 10‑meter joint with LTC (Long Thread Coupling) connections.

Specification:

Theory (Operating Principle)

The Pipe Based Dual Screen works on a two‑stage filtration and flow principle:

1. Outer 304L wire‑wrapped screen – Formation fluids (water, oil, or gas) first pass through the precision gaps between wrapped wires. Sand particles larger than the gap are retained outside, preventing sand production.

2. Inner casing – The filtered fluid enters the casing bore, which acts as a smooth conduit to transport production to surface. The casing also protects the outer screen from collapse and provides structural integrity for the entire string.

3. LTC connection – Ensures continuous, leak‑free assembly of multiple joints, suitable for deviated, horizontal, and deep wells.

This design effectively controls sand, reduces erosion of surface equipment, and extends well life.

Advantages / Selling Points

✅ Superior sand retention – Wire‑wrapped outer screen blocks >95% of formation sand.
✅ High mechanical strength – Inner pipe withstands deep‑well collapse and burst pressures.
✅ Corrosion resistance – 304L outer screen prolongs life in aggressive downhole fluids.
✅ Low flow resistance – Large open area minimizes pressure drop and increases productivity.
✅ Easy running – LTC threading allows fast, reliable assembly with standard power tongs.
✅ Dual protection – Inner casing shields outer screen during installation and production.
✅ Cost‑effective – Reduces workovers, surface sand handling, and equipment erosion.

Service

We offer complete lifecycle support for the Pipe Based Dual Screen:

• Custom manufacturing – Any length, diameter, slot gap, or outer screen material (304L, 316L, 904L, Monel).

• Technical consultation – Sand analysis, screen sizing, and well completion design.

• Quality assurance – Hydrostatic testing, thread gauge inspection, and dimensional check per API standards.

• Logistics support – Export packing (wooden crates / steel frames), sea/air freight coordination.

• After‑sales service – Installation guidance, field troubleshooting, and replacement parts.

Company Introduction

OASIS is a specialized manufacturer of filtration pipes for water, oil, and gas wells. As experienced wire‑wrapped screen suppliers, we bring more than 15 years of experience and technical expertise in resistance‑welded and profile bar screens.

We design and produce a full range of premium well filtration products, including:

• Sand control screens

• Slotted pipes

• Wire‑wrapped screens (continuous slot )

• Dual‑screen systems – such as the Pipe Based Dual Screen presented here

Our screens are available in several configurations and materials, in a wide variety of sizes, shapes, and precision openings. The goal of our engineering team is to provide the most efficient screen design for your unique application. We are always ready to help solve technical problems and assist in designing the most advantageous screen placement.

Contact OASIS to discuss your downhole sand control challenges. We deliver reliable filtration for every drop of oil, gas, and water.
