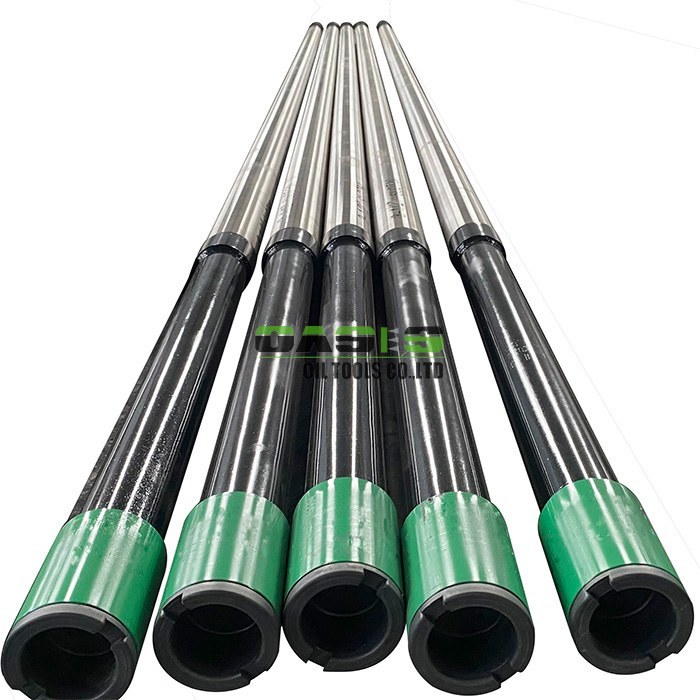

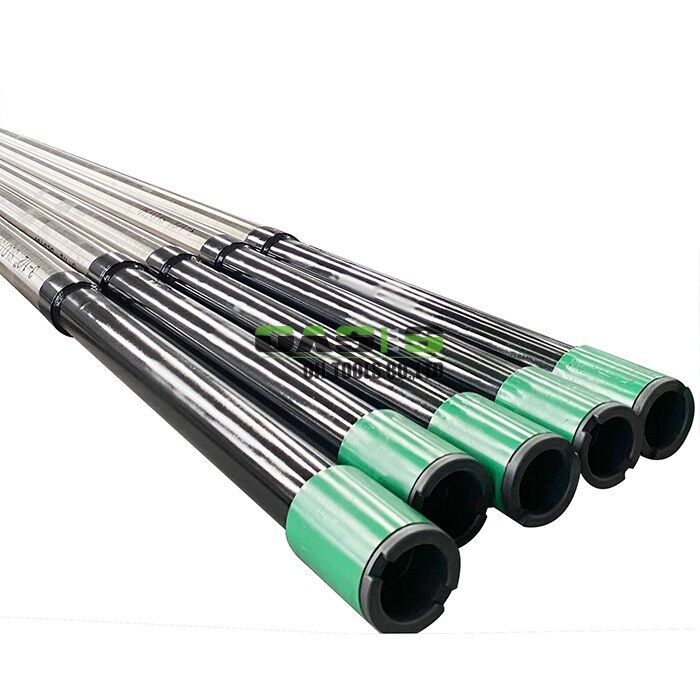

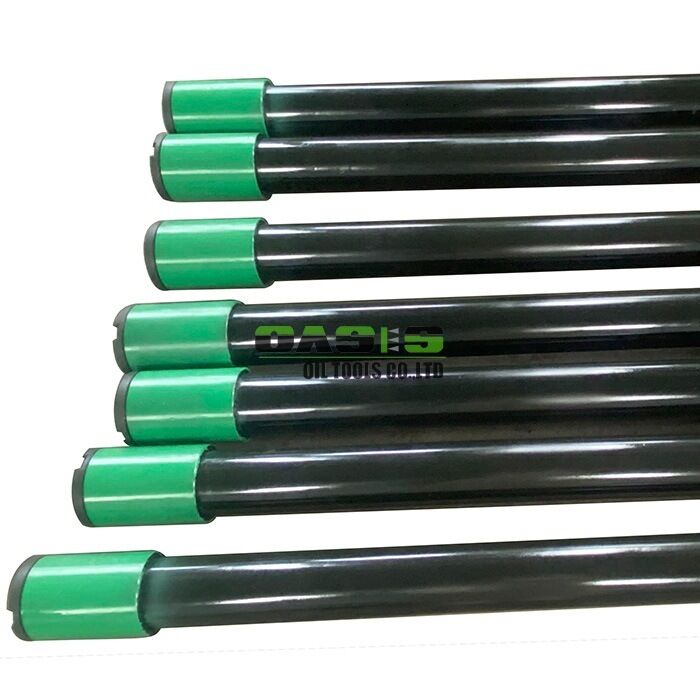

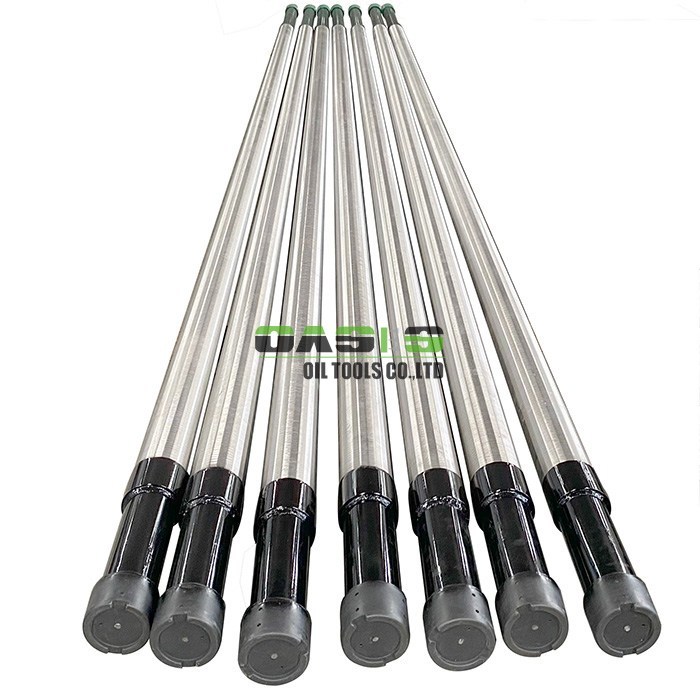

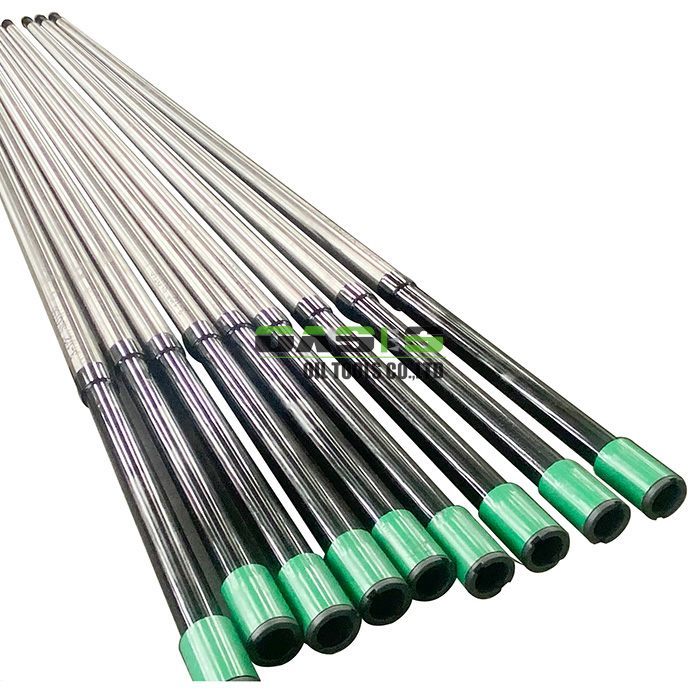

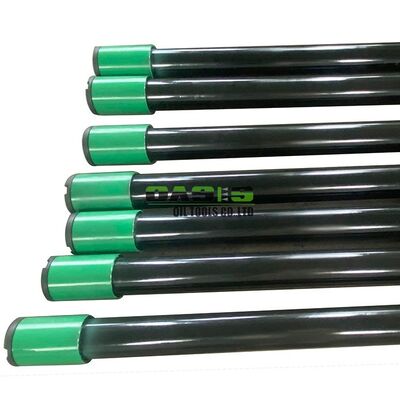

Pipe Base Screen water well screen with V shaped profile wire design and supporting rods providing high flow and mechanical reliability

Pipe Based Water Well Screens – Premium Dual-Layer Sand Control Solution

Product Overview

Pipe Based Water Well Screens represent the perfect combination of high-performance filtration and exceptional structural strength. Also known as dual-layer or multi-layer screens, these precision-engineered well screens consist of three core components: a perforated or slotted API base pipe, an all-welded wedge wire screen jacket, and supporting rods that securely integrate the two layers. The wedge wire screen jacket, featuring a V-shaped profile wire design, is welded onto longitudinal support rods and assembled over the perforated base pipe. This dual-layer construction delivers superior sand control performance while maintaining the hydraulic efficiency of continuous slot screens and the robust strength of a steel pipe base.

The V-shaped continuous slot opening ensures uninterrupted high flow with minimal frictional head loss, while the precise slot control tolerances effectively prevent sand migration—making these screens ideally suited for even the most severe downhole conditions. With two independent sets of openings—the outer continuous slot and the inner pipe perforations—Pipe Based Water Well Screens offer unmatched filtration accuracy and mechanical reliability.

Specifications

Applications

Pipe Based Water Well Screens are widely used in water wells across the globe and are equally common in oilfield applications, valued for their exceptional strength and durability in non-vertical borehole conditions. Key applications include:

• Deep Water Wells – The reinforced dual-layer construction provides the high collapse resistance and tensile strength required for deep-well environments.

• Oil & Gas Wells – Ideal for sand control in high-pressure formations.

• Horizontal & Deviated Wells – The integral strength of the perforated base pipe ensures reliable performance even in challenging borehole trajectories.

• High-Yield Production Wells – The continuous slot design maximizes flow capacity while minimizing frictional head loss.

• Remediation & Supply Wells – Recommended when high collapse resistance and extended screen lengths generate significant longitudinal constraints.

The base pipe provides internal support that maintains only 2–3% less integrated strength compared to standard casing or tubing, delivering sufficient structural integrity to resist formation compression. Even if localized deformation occurs, the slot gaps remain unchanged—ensuring consistently reliable sand control.

Packaging & Shipping

For urgent projects, expedited shipping options are available. Please contact our sales team for specific delivery schedules and freight quotes.

Key Advantages

✅ High mechanical strength with excellent anti-deformation capability
✅ Accurate solids separation with slot openings from 50 microns
✅ Non-clogging V-shaped wire surface ensuring uninterrupted high flow
✅ High open area for maximum well productivity
✅ Uniform and efficient well development due to continuous slot design
✅ Customizable materials, diameters, and slot sizes to meet specific downhole conditions
