Double Layer Well Screen 12m Length Centralizer Connection Sand Control

Product Description

Double layer well screens, also known as pipe based dual screens or reinforced screens, combine a perforated base pipe with an outer wire wrapped screen jacket into one reinforced structure. The 12 m screen is connected with centralizers in the middle section, keeping the double-layer structure concentric, stable and easy to run into the well. This design provides higher collapse strength than single-layer screens while retaining precise sand control, making it a reliable choice for deep water wells, oil wells, gas wells and vertical wells.

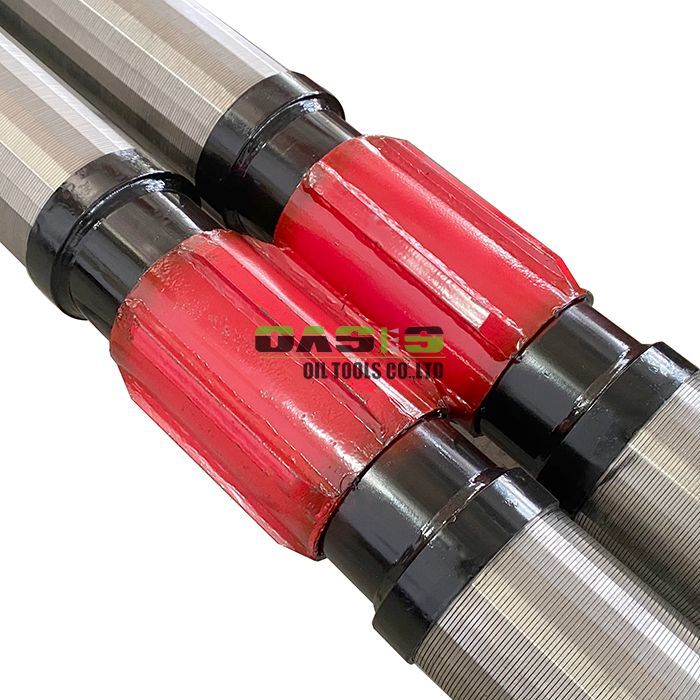

centralizer joint close-up

Key Characteristics

- Reinforced double-layer structure: perforated base pipe plus outer screen jacket for higher strength and longer service life.

- Centralizer connection at the middle of the 12 m assembly ensures stable alignment and simple field installation.

- Precision-wound V-shaped profile wires form uniform slot openings that resist clogging and maintain high open area.

- Base pipe available in J55, K55, N80, L80, P110 carbon steel or SS304, 304L and 316L stainless steel.

- Screen jacket available in 304, 304L and 316L stainless steel for excellent corrosion resistance.

- Thread options: EUE, NUE, BTC, STC and LTC to suit different downhole connections.

Structure And Manufacturing

The perforated base pipe provides the main mechanical strength, while the outer screen jacket performs the filtration. The two layers are connected with centralizers in the middle, and the jacket is formed by continuous resistance welding of V-shaped profile wires onto longitudinal support rods. Strict quality control checks perforation size, slot uniformity and weld integrity before delivery.

Specifications

Applications

This double layer well screen is widely used in deep water wells, oil wells, gas wells and vertical wells for sand control, gravel packing and dewatering. The reinforced structure handles high differential pressure and demanding downhole conditions, while the stainless steel jacket provides corrosion resistance in saline and corrosive well fluids.

Packaging

Each finished screen is protected with bubble bag wrapping and reinforced with wooden boards to prevent damage to threads and the screen jacket during land or sea transportation. Custom lengths, diameters, slot sizes, materials and threads are available on request.

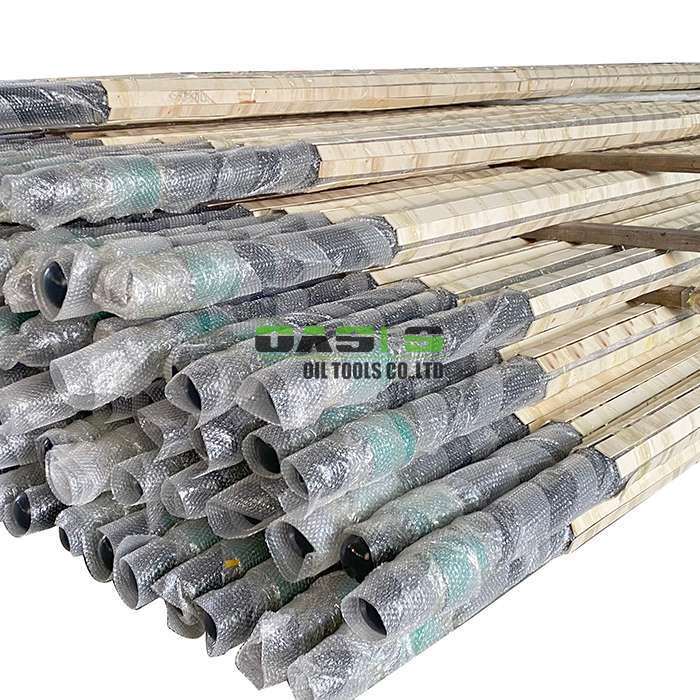

packaged screen with bubble bag and wooden boards

Inquiry

As a factory direct manufacturer, we offer customized production per your drawing or specification. Price is negotiable and the minimum order quantity is flexible. Please send your required diameter, slot size, length, material grade and thread type for a quotation.
