Non Inforced Slotted Screen Pipe , Spirally Wound Water Well Screen Pipe

Non Inforced Slotted Screen Pipe , Spirally Wound Water Well Screen Pipe
Non Inforced Slotted Screen Pipe , Spirally Wound Water Well Screen Pipe Non Inforced Slotted Screen Pipe , Spirally Wound Water Well Screen Pipe Non Inforced Slotted Screen Pipe , Spirally Wound Water Well Screen Pipe Non Inforced Slotted Screen Pipe , Spirally Wound Water Well Screen Pipe Non Inforced Slotted Screen Pipe , Spirally Wound Water Well Screen Pipe Non Inforced Slotted Screen Pipe , Spirally Wound Water Well Screen Pipe Non Inforced Slotted Screen Pipe , Spirally Wound Water Well Screen Pipe Non Inforced Slotted Screen Pipe , Spirally Wound Water Well Screen Pipe Non Inforced Slotted Screen Pipe , Spirally Wound Water Well Screen Pipe Non Inforced Slotted Screen Pipe , Spirally Wound Water Well Screen Pipe Non Inforced Slotted Screen Pipe , Spirally Wound Water Well Screen Pipe Non Inforced Slotted Screen Pipe , Spirally Wound Water Well Screen Pipe Non Inforced Slotted Screen Pipe , Spirally Wound Water Well Screen Pipe Non Inforced Slotted Screen Pipe , Spirally Wound Water Well Screen Pipe Non Inforced Slotted Screen Pipe , Spirally Wound Water Well Screen Pipe
Basic Information
Place of Origin: Henan, China
Brand Name: OASIS
Certification: ISO/CE
Model Number: OA-304/304L
Minimum Order Quantity: 10 Meter/Meters
Price: Negotiation
Packaging Details: Oasis SS304/304L water well screen pipe /water filter mesh screen is packed single with bubble bag and then in wooden case(fumigation certificate). Each case is clearly marked with:Name & identification mark of manufacturer-Oasis Oil Tools Co.,ltd Brand, B
Supply Ability: 10000 Meter/Meters per Month small amount in water well screen pipe is ok
Get Best Price Contact Now
Weave Style: Plain Weave Material: Stainless Steel Wire
Type: Liquid Filter Application: Filters
Technique: Welded Mesh Product Name: Stainless Steel Continuous Slot Wire Wrapped Screen/Wedge Wire Screens
Material: SS304/304L Slot Size: 0.1-15mm(achieved Upon Request)
OD: 25-900mm Wire: 1.5*2-3.5*6.8mm
Filter Rate: 10%-30% Unit Length: 2.9m/5.8m
Port: Any Port In China
Highlight:

micron stainless steel mesh

,

heavy duty metal screen mesh

Stainless Steel Non-inforced Wire Wrapped Screen



Description of Oasis Stainless Steel Non-inforced Wire Wrapped Screen

SS304/304L water well screen pipe /water filter mesh screen  is made from V shaped profile wire , which is spirally wound around a cage of longitudinal support rods. Each intersecting point is fusion welded, with an unique welding process . This spacing gives passage for water to enter.The entire process is completed on fully computerizes machines . The pitch of winding gives different spacing between two adjacent turns of wire .

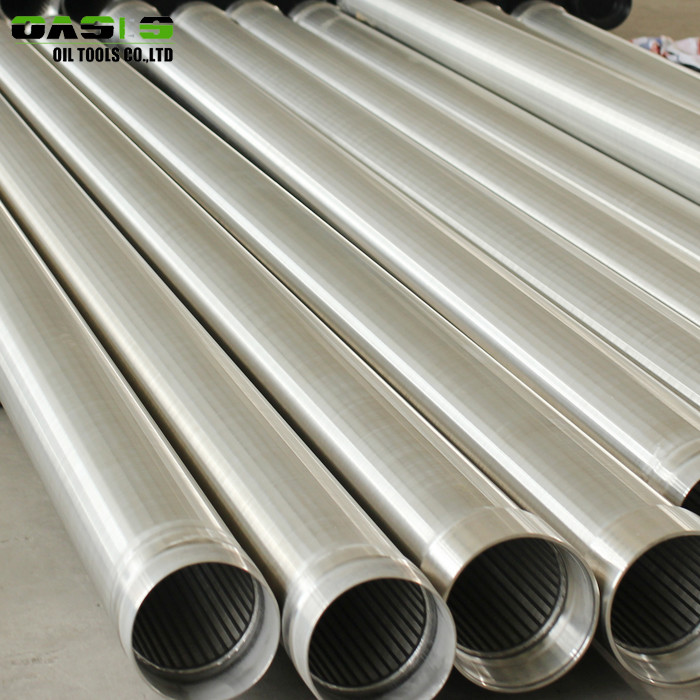

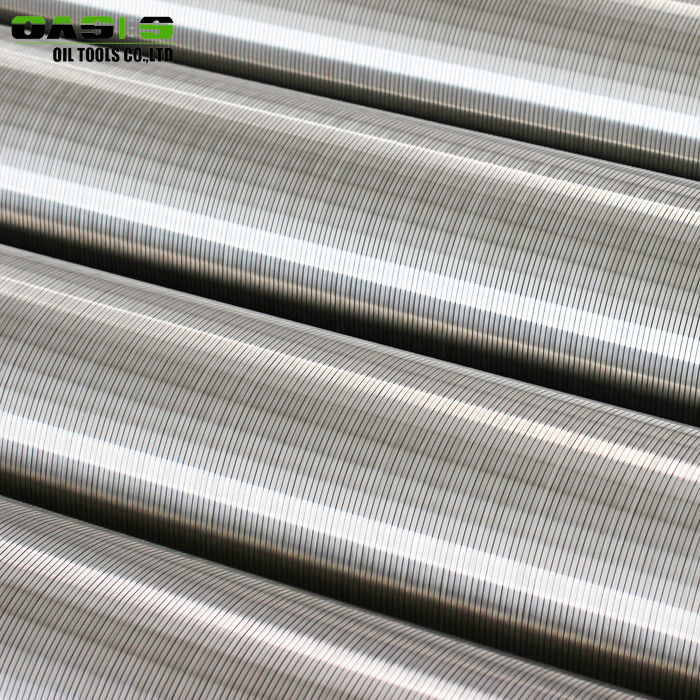

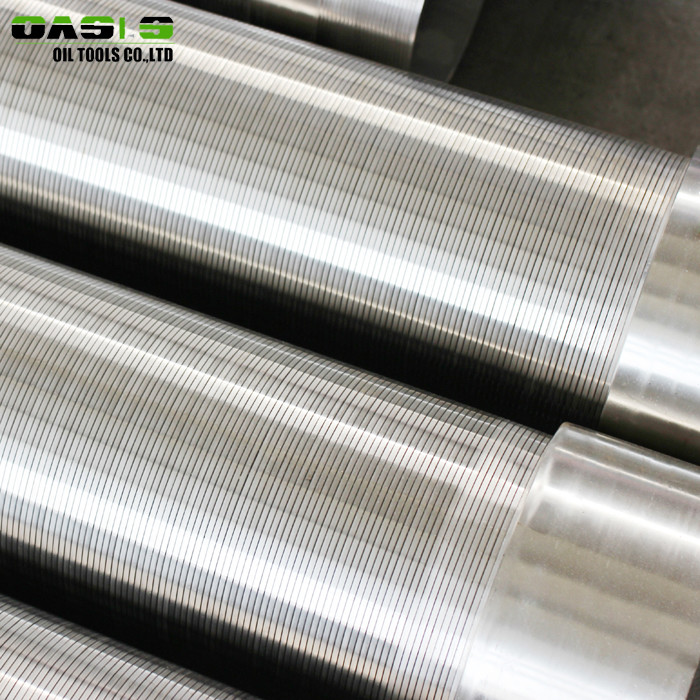

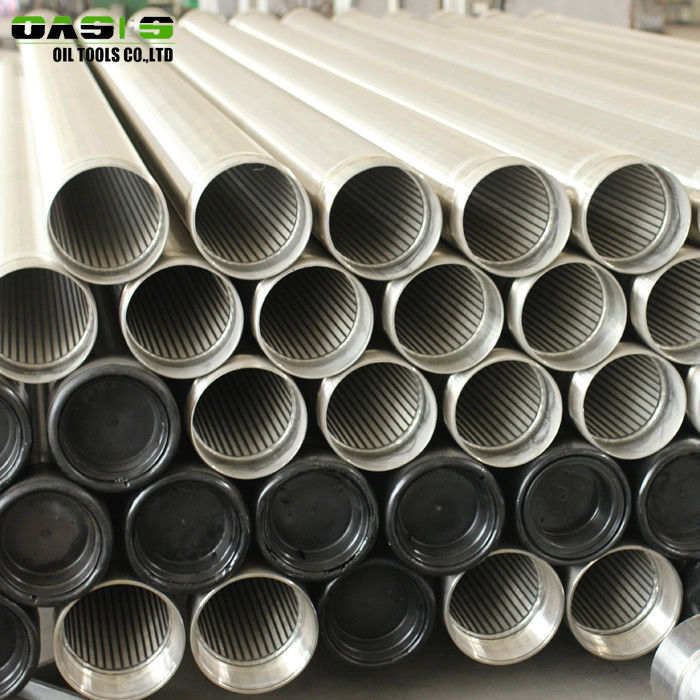

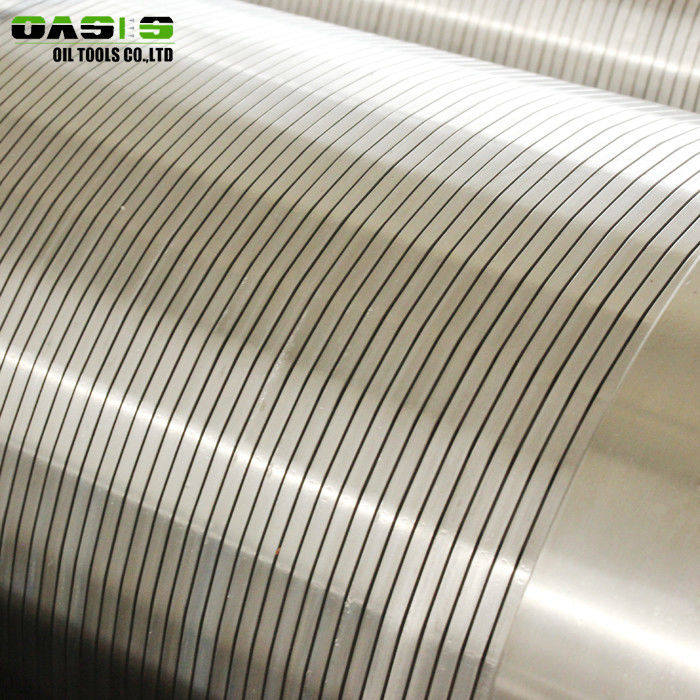

Products display of Oasis Stainless Steel Continuous Slot Wire Wrapped Screen/Wedge Wire Screens

Non Inforced Slotted Screen Pipe , Spirally Wound Water Well Screen Pipe 0



Non Inforced Slotted Screen Pipe , Spirally Wound Water Well Screen Pipe 1



Specification of Oasis Stainless Steel Continuous Slot Wire Wrapped Screen/Wedge Wire Screens

Non Inforced Slotted Screen Pipe , Spirally Wound Water Well Screen Pipe 2

Packing&Delivery of Stainless Steel Non-inforced Wire Wrapped Screen

Packing details: Oasis Stainless Steel Continuous Slot Wire Wrapped Screen/Wedge Wire Screens is packed single with bubble bag and then in wooden case(fumigation certificate). Each case is clearly marked with:Name & identification mark of manufacturer-Oasis Oil Tools Co.,ltd Brand, Batch number,Date of manufacture,Material,Collapse pressure&Tensile strength



Delivery time:Oasis SS304/304L water well screen pipe /water filter mesh screen with thread/weld/flange is delivered 3-30days after the advance payment or depend on special quantity

Non Inforced Slotted Screen Pipe , Spirally Wound Water Well Screen Pipe 3

woven bags                                                          bubble bag with wooden strip                            bubble bag

Non Inforced Slotted Screen Pipe , Spirally Wound Water Well Screen Pipe 4

wooden case                                                                                              container



Company profile

Oasis Oil Tools Co., ltd. is a famous and leading manufacturer with professional team, which has cooperated with factories around the world. Committed to high quality and premium service, we have won a good reputation in the domestic and international market and received a good feed back from customers at home and abroad. We are responsible for every step of our cooperation, striving for mutual benefit.

Non Inforced Slotted Screen Pipe , Spirally Wound Water Well Screen Pipe 5

our company                                                                                                                                       company activity

Non Inforced Slotted Screen Pipe , Spirally Wound Water Well Screen Pipe 6

exhibition                                                             warehouse                                                          warehouse



Certificate

Non Inforced Slotted Screen Pipe , Spirally Wound Water Well Screen Pipe 7

Non Inforced Slotted Screen Pipe , Spirally Wound Water Well Screen Pipe 8







Related products

Non Inforced Slotted Screen Pipe , Spirally Wound Water Well Screen Pipe 9

pipe based well screen                                                                                API casing and tubing

Non Inforced Slotted Screen Pipe , Spirally Wound Water Well Screen Pipe 10

perforated pipe                                                                                         bridge slotted well screen

Non Inforced Slotted Screen Pipe , Spirally Wound Water Well Screen Pipe 11

slotted pipe                                                          female and male coupling                                   centralizer
