Place of Origin: | Henan, China |
---|---|
Brand Name: | OASIS |
Model Number: | SS-SSM Stainless Steel Wire Mesh |
Minimum Order Quantity: | 1 Meter/Meters |
Price: | Negotiation |
Packaging Details: | With bubble and woven bags and then be put into the container with fixed steel wire rope |
Supply Ability: | 9000 Meter/Meters per Month |
Material: | Stainless Steel Wire | Type: | Welded Mesh |
---|---|---|---|
Application: | Filters | Weave Style: | Plain Weave |
Technique: | Welded Mesh | Diameter: | 100mm |
Wire Size: | 1.5*2.5mm | Slot Size: | 0.25mm |
Treatment: | Polish | Unit Length: | 580mm |
Wire Diameter: | Requirement | Port: | Tianjinxingang ,Qingdao Port And Other Port |
High Light: | wedge wire filter,4 inch well screen |

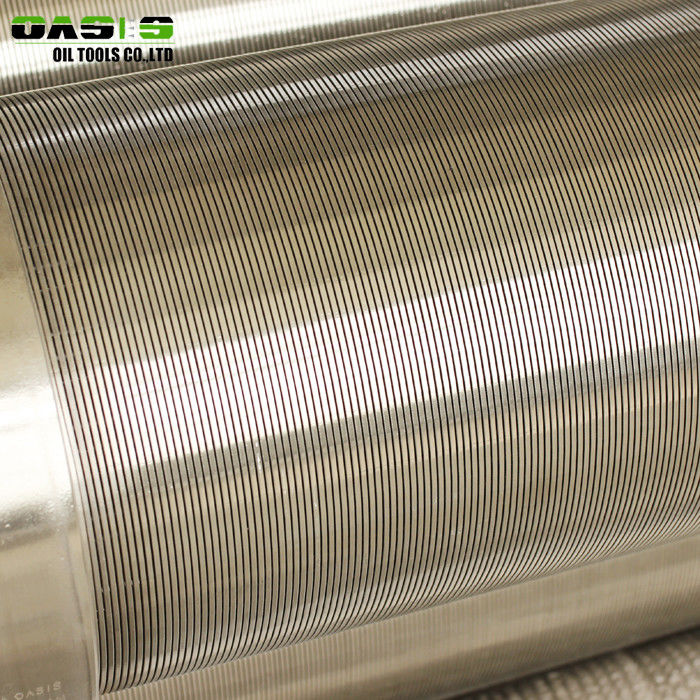

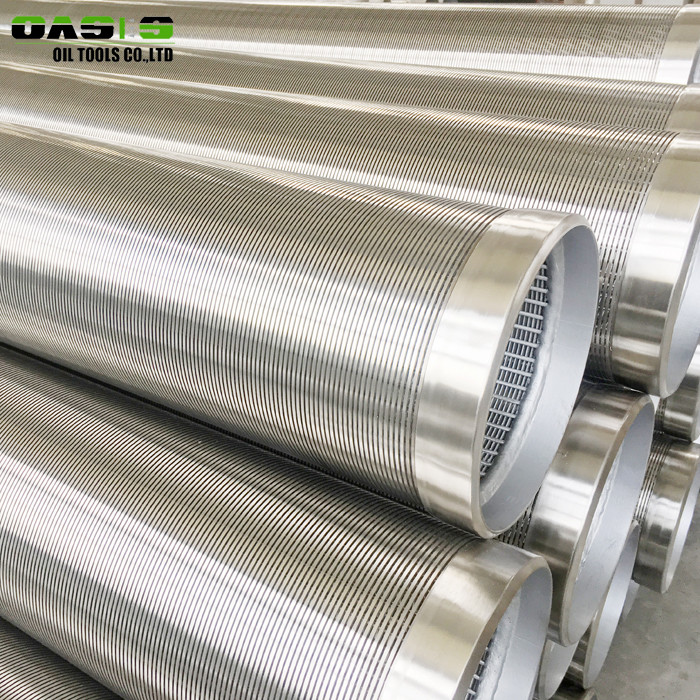

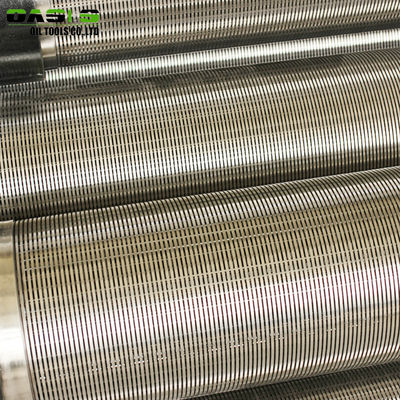

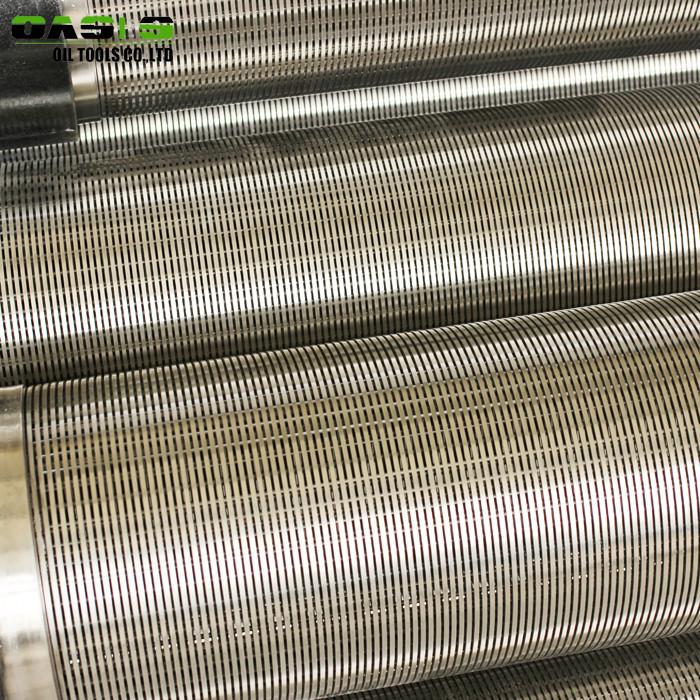

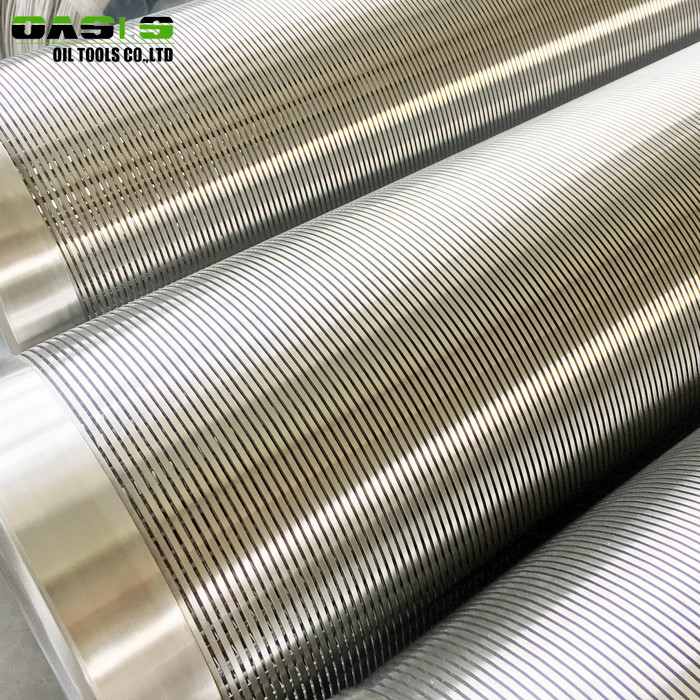

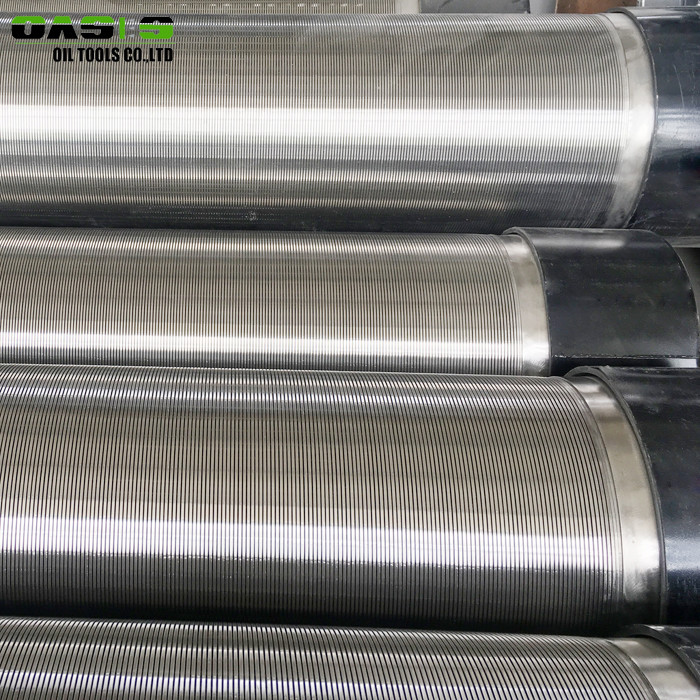

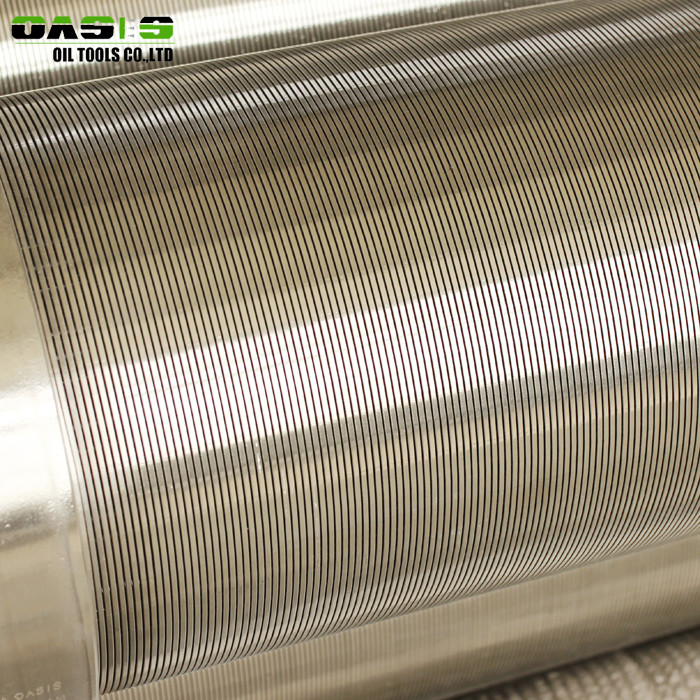

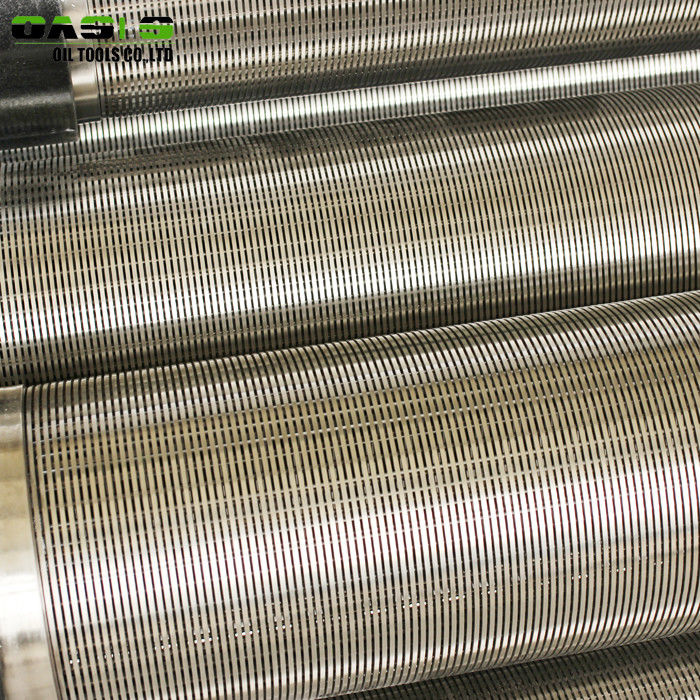

Duplex 2205 Continuous Slot V Wire Stainless Steel Well Screen
Company information:
Oasis Oil Tools Co.,LTD, located in the industrial park of high-tech enterprises in Fengquan District, Xinxiang City. Oasis now has more than 150 staff, among them 6 persons are senior engineer. Since founded, OASIS always adhere to the “development on innovation, development on efficiency and treat customers with honesty” business philosophy. After many years’ efforts, now OASIS has developed into a famous manufacturer which integrates the research and development, design, manufacture and sell water well screens/johnson screens, oil well screens and sand control well screens, bridge slotted well screens, pipe based well screens, perforated pipe (base pipe), riser pipes, gravel pre-packed well screens, wedge wire screens, passive water intake screens etc. water, oil and gas well filtering products as well steel tubes and pipes and industrial parts.
Duplex 2205 Continuous Slot V Wire Stainless Steel Well Screen:
Duplex stainless steel v wire water well filter is made up of rods and warp. The rod can be round wire,
triangular wire or trapezoid wire.The warp is triangular wire (V-shaped wire). V-wirewedge wire screen pipes have a robust structure and large open area, as well as accurate slot dimension.
At the same time, V -wire water well screens have many advantages such as heat-resisting,
anti-corrosive, good machine capability,long service life, safety and reliability and so on. It can be used in many kinds of medium filtering.
Materials: 201 202 304 304L 316 316L stainless steel and low carbon galvanized, can be made according to the customers' requirement.
Application of Duplex 2205 Continuous Slot V Wire Stainless Steel Well Screen:
Production Methods:
1. Winding cold-rolled wire, approximately triangular in cross section, around a circular array of the longitudinal rods.
2. The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.
3. Slot opening are manufactured by spacing successive turns of the outer wire to produce the desired slot size. All slots should be clean and free of burns and cuttings.
4. Process: Carbon steel ones will be galvanized.
5. Package: inner bubble bag and outer woven bag. Wooden box can be supplied if needed.
Specification (wedge wire): |
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 |
Specification (support rod): |
Width(mm): 2.30 3.00 3.30 3.70 |
Slot size |
0.10, 0.15, 0.20, 0.25, 0.30...6.00mm also achieved upon request. |
Material: |
low carbon galvanized, stainless steel,duplex stainless steel |
Length |
up to 6 meters,2.9m and 5.85m are suggested to fit for the container |
Diameter |
from 30mm to 600mm. |
End connection |
Plain beveled ends, flanged and threaded couplings |
Note: other specifications available as per request |
Product details:
Packing details:
Each water filter is packaged with bag and woven bags and then in wooden case(fumigation certificate).Each case is clearly marked with:
Name & identification mark of manufacturer-OASIS Brand
Batch number
Date of manufacture
Material
Why choose OASIS water filter?
1) World Class Quality: OASIS provide our clients with high quality Johnson screen filters and related products.OASIS had passed ISO9001:2008 quality control system.
2) Third party inspection: The productive process of OASIS screen is controlled by third party test company such as BV,SGS,etc. or client's representative.
3) Non Standard Screens: We OASIS can supply customer designed and engineered screens according to our clients’ requirements.
4) Quick Delivery: OASIS can prepare stock for our regular clients to meet clients' requirement at any time.
5) Lower Maintenance of the well: The water can pass freely around coarse particles and enters the well. So low maintenance costs with minimal encrustation or build-up of scale.
6) Environmentally safe: OASIS has signed the file to protect the environment with our local Environmental Protection Administration.
Our ISO9001:2008 Certification provides evidence of a quality framework for manufacturing, design and related service.
If you are satisfied with our duplex v wire water well filters and willing to know price and more information, we appreciate your following questions when you place an order:
1, What's the material you are going to deal with, stainless steel or carbon steel?
2, What's the OD, length? Diameter from 30-600mm,length from 1-5.8m
3, What's the slot size of the screen filter?
4, What's the depth of the well or tensile strength of the screen that you need?
If you are interested in our water well filters,please contact with me for more information.
