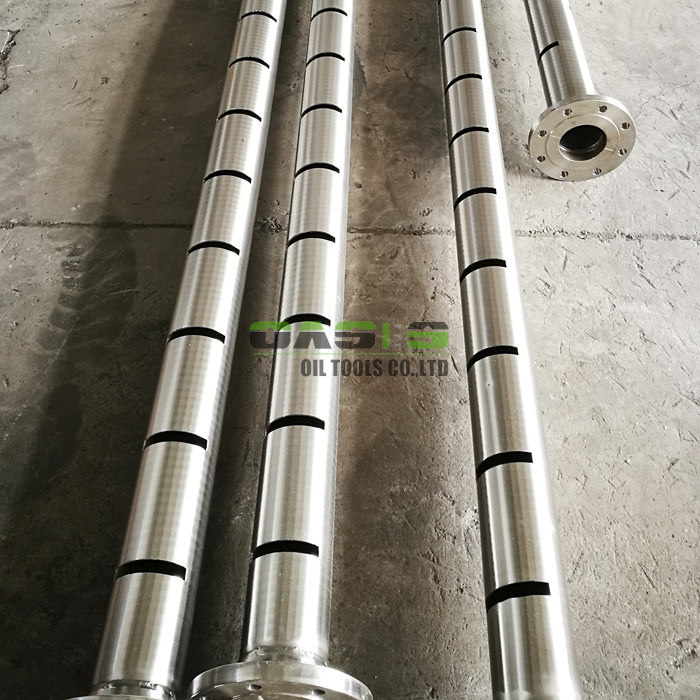

ERW Vertical Slotted Well Screen Pipe High Overall Strength For Deep Well

Deep well slotted casing pipe



The controlling of the slotted pipe according to the specifications and Machining parameters of the pipe body.

When the pipe is under slotting , the procedure including: surface treatment of the pipe before process, cooling

and eliminating the heat during the whole slotting as well as removing the iron rust and oxide; make quality inspection

after the slotting of the pipe and the substandard pipes be sent to the waste collecting station.;

marking the pipes fits for the requirement of the quality; issuing the material certificate and delivering the goods.









Deep well slotted casing pipe Performance:





1. Our perforated pipe use J55/K55/N80 casing and tubings of API standard, with High overall strength, not so easy to deformation.



2. The edge of the slot is vertical, smooth, without burrs, and the slot is uniformity.



3. The perforated pipe is suitable for sandy well, which the diameter of the sand greater than 0.3mm.



4. The slot can be longitudinal and transverse, the section of the slot can be parallel and  trapezoidal types, with a wide open area.



5. It has a big inner diameter.







Specifications of Slotted Pipe/Liner





* The narrowest of the slot can be up to 0.10mm



* The carbon steel thickness of the cutting can be 20mm



* The stainless steel thickness of the cutting can be 10mm



Technical Parameters of Deep well slotted casing pipe





API Std.Casing			ID (mm)	Length (mm)	Slot Length (mm)	Slot No./m	Slot Width (mm)	Slot  Tolerance	Valid Filter Area (cm2/m)	Max. Strength (kn)
Spec. (mm)	Thickness (mm)	Per Weight (mm)
60.32	5	6.84	50.3	3	80	200	0.3	±50	48	512.54
73.02	5.5	9.15	62	3	80	240	0.3	±50	57.6	688.55
88.9	6.5	13.22	75.9	3	80	280	0.3	±50	67.2	995.1
101.6	6.5	15.22	88.6	3	80	300	0.3	±50	72	1151.2
114.3	7	18.47	100.3	10	80	320	0.3	±50	76.8	1400.4
127	7.52	22.13	112	10	80	340	0.3	±50	81.6	1673.8
139.7	7.72	25.11	124.3	10	80	360	0.3	±50	86.4	1900.2
	9.17	29.48	121.4	10	80	360	0.3	±50	86.4	2232.4
168.3	8.94	35.09	150.4	10	80	400	0.3	±50	96	2672.95
177.8	8.05	33.68	161.7	10	80	440	0.3	±50	105.6	2559.2
	9.19	38.19	159.4	10	80	440	0.3	±50	105.6	2940.7





Advantage of  Deep well slotted casing pipe



1. Large open area with small slots

2. High filtering accuracy

3. Best-class quality and competitive price

4. Can be customized

5. Timely delivery

Our company











Certificate





Packing & Delivery

Single with bubble bags and then in wooden case.

Each case  is clearly marked with:

Batch number

Date of manufacture

Safe heating & application temperature



Packing







 Delivery
