Place of Origin: | Henan, China |
---|---|
Brand Name: | OASIS |
Certification: | ISO |
Model Number: | OA-S |
Minimum Order Quantity: | 1 Piece/Pieces |
Price: | Negotiation |
Packaging Details: | slotted liner is packed with bubble bag and then packed with wooven bag. |
Supply Ability: | 8000 Piece/Pieces per Month |
Standard: | ASTM, AISI, DIN, GB, JIS | Type: | Seamless |
---|---|---|---|
Steel Grade: | 400 Series | Welding Line Type: | ERW |
Port: | Tianjin Port Or Qingdao Port | Item: | Slotted Well Screen |
Highlight: | slotted casing pipe,stainless steel slotted pipe |

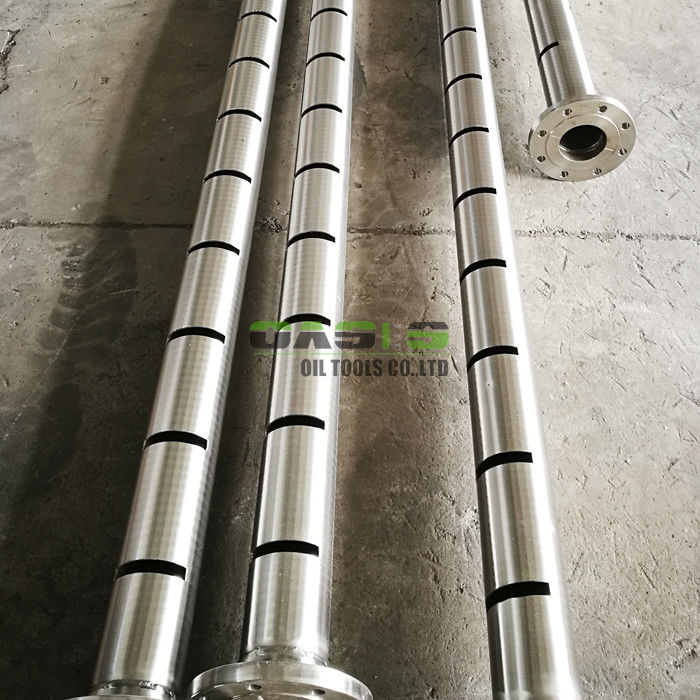

Carbon Steel Of Laser Slotted Liner Screens Use On Water Well Drilling
Laser slotted liner
The controlling of the slotted pipe according to the specifications and Machining parameters of the pipe body.
When the pipe is under slotting , the procedure including: surface treatment of the pipe before process, cooling
and eliminating the heat during the whole slotting as well as removing the iron rust and oxide; make quality inspection
after the slotting of the pipe and the substandard pipes be sent to the waste collecting station.;
marking the pipes fits for the requirement of the quality; issuing the material certificate and delivering the goods.
Laser slotted liner Performance:
1. Our perforated pipe use J55/K55/N80 casing and tubings of API standard, with High overall strength, not so easy to deformation.
2. The edge of the slot is vertical, smooth, without burrs, and the slot is uniformity.
3. The perforated pipe is suitable for sandy well, which the diameter of the sand greater than 0.3mm.
4. The slot can be longitudinal and transverse, the section of the slot can be parallel and trapezoidal types, with a wide open area.
5. It has a big inner diameter.
Specifications of laser slotted liner
* The narrowest of the slot can be up to 0.10mm
* The carbon steel thickness of the cutting can be 20mm
* The stainless steel thickness of the cutting can be 10mm
Technical Parameters of slotted water well screen
API Std.Casing |
ID (mm) |
Length (mm) |
Slot Length (mm) |
Slot No./m |
Slot Width (mm) |
Slot Tolerance |
Valid Filter Area (cm2/m) |
Max. Strength (kn) |
||
Spec. (mm) |
Thickness (mm) |
Per Weight (mm) |
||||||||
60.32 |
5 |
6.84 |
50.3 |
3 |
80 |
200 |
0.3 |
±50 |
48 |
512.54 |
73.02 |
5.5 |
9.15 |
62 |
3 |
80 |
240 |
0.3 |
±50 |
57.6 |
688.55 |
88.9 |
6.5 |
13.22 |
75.9 |
3 |
80 |
280 |
0.3 |
±50 |
67.2 |
995.1 |
101.6 |
6.5 |
15.22 |
88.6 |
3 |
80 |
300 |
0.3 |
±50 |
72 |
1151.2 |
114.3 |
7 |
18.47 |
100.3 |
10 |
80 |
320 |
0.3 |
±50 |
76.8 |
1400.4 |
127 |
7.52 |
22.13 |
112 |
10 |
80 |
340 |
0.3 |
±50 |
81.6 |
1673.8 |
139.7 |
7.72 |
25.11 |
124.3 |
10 |
80 |
360 |
0.3 |
±50 |
86.4 |
1900.2 |
9.17 |
29.48 |
121.4 |
10 |
80 |
360 |
0.3 |
±50 |
86.4 |
2232.4 |
|
168.3 |
8.94 |
35.09 |
150.4 |
10 |
80 |
400 |
0.3 |
±50 |
96 |
2672.95 |
177.8 |
8.05 |
33.68 |
161.7 |
10 |
80 |
440 |
0.3 |
±50 |
105.6 |
2559.2 |
9.19 |
38.19 |
159.4 |
10 |
80 |
440 |
0.3 |
±50 |
105.6 |
2940.7 |
Company introduction
Oasis Oil Tools Co., Ltd, is a famous manufacturer which integrates the research and the development, the design, manufacture and sell water well screens/Johnson screens/wedge wire screen/the rod base screen/the continuous slot screen/non-enforced Johnson screen, oil well screens and sand control well screens, bridge slotted well screens, pipe based well screens/perforated base pipe with screen jacket, pipe base screen/reinforced Johnson type screen, perforated pipe (base pipe), gravel pre-packed well screens, passive water intake screens etc. the water, oil and gas well filtering products as well as these API/Stainless Steel Casing& Tubing and pipes and industrial parts.
By now, we can supply the following products, including but not limited with: Stainless steel pipe, casing pipe, line pipe; wedge wire screen, perforated pipe, bridge slot pipe, laser slotted pipe, slotted pipe;the stainless steel well head, drilling bit, well logger, super power drain pump, mining pump; rig component, heat exchanger, well screen welding machine. Our domestic operations coverthe all major oil and the gas producing areas, the water source development, energy development, ore mining and infrastructure. Marketing network has been established in the world, including the Middle East, Central Asia, Africa and the America.
Packing & Delivery
Packing details: stainless steel wedge wire screens (customized) with long service life are packed with bubble bags/woven bags, then with wooden strip; according to customers' requirements
Delivery time: stainless steel wedge wire screens (customized) with long service life are delivered within 30 days after receiving your payments
