Product Description

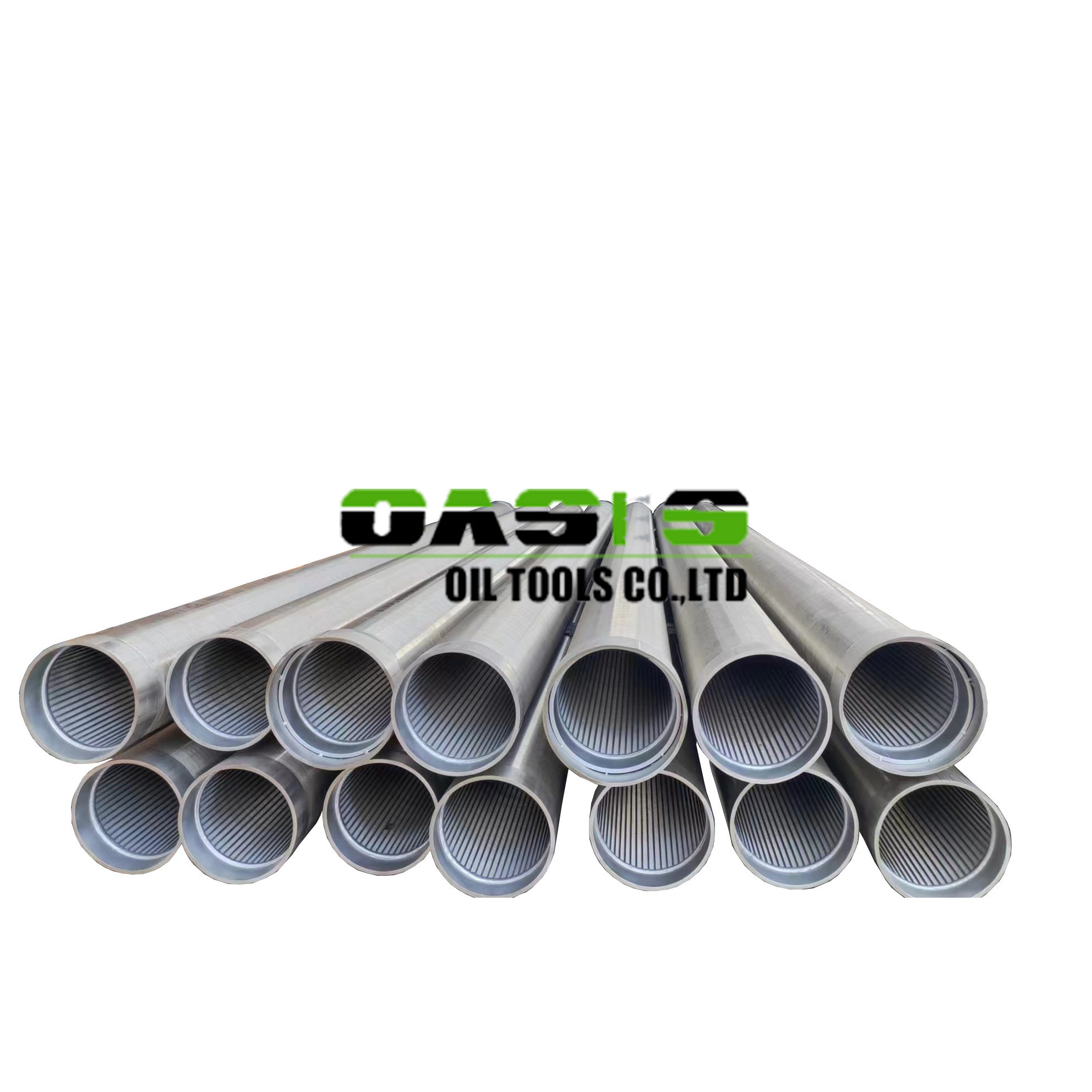

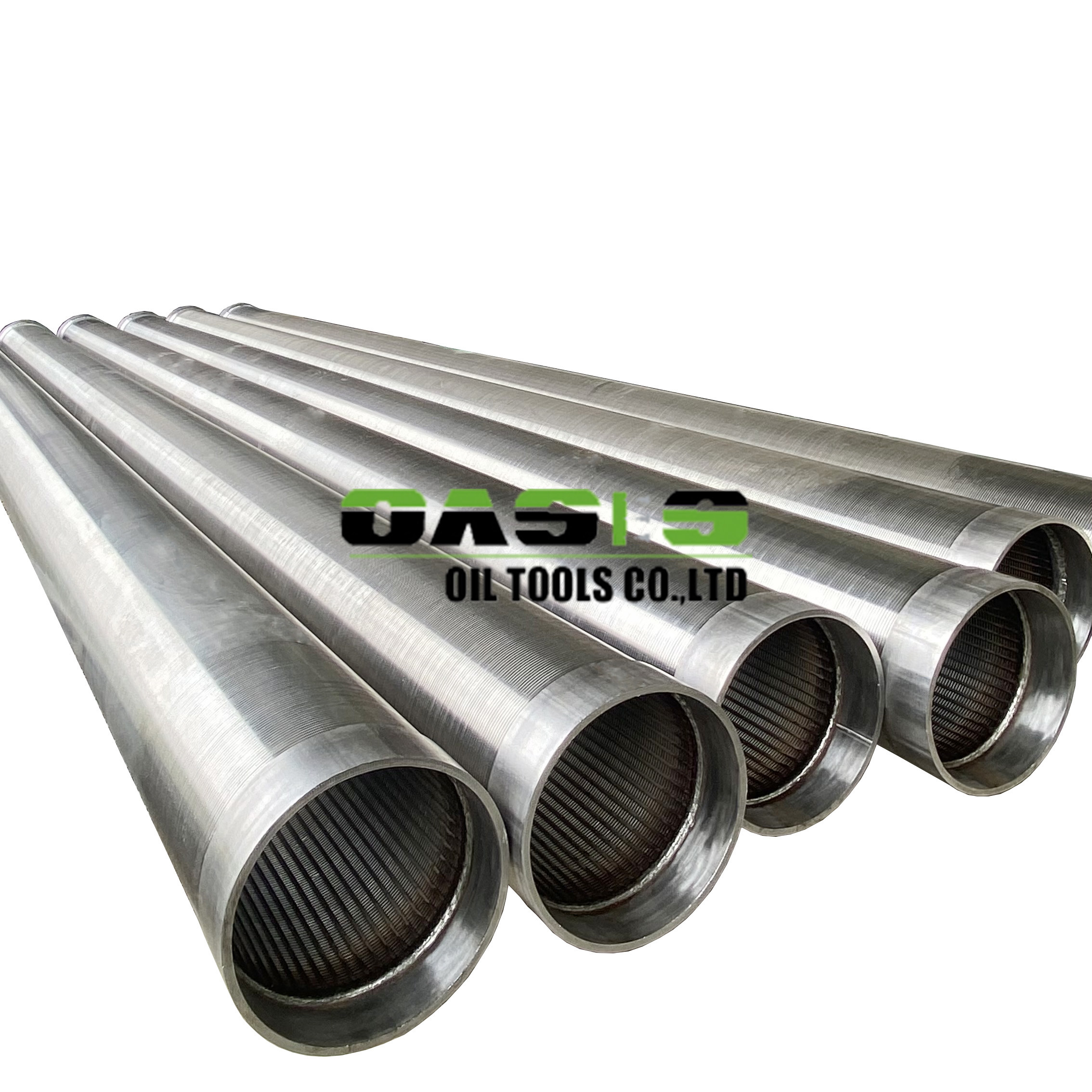

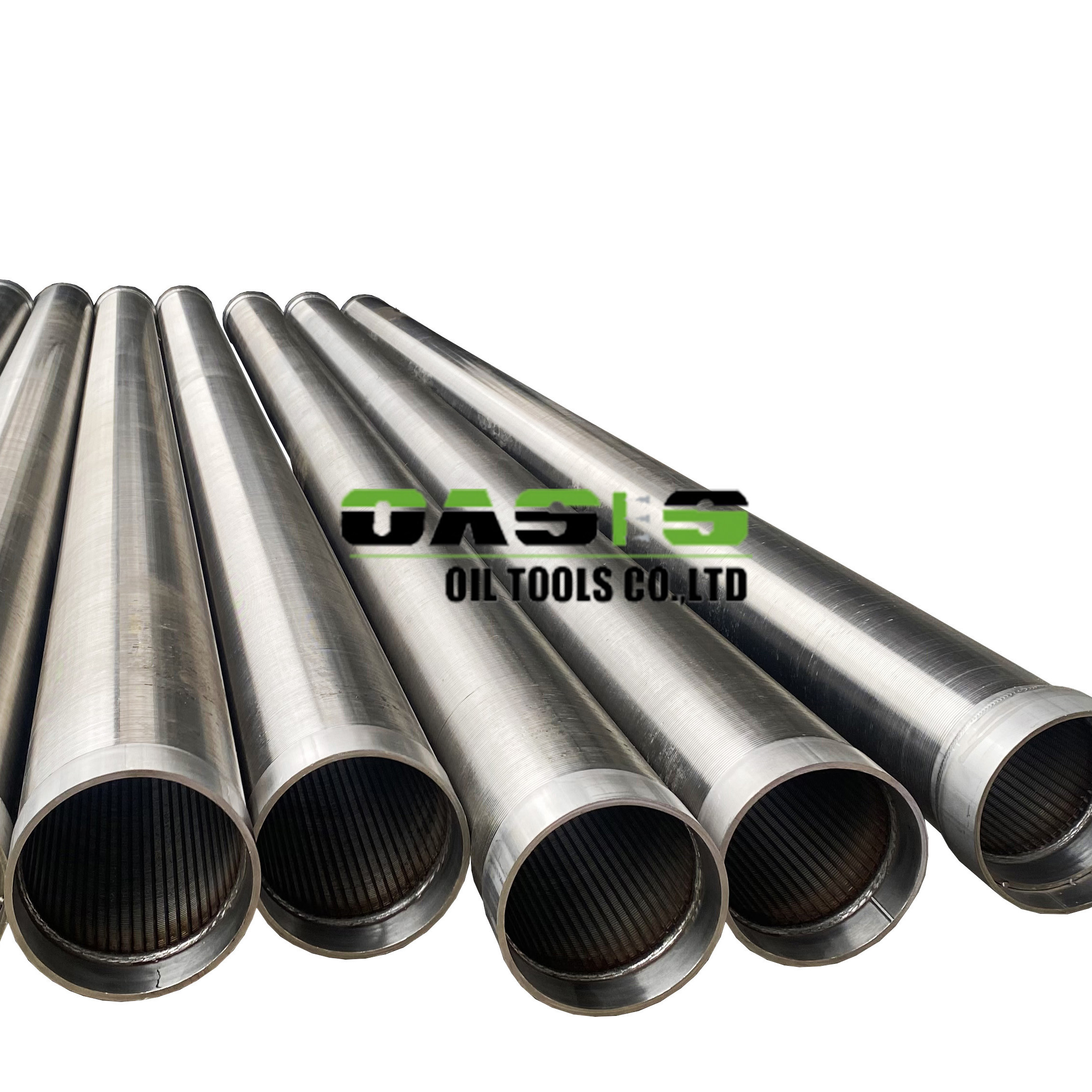

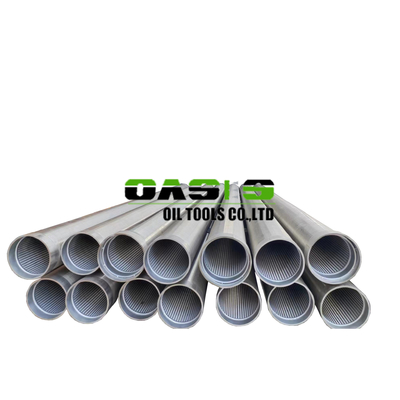

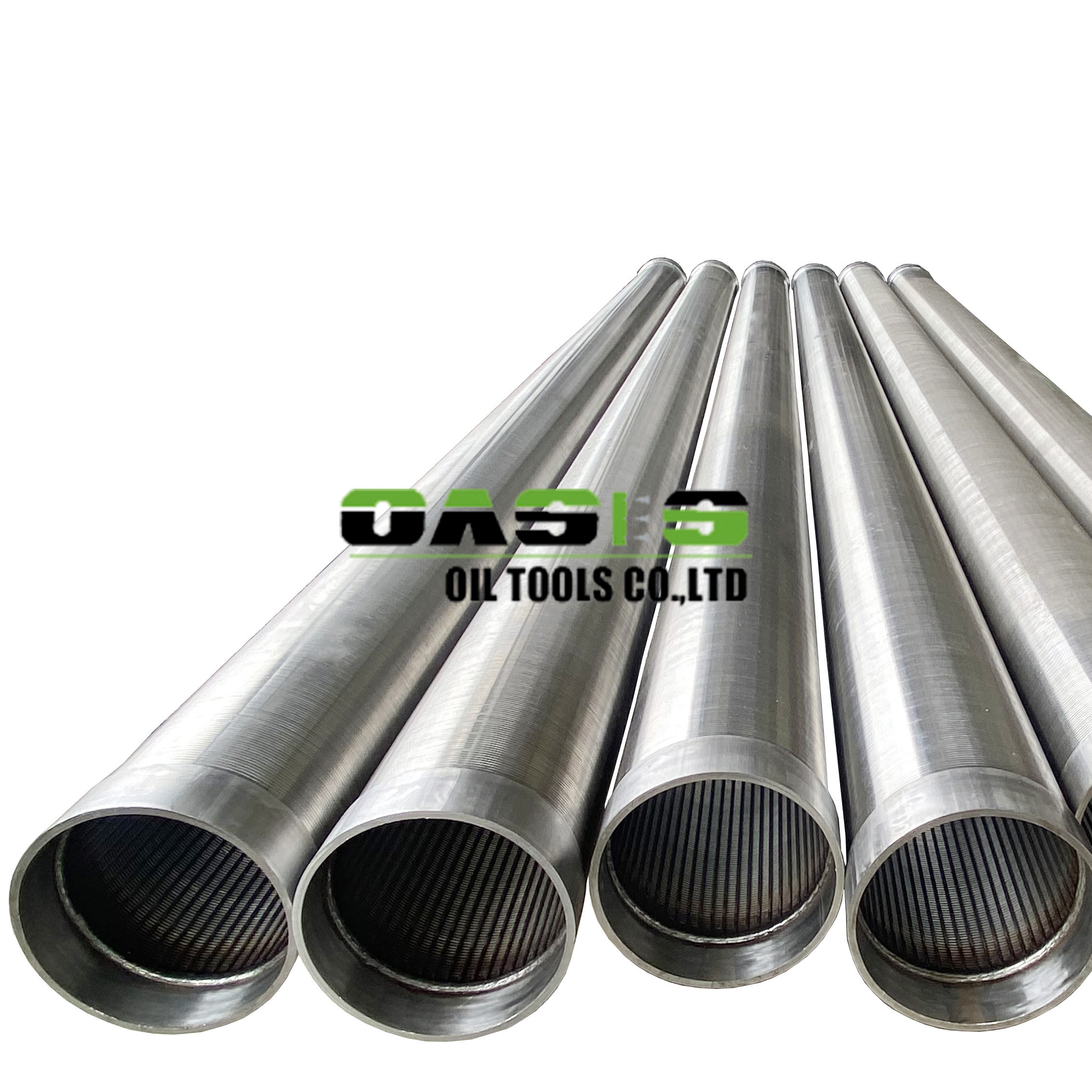

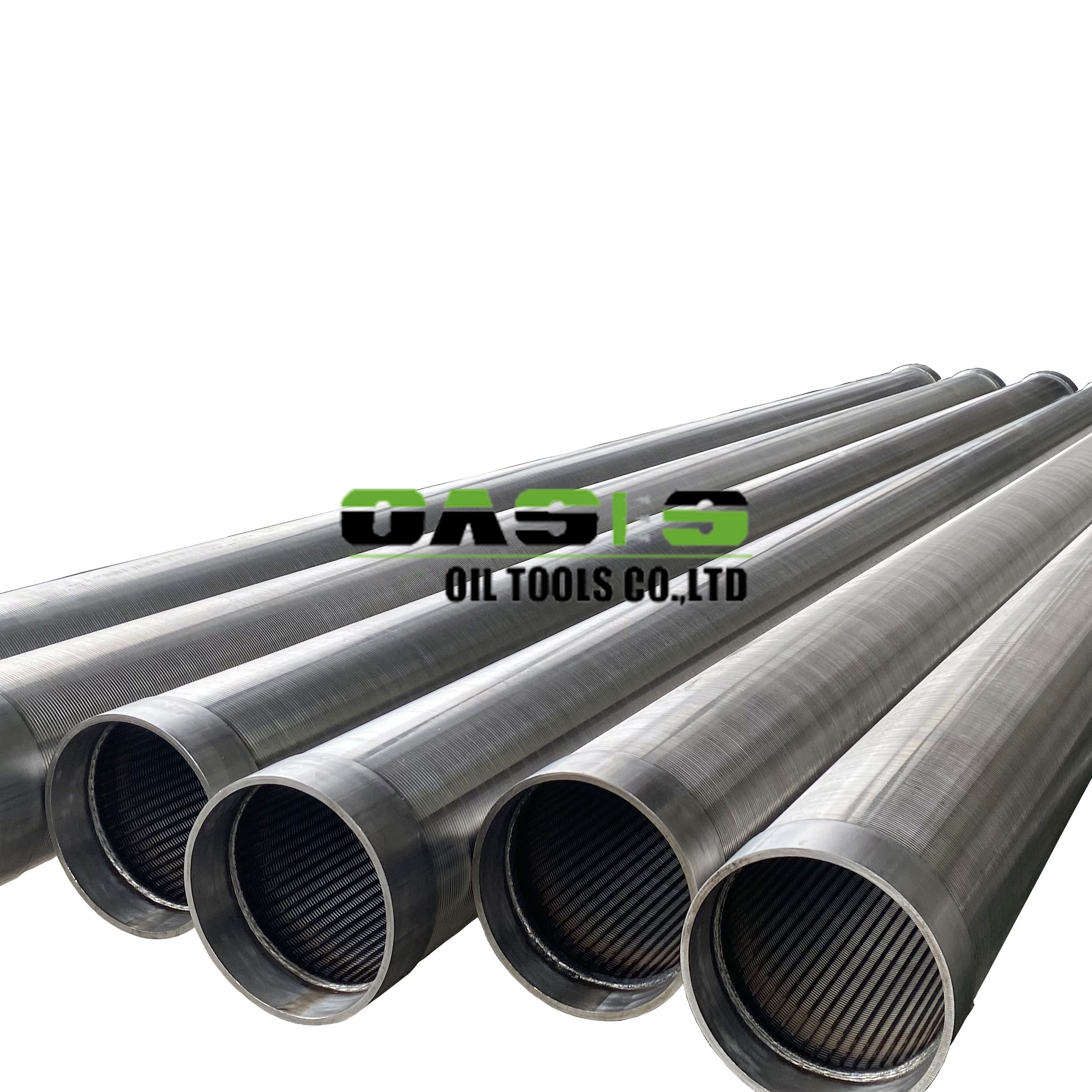

Water well screen piepes are manufactured with strict quality standards to be at par with international standards. The screen jackets are wedge wire screen pipe with Vee-Wire welded on support rods. Each intersection point of these wires is fusion welded. These jackets are then mounted over base pipe (API Casing, tubing, line pipe, etc.) which is perforated to ensure flow performance, and then both ends of jacket are welded on to the base pipe. The water well screen is an important component of a well that allows water to flow into the well while preventing sediment and other debris from entering. The screen is typically located at the bottom of the well, near the aquifer. This is done to ensure that only clean water is collected and that any sediment or dirt is filtered out. The screen is typically made from a perforated pipe or other type of material that has small openings to allow water to pass through while blocking sediments from entering.

The benefits of wire-wrapped screens are immense, with one standout feature being their increased open flow area. This is due to the high-quality materials used in their construction, which provide unparalleled structural support, even under extreme mechanical loads.

With wire-wrapped screens, the oil and gas industry can enhance drilling efficiency and reliability while reducing costs. As a result, this technology is transforming the industry and facilitating the safe and sustainable extraction of natural resources. By adapting to new technologies, the oil and gas industry is paving the way for progress and prosperity, benefiting not only the industry itself but society as a whole.

According to the parameters of the drilling company's specific working conditions, we can design and develop pipe-based screen pipes that meet specific needs. This type of screen pipe can be a combination of multiple base pipes and multiple screen jackets.

Features

1.Perfect integral strength and strong anti-deformation ability. The longitudinal support rods and the continuous slot make the water well screenshave more excellent pressure-resistant performance.
2.High flow capacity. The consecutive slot of water well screenshave wider open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can control sand better, which can increase the water yield and prolong service time of the well.
3.Wire and support rods are all-welded, which makes water well screens more robust and longer life.
4.More choice: The screen jacket material can be stainless steel or low carbon steel, it is can as per your requirement.

Specifications

More Details

Related Products

OASIS Certificates

We OASIS factory has approved ISO 9001:2008 quality management system since the year 2012.

We OASIS are also the audited supplier of made-in-china and approved by SGS.

Our machines have patent certificates to supply customer designed products or OEM service.
