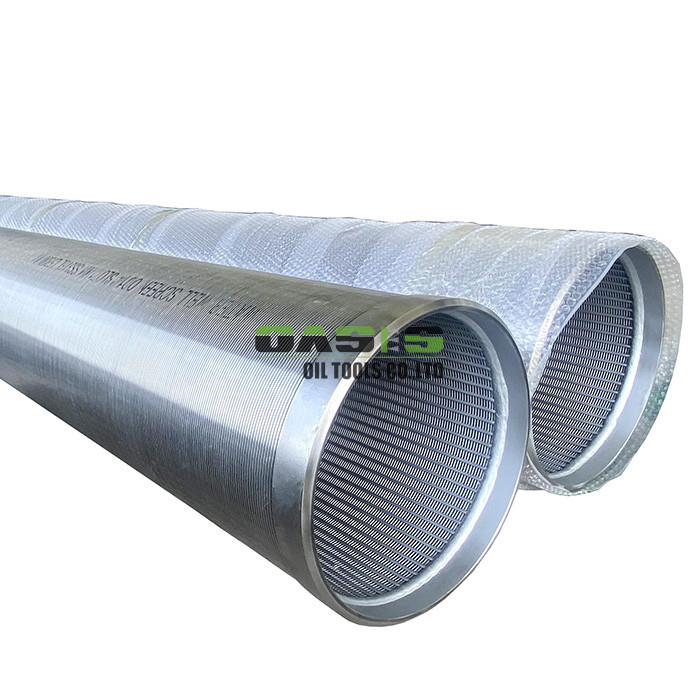

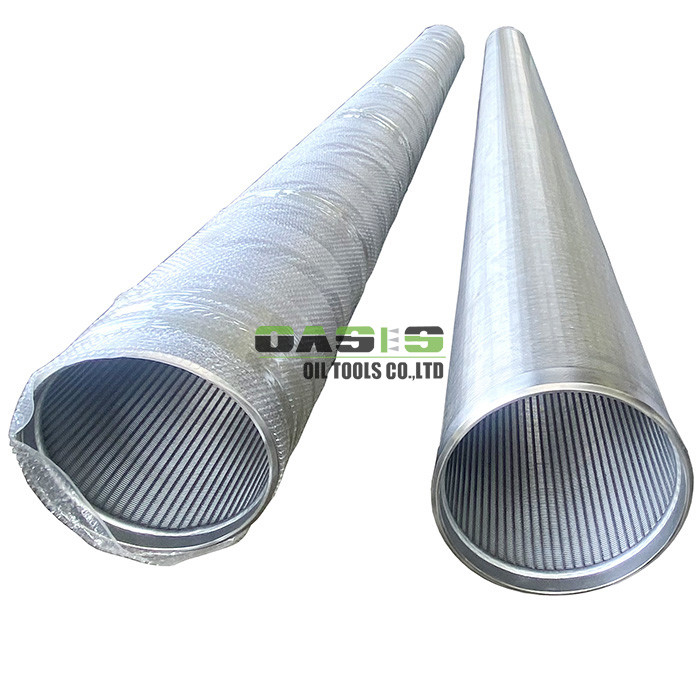

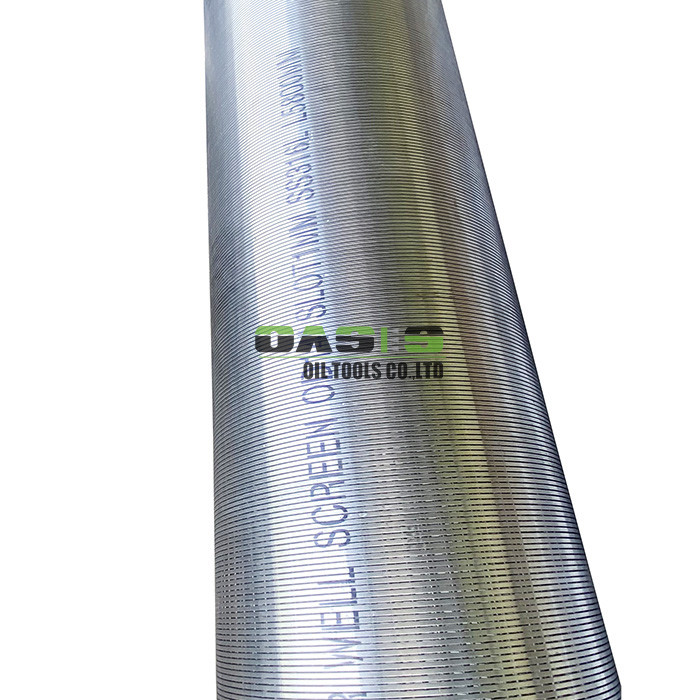

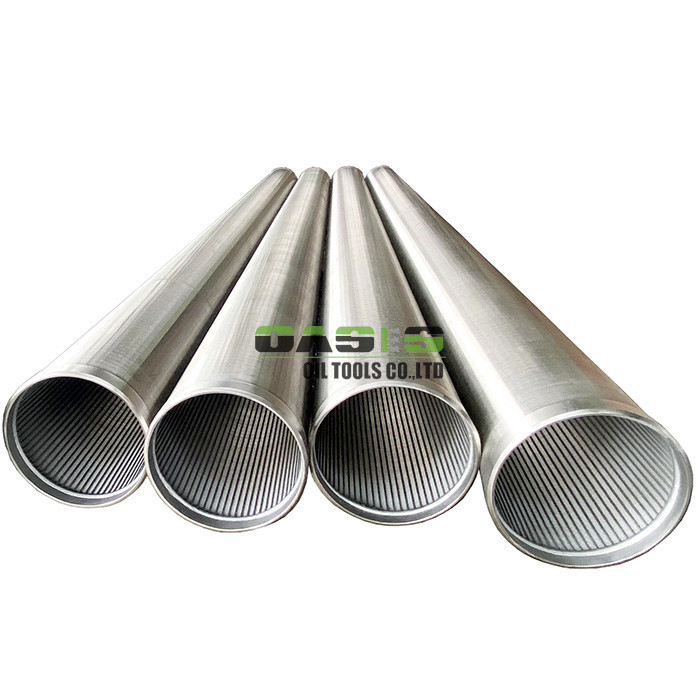

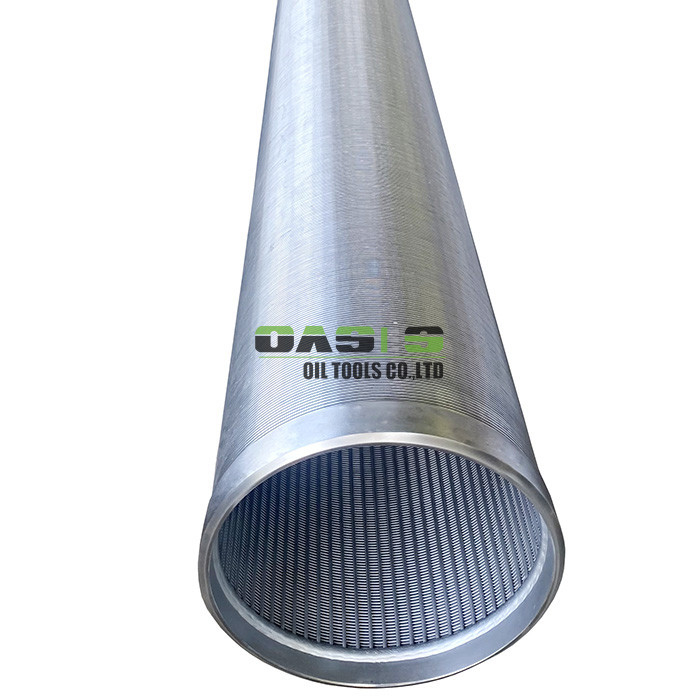

Wire Wrapped Screen

Product Description

Wire-wrapped screens offer another alternative for retaining the gravel in an annular ring between the screen and the formation. Wire-wrapped screens have substantially more inflow area than a slotted liner. The screen consists of an outer jacket that is fabricated on special wrapping machines that resemble a lathe. The shaped wire is simultaneously wrapped and welded to longitudinal rods to form a single helical slot with any desired width. The jacket is subsequently placed over and welded at each end to a supporting pipe base (containing drilled holes) to provide structural support. Screen tolerances are typically plus 0.001 and minus 0.002 in.; hence, a specified 0.006-in. slot could vary in slot width from 0.004 to 0.007 in.Because these designs have been used for more than 40 years in worldwide oilfield operations, a great deal is known about the performance of wire-wrapped screens. The typical pipe-base screen fabrication consists of a grade 316L stainless steel jacket placed over a N-80 pipe base; however, other metals can be specified as required for site-specific applications. The inflow area of screens varies from about 6 to 12% (or higher), depending on the slot opening. Screens with the smallest slot openings are typically 6 gauge (0.006 in.). For large gravel, 10 to 20 mesh, screen slot openings are about 18 gauge (0.018 in.).A version of the wire-wrapped screen is the rod-based screen that consists of the jacket only; however, rod-based screens may have additional heavier rods and a heavier wire wrap than the jackets used on pipe-base screens to provide additional strength. Rod-based screens are commonly used in shallow water-well completions that typically range from a few hundred to maybe a 1,000 ft in depth. Hence, they do not require the strength that is gained by installing the screen jacket over a pipe base. Screen diameters range from 1.5 to 7 in. in diameter (or larger). This is the diameter of the pipe base. The actual screen diameter is slightly larger (i.e., the actual OD of a 3.5-in. screen is about 4 in.).

The continuous-slot well screen is widely used throughout the world for water, oil, and gas wells, and is the dominant screen type used in the water well industry. Saigao Continuous-Slot Well Screen is made by winding cold-rolled wire, approximately triangular in cross section, around a circular array of the longitudinal rods. The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights. Slot opening for continuous-slot screens are manufactured by spacing successive turns of the outer wire to produce the desired slot size. All slots should be clean and free of burrs and cuttings.Each slot opening between adjacent wires is V-shaped, from the special shape of wire used to form the screen surface. The V-shaped openings designed to be nonclogging, are narrowest at the outer face and widen inwardly.

Features of Wire Wrapped Screen Pipe:

1. Production process continuity: V-shaped profile wires creating slots which enlarge inwardly and therefore avoid clogging and minimize downtime.

2. Low maintenance costs: Separation at the screen surface which can easily cleaned by scraping or back washing.

3. Maximum process output: Precise and continuous slot openings resulting in accurate separation without loss off media.

4. Low operational costs: Large open area with an effective flow, high yield and a low pressure drop (dP)

5. Long live: Welded at each intersection creating a strong and durable screen.

6. Reduced installation costs: supporting constructions eliminating costly support media and enabling a maximum flexibility in the design of components.

7. Chemical and thermal resistant: A variety of corrosion resistant stainless steel materials and many exotic alloys suitable for high temperatures and pressures.Each slot opening between adjacent wires is V-shaped, resulting from the special shape of the wire used to form the screen surface. The V-shaped opeings, designed to be nonclogging, are narrowest at the outer face and widen inwardly.Continuous-slot screens provide more intake area per unit area of screen surface than any other type. For any given slot size, this type of screen has maximum open area.

Applications of Wire Wrapped Screen Pipe:

The wire-wound screen is a perforated water filter. It can be used together with deep well pump and submersible pump, and can also be used for water treatment equipment, environmental protection, seawater conversion to industrial water and domestic water desalination treatment, tap water treatment, water softening treatment, petrochemical industry, terminal filtration of petroleum products. And filtration of chemical acid, alkali liquid, and organic solution such as alcohol.

OASIS is a quality manufacturer in China that can offer you a wide variety of API prime wire wrapped screen for oil production activities onshore and offshore. We offer a range of well screening solutions to help you maximize production from unconsolidated formations while enhancing wellbore stability. We have experience in developing, manufacturing and deploying a wide range of screening technologies including wire-mesh screens, slip-on wire jackets, wrap-on-pipe screens, and screen inflow control technology that fits your needs and budget.

Specifications

More Details

Related Products

Advanced technology, Strict inspection process:

Oasis Oil Tools co.,ltd has 20 years experience in Water Filter Mesh Screens/Water Well Sand Filters, we strive for technical innovations to improve quality of products.Our products not only have the features of trustworthy quality, safety and energy save but also beautiful appearance and low maintanemance.

Small profits but quick turnover:

Our Production will offer you a relatively and reasonable lower price, which means our customer can get more profite with a cheap price.

Premium and comprehensive sale system:

With a comprehensive sale system including before sales service, in-sale service and after sale service, we have won a good reputation at home and abroad. Also it is a important reason why so many customer to choose us.

Please contact with us for more details.

Our techinical team will give you the best choice.
