Stainless Steel Well Screen

Product Description


Wire-wrapped screens are a revolutionary technology that has transformed the oil and gas industry. They have proved to be highly efficient and effective in dealing with various challenges that arise during drilling operations. These screens are a testament to the innovative and advanced nature of the industry, continually developing new solutions to overcome obstacles. With increased open flow area, wire-wrapped screens have significantly improved productivity and efficiency in drilling operations. They allow for more efficient extraction of oil and gas, leading to increased profits and improved sustainability. The use of wire-wrapped screens also reduces the environmental impact of drilling operations. This technology has helped to make the oil and gas industry more efficient, effective, and environmentally friendly. Overall, wire-wrapped screens are an excellent example of the positive developments happening in the oil and gas industry. They are proof that the industry is committed to innovation and progress, with a focus on solutions that improve productivity and efficiency while also minimizing environmental impact. The oil and gas industry is thriving, and wire-wrapped screens are a significant contribution to its continued success.
Wire-wrapped screens are the perfect solution for those looking to improve their well filtration system. With these screens, you can easily filter out unwanted materials such as sand and gravel, ensuring that the water you receive is clean and pure. Not only do these screens provide unbeatable efficiency, but they are also known for their longevity, making them a cost-effective option in the long run. The best part about wire-wrapped screens is that they can be customized to suit your unique needs. Whether you require a specific size, shape, or material, these screens can be tailored to meet your requirements. This means that you can ensure that your well filtration system runs smoothly and efficiently, without compromising on quality or performance.

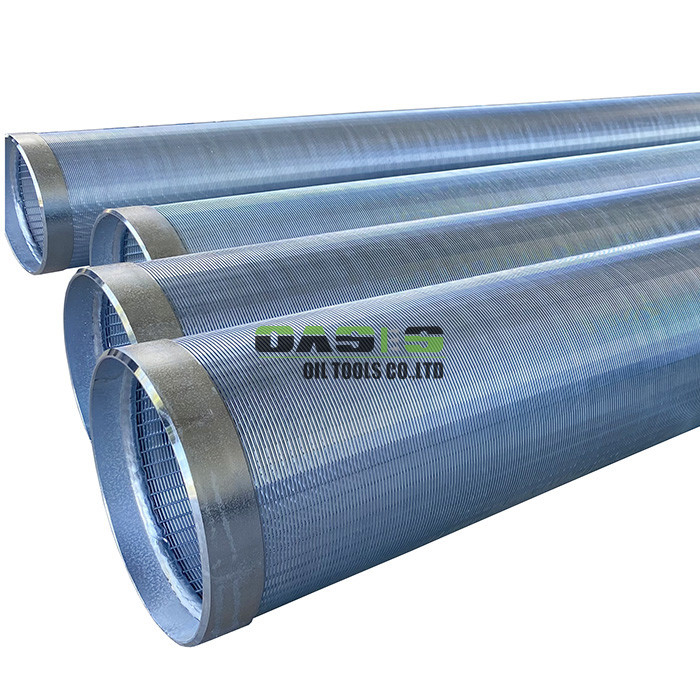

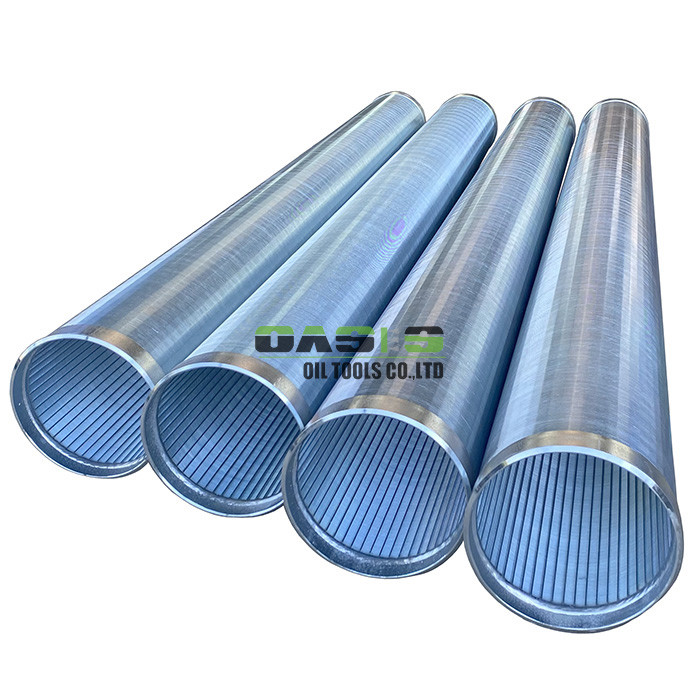

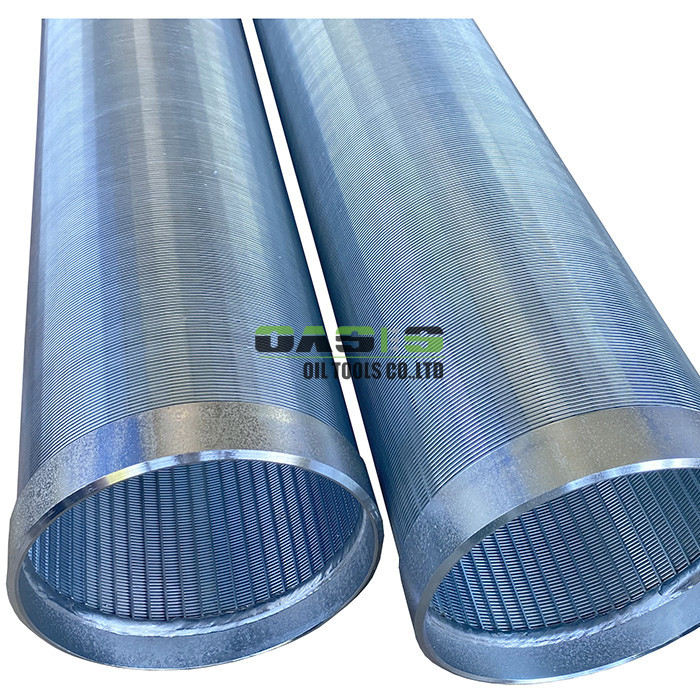

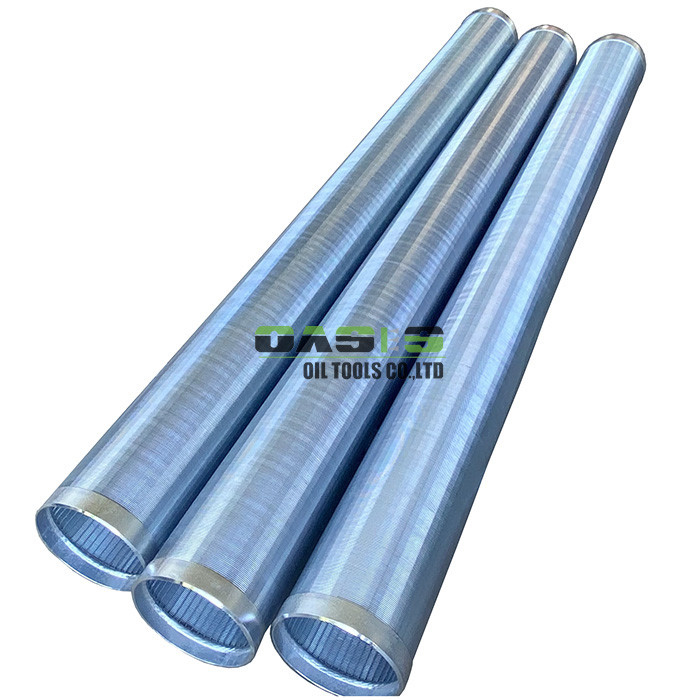

Customed-made johnson filter, which also called wire mesh/water well screen/wedge wire screen/ are welded by profile V-wire and support wires, which is also called Johnson screen and Johsnon filter. It has large filter area because of big opening,vee shape wire are easy for automatic back washing and avoid pipe blocking.The pressure will be reduced when water flows in for greater filter area,avoid the grains of sand flow in the Johnson filter in the high pressure conditions to extend the pipe's life .

Features
1. High Open Area
More than 25% of open area allows water to seep through the dewatering screen at a reduce speed, while allowing for a lower flow resistance. The enhances the water removal rate, resulting in a more efficient water removal process.
2. Non-clogging Performance
Continuous slots widen inwardly from the screen surface to minimize the chance of sand clogging the slot opening,
3. Excellent Pressure Resistance
The wedge wire screen is welded in a single from with no weld seams on the surface. Precise welding technology gives the screen its strength, making it ideal from high pressure applications
4. Great Sand Barrier
Precisely machined slots keep sand, silt and clay from entering the well, preventing abrasion.
5. Easy Installation
Compared to bridge slot screens or cement pipes, the wedge wire well screen in lightweight and easy to lay on the ground. It is also safe and convenient.

Material
The screen is available is galvanized, low-carbon steel, or stainless steel in grades 304 and 316, Premium materials do not retain sand and other impurities, ensuring a non-clogging performance.
Slot opening size: 0.1mm-15mm
Diameter (inches): 2, 3, 4, 5, 6, 8, 10, 12, 14, 16, 20, 29-1000mm
Length: 2.9m, 5.85m. The maximum length is 6.05m
Connection method: beveled, circumferential welded, threaded connect.

Custom well screens
Inform us of your specifications for the water well screen, including diameter, slot opening size, length and percentage of open area. Based on that information, we can customized your products.



Specifications

More Details

Packaging Details

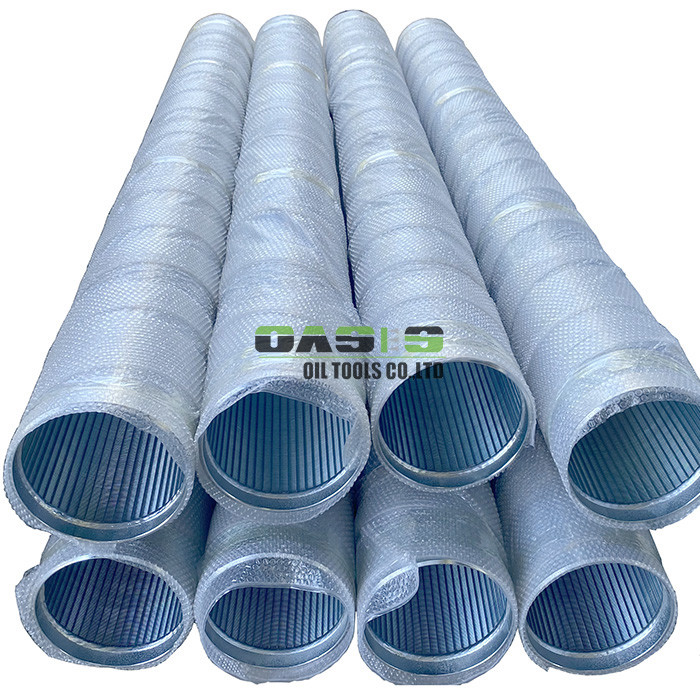

Single with bubble bags and then in wooden case.
Each case is clearly marked with:
Batch number
Date of manufacture
Safe heating & application temperature

Quality Control of OASIS

Related Products









Company Introduction





Oasis Oil Tools Co.,LTD, located in the industrial park of high-tech enterprises in Fengquan District, Xinxiang City, covers more than 20000 square meters with total RMB 15 million investment. Oasis now has more than 150 staff, among them 6 persons are senior engineer. Since founded, OASIS always adhere to the "development on innovation, development on efficiency and treat customers with honesty" business philosophy. After many years' efforts, now OASIS has developed into a famous manufacturer which integrates the research and development, design, manufacture and sell water well screens/johnson screens, oil well screens and sand control well screens, bridge slotted well screens, pipe based well screens, perforated pipe (base pipe), gravel pre-packed well screens, wedge wire screens, passive water intake screens etc. water, oil and gas well filtering products as well steel tubes and pipes and industrial parts.


Please contact with us for more details.
Our techinical team will give you the best choice.
