Place of Origin: | China |
---|---|
Brand Name: | OASIS |
Certification: | ISO |
Model Number: | water well screen OA-W219 |
Minimum Order Quantity: | 10 Meter/Meters |
Price: | Negotiation |
Packaging Details: | Wooden cases or pallet or bundle or container,or according to clients' requirements |
Delivery Time: | Within 35 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 6000 Meter/Meters per Month |
Type: | Welded Mesh | Wire: | As The Order |
---|---|---|---|
End Connetion: | Bevel Plaid End Rings | Support Rod: | 4.0mm |
Slot Number: | 100 | Outside Diameter: | 300mm |
Support Rod Size: | 3/8 Inch | Well Deep: | 50-600m |
Shape: | Round.square.Rectangle | Slot Mesh: | 12-400 |
Pressure: | Low/Medium/High | Oem: | Yes |
Continuous Slot: | 1.5mm | Inspection: | SGS, BV Or Buyer Representatives |

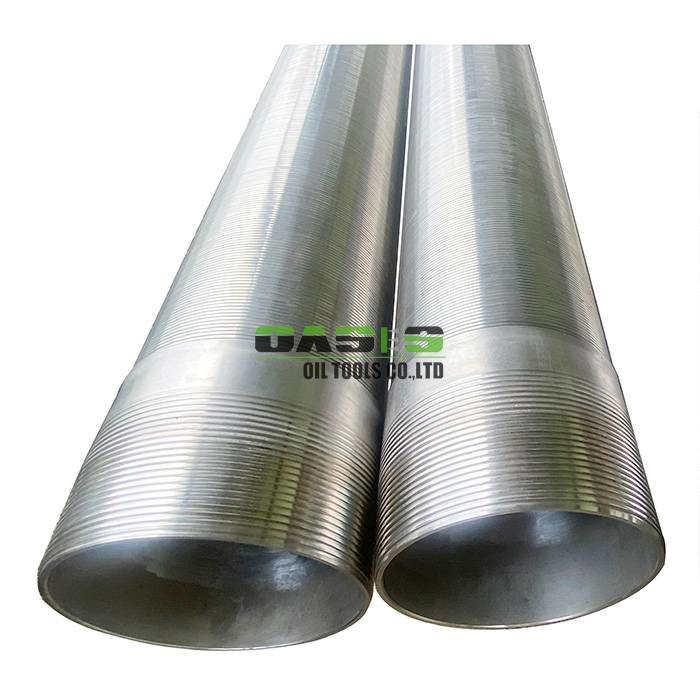

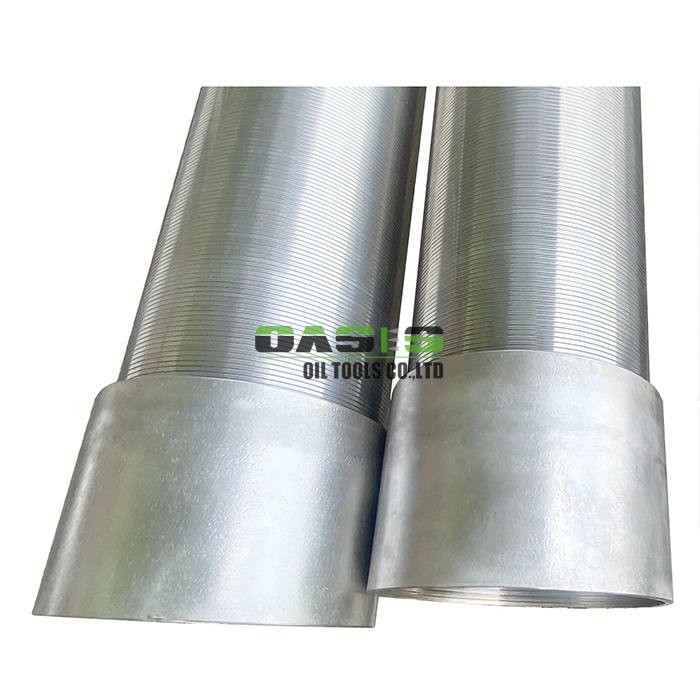

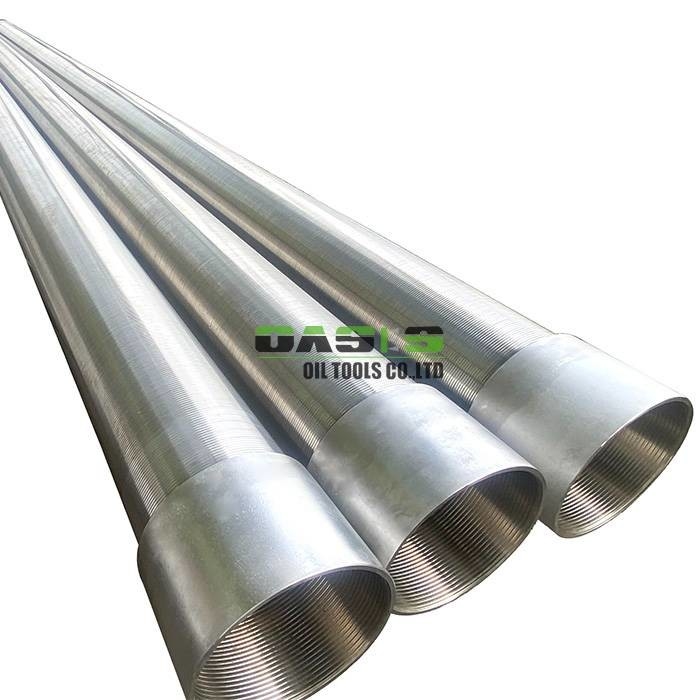

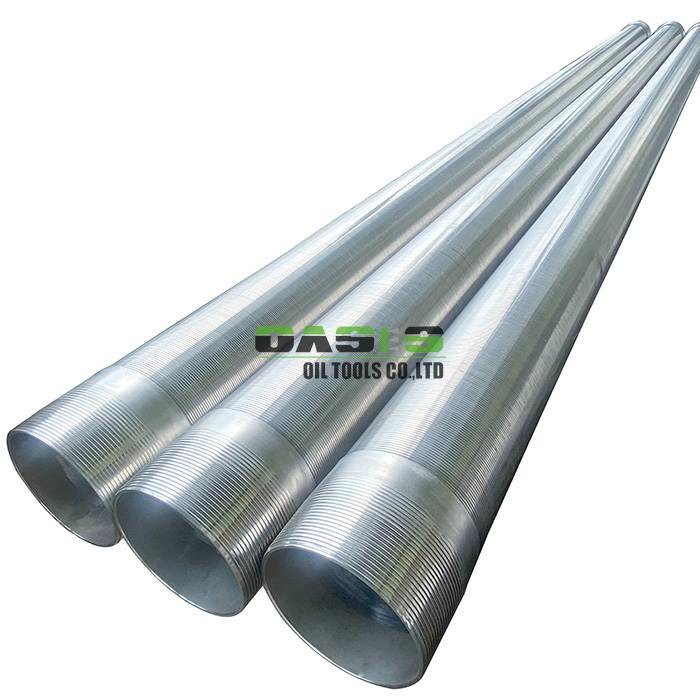

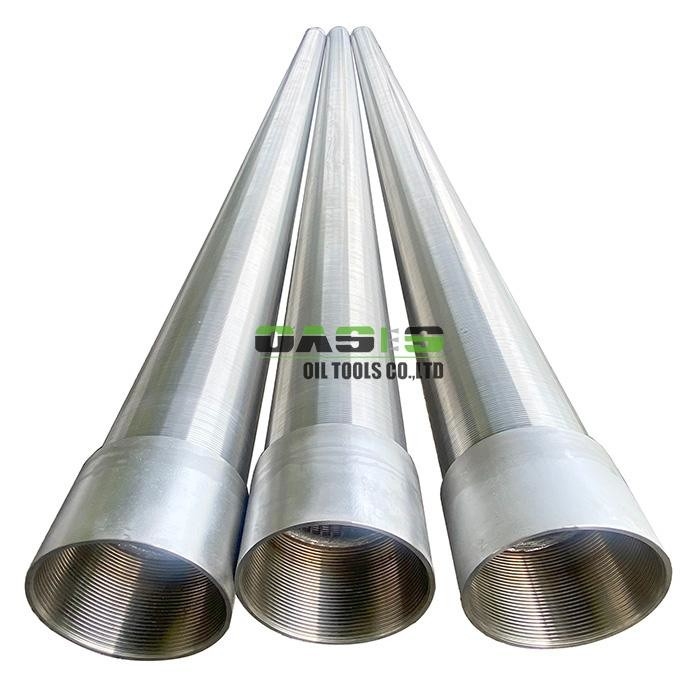

Wedge wire screen is a metal mesh element widely used in screening, filtration, dehydration and desliming operations for sieving and filtration. It has high strength, rigidity and load carrying capacity and can be made into a variety shapes of rigid screening filters.The wedge wire screen consists of surface profiles and support profiles. Surface profiles, usually v-shaped wires, are wrapped and welded onto support profiles. The distance between the surface profiles is controlled very accurately, as it forms the slot through which the filtrate flows. The direction of the flow is determined by the position of V-shaped wires (surface profiles) in relation to the support profiles. Wedge wires screens are either flow-out-to-in or flow-in-to-out.
Wedge wire screen cylinder filtering
When fluid or gas passes through the continuous slots created by the V-shaped wires, the larger particles are filtered out and separated from the desired material. This is because larger particles cannot pass through the narrow slot and become trapped on the screen surface.
Wedge wire screen with triangular cross section has a large filtration area and a high open porosity, which can effectively prevent clogging and damage. Wedge wire screens are composed of wedge wires and support profiles, which have a "V" shaped surface and a "groove" shaped interior, so they are also known as "V" shaped wire screen or groove wire screen. Wedge wire has a triangular cross-section, a large filtration area, and a high porosity, which can effectively prevent clogging and damage. Wedge wire screens feature high strength, high precision, excellent corrosion resistance performance, high temperature resistance performance, not easy to clog, etc. Therefore, it is widely used in the filtration and separation fields of water treatment, petrochemical, food processing, and other industries
Advantages
1.Its uniform filter slots and high precision ensure the effective retention of filter medium.
2.Wedge wire screen has a larger circulation area compared with other screens.
3.The tiny gaps between wedge wires form a smooth wedge-shaped cross section, which makes sure no dead ends, excellent resistance to block and easy to backwash (blow wash).
4.It has high mechanical strength and can withstand high pressure drop.
It is made of superior stainless steel wires (SUS304 and 316L) with strong corrosion resistance and high temperature resistance performances and can totally adapt to various harsh environment.
5.It adapts to different forms of fluid direction with high strength, large flow and high pressure resistance performance.
6.It maintains stable filtration accuracy and can be reused repeatedly and work reliably.
Features
• High mechanical strength
• Self-supporting structure
• High resistance to wear and tear
• Anti-clogging • Anti-shock
• High operating efficiency
• Larger effective circulation area
• Low operating and maintenance costs
• Easy to clean
OASIS adopts international advanced welding technology, which has considerable advantages in terms of surface smoothness, gap uniformity and product quality, thus ensuring our products perform better quality and higher efficiency in use!
Specification
● Material: stainless steel 304, 316, 316L, Hastelloy, Monel alloy, etc.
● Wedge wire shape: triangular, tapered, and prismatic
● Common specification of wedge wire: 1.00 mm × 2.00 mm
● Support profile shape: rectangular, tapered, and teardrop-shaped
● Common specifications of support profile: 2.00 mm × 3.00 mm
● Common specifications of support profile: Working profile Support profile Pitch Slot
Inspection of Stainless Steel Rod Based Continuous Slot Water Well Screen Pipe
1. All Dimensions of flat welded Johnson type screens/water well screens/wedge wire screens will be checked by our quality inspector, and they also can be inspected by Third Party Inspections or representative appointed by buyer.
2. Wall thickness of coupling material is inspected by Ultrasonic inspection method, and they also be made the Ultrasonic flaw detection
3. Do Destructive Collapse Test and collapse Strength Test before shipment.
4. If required, the screens will be made pickling and passivation.
5. The whole manufacturing process can be monitored by Third Party Inspection Company (BV, SGS, Intertek )and representative appointed by buyer.
6. The screens will be arranged the Pre-shipment Inspection if required.
Advanced technology, Strict inspection process:
Oasis Oil Tools co.,ltd has 20 years experience in Water Filter Mesh Screens/Water Well Sand Filters, we strive for technical innovations to improve quality of products.Our products not only have the features of trustworthy quality, safety and energy save but also beautiful appearance and low maintanemance.
Small profits but quick turnover:
Our Production will offer you a relatively and reasonable lower price, which means our customer can get more profite with a cheap price.
Premium and comprehensive sale system:
With a comprehensive sale system including before sales service, in-sale service and after sale service, we have won a good reputation at home and abroad. Also it is a important reason why so many customer to choose us.
Please contact with us for more details.
Our techinical team will give you the best choice.
