High-Performance Pipe Base Screen for Customizable Filtration in Specific Geological Conditions











Premium Pipe-Based Well Screens for Efficient Filtration

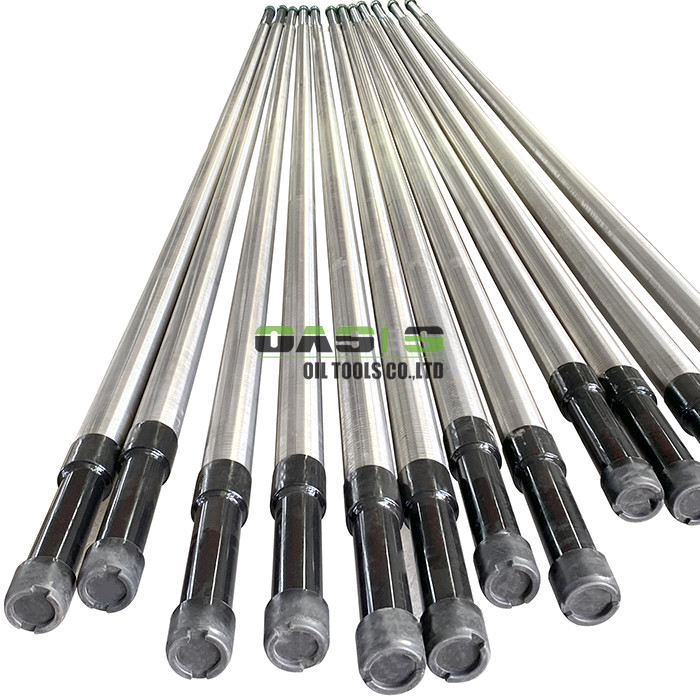

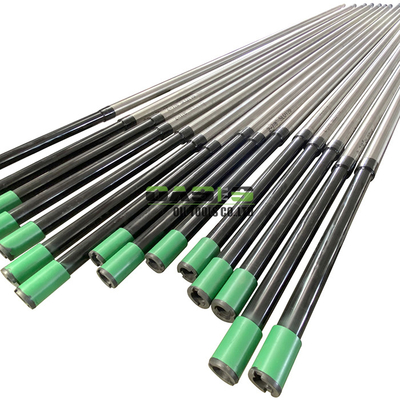

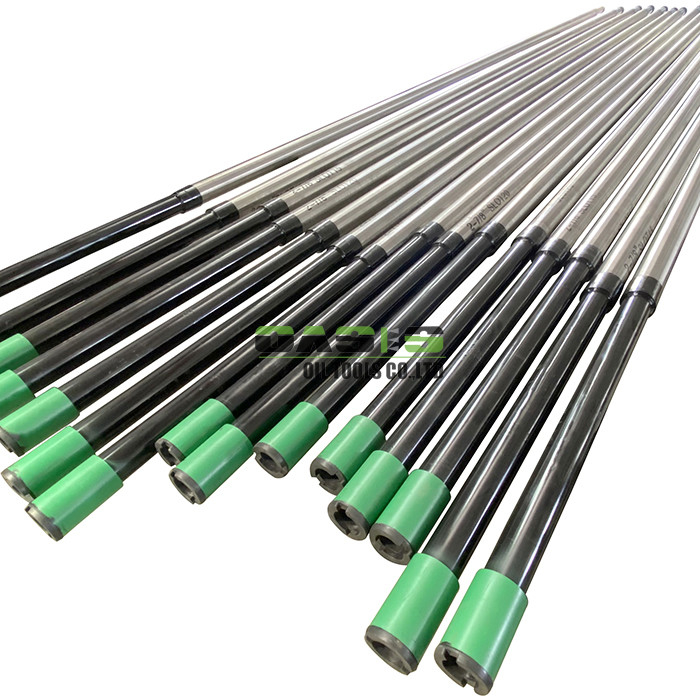

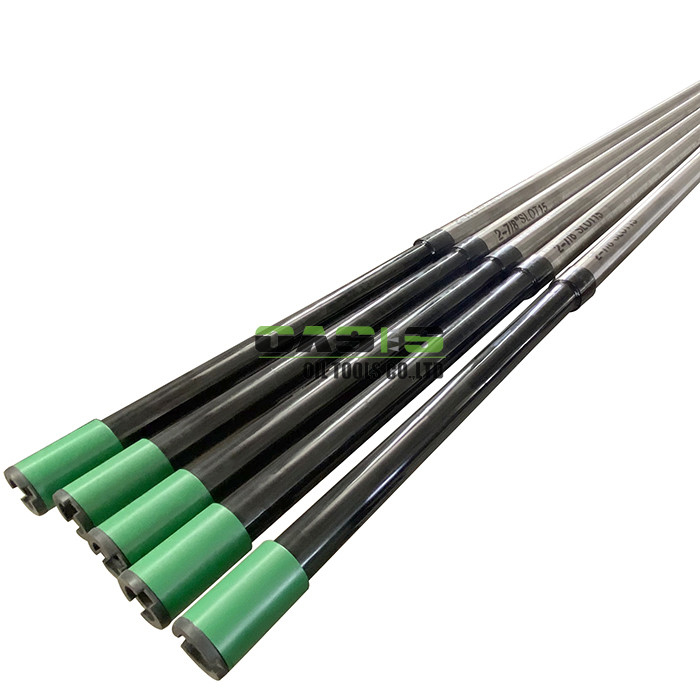

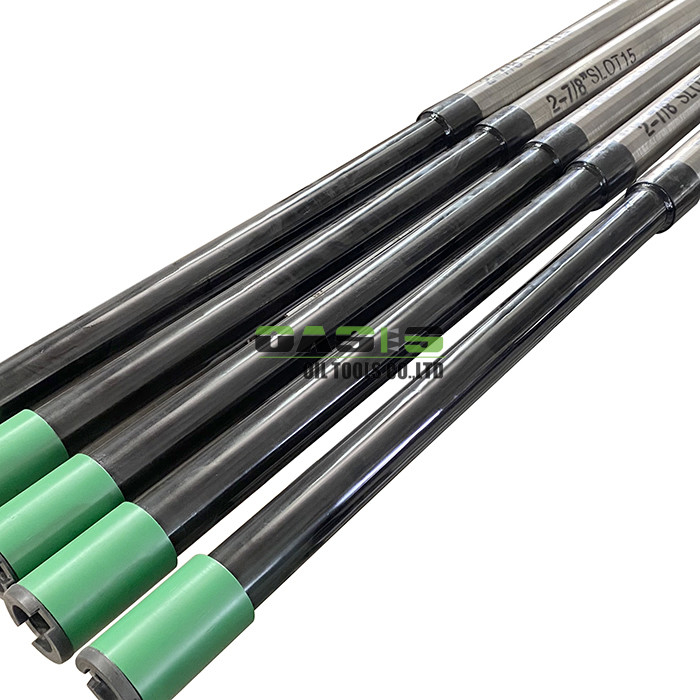

    Our high-quality well screens are constructed with a durable base pipe, precision-engineered all-welded wedge wire screen, and reinforced supporting rods. The base pipe is manufactured from robust API 5CT casing, available in both stainless steel and carbon steel, with perforated or slotted designs for optimal fluid flow.

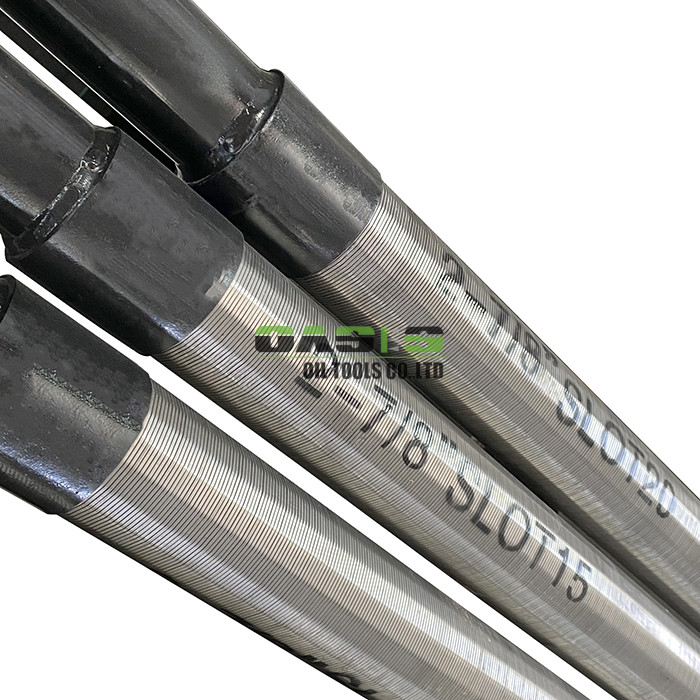

    The wedge wire screen features V-shaped profile wires securely fusion-welded to longitudinal support rods at every intersection, ensuring exceptional structural integrity and mechanical strength. The unique V-shaped wire design prevents clogging while maintaining smooth water passage. With a high open area ratio, these screens minimize inflow velocity, effectively reducing sand intrusion even under high-pressure conditions.



    Customizable slot sizes allow for precise filtration based on specific geological requirements, making these screens ideal for deep well drilling, water extraction, and sand control applications. The sturdy welded construction ensures long-lasting performance in demanding environments.



    Ideal for water wells, oil & gas applications, and industrial filtration systems, our pipe-based well screens deliver reliable performance and extended service life.

















Wedge Wire	Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod	Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30
Round	From 2.50mm to 6.0mm
Note	other specifications available as per request
Slot Size	0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request
Material	galvanized low carton (LCG), stainless steel (304,316 etc.)
Length	up to 6 meters.
Diameter	from 25mm to 1200mm.
End Connection	Plain beveled ends, flanged or threaded couplings
Application	water wells, mining & Mineral Processing, municipal water supply, refining & petrochemical, water treatment, architecture and construction, etc.

















- API 5CT casing base pipe (carbon steel or stainless steel)

- All-welded V-profile wire screen for superior strength

- Anti-clogging design with continuous slots for optimal flow

- Adjustable slot sizes tailored to formation conditions

- High open area reduces sand entry and improves efficiency











































Perforated Pipe









Gravel Packed Screen





Passive Intake Screens
