Premium AISI304L Stainless Steel Well Screen – High-Performance Filtration for Deep Wells











Premium AISI304L Stainless Steel Well Screen – High-Performance Filtration for Deep Wells









Product Overview

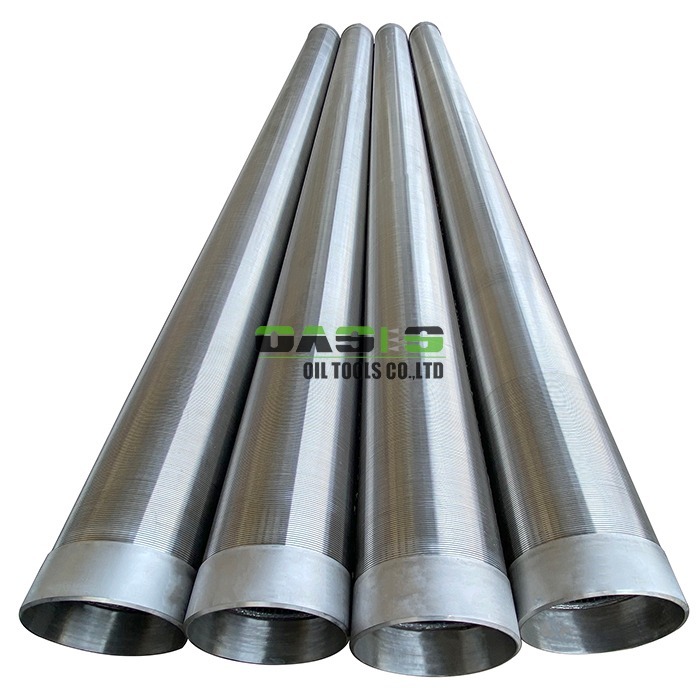

Oasis stainless steel screen pipe is engineered for superior durability and efficiency in water, oil & gas, and geothermal applications. Manufactured from AISI 304L (UNS S30403) stainless steel, it offers exceptional corrosion resistance and structural strength, making it ideal for 300-meter-deep wells and demanding environments.







Technical Specifications





Parameter	Specification
Material	AISI 304L (18% Cr, 8% Ni, Low Carbon)
Outer Diameter	355.6 mm (14")
Slot Width	1 mm (Customizable: 0.1–3 mm available
Wire Wrap	3.6 mm diameter × 7.49 mm pitch
Support Ribs	3.6 mm diameter × 7.49 mm pitch
Single Joint Length	5.8 meters (19 ft)
Max Well Depth	300+ meters (984+ ft)
Standards	ASTM A240, API 5CT, ISO 9001 Certified







Key Advantages





✔ Superior Corrosion Resistance – AISI304L ensures longevity in saline, acidic, and high-temperature environments.

✔ Optimized Flow Efficiency – Precision 1mm slots prevent sand ingress while maximizing water/oil flow.

✔ Heavy-Duty Construction – 64 ribs (5.5mm thick) provide collapse resistance under extreme pressures.

✔ Easy Deployment – Pre-fabricated 5.8m joints minimize on-site welding/connections.







Certifications & Compliance





- ASTM A240 – Standard specification for chromium-nickel stainless steel.

- API 5CT – Compliant with American Petroleum Institute casing/tubing standards.

- ISO 9001 – Quality management system certified for consistent manufacturing.

- NACE MR0175 – Resistant to sulfide stress cracking (optional for H₂S environments).







Applications





- Water Wells – Filters sand/sediment in municipal, agricultural, and industrial wells.

- Oil & Gas – Sand control screens for production wells and gravel pack systems.

- Geothermal Energy – Reliable performance in high-temperature brine applications.

- Environmental Wells – Groundwater monitoring and remediation.







Customization Options





- Slot Sizes: 0.1mm–3mm (laser-cut, wire-wrapped, or punched).

- Connections: Threaded, flanged, welded, or specialty couplings (e.g., VAM, Tenaris).

- Material Upgrades: 316L, duplex stainless steel (2205), or epoxy coating for aggressive environments.







More Details















Related Products







API Casing pipe



Prepacked screen











Why Partner With Us?



✅ 15+ Years of Expertise – Trusted global supplier for oilfield and water well screens.

✅ Third-Party Test Reports – Available upon request (e.g., material composition, hydrostatic tests).

✅ Fast Lead Times – Bulk orders shipped worldwide with full documentation.







Contact Us Today!

Request a quote, technical datasheet (PDF), or discuss project-specific requirements with our engineers.
