Slotted Pipe: Precision Engineered For Demanding Downhole Environments

Slotted Pipe: Precision Engineered For Demanding Downhole Environments
Slotted Pipe: Precision Engineered For Demanding Downhole Environments
Slotted Pipe: Precision Engineered For Demanding Downhole Environments Slotted Pipe: Precision Engineered For Demanding Downhole Environments Slotted Pipe: Precision Engineered For Demanding Downhole Environments Slotted Pipe: Precision Engineered For Demanding Downhole Environments Slotted Pipe: Precision Engineered For Demanding Downhole Environments Slotted Pipe: Precision Engineered For Demanding Downhole Environments Slotted Pipe: Precision Engineered For Demanding Downhole Environments Slotted Pipe: Precision Engineered For Demanding Downhole Environments Slotted Pipe: Precision Engineered For Demanding Downhole Environments Slotted Pipe: Precision Engineered For Demanding Downhole Environments Slotted Pipe: Precision Engineered For Demanding Downhole Environments Slotted Pipe: Precision Engineered For Demanding Downhole Environments Slotted Pipe: Precision Engineered For Demanding Downhole Environments
Basic Information
Place of Origin: CHINA
Brand Name: OASIS
Certification: ISO9001:2015 ISO14001:2015
Model Number: OASIS-2025-03-20
Minimum Order Quantity: 10 Meter/Meters
Price: Negotiation
Packaging Details: Wooden cases or pallet or bundle or container or according to clients' requirements
Delivery Time: Within 35 days
Payment Terms: L/C, T/T
Supply Ability: 6000 Meter/Meters per Month
Get Best Price Contact Now
Connection: STC，LTC, BTC Special Pipe: API Pipe
Pipe Wall Thickness: 6.0-15.3mm Surfacefinish: Polished / Galvanized / Painted
Shape: Round Wallthickness: Varies By Diameter And Material
Corrosionresistance: High (depending On Material) Perforationtype: Slotted



Product Description

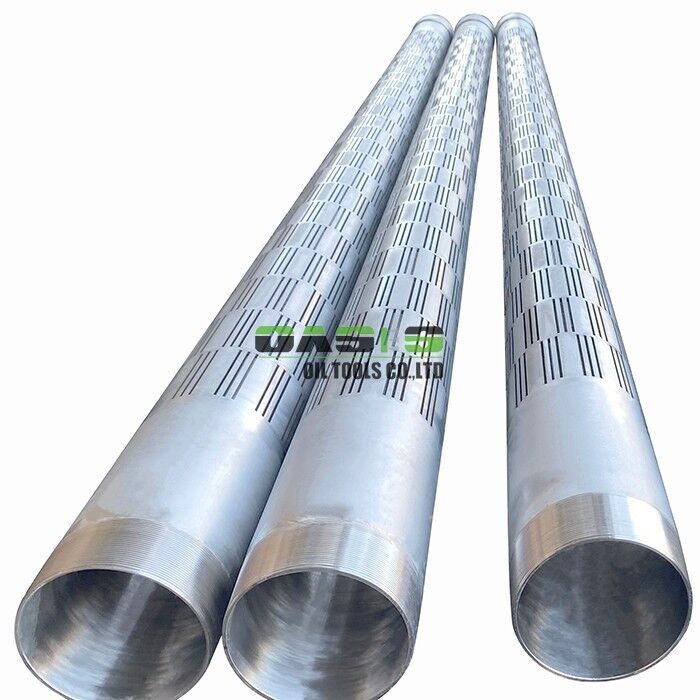

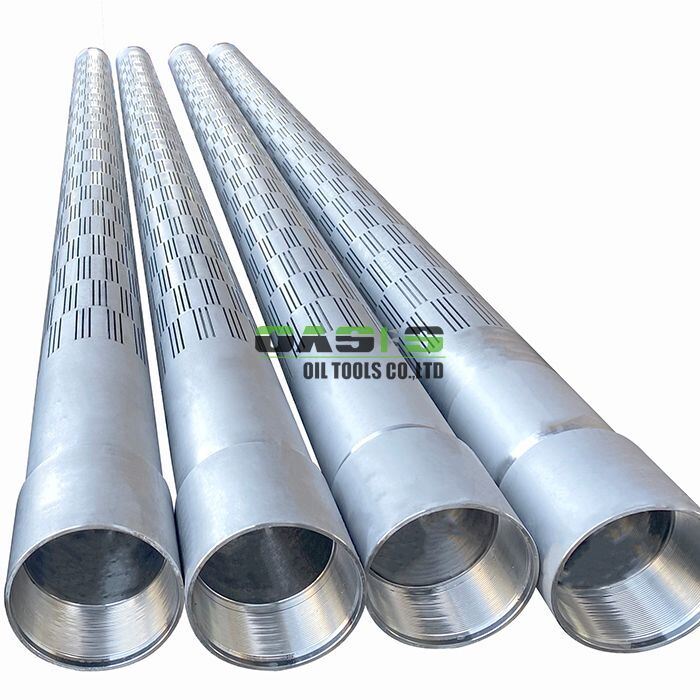

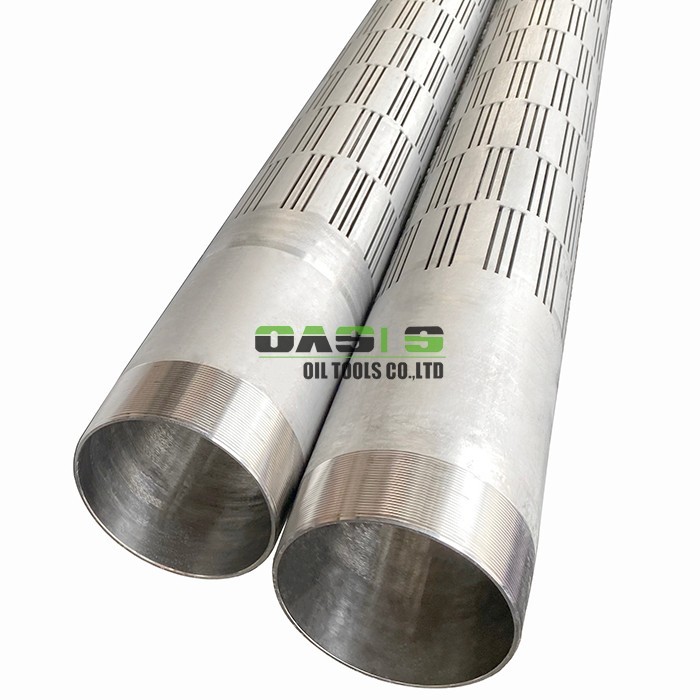

Slotted Pipe represents the pinnacle of industrial manufacturing, meticulously crafted through precision slotting on high-grade oil casing and steel pipes. Engineered to withstand the extreme conditions of downhole operations, it delivers an optimal balance of exceptional structural integrity and superior filtration performance, making it a vital component in modern drilling and production systems.







MATERIALS & SPECIFICATIONS



We offer a comprehensive selection of material grades to ensure compatibility and longevity in diverse operating environments:

  • Standard Casing Grades: J55, K55, N80, L80, P110.

  • Corrosion-Resistant Alloys: Stainless steel grades SS304, 304L, and 316L for superior performance in corrosive conditions.

Product Dimensions:

  • Outer Diameter: Extensive range from 0mm to 500mm.

  • Slot Width: Precision slots as narrow as 3mm, designed for effective sand control while maintaining optimal fluid flow.

  • Length: Fully customizable from 0 to 12 meters to meet specific well depth and completion requirements.









Nominal Size (Inch) Outer Diameter (mm)
2 7/8" 73.0
3 1/2" 88.9
4 1/2" 114.3
5" 127.0
5 1/2" 139.7
6 5/8" 168.3
7" 177.8
8 5/8" 219.1
9 5/8" 244.5
13 3/8" 339.7
16" 406.4









CONNECTION SOLUTIONS





To guarantee secure, leak-proof, and stable downhole assemblies, we provide a variety of industry-standard connection types renowned for their robust sealing and high load-bearing capacity:

  • Thread Types: EUE, NUE, BTC, STC, LTC.


  • These reliable connections are engineered to prevent structural failure and ensure system integrity under high pressure and in harsh downhole environments.

Slotted Pipe: Precision Engineered For Demanding Downhole Environments 0









APPLICATIONS & PERFORMANCE





OASIS Slotted Pipes are the trusted choice across a wide spectrum of well types and energy sectors:





  • Primary Applications: Shallow & Deep Water Wells, Oil Wells, Gas Wells, Geothermal Wells, Vertical Wells.

  • Core Functions: Delivers reliable sand control, precise filtration, and efficient fluid guidance.

  • Sector Versatility: Proven to enhance operational efficiency and safety in both conventional oil & gas extraction and renewable geothermal energy projects.





RELATED PRODUCTS





Slotted Pipe: Precision Engineered For Demanding Downhole Environments 1















WHY CHOOSE OASIS?


Choose OASIS for slotted pipes that combine precision engineering with proven reliability—where performance meets the pressure.





Slotted Pipe: Precision Engineered For Demanding Downhole Environments 2





Please contact with us for more details.

Our techinical team will give you the best choice.

Mail: oapipe@163.com

Whatsapp:+8613949678537
