AISI 304L Stainless Steel Wire Wrapped Screen Pipe | 325mm OD Welded Bevel End Johnson V-Wire Screen

For Water Well Drilling & Industrial Fluid Filtration



Detailed Product Description


We are a professional manufacturer of wire wrapped Johnson screen pipes with years of customized production experience, dedicated to delivering high-precision, long-lasting filtration solutions for global customers in water treatment, well drilling, industrial separation and related industries.

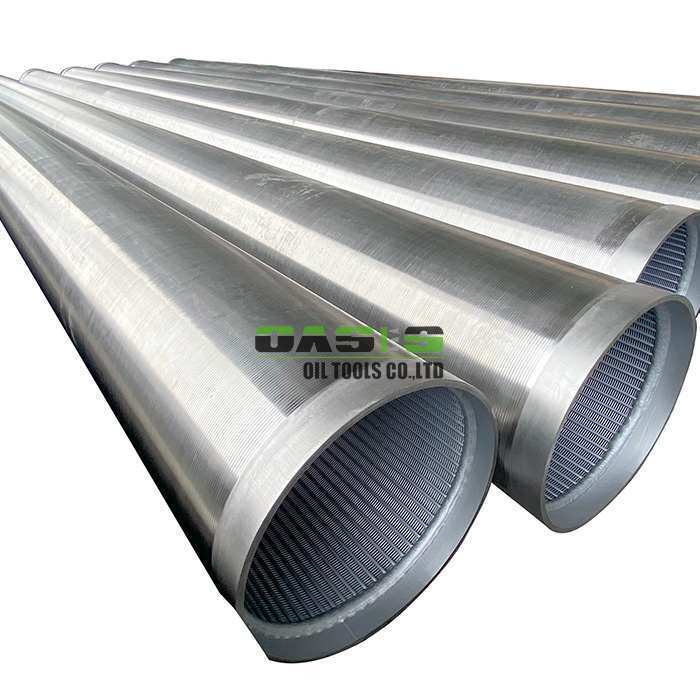

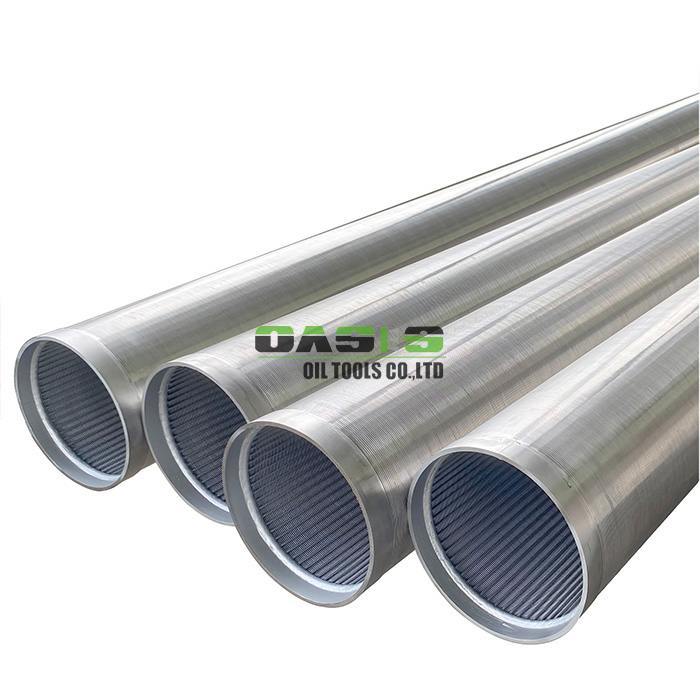

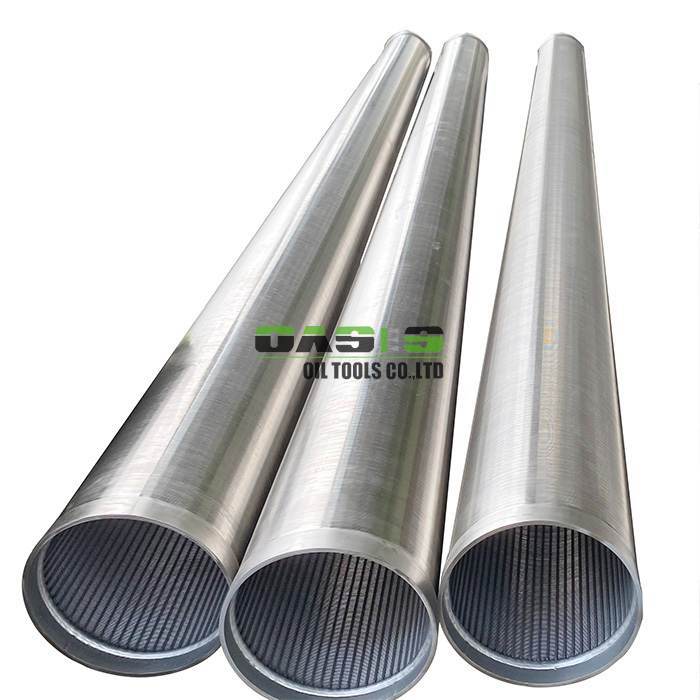

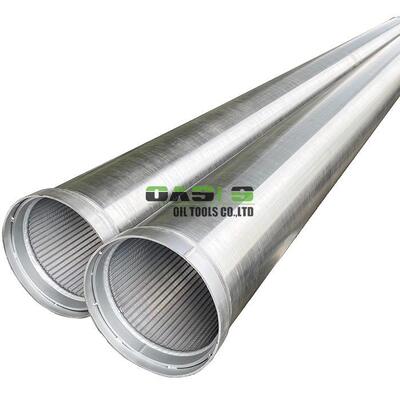

This 325mm outer diameter (OD) AISI 304L stainless steel wire wrapped screen pipe is a high-performance industrial filtration product with pre-machined welded bevel ends, specially engineered for large-flow, long-term stable operation scenarios. It adopts internationally advanced full-welded wedge wire (V-wire) manufacturing technology: the core filtration structure is formed by continuous spiral winding of trapezoidal stainless steel wire on longitudinal support rods, with every intersection of the wire and rods fully fused via high-frequency resistance welding, creating an integrated, high-strength, non-loosening screen body.

All products undergo strict pre-delivery inspection, including slot opening tolerance test, hydrostatic pressure test, weld strength verification, and material composition analysis, to ensure each product fully meets customer working condition requirements and international standards.
All products undergo strict pre-delivery inspection, including slot opening tolerance test, hydrostatic pressure test, weld strength verification, and material composition analysis, to ensure each product fully meets customer working condition requirements and international standards.

AISI 304L Stainless Steel Wire Wrapped Screen Pipe | 325mm OD Welded Bevel End Johnson V-Wire Screen 0





Technical Specification



Parameter Standard Specification Customizable Range
Product Name 325mm OD AISI 304L Welded Bevel End Wire Wrapped Johnson Screen Pipe -
Outer Diameter (OD) 325mm (12 Inch) 25mm - 1200mm
Core Base Material AISI 304L Low Carbon Austenitic Stainless Steel (ASTM A312 Compliant) 304, 316L, Duplex Steel, Hastelloy, Carbon Steel
Base Pipe Type Seamless Stainless Steel Pipe API 5CT Line Pipe, Welded Pipe, AWWA Standard Pipe
Base Pipe Wall Thickness 6mm (Default) 3mm - 20mm (Customized by Working Pressure)
Wedge Wire Dimension 3.0mm × 2.0mm (Trapezoidal Section, Default) 1.5mm×0.8mm ~ 5.0mm×3.0mm
Longitudinal Support Rods 3.0mm × 3.0mm (Default) 2.0mm×2.0mm ~ 8.0mm×5.0mm
Filtration Slot Opening 0.3mm (Default) 0.02mm - 5mm, Full Pipe Tolerance ≤±0.025mm
Maximum Open Flow Area Up to 32% (Subject to Slot Opening) Customized by Flow Rate Requirements
End Connection Standard V-Type Welded Bevel End (30°-35° Bevel Angle) Custom Bevel Angle, Flange, API STC/BTC Threaded Connection
Single Pipe Length 6m (Default) 0.5m - 12m
Execution Standard ASTM A312, AWWA C906, ISO 14692 API 5CT, Customer-Specified Standards










Outstanding Key Features


  1. Superior Corrosion Resistance of 304L Material

    Adopting AISI 304L low-carbon stainless steel, it delivers excellent intergranular corrosion resistance, especially outstanding anti-corrosion performance in the weld zone after on-site welding, with no post-weld heat treatment required. It effectively extends service life in water and weakly corrosive media, reducing replacement and maintenance costs for customers.

  2. Full-Welded High-Strength Integrated Structure

    All intersection points of wedge wire and longitudinal support rods are fully welded by high-frequency resistance welding, with no loose points or deformation. It has strong resistance to high pressure, impact and vibration, maintaining long-term stable operation under harsh working conditions.

  3. Unique V-Wire Self-Cleaning Anti-Clogging Design

    The trapezoidal wedge wire forms a continuous "outer narrow, inner wide" V-shaped filtration slot. Particles only form 2-point line contact with the slot edge, with no risk of embedding and jamming. It has excellent self-cleaning performance, is easy to backwash, and greatly reduces the frequency of shutdown cleaning and maintenance.

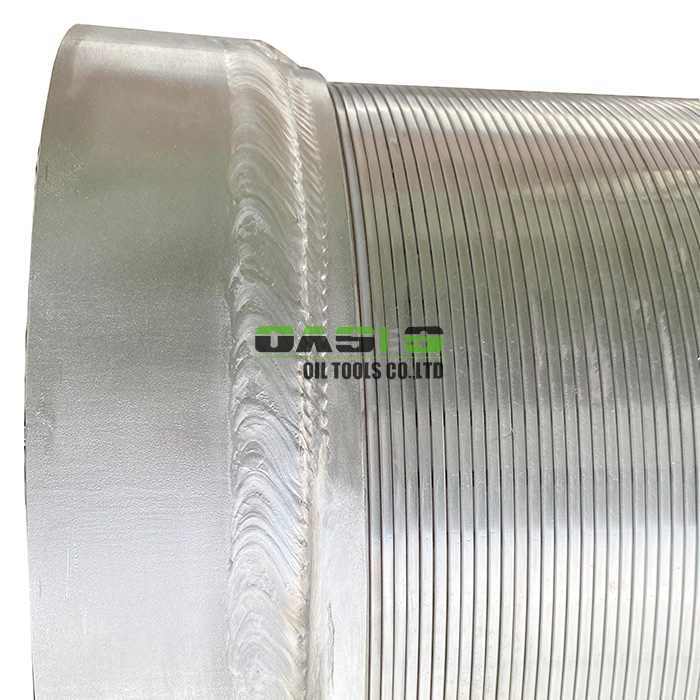

  4. Precision Machined Welded Bevel End

    Pre-machined standard industrial V-type bevel ends with precise bevel angle and smooth groove surface, enabling rapid full-penetration on-site welding. It forms a zero-leakage integrated rigid connection with the pipeline system, no additional connecting parts required, with low installation cost and extremely high structural stability.

  5. Ultra-High Filtration Precision & Flow Efficiency

    The filtration slot opening can be customized from 0.02mm to 5mm, with full-pipe slot tolerance controlled within ±0.025mm, achieving precise and stable interception to avoid sand running and material leakage. The maximum open flow area can reach 32%, 3-5 times higher than traditional slotted/perforated pipes, with low fluid resistance and large circulation capacity.

  6. Full Customization Support

    We can fully customize the base pipe wall thickness, slot opening, single pipe length, bevel standard, material and other parameters according to the customer's actual working conditions, design pressure and filtration requirements, providing a perfectly matched solution without secondary modification.







Wide Application Scenarios


This 325mm 304L welded bevel end wire wrapped screen pipe is widely used in the following fields:

  • Municipal water supply, deep well drilling and groundwater intake engineering
  • Geothermal well development, geothermal heating and reinjection well filtration systems
  • Sewage treatment, wastewater reclamation and industrial wastewater filtration
  • Seawater desalination pre-treatment and brackish water filtration
  • Industrial circulating water, cooling water and process water filtration systems
  • Agricultural irrigation, greenhouse water and fertilizer integrated filtration systems
  • Mine tailings treatment, coal washing plant dewatering and mineral classification equipment



AISI 304L Stainless Steel Wire Wrapped Screen Pipe | 325mm OD Welded Bevel End Johnson V-Wire Screen 1







FAQ


Q1: What is the corrosion resistance of the 325mm 304L wire wrapped screen pipe?

A1: Made of AISI 304L low-carbon stainless steel, it has excellent intergranular corrosion resistance, especially in weld areas. It works well in fresh water, weak acid-alkali media and needs no post-weld heat treatment.



Q2: Is the welded bevel end of the 325mm screen pipe easy to install?

A2: Yes. The bevel end is pre-machined to industrial standards (30°-35° angle), enabling quick full-penetration on-site welding, no extra fittings needed.



Q3: Can the filtration slot of the 304L 325mm Johnson screen be customized?

A3: Absolutely. The default slot is 0.3mm, and it can be customized from 0.02mm to 5mm to match your particle interception needs.



Q4: What scenarios is the 325mm 304L welded screen suitable for?

A4: It is widely used for deep well drilling, municipal water supply, wastewater treatment, geothermal wells and industrial fluid filtration.



Q5: What is the maximum open flow area of this 304L wire wrapped screen?

A5: The maximum open flow area can reach up to 32%, which is much higher than traditional slotted pipes, ensuring low fluid resistance and high efficiency.
