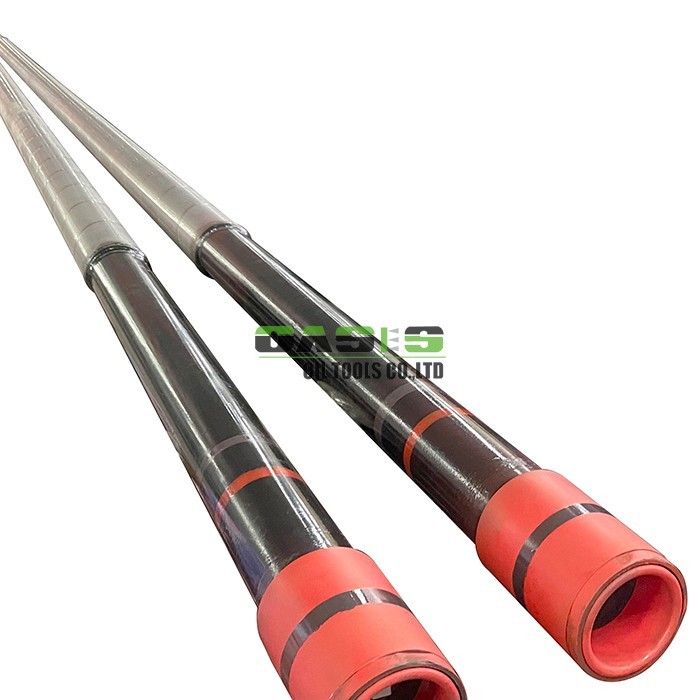

High Strength Stainless Steel Well Screen Designed with Graded Filtration Medium for Capturing Fine Formation Particles

Product Description

Metal Mesh Sand Screens are engineered with a robust composite structure that integrates multiple layers of high-precision metal mesh onto a high-strength base pipe. This design creates a graded filtration medium capable of delivering reliable downhole sand control in the most demanding well environments.

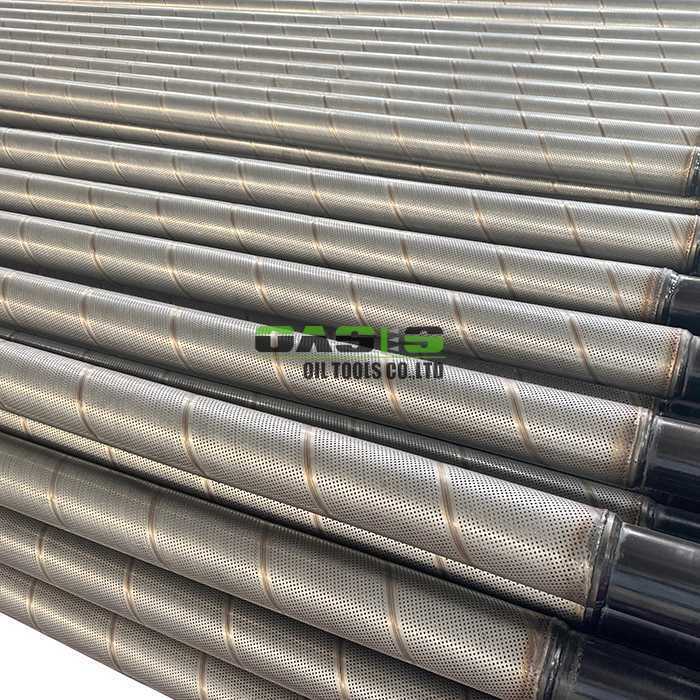

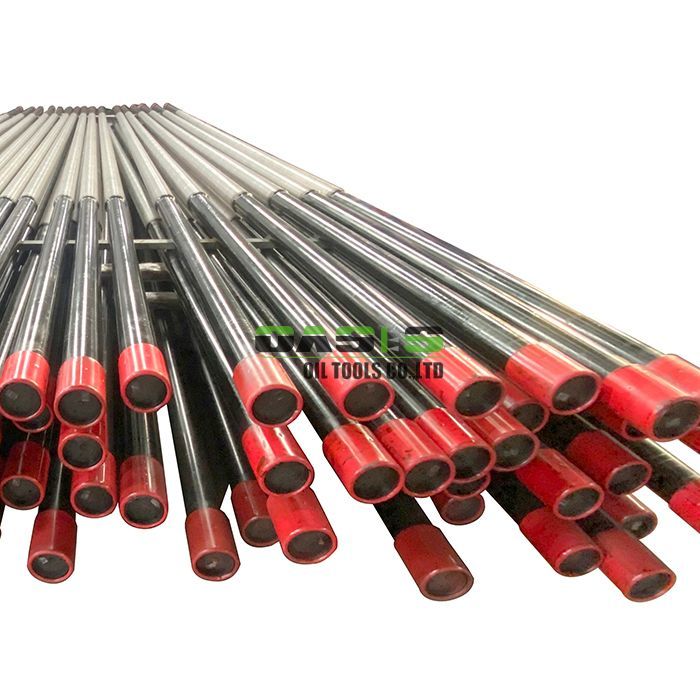

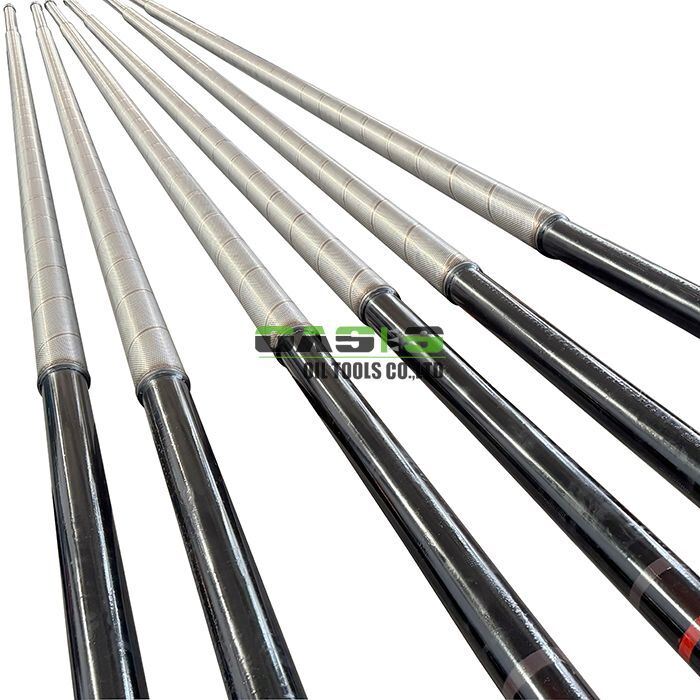

The filtration cartridge consists of diffusion-bonded metal mesh layers, including a protective outer shroud, a drainage layer, and a precision filter layer. This multi-layer configuration forms a true three-dimensional pore network that captures fine and silt-sized formation particles while maintaining high hydrocarbon flow capacity. The sintered metal mesh construction provides exceptional filtration accuracy and superior sand retention, effectively arresting sand migration at the wellbore face. Manufactured from premium corrosion-resistant alloys such as 316L stainless steel, the mesh and base pipe ensure long-term durability against erosion, high temperatures, and aggressive well fluids. The base pipe is produced to API specifications and can be equipped with a variety of premium connections, making the Metal Mesh Sand Screen a versatile solution for complex sand control completions.

Application

Metal Mesh Sand Screens are designed for sand control completions in unconsolidated and complex formations where fine and silt-size particle migration poses a significant production risk. They are widely applied in:

• High-angle, horizontal, and multilateral oil and gas production wells

• Water injection and disposal wells requiring stringent sand retention

• Offshore deepwater, high-temperature, high-pressure (HTHP) and heavy oil thermal recovery wells

• Standalone screen completions, gravel-pack assemblies, and intelligent well systems

Their robust design and high precision make them a preferred choice for operators seeking long-term wellbore stability and maximized productivity.

Technical Specifications

Custom sizes, filtration ratings down to 60 µm, higher alloy materials (e.g., Inconel), and any premium connection can be supplied upon request.

Selling Points

• High Filtration Accuracy & Superior Sand Retention – Precision-graded, multi-layer mesh effectively captures fine and silt-sized sand, ensuring clean production and protecting downhole equipment.

• Robust Mechanical Strength – The diffusion-bonded mesh integrated with a solid base pipe delivers high collapse and tensile strength, suitable for deep and extended-reach wells.

• Excellent Erosion & Corrosion Resistance – Premium alloy construction (316L, Incoloy, etc.) withstands high-velocity flow, H₂S/CO₂ environments, and elevated temperatures for extended service life.

• Large Inflow Area & Anti-Plugging Design – The three-dimensional pore structure provides a large open flow area, uniform flow distribution, and enhanced resistance to plugging by irregular particles.

• Fully Customizable Solutions – Screen dimensions, filtration ratings, materials, and premium connections are tailored precisely to your well conditions and completion strategy.

• Proven Performance in Complex Wells – Demonstrated reliability in standalone screens and gravel-pack completions for challenging HTHP, offshore, and thermal recovery applications.

Service

We provide full-lifecycle support to ensure the optimal performance of your Metal Mesh Sand Screens:

• Application Engineering & Screen Sizing – Our specialists analyze formation sand samples and well data to recommend the ideal screen design, filtration rating, and material selection.

• Installation & Running Support – Remote technical supervision during make-up and running procedures to ensure flawless installation.

• After-Sales Service – Rapid troubleshooting, failure analysis, and fast-track replacement supply to minimize non-productive time.

• Global Logistics – Strategically located manufacturing and service hubs ensure reliable delivery and responsive local technical support.

FAQ

Q1: What is a Metal Mesh Sand Screen and how does it work?
A: A Metal Mesh Sand Screen is a downhole filtration device consisting of multiple layers of diffusion-bonded metal mesh wrapped around a perforated base pipe. The graded pore structure allows oil and gas to flow through while trapping formation sand particles larger than the engineered filtration threshold, preventing sand production and protecting wellbore integrity.

Q2: How do I select the correct filtration rating for my well?
A: Filtration rating selection is based on a detailed particle size distribution (PSD) analysis of your formation sand. Our engineering team performs this analysis and recommends a rating (e.g., 150 µm, 200 µm) that optimally balances sand retention with maximum productivity, typically targeting retention of the largest 10–30% of formation sand grains.

Q3: What advantages do Metal Mesh Sand Screens have over conventional wire-wrapped screens?
A: Metal Mesh Sand Screens provide significantly higher open flow area, superior plugging resistance, and enhanced fine-sand retention thanks to their three-dimensional multi-layer pore structure. Unlike wire-wrapped screens, they maintain consistent filtration precision under formation stress and resist plugging by irregularly shaped particles, leading to longer-term performance.

Q4: Can these screens be used in high-temperature or highly corrosive wells?
A: Absolutely. By selecting appropriate alloys for the mesh, base pipe, and connections (such as 316L, I or higher grades), Metal Mesh Sand Screens can reliably operate in H₂S, CO₂, and high-chloride environments with temperatures exceeding 400°F (204°C). Full material certification and corrosion resistance data are provided with each order.

Q5: What happens if the screen becomes plugged; can it be cleaned or repaired?
A: While downhole repair is generally not feasible, partial plugging caused by drilling fluids or scale can often be remedied through acidizing or solvent treatments. During workover operations, recovered screens may be cleaned using high-pressure water jetting or ultrasonic techniques. Our technical team evaluates the plugging mechanism and recommends the most effective remediation approach for your well.
