Product Description

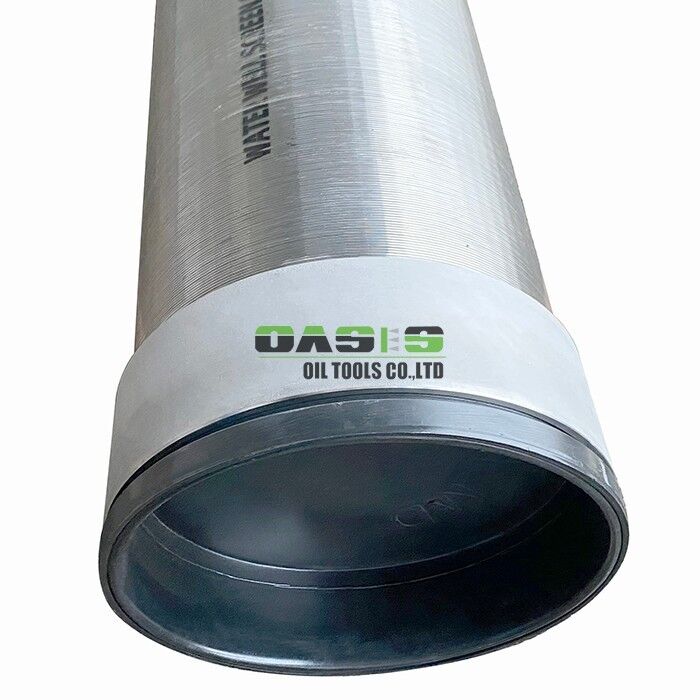

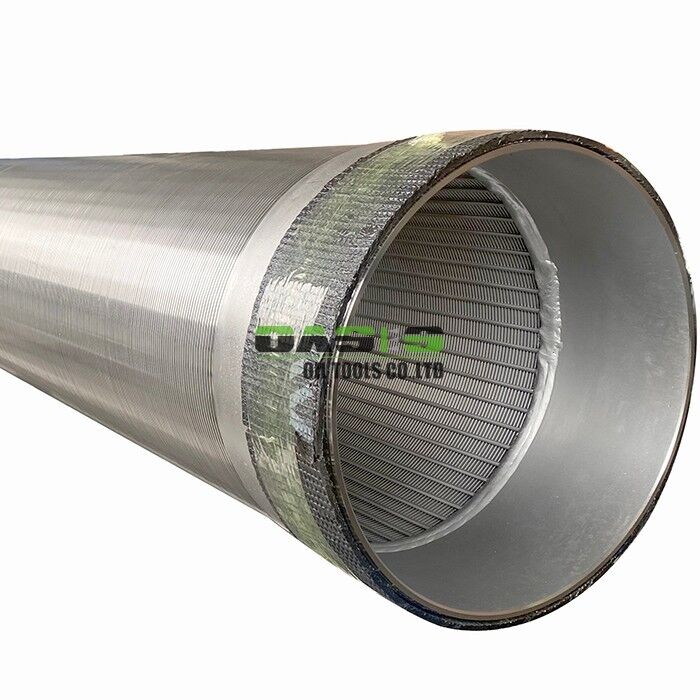

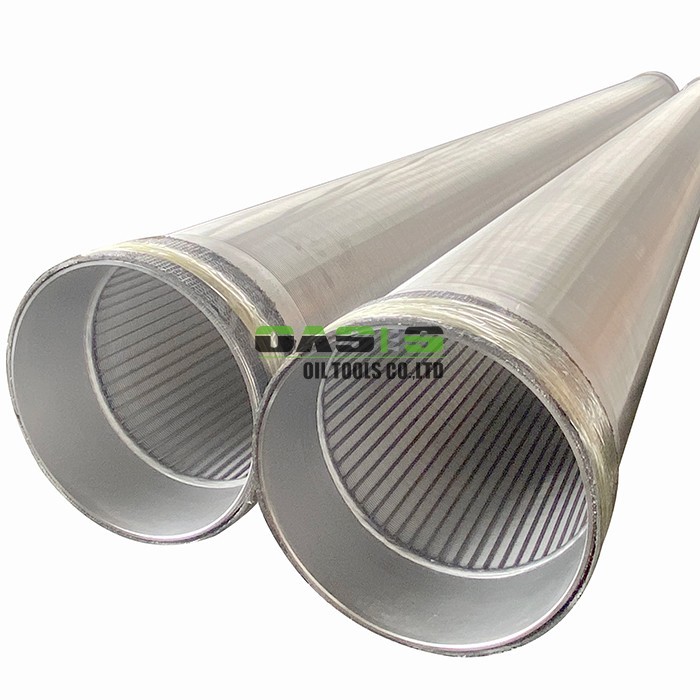

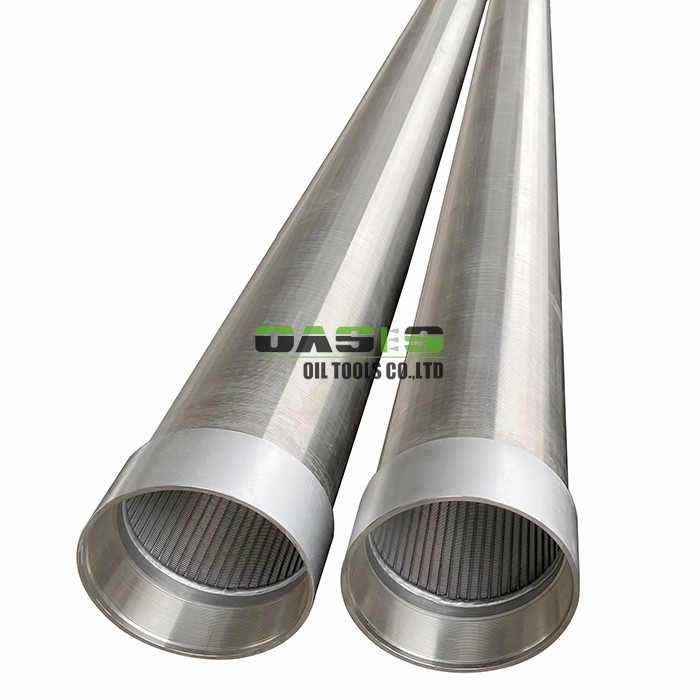

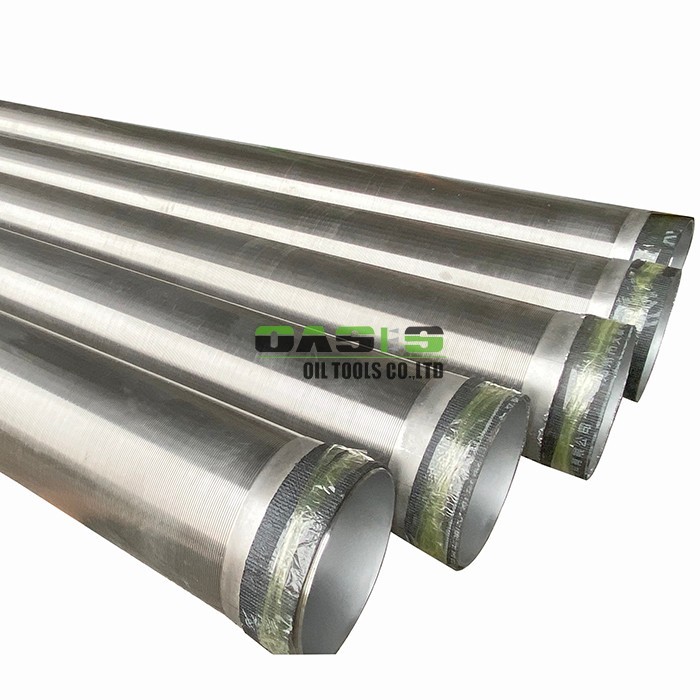

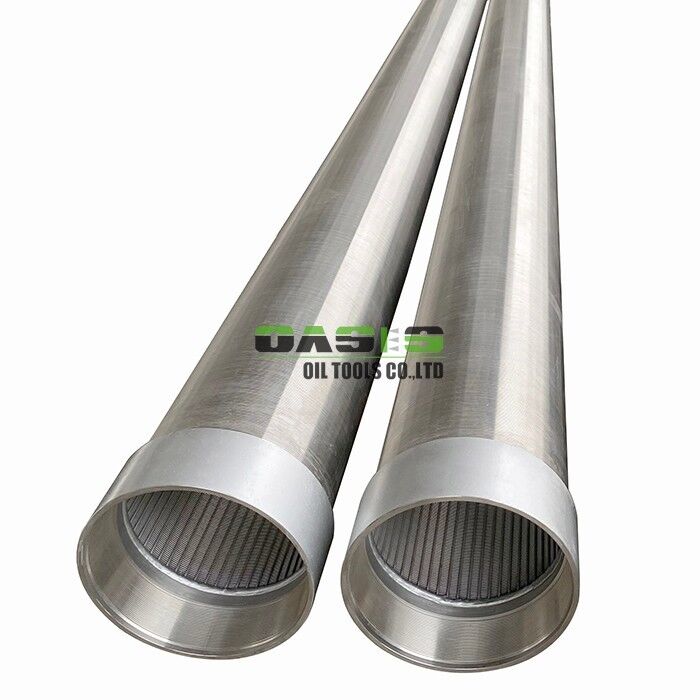

OASIS Stainless Steel Wedge Wire Water Well Screen, also widely known as Johnson screen, continuous slot screen, wire wound screen, or V-wire screen, is a premium filtration solution engineered for superior sand control and maximum water intake efficiency in water well applications.

The screen is manufactured by precision winding a V-shaped (wedge) profile wire around an internal array of longitudinal support rods. Each intersecting point is fusion welded using advanced all-weld technology, creating a robust, monolithic structure with exceptional mechanical strength and durability.

The distinctive V-shaped wedge wire design creates continuous slot openings that are narrower on the outside and progressively wider toward the interior. This unique geometry delivers several critical advantages:

• Non-clogging performance – The V-shaped opening allows particles to pass through without lodging, minimizing blockages and reducing maintenance downtime

• High open area – Continuous slot design provides up to 60% open area, ensuring maximum water flow with minimal pressure drop

• Superior sand control – The precise slot openings effectively retain sand and gravel while allowing water (or oil) to enter the well freely

• Extended service life – All-welded construction at every intersection ensures long-term durability and resistance to abrasion, corrosion, and impact damage

This screen is the dominant screen type used worldwide in the water well industry, as well as in oil and gas well sand control applications. It is suitable for shallow water wells, horizontal wells, and vertical wells, providing reliable performance across diverse geological conditions.

We offer fully customizable solutions – from diameter and slot size to material grade and end connections – tailored to meet your specific project requirements.

Specifications

Packing & Shipping

All our wedge wire screens are carefully packaged to ensure they arrive at your job site in perfect condition.

Packaging

• Each screen is individually wrapped with moisture-barrier protective film to prevent corrosion and contamination during transit

• End connections are protected with thread protectors (for threaded ends) to preserve thread integrity

• Clear labeling with product specifications, order number on each package

​

Shipping

• Container loading: 5.8m length is optimized to fit standard 20ft shipping containers

• Shipping methods: Sea freight, air freight, or land transport – flexible options to meet your project timeline

• Delivery time: Typically 25–35 days after order confirmation, depending on order quantity and customization requirements

• Supply capacity: 6,000+ meters per month

• Incoterms: FOB, CIF, CFR, EXW – flexible terms available

We work with experienced logistics partners to ensure safe, timely, and cost-effective delivery worldwide.

Inspection

Quality is our top priority. Every wedge wire screen undergoes rigorous inspection at multiple stages of production to ensure it meets your specifications and industry standards.

In-Process Inspection

• Raw material verification: Positive Material Identification (PMI) using portable XRF analyzer – wedge wire, support rods, and end rings are tested separately to verify material grade

• Dimensional checks: Continuous monitoring of slot size, wire dimensions, diameter, and length throughout the winding process

• Weld integrity: Visual and non-destructive inspection of all fusion-welded intersections

​

Third-Party Inspection

We welcome and facilitate third-party inspections by buyer-appointed representatives or accredited inspection agencies (e.g., SGS, BV, TÜV). Inspection can be arranged at any stage of production upon request.

Projects & Applications

Our wedge wire water well screens are trusted by clients worldwide across a diverse range of applications:

Water Well Applications

• Shallow water wells – Municipal water supply, agricultural irrigation, and residential wells

• Horizontal wells – Groundwater extraction, riverbank filtration, and environmental remediation

• Vertical wells – Deep groundwater extraction, industrial water supply, and dewatering operations

Oil & Gas Industry

• Sand control screens – Preventing sand and solids from entering production strings in oil and gas wells

• Horizontal and directional drilling – Essential for maintaining well integrity in complex wellbores

Industrial & Environmental

• Water treatment plants – Filtration and separation applications

• Chemical processing – Liquid-solid separation in corrosive environments

• Environmental remediation – Groundwater monitoring and extraction wells

Global Reach

Our products have been exported to markets including Egypt, Russia, Sudan, Tanzania, Tunisia, Morocco, UAE, Jordan, Indonesia, Philippines, Vietnam, Canada, Bolivia, and Ecuador. We have successfully supplied screens for municipal water projects, agricultural irrigation systems, oil field sand control completions, and industrial filtration facilities.

Custom Engineering Support

Every project is unique. We provide custom design and engineering support from project concept to completion. Our technical team works closely with you to select the optimal:

• Material grade for your specific groundwater chemistry

• Slot size based on formation sand analysis

• Diameter and length to match your well design

• End connections compatible with your casing string

​

FAQ

Q: What is a wedge wire screen / Johnson screen?
A: A wedge wire screen, also known as a Johnson screen, continuous slot screen, or wire wound screen, is a tubular filtration element made by winding V-shaped profile wire around longitudinal support rods. The V-wire creates continuous precision slots that allow water to enter while keeping sand and gravel out.

Q: What is the difference between 304, 316, and 316L stainless steel for well screens?
A: 304 is the standard grade for general water well applications. 316 offers better corrosion resistance due to molybdenum content, ideal for brackish or slightly corrosive water. 316L is the low-carbon version of 316, providing the highest corrosion resistance and excellent weldability – recommended for aggressive groundwater, marine environments, and long-term reliability.

Q: What slot size do I need for my water well?
A: Slot size selection depends on your formation sand grain size. The slot should be sized to retain approximately 40-50% of the formation sand (gravel pack design) or match the formation's D10 grain size (standalone screen). Our 0.5mm slot is a common choice for fine to medium sand formations. We offer custom slot sizes from 0.05mm to 10mm.

Q: Can I get custom end connections?
A: Yes. We offer plain ends (beveled for butt welding), threaded connections (STC, LTC, BTC), welding rings, and flanged ends. Custom end connections can also be fabricated to your specifications.

Q: What is the difference between a Johnson screen and a slotted pipe?
A: A Johnson screen (wedge wire screen) uses V-shaped wire wrapped around support rods to create continuous precision slots with high open area and non-clogging geometry. Slotted pipe has machined or punched slots with much lower open area and straight walls that are prone to clogging. Johnson screens provide superior hydraulic efficiency, longer service life, and better sand control.

Contact us today to discuss your specific requirements. We offer fast quotes, technical support, and competitive pricing for both standard and custom wedge wire water well screens.
