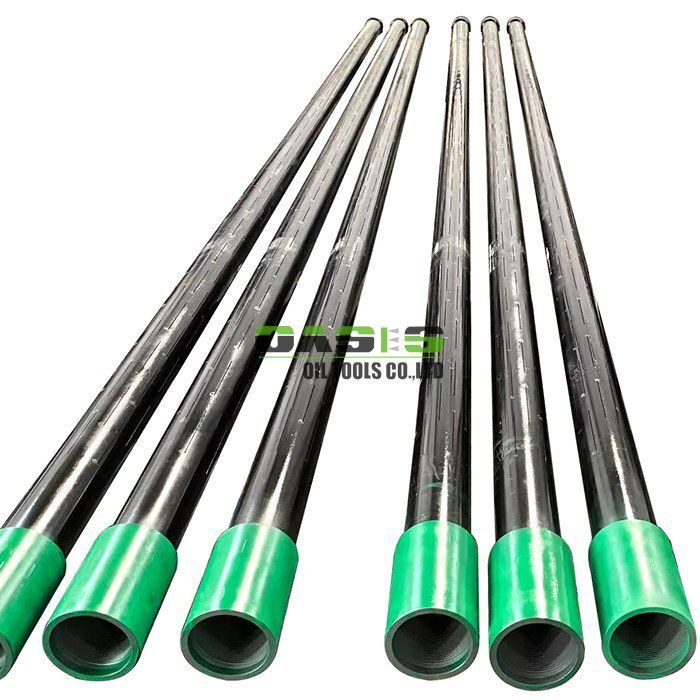

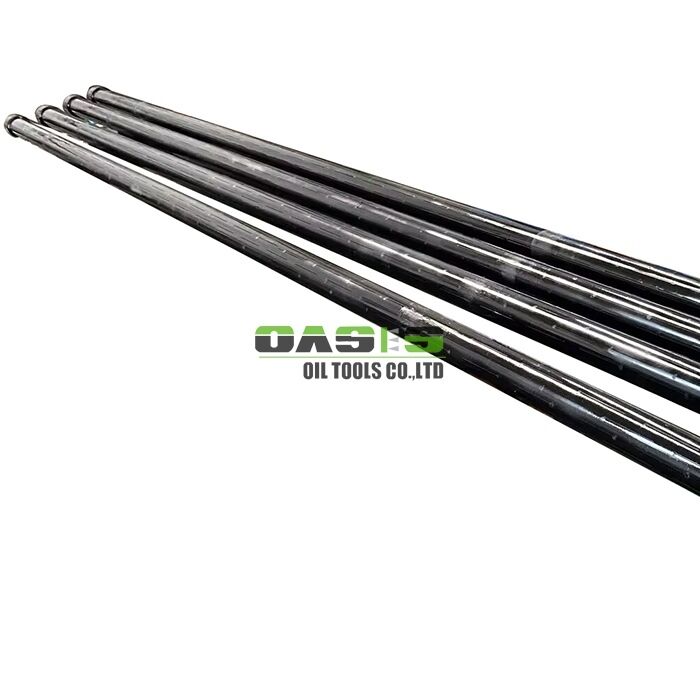

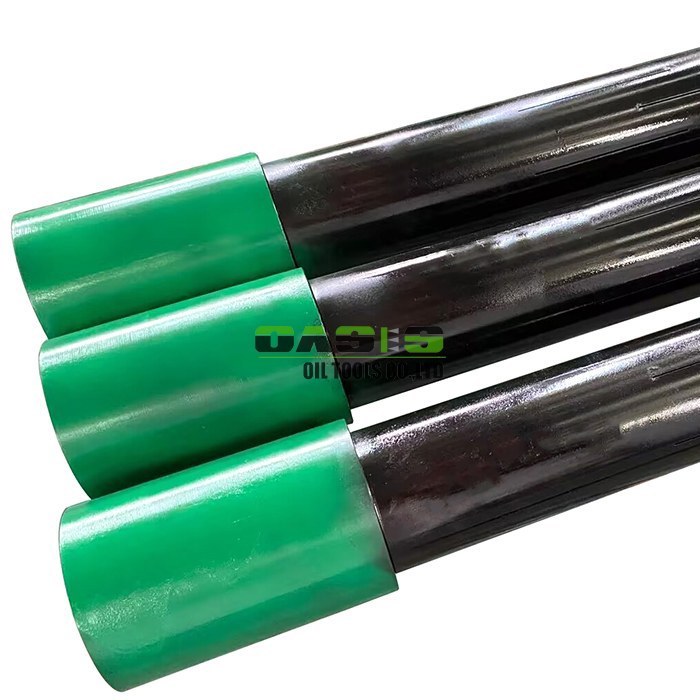

Precision cut Slotted Well Screen maintaining over eighty percent base pipe tensile strength ideal for sand control in complex well geometries

Product Description

Slotted Casing (also known as slotted liner or slotted pipe) is a robust, cost-effective sand control solution engineered from standard casing or tubing bodies. Manufactured by precision-cutting a series of longitudinal slots through the pipe wall, slotted casing serves as a mechanical barrier that allows formation fluids to flow freely while retaining sand and other solids. Unlike wire-wrapped screens, slotted casing maintains the inherent structural strength of the base pipe – making it the preferred choice for long horizontal completions, deviated wellbores, and high-temperature geothermal applications where mechanical integrity under thermally induced loading is critical.

Slotted Casing offers a simpler, more robust architecture with no delicate wire jacket to erode or deform, and its performance can be reliably predicted through formation particle size analysis. Whether you are completing a shallow water well, a deep oil producer, a gas well, or an enhanced geothermal system, slotted casing delivers the mechanical strength, flow efficiency, and sand retention you need.

Technical Highlights

Base Pipe Strength – Slotted casing is manufactured from standard casing bodies, retaining 80% or more of the base material's tensile strength after slotting. It has superior resistance to buckling and deformation in deviated and horizontal wells.

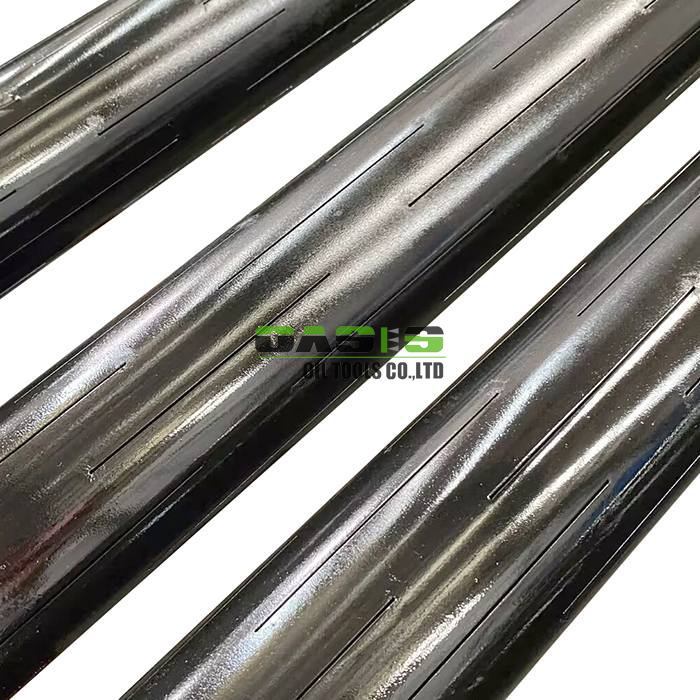

Precision Slot Geometry – Slots are cut with smooth, burr-free edges using advanced laser or plasma technology. Standard slot widths range from 0.2 mm to 4 mm, with cross-sectional shapes including rectangular and trapezoidal profiles. Slot arrangements can be parallel, staggered, or spiral to optimize flow distribution.

Optimized Open Area for Maximum Productivity – While open area typically ranges from 1% to 6% of the outer surface, theoretical studies indicate that even 3% open area can provide over 90% of the available open formation productivity. This makes slotted casing an exceptionally efficient filtration solution for wells with moderate to coarse sand production.

Resistance to Clogging and Erosion – Slotted casing's solid construction eliminates the risk of wire detachment or cage deformation. Its slot edges are vertical and evenly spaced, reducing the likelihood of sand bridging and enabling effective backwashing.

Material Versatility – Available in carbon steel grades J55, K55, N80, L80, and P110 for standard applications, as well as SS304, 304L, and 316L stainless steel for corrosive environments. The choice of material directly impacts slot stability: slots cut in standard carbon steel can rust and reconfigure over time, whereas stainless steel or coated options maintain slot integrity in aggressive formation fluids.

Specifications

Global Applications

Water Well Application – Slotted casing is widely deployed in municipal, agricultural, and industrial water wells for fine sand exclusion, protecting pumps and surface equipment while maintaining high inflow rates.

Oil and Gas Wells – Used as standalone liners or in gravel-pack completions, slotted casing effectively controls sand production in unconsolidated sandstone reservoirs. Its high mechanical strength makes it particularly suitable for deviated and horizontal well sections.

Geothermal Wells – Withstanding extreme thermally induced loading and corrosive brines, slotted casing maintains wellbore stability and prevents debris influx in enhanced geothermal systems. Stainless steel grades 316L and 304L are recommended for high-chloride environments.

Industrial Filtration – Beyond oilfield applications, slotted casing is used in mining dewatering, groundwater remediation, and brine extraction, where reliable solids separation is essential.
