Place of Origin: | CHINA |
---|---|
Brand Name: | OASIS |
Certification: | ISO9001:2015 ISO14001:2015 |
Minimum Order Quantity: | 10 Meter/Meters |
Price: | Negotiation |
Packaging Details: | Wooden cases or pallet or bundle or container or according to clients' requirements |
Delivery Time: | Within 35 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 6000 Meter/Meters per Month |
Thread Pitch: | 4 Threads Per Inch | Warranty: | 6 Months |
---|---|---|---|
Steel Grade: | K55 | Surface Treatment: | Galvanized |
Support Rod Size: | 3mm | Thread Size: | 4 1/2 Inches |
Grade Group: | API J55-API P110, Q195-Q345 | Alloy Or Not: | Non-alloy |
Temperature: | High | Item: | Slotted Well Screen |
Surface Finish: | Electropolished | Connection Type: | Threaded |

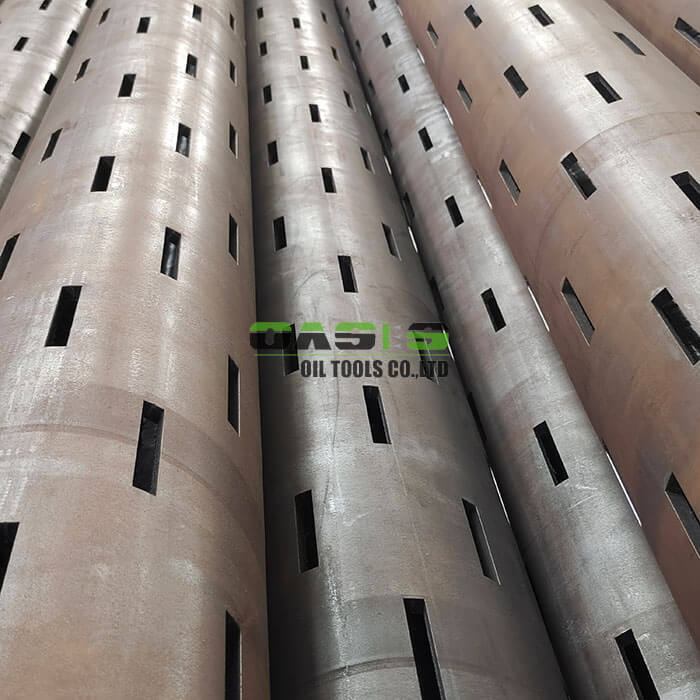

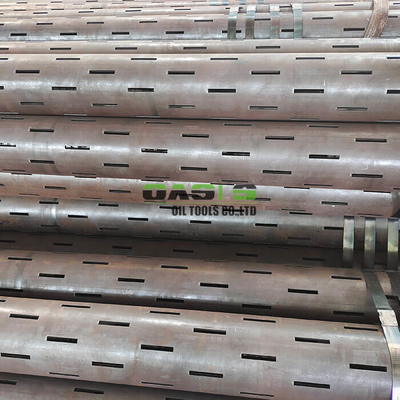

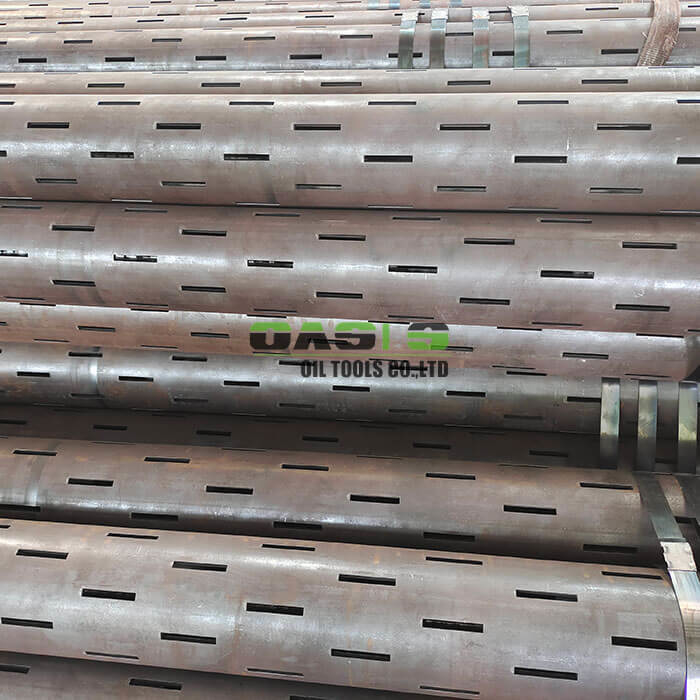

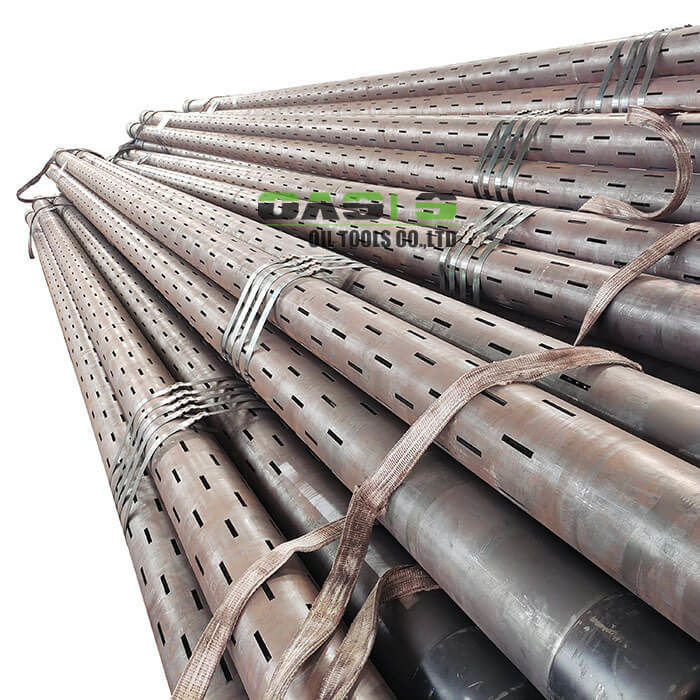

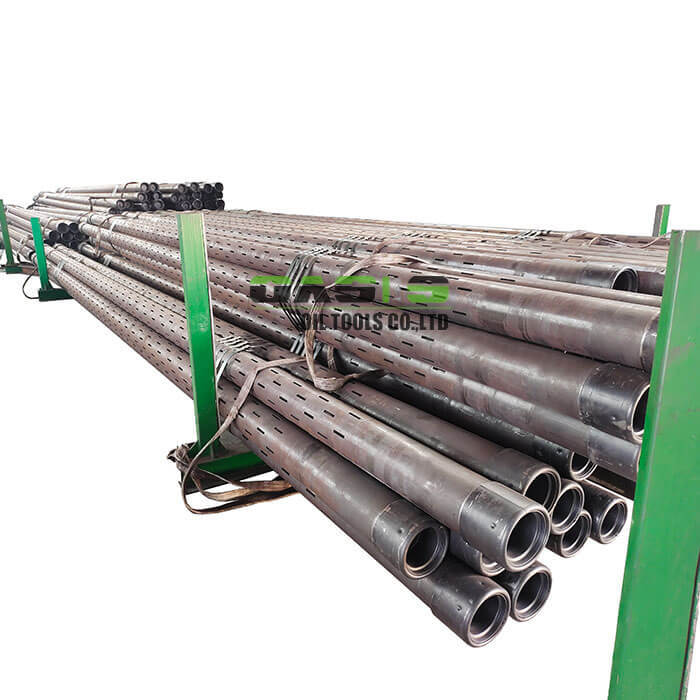

Carbon Steel Slotted Screen Pipe – Optimized for Oil Exploration
The carbon steel slotted screen pipe is a high-performance filtration solution designed for oil exploration, effectively blocking 99% of sand ingress while reducing heavy well repairs by 80%. Engineered to enhance well strength, integrity, and sand control stability, this durable pipe ensures long-term reliability in demanding environments.

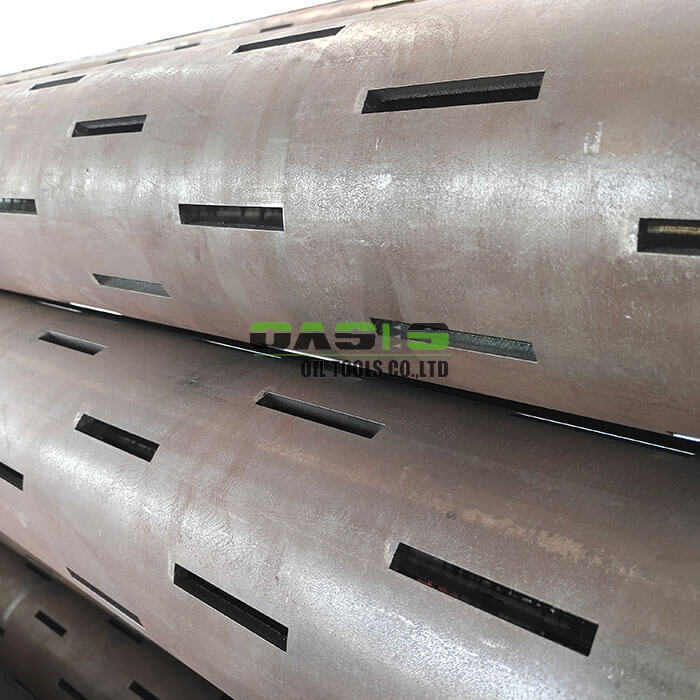

Precision laser-cut slots (0.1–0.5mm) deliver smooth, ultra-fine openings with exceptional accuracy, maintaining structural simplicity without compromising efficiency.
API Std. Casing | ID mm | Length m | Slot Length mm | Slot NO. NO./m | Slot width mm | Slot Tolerance | Valid Filter Area cm/m | Max. Strength KN | ||
Spec mm | Thickness mm | Per Weight mm | ||||||||
60.32 | 5 | 6.84 | 50.3 | 3 | 80 | 200 | 0.3 | ±50 | 48 | 512.54 |
73.02 | 5.5 | 9.15 | 62 | 240 | 57.6 | 688.55 | ||||
88.9 | 6.5 | 13.22 | 75.9 | 280 | 67.2 | 995.1 | ||||
101.6 | 6.5 | 15.22 | 88.6 | 300 | 72 | 1151.2 | ||||
114.3 | 7 | 18.47 | 100.3 | 10 | 320 | 76.8 | 1400.4 | |||
127 | 7.52 | 22.13 | 112 | 340 | 81.6 | 1673.8 | ||||
139.7 | 7.72 | 25.11 | 124.3 | 360 | 86.4 | 1900.2 | ||||
9.17 | 29.48 | 121.4 | 360 | 86.4 | 2232.4 | |||||
168.3 | 8.94 | 35.09 | 150.4 | 400 | 96 | 2672.95 | ||||
177.8 | 8.05 | 33.68 | 161.7 | 440 | 105.6 | 2559.2 | ||||
9.19 | 38.19 | 159.4 | 440 | 105.6 | 2940.7 | |||||
The above specifications are for reference only, our technical staff can be designed according to customer requirements You Need. |
✔ Robust & Cost-Effective – Ideal for extended completions or low-productivity wells.
✔ Custom Slotting Options – Available in straight or keystone slot patterns with optimized open area ratios.
✔ Superior Durability – High rigidity, abrasion-resistant, corrosion-resistant, and evenly distributed slots for consistent flow.
Q:Where is your company located? Could I visit your factory? A:Our company is located in Xinxiang city,Henan province, China. Sincerely invite you to visit our factory. |
Q:Can you supply the sample? A:We could offer the sample for free but the cost of freight is extra. |
Q:What payment term do you accept? A:T/T ,L/C at sight, Western Union, and other mainstream payment term. |
Q:How about the delivery time? A:Usually within 3-30 days after receiving the deposit. |
Q:IS factory or trading company? A:We has own factory, professional on wedge wire screen and filters production and export for more than 10 years. |
Q:How about the MOQ? A:MOQ according to different product, sometimes MOQ decided by customer. |
Q:Where is your Market? A:We have been exporting to more than 120 different countries and regions all over the world. |
Q:How about your sales service? A:Market promotion support and best after sales service will be offered to every customer. |
Q:How does your factory do regarding QC? A:Quality is priority. We always consider quality as the most important thing during the whole production process. Our factory has gained ISO9001. |
Q:Can you offer OEM or design services? A:Yes, We design and manufacture our products by ourselves. We can make OEM according to your requirements, including packing, logo print etc.
|
15 Years of Expertise – Advanced manufacturing supported by professional R&D and stringent quality control.
Competitive Pricing – Economical large-scale production ensures affordability without sacrificing performance.
Reliable & Efficient – Combines high tensile strength with precision engineering for optimal sand management.
Upgrade your well completion with a high-strength, low-maintenance solution that maximizes productivity and longevity. Contact us today for tailored specifications!
