Slotted Well Screen ndash Versatile and Effective Sand Control for Various Well Conditions in Oil Gas Production

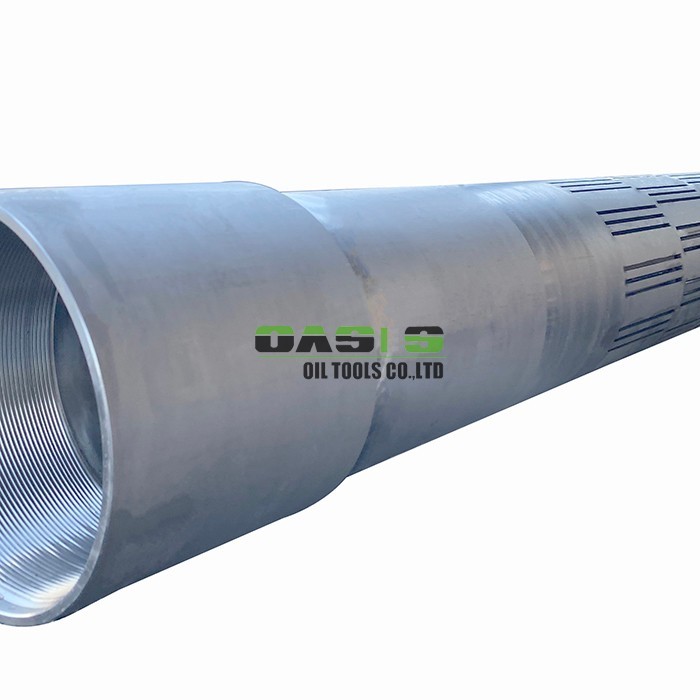

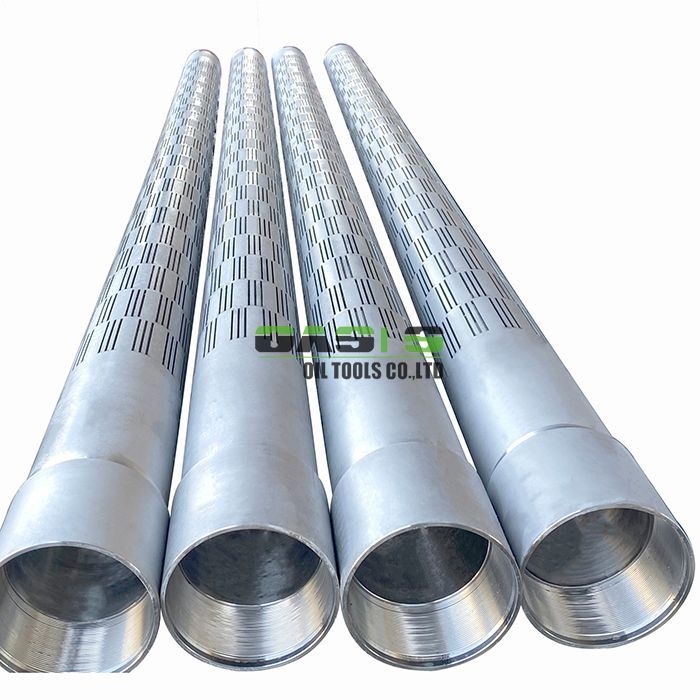

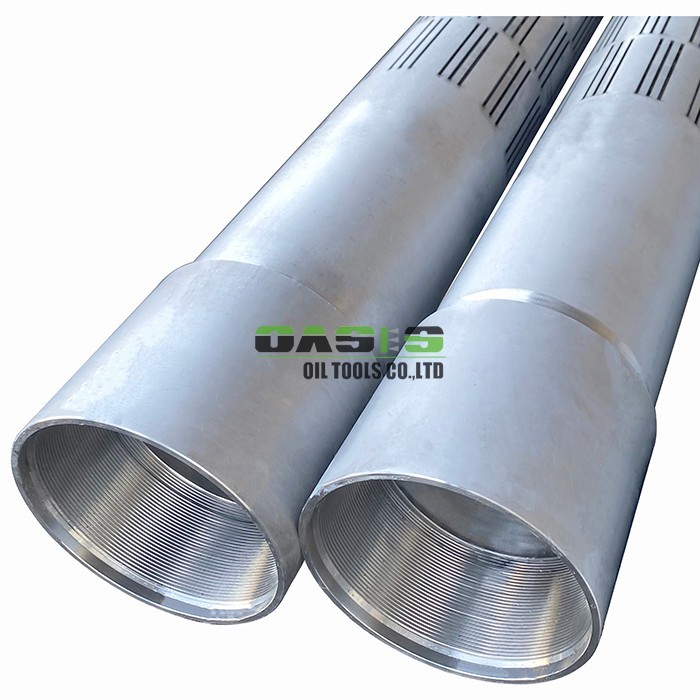

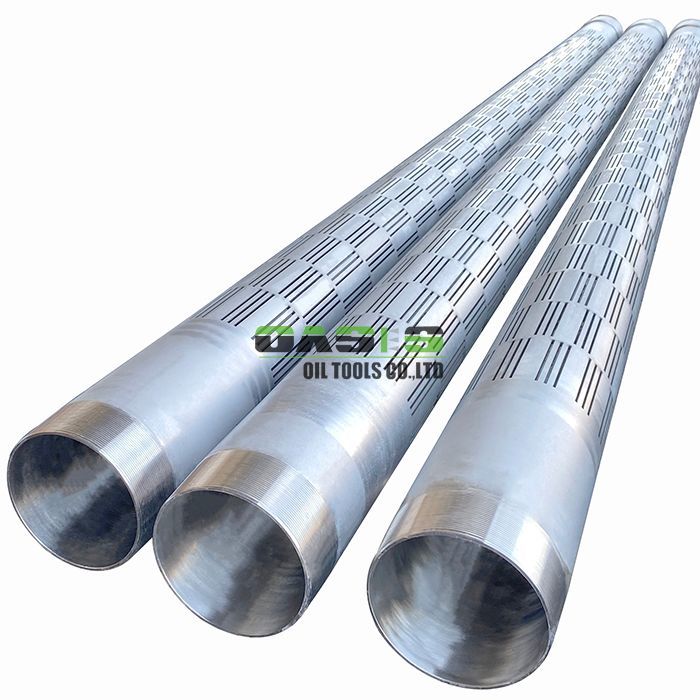

Slotted Casing Pipe – Reliable Sand Control for Oil & Gas Wells















Slotted casing pipe is a critical component used in oil and gas wells to prevent sand production, enhance well stability, and maintain long-term productivity. Available in a wide range of sizes, materials, and slot configurations, it offers customized solutions for different well conditions.













Outside Diameter (O.D.):
Casing: 4½″ – 20″ (114.3 – 508 mm)
Tubing: 1.05″ – 4½″ (26.7 – 114.3 mm)





Length: 4.88 – 14.63 meters (available in range categories R1 to R3)





Wall Thickness: 0.205″ – 0.875″ (5.21 – 22.22 mm)





Materials: Grades including J55, K55, N80, L80, C90, T95, P110, Q125, and corrosion-resistant options like L80-9Cr/13Cr.





Standards Compliant: API 5CT, ISO 11960, GOST, JIS, and other international certifications.





API Casing			ID mm	Length m	Slot Length mm	Slot No.No./m	Slot width mm	Slot Tolerance	Valid Filter Area cm/m	Max. Strength KN
Spec mm	Thickness mm	Per Weight kg/m
60.32	5	6.84	50.3	3	80	200	0.3	±50	48	512.54
73.02	5.5	9.15	62			240			57.6	688.55
88.9	6.5	13.22	75.9			280			67.2	995.1
101.6	6.5	15.22	88.6			300			72	1151.2
114.3	7	18.47	100.3	10		320			76.8	1400.4
127	7.52	22.13	112			340			81.6	1673.8
139.7	7.72	25.11	124.3			360			86.4	1900.2
	9.17	29.48	121.4			360			86.4	2232.4
168.3	8.94	35.09	150.4			400			96	2672.95
177.8	8.05	33.68	161.7			440			105.6	2559.2
	9.19	38.19	159.4			440			105.6	2940.7

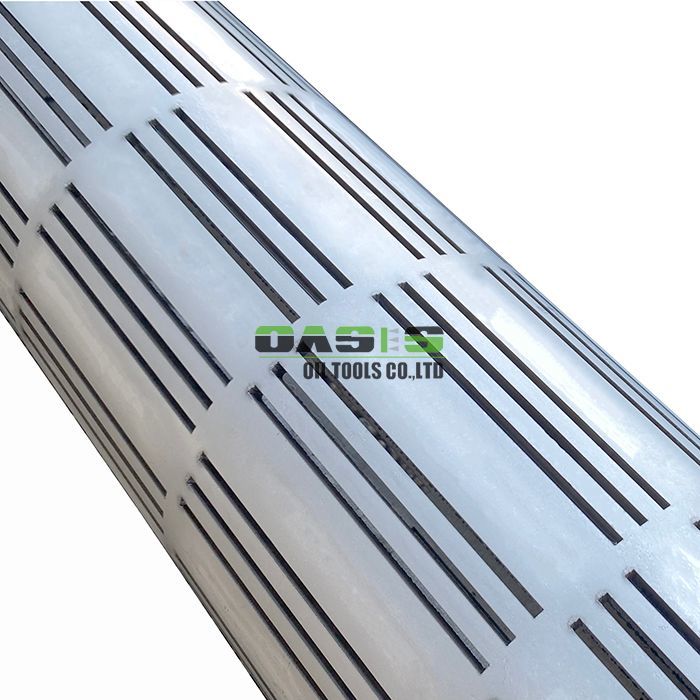

We offer multiple slot designs to match your sand control needs:



Straight Slots: Cost-effective, uniform design, suitable for moderate sand conditions.



Keystone Slots: Tapered shape prevents plugging and offers superior sand retention.









Patterns include straight-line, staggered, and gang (multi-staggered) layouts. The gang pattern is ideal for high-torque and thermal applications such as SAGD wells.











1. Improves well integrity and inflow performance
2. Reduces sand-related damage and downtime
3. Compatible with various threading types (STC, LTC, BTC, NU, EU, etc.)
4. Durable construction available in multiple steel grades











All pipes are manufactured under API/ISO quality systems and are available with third-party inspection (SGS, BV, DNV).
